NOTES

35B-1

GROUP 35B

ANTI-LOCK

BRAKING SYSTEM

(ABS)

CONTENTS

GENERAL DESCRIPTION. . . . . . . . .

35B-2

ANTI-LOCK BRAKING SYSTEM (ABS)
DIAGNOSIS . . . . . . . . . . . . . . . . . . . .

35B-4

INTRODUCTION TO ANTI-LOCK BRAKING
SYSTEM DIAGNOSIS  . . . . . . . . . . . . . . . .

35B-4

ABS DIAGNOSTIC TROUBLESHOOTING
STRATEGY. . . . . . . . . . . . . . . . . . . . . . . . .

35B-4

DIAGNOSTIC FUNCTION . . . . . . . . . . . . .

35B-5

DIAGNOSTIC TROUBLE CODE CHART. .

35B-9

DIAGNOSTIC TROUBLE CODE
PROCEDURES. . . . . . . . . . . . . . . . . . . . . .

35B-10

SYMPTOM CHART. . . . . . . . . . . . . . . . . . .

35B-81

SYMPTOM PROCEDURES . . . . . . . . . . . .

35B-82

DATA LIST REFERENCE TABLE  . . . . . . .

35B-94

ACTUATOR TEST REFERENCE TABLE. .

35B-94

CHECK AT ABS-ECU. . . . . . . . . . . . . . . . .

35B-95

SPECIAL TOOLS. . . . . . . . . . . . . . . .

35B-98

ON-VEHICLE SERVICE . . . . . . . . . . .

35B-100

WHEEL SPEED SENSOR OUTPUT
VOLTAGE MEASUREMENT. . . . . . . . . . . .

35B-100

HYDRAULIC UNIT CHECK . . . . . . . . . . . . .

35B-102

IN THE EVENT OF A DISCHARGED
BATTERY  . . . . . . . . . . . . . . . . . . . . . . . . . .

35B-104

HYDRAULIC UNIT  . . . . . . . . . . . . . . .

35B-105

REMOVAL AND INSTALLATION . . . . . . . .

35B-105

WHEEL SPEED SENSOR  . . . . . . . . .

35B-107

REMOVAL AND INSTALLATION . . . . . . . .

35B-107

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

35B-108

SPECIFICATIONS  . . . . . . . . . . . . . . .

35B-109

FASTENER TIGHTENING
SPECIFICATION . . . . . . . . . . . . . . . . . . . . .

35B-109

GENERAL SPECIFICATIONS  . . . . . . . . . .

35B-109

SERVICE SPECIFICATION  . . . . . . . . . . . .

35B-109

GENERAL DESCRIPTION

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-2

GENERAL DESCRIPTION

M1352000100454

FEATURES

The 4ABS ensures directional stability and control
during hard braking.
This ABS uses a 4-sensor 4-channel system that
controls all four wheels independently of each other.
The basic system is the same as that for the Lancer.

• EBD (Electronic Brake-force Distribution system)

control provides the ideal braking force for the
rear wheels.

• To shorten the harness wires and enhance data

transmission reliability, communication with other
ECU is performed over a CAN (Controller Area
Network).
NOTE: For further details on CAN communica-
tion, refer to GROUP 54C, CAN.

• Fail-safe function ensures that safety is main-

tained.

• Diagnostic function provides improved service-

ability.

EBD CONTROL

In ABS, electronic control is used so the rear wheel
brake hydraulic pressure during braking is regulated
by rear wheel control solenoid valves in accordance
with the vehicle's rate of deceleration. The front and
rear wheel slippage are calculated from the signals
received from the various wheel sensors. EBD con-
trol provides a high level of control for both vehicle
braking force and vehicle stability. The system has
the following features:

• Because the system provides the optimum rear

wheel braking force regardless of vehicle load
and the condition of the road surface, the system
reduces the required pedal depression force, par-
ticularly when the vehicle is heavily loaded.

• Because the duty placed on the front brakes is

reduced, the increases in pad temperature can
be controlled during front brake application to
improve pad wear.

• Control valves such as the proportioning valve

are not required.

GENERAL DESCRIPTION

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-3

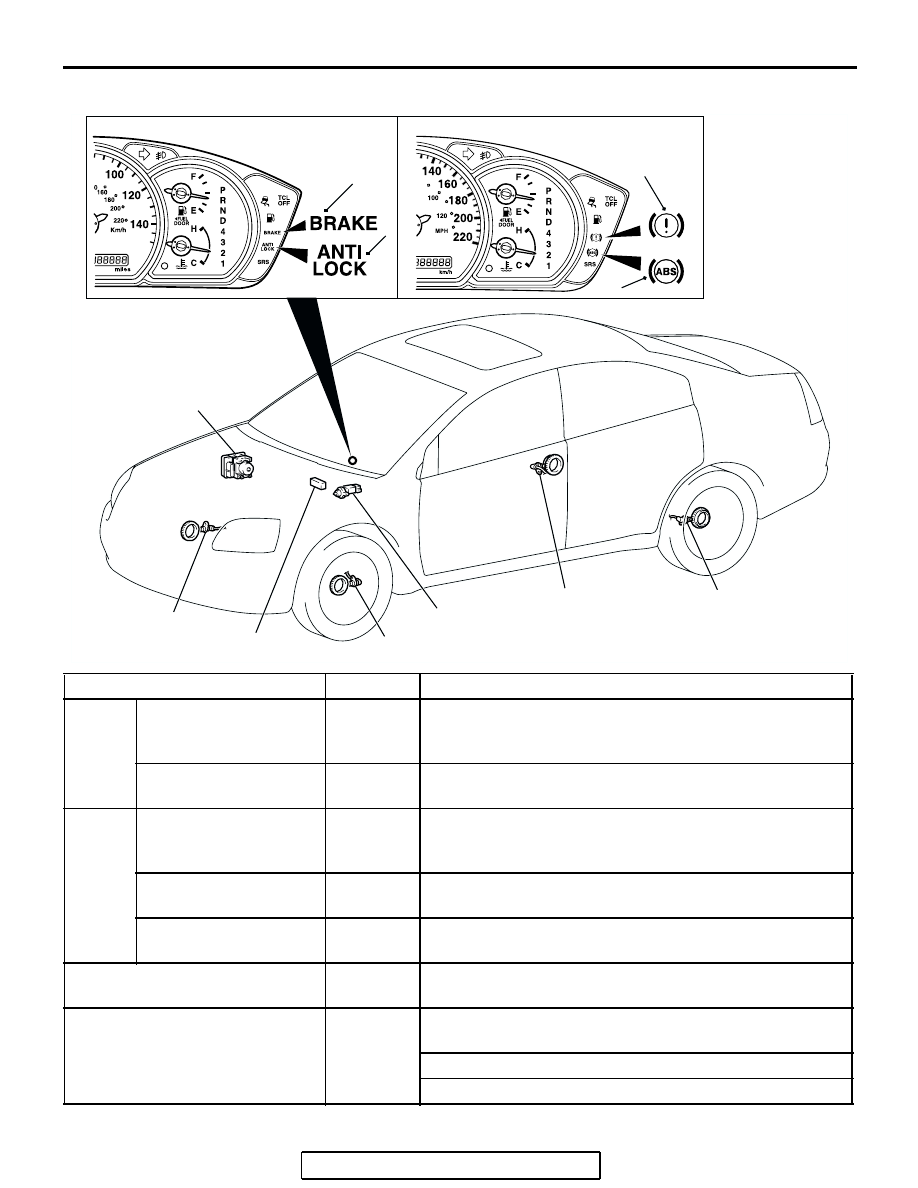

CONSTRUCTION DIAGRAM

AC306051

AB

1

1

3, 7

5

2

4

1

1

6

5

4

VEHICLES FOR CANADA

VEHICLES FOR USA

NAME OF PART

NUMBER

OUTLINE OF FUNCTION

Sensor

Wheel speed sensor

1

Sends alternating current signals at frequencies which are
proportional to the rotation speeds of each wheel to the
ABS-ECU.

Stoplight switch

2

Sends a signal to the ABS-ECU to indicate whether the
brake pedal is depressed or not.

Actuator Hydraulic unit

3

Drives the solenoid valves according to signals from the
ABS-ECU in order to control the brake hydraulic pressure
for each wheel.

ABS warning light

4

Illuminates in response to signals from the ABS-ECU
when a problem develops in the ABS system.

Brake warning light

5

Illuminates in response to signals from the ABS-ECU
when a problem develops in the EBD system.

Data link connector

6

Outputs the diagnostic trouble codes and allows
communication with the scan tool.

ABS-ECU

7

Controls actuators (described above) based on the signals
coming from each sensor.
Controls the self-diagnosis and fail-safe functions.
Controls the diagnostic function (scan tool compatible).
