MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-276

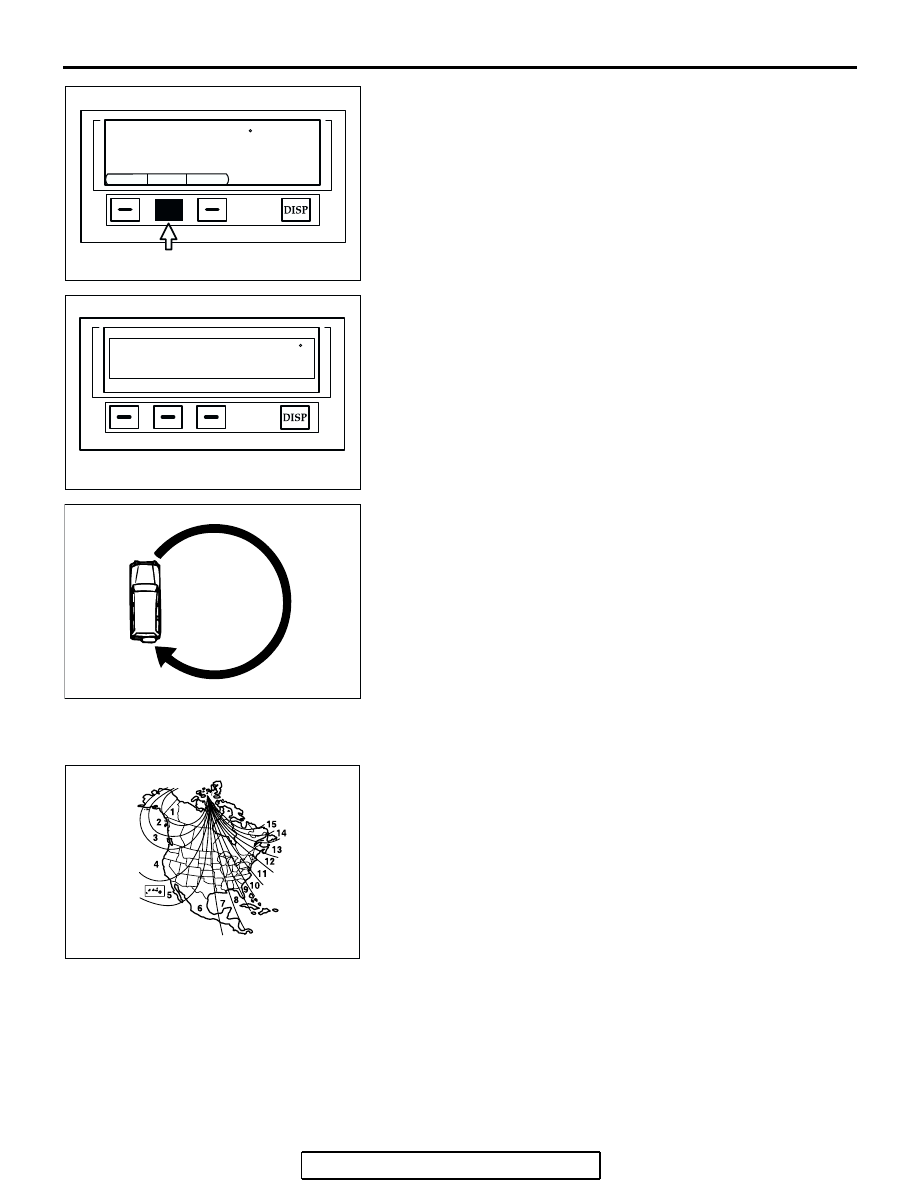

5. Choose function button switch 2 ("YES") on the compass

calibration screen.

6. After the message is shown, drive the vehicle in one circle.
7. If the calibration is made successfully, the display unit

buzzer will sound twice.

NOTE: If the calibration fails, a message will appear to indicate
it.

Deflection Angle Compensation

COMPASS CALIBRATION
Under certain circumstances, as during a long distance cross
country trip, it will be necessary to adjust for compass variance.
Compass variance is the difference between earth's magnetic
north and true geographic north.
If not adjusted to account for compass variance, compass
could give false readings.
ADJUST FOR COMPASS VARIANCE

(Compass)

NO

YES

RETURN

Drive vehicle slowly through a 360

Select NO if you do not wish to perfo

turn in a safe, open place.

Select YES if you wish to perform now.

-rm now.

AC208553

AB

(Compass)

Drive vehicle slowly through a 360

turn in a safe, open place.

AC208554AB

AB

AC001243 AB

A002229 AB

MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-277

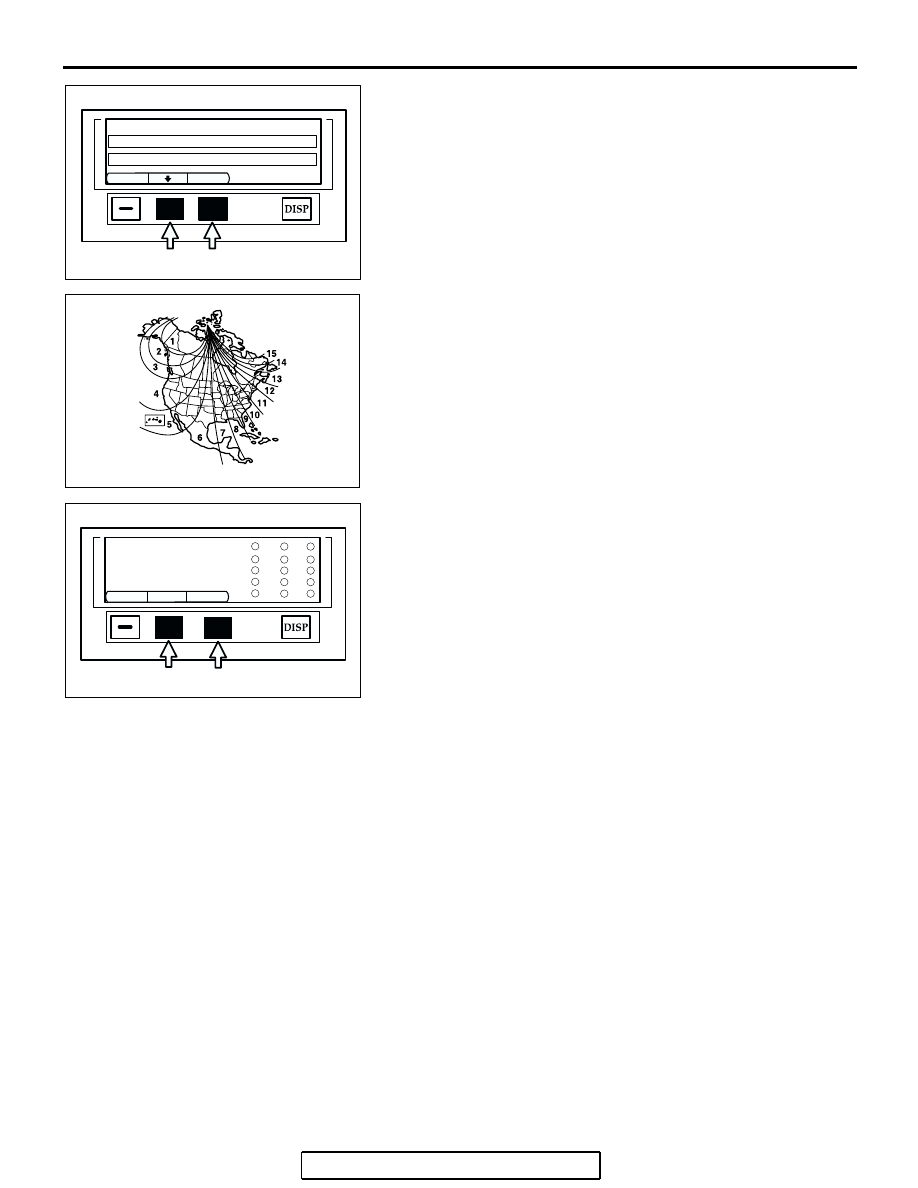

1. Choose "zone code setting" by pressing function button

switch 2 on the compass selection screen, and press
function button switch 3 (ENTER).

2. Find current location and variance zone number on the zone

map.

3. Enter the zone number to calibrate the compass.
4. If the calibration is made successfully, the display unit

buzzer will sound twice.

NOTE: If the calibration fails, a message will appear to indicate
it.
NOTE: Do not install the ski rack, antenna, etc., which are
attached to the vehicle by means of a magnet. They affect the
operation of compass.
NOTE: The compass may not indicate the correct compass
direction in the place shown below:

.

•

Tunnels

•

Railroads

•

Underpass/Overpass

•

Transforming station

•

Large metal structures

•

Area over the subway

Zone code setting

Compass calibration

(Compass)

RETURN

ENTER

AC208552AC

A002229 AB

(Compass)

NO

YES

RETURN

Select correct
zone code

AC209292

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

AB

MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-278

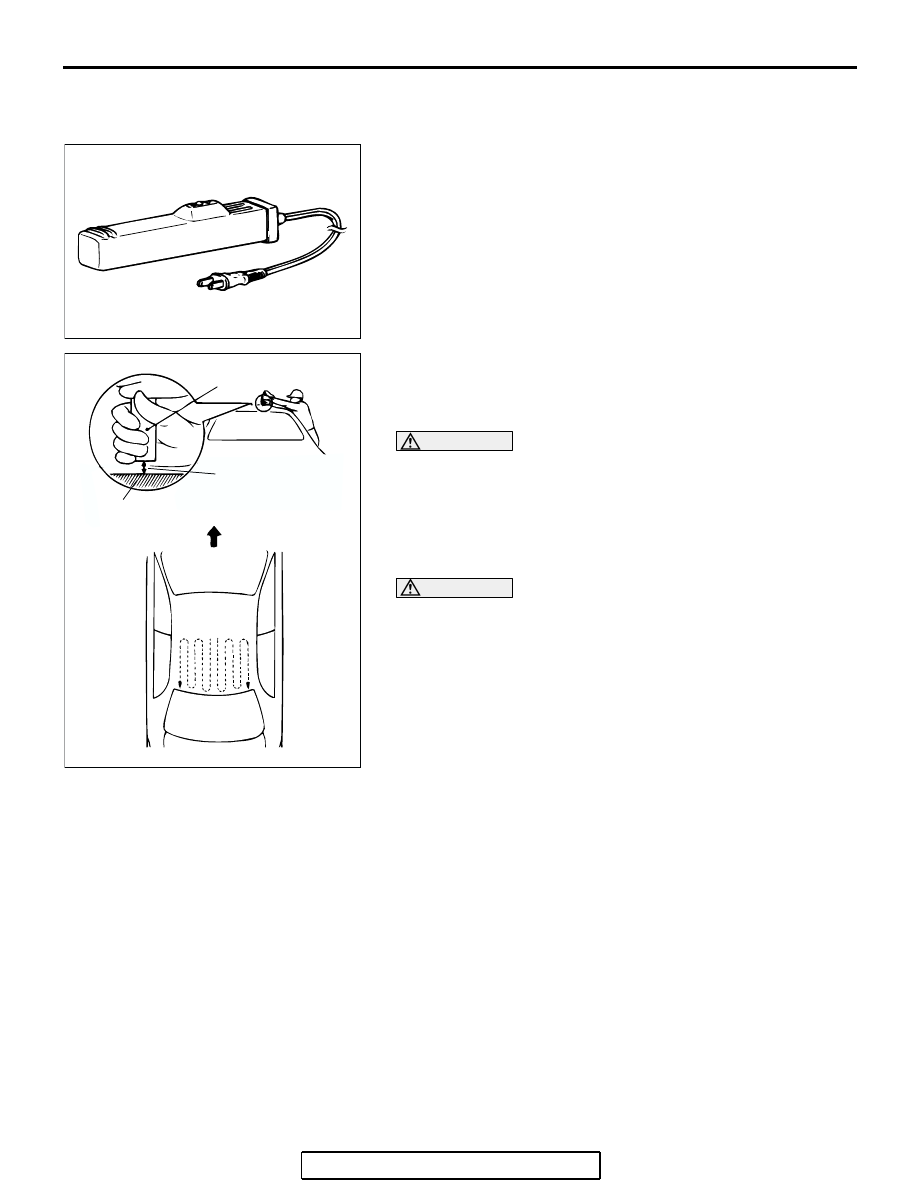

VEHICLE MAGNETIC COMPENSATION

M1543009700181

Demagnetization and correction method

1. Demagnetize the body using a commercial demagnetizer.

2. While keeping the distance between the tip of demagnetizer

and the roof panel to approximately 5 cm (2.0 inches), move
the demagnetizer slowly with a sweeping manner on the
rear-half surface of roof panel.

CAUTION

If the tip of demagnetizer touches the roof panel, the mag-
netizing condition of body becomes worse to the contrary.
Absolutely avoid this.
3. Slowly draw the demagnetizer apart from the body. Turn off

the switch of demagnetizer when it is apart from the body
more than 5 cm (2.0 inches).

CAUTION

If the demagnetizer is turned off near the body or it is sud-
denly separated from the body, the magnetizing condition
of body becomes worse to the contrary. Absolutely avoid
these.

AC001246AB

COMMERCIAL DEMAGNETIZER

AC001247

FRONT

DEMAGNETIZER

AB

APPROXIMATELY
5cm(2.0 in)

ROOF PANEL

MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-279

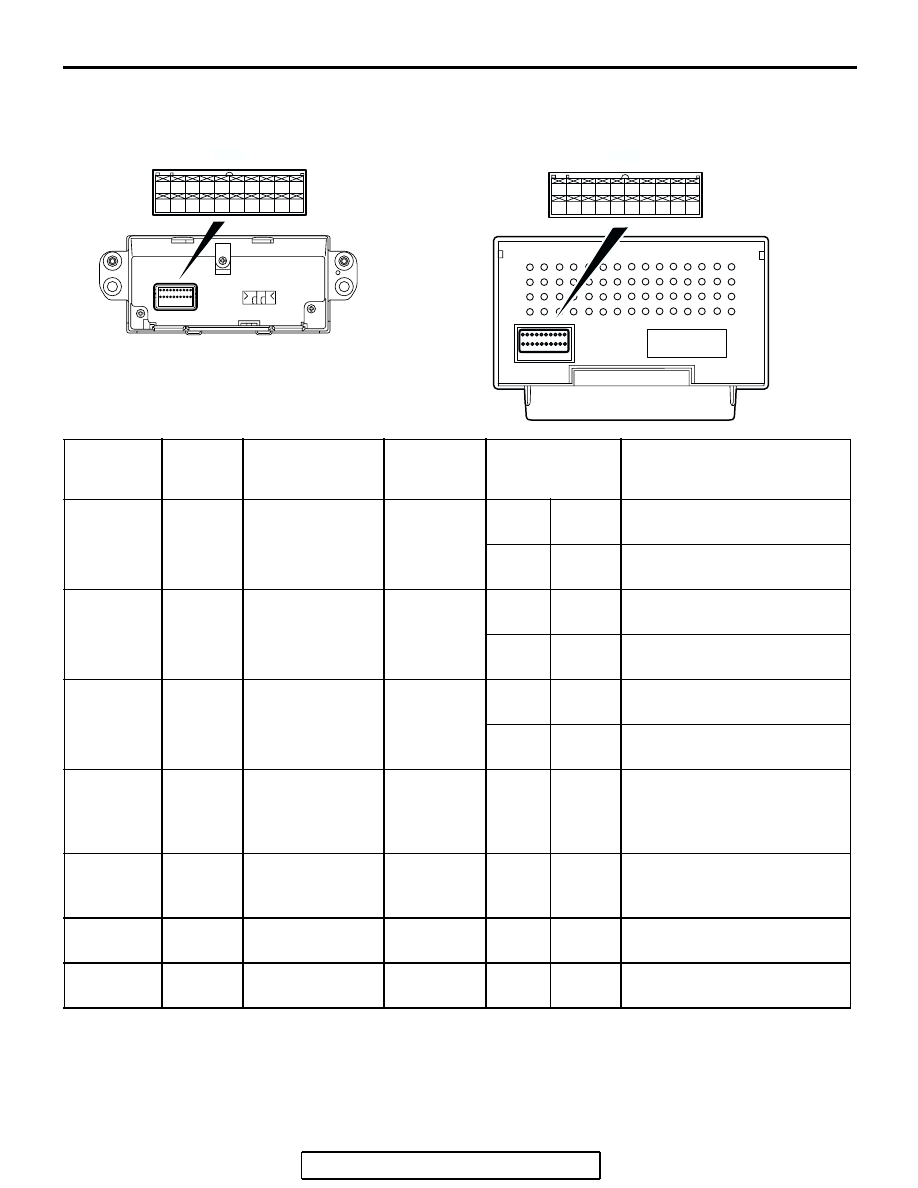

CHECK AT MULTI CENTER DISPLAY UNIT TERMINAL

M1543007600519

1

2

11 12

3 4

13 14

5

6

15 16

7

8

17 18

9 10

19 20

C-06

AC210139

1

2

11 12

3 4

13 14

5

6

15 16

7

8

17 18

9 10

19 20

C-06

AC

C-05

C-05

<LOW GRADE TYPE>

<MIDDLE GRADE TYPE>

TERMINAL
NO.

INPUT/
OUTPUT

SIGNAL SYMBOL TERMINAL

VOLTAGE
(V)

HARNESS
DISCREPANCY

FAILURE SYMPTOM DUE TO
HARNESS DISCREPANCY

1

Input

Battery (Battery
power supply)

Battery
positive
voltage

Open
circuit

−

Screen is not displayed. All
operations are not possible.

−

Short
circuit

Fuse is blown.

2

Input

Ignition switch
(IG1)

Battery
positive
voltage

Open
circuit

−

Screen is not displayed. All
operations are not possible.

−

Short
circuit

Fuse is blown.

3

Input

Ignition switch
(ACC)

Battery
positive
voltage

Open
circuit

−

Screen is not displayed. All
operations are not possible.

−

Short
circuit

Fuse is blown.

4

Input

ILL + (lighting
switch)

Hi: Battery
positive
voltage
Lo: 0

− 1

Open
circuit

Short
circuit

Not lighted.

5

Output

ILL - (illumination
light control
signal)

0.4

Open
circuit

Short
circuit

display brightness control is
not possible.

6

−

GND

0

Open
circuit

−

Screen is not displayed.

7 Input/out

put

SB3

−

−

−

−
