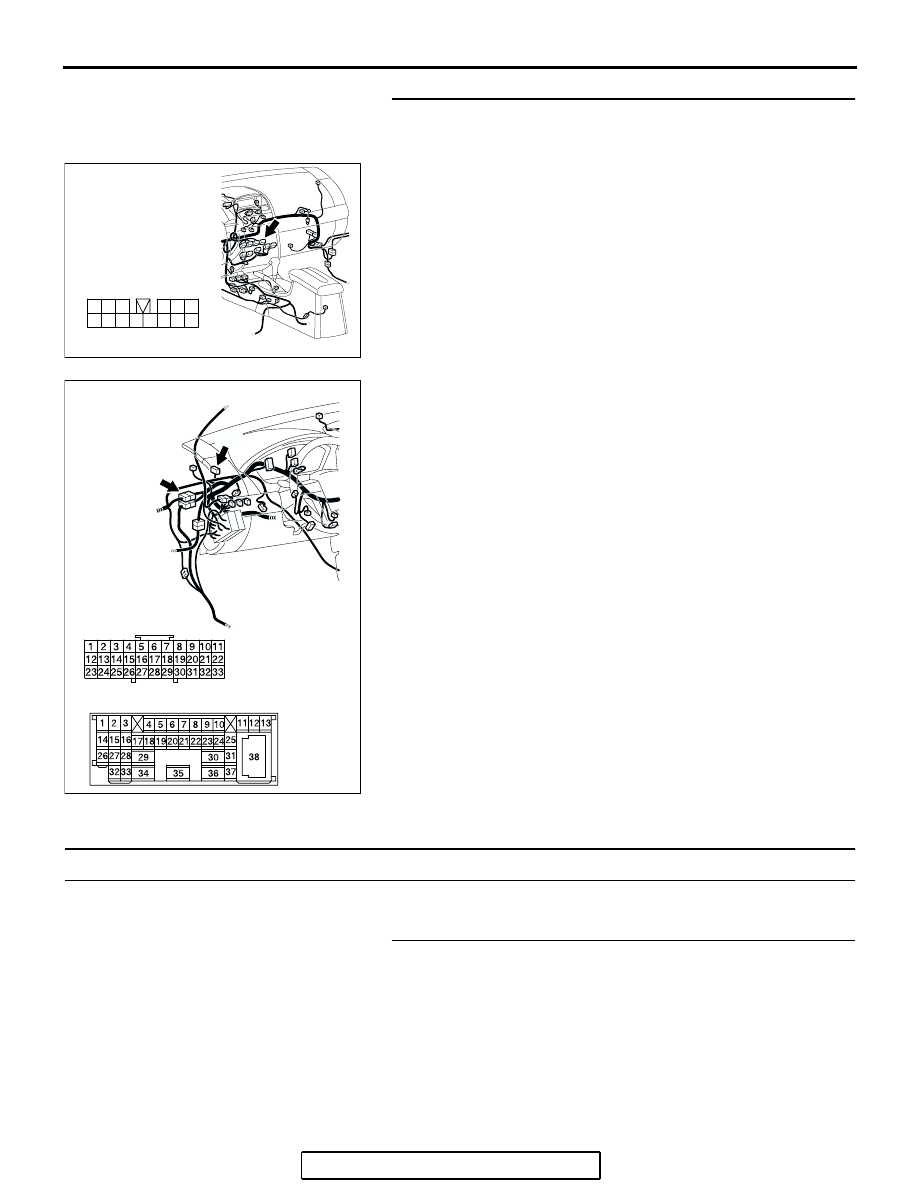

RADIO WITH CD PLAYER TSB Revision CHASSIS ELECTRICAL 54A-200 STEP 3. Check the wiring harness between radio and CD NOTE: Also check intermediate connector C-29 and joint con- . Q: Is the wiring harness between radio and CD player or radio, CD player and CD changer connector C-111 CD player and CD changer. Check that a memory is NO : Repair the wiring harness. Check that a memory is retained. INSPECTION PROCEDURE 23: CD can not be Inserted. DIAGNOSIS STEP 1. Check that a CD has been already loaded. YES : Take out the CD (If the CD can not be ejected, refer to INSPECTION PROCEDURE 27 ). Check that a CD can be inserted. NO : Go to Step 2. AC305233 HARNESS SIDE 3 4 12 14 6 13 5 1110 8 2 7 1 BY CONNECTOR: C-111 AC305232 CONNECTORS: C-01, C-29 C-01 C-29 AS C-01 C-29 |
