RADIO WITH CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-196

INSPECTION PROCEDURE 20: Distortion on FM Only.

.

DIAGNOSIS

STEP 1. Check that the distortion is present when the radio
is tuned  to another station.
Q: Does the distortion persist when the radio is tuned to

another station?
YES :
Go to Step 2.
NO :  The signal from that station is too weak.

STEP 2. Relocate the reception area and check the radio.
Q: When relocating the reception area does the distortion

increase or decrease?
YES :
The cause may be multipath or fading noise.

Multipath noise is the echo that occurs when the
broadcast signal is reflected by a large obstruction
and enters the receiver with a slight time delay
relative to the direct signal (repetitious buzzing). A
fading or buzzing noise may occur when the
broadcast beam is disrupted by obstructing objects
and the signal strength fluctuates within a narrow
range.

NO :  Replace the radio and CD player or radio, CD player

and CD changer. Check that a distortion is resolved.

INSPECTION PROCEDURE 21: Auto Select Function Inoperative, too Few Automatic Stations are
Selected.

DIAGNOSIS

.

STEP 1. Check the number of radio stations.
Q: Are there sufficient numbers of radio stations within the

area?
YES :
Go to Step 2.
NO :  Go to Step 3.

STEP 2. Check the distance from the transmission
antenna.
Q: Is there a transmission antenna within a range of 2

miles?
YES :
Go to Step 4.
NO :  Go to Step 3.

RADIO WITH CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-197

STEP 3. The check if there are not that many radio stations
and when there is no transmission antenna in the vicinity.
Execute automatic selection and check to see that the stron-
gest radio frequency is receivable within the area.
Q: Is reception of the strongest radio frequency possible

within the area?
YES :
There is no action to be taken.
NO :  Go to Step 4.

STEP 4. Check to see if inspections are taking place is an
area exposed to special electric fields.
Q: Are inspections taking place under special electric field

conditions (underground garage, inside a building,
etc.)?
YES :
Go to Step 5.
NO :  Go to Step 6.

STEP 5. Relocate and check.
Automatically receive in a good reception area that is not
exposed to special electric fields.
Q: Is reception of the strongest radio frequency possible

within the area?
YES :
There is no action to be taken.
NO :  Go to Step 6.

STEP 6. Check the connection of the antenna feeder cable
and radio and CD player or radio, CD player and CD
changer.
Q: Is the antenna feeder cable thoroughly connected to the

radio and CD player or radio, CD player and CD
changer?
YES :
Repair or replace the radio and CD player or radio,

CD player and CD changer. The auto-select function
should operate normally.

NO :  Thoroughly connect the antenna feeder cable and the

radio and CD player or radio, CD player and CD
changer. The auto-select function should operate
normally.

RADIO WITH CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-198

INSPECTION PROCEDURE 22: Preset Stations are Erased.

.

CIRCUIT OPERATION

Power is continuously supplied to the radio and CD
player or radio, CD player and CD changer.

.

TECHNICAL DESCRIPTION (COMMENT)

The cause is probably a faulty radio and CD player or
radio, CD player and CD changer memory backup
power supply system circuit.

.

TROUBLESHOOTING HINTS

• Damaged wiring harness or connector.

• Malfunction of the radio and CD player or radio,

CD player and CD changer.

BATTERY

RELAY
BOX

RADIO AND CD PLAYER
                OR
RADIO, CD PLAYER AND
CD CHANGER

JOINT
CONNECTOR (1)

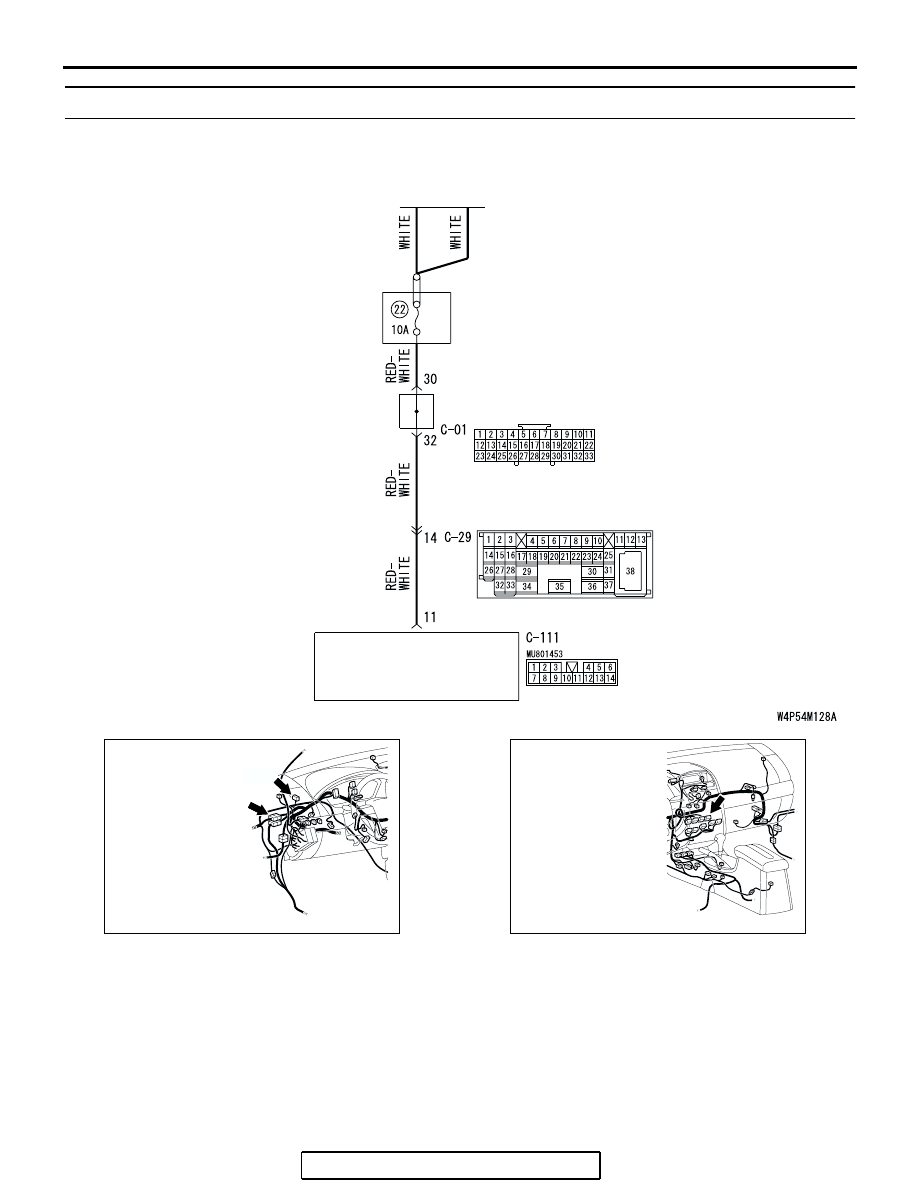

Memory Backup Power Circuit

AC305231

C-01

C-29

CONNECTORS: C-01, C-29

BI

AC305233BZ

CONNECTOR: C-111

RADIO WITH CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-199

DIAGNOSIS

Required Special Tool:

• MB991223: Harness set

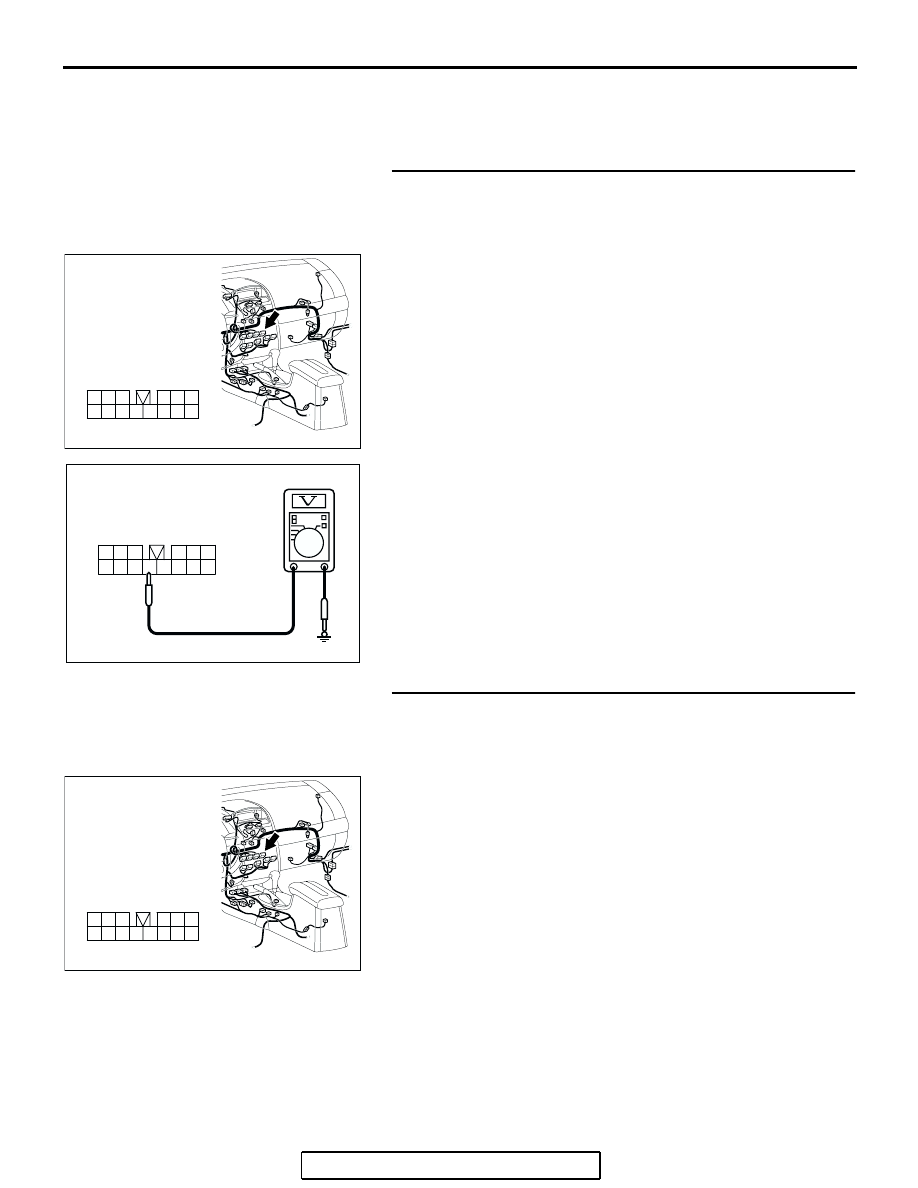

STEP 1. Measure at radio and CD player or radio, CD
player and CD changer connector C-111 in order to check
the power supply circuit to the radio and CD player or
radio, CD player and CD changer (through the battery).
(1) Disconnect radio and CD player or radio, CD player and CD

changer connector C-111, and measure at the wiring
harness side.

(2) Measure the voltage between terminal number 11 and

ground.

• The voltage should measure approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES :
Either repair or replace the radio and CD player or

radio, CD player and CD changer. Check that a
memory is retained.

NO :  Go to Step 2.

STEP 2. Check radio and CD player or radio, CD player and
CD changer connector C-111 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Q: Is radio and CD player or radio, CD player and CD

changer connector  C-111 in good condition?
YES :
Go to Step 3.
NO :  Repair or replace the component(s). Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Check

that a memory is retained.

AC305233

HARNESS SIDE

3
9

4

12

14

6

13

5

1110

8

2

7

1

BY

CONNECTOR: C-111

AC209365

3
9

4

12

14

6

13

5

1110

8

2

7

1

CONNECTOR C-111
(HARNESS SIDE)

HX

AC305233

HARNESS SIDE

3
9

4

12

14

6

13

5

1110

8

2

7

1

BY

CONNECTOR: C-111
