COMBINATION METER ASSEMBLY

TSB Revision

CHASSIS ELECTRICAL

54A-80

NOTE: Also check intermediate connector C-29 and joint con-
nector (1) C-01 for loose, corroded, or damaged terminals, or
terminals pushed back in the connector. If intermediate connec-
tor C-29 or joint connector (1) C-01 is damaged, repair or
replace. Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between combination meter

connector C-101 (terminal 1) and the fuse No.22 in good
condition?
YES : Retest the system.
NO :  Repair the wiring harness. Check that the

combination meter is normally.

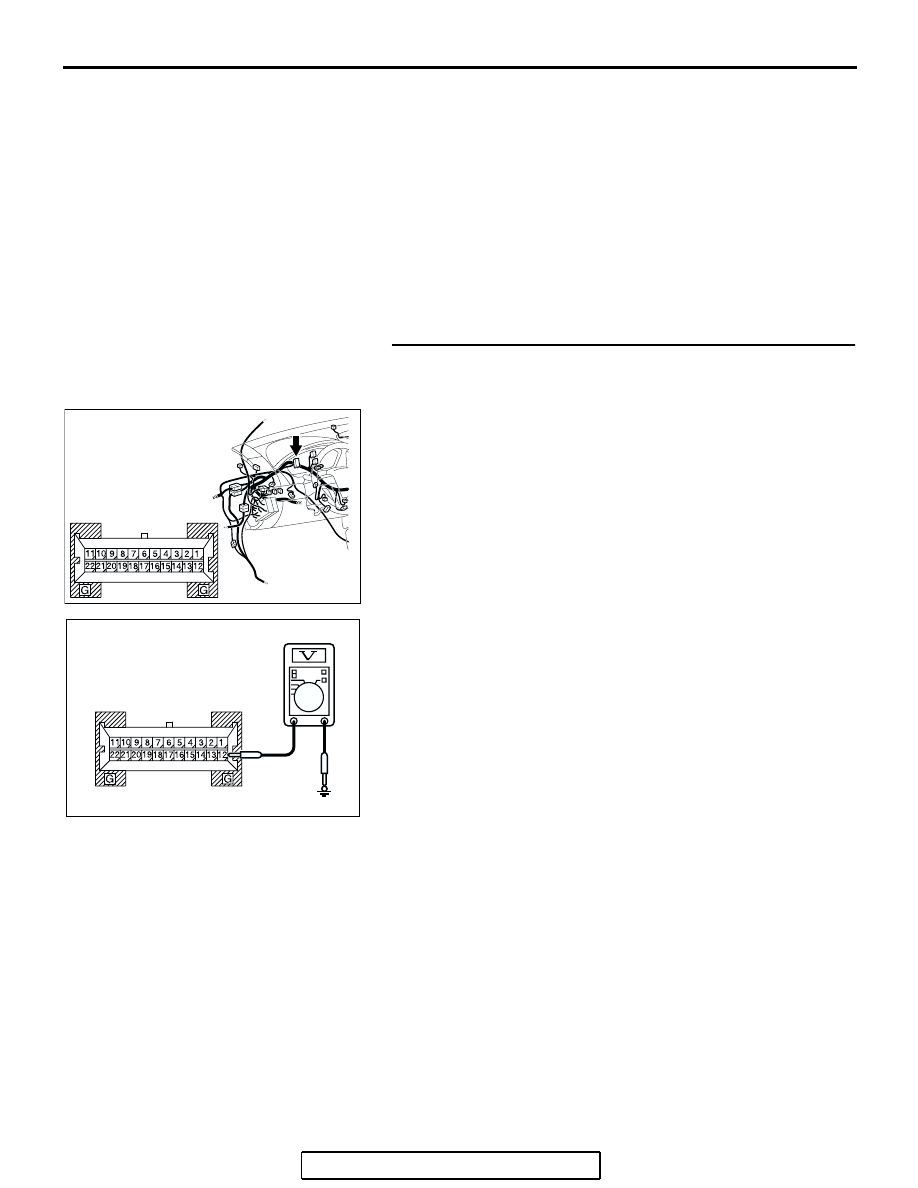

STEP 4. Measure the voltage at combination meter
connector C-101 in order to power supply circuit to
combination meter (IG1 power  supply).
(1) Disconnect combination meter connector C-101, and

measure at the wiring harness side.

(2) Turn the ignition switch to "ON" position.

(3) Measure the voltage between terminal 12 and ground.

• The voltage should measure approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 6.
NO :  Go to Step 5.

AC305231CT

CONNECTOR: C-101

HARNESS SIDE

AC209365

CONNECTOR C-101
(HARNESS SIDE)

HU

COMBINATION METER ASSEMBLY

TSB Revision

CHASSIS ELECTRICAL

54A-81

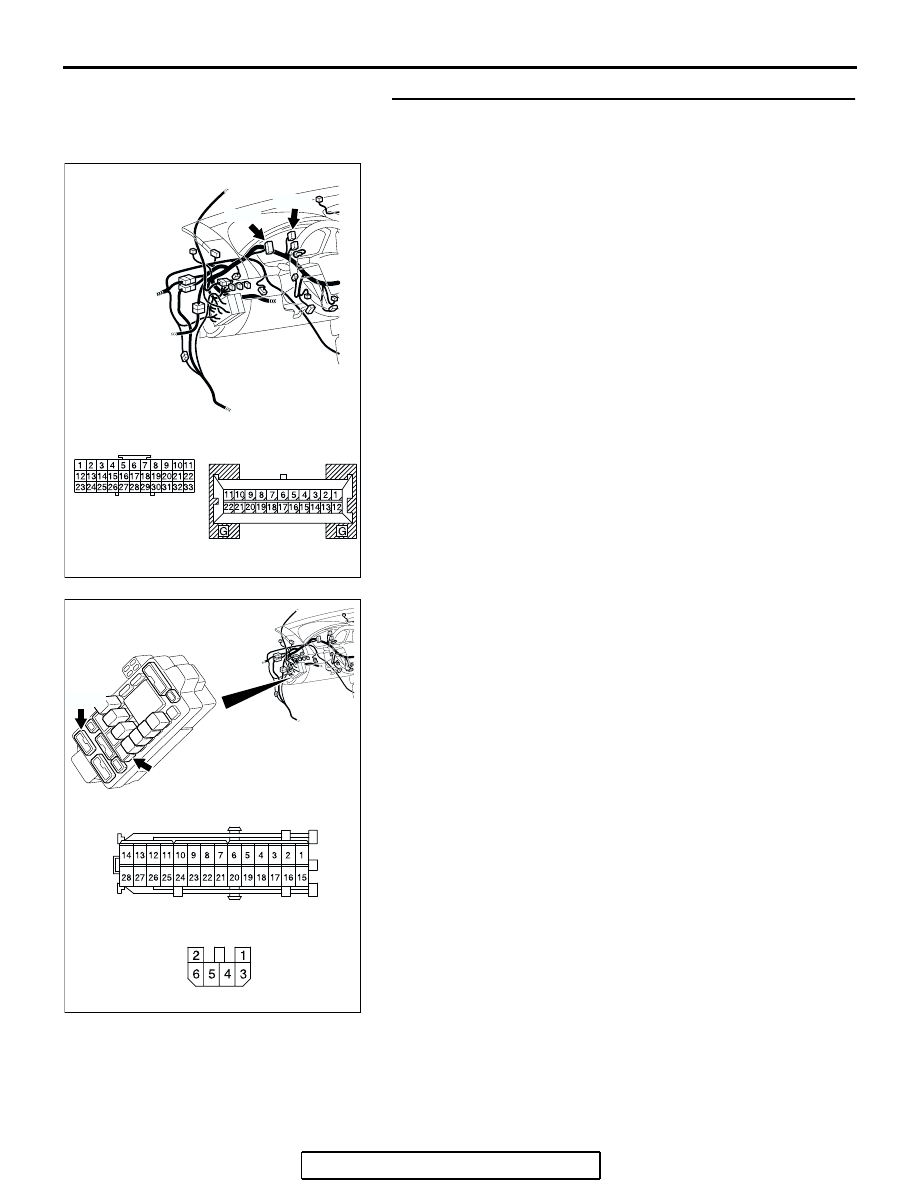

STEP 5. Check the wiring harness between combination
meter connector C-101 (terminal 12) and the ignition
switch (IG1)

NOTE: Also check joint connector (2) C-03, junction block con-
nector C-211 and C-215 for loose, corroded, or damaged termi-
nals, or terminals pushed back in the connector. If inspecting
joint connector (2) C-03 or junction block connector C-211 or
C-215 is damaged, repair or replace. Refer to GROUP 00E,
Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between combination meter

connector C-101 (terminal 12) and the ignition switch
(IG1) in good condition?
YES : Retest the system.
NO :  Repair the wiring harness. Check that the

combination meter is normally.

AC305232

CONNECTORS: C-03, C-101

AZ

C-101

HARNESS SIDE

C-101

C-03

C-03

AC305416

CONNECTORS: C-211, C-215

JUNCTION BLOCK
(FRONT VIEW)

C-215

C-211

HARNESS SIDE

C-211

HARNESS SIDE

C-215

AK

COMBINATION METER ASSEMBLY

TSB Revision

CHASSIS ELECTRICAL

54A-82

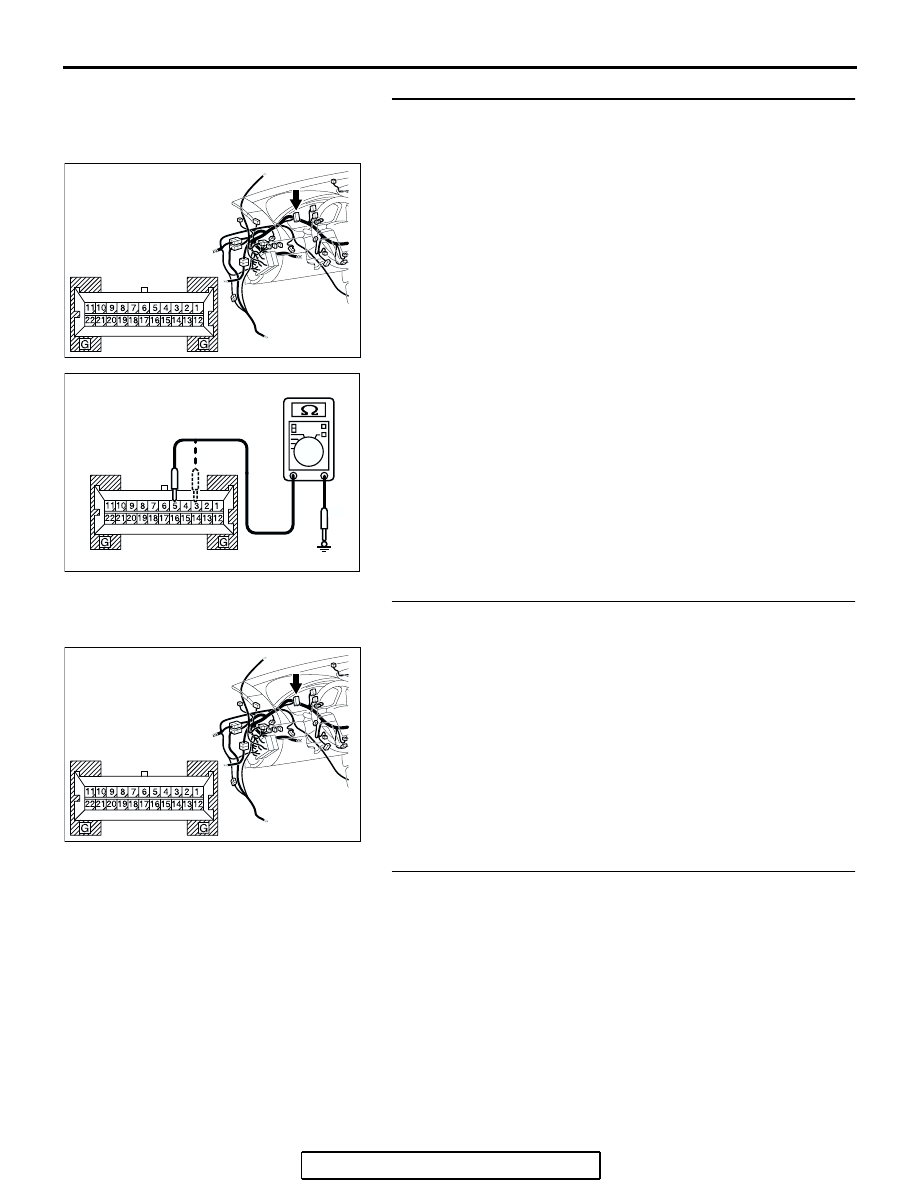

STEP 6. Measure the resistance at combination meter
connector C-101 in order to the ground circuit to the
combination meter.
(1) Disconnect combination meter connector C-101, and

measure at the wiring harness side.

(2) Measure the resistance value between terminal 3, 5 and

ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 8.
NO :  Go to Step 7.

STEP 7. Check the wiring harness between combination
meter connector C-101 (terminal 3 and 5) and ground.
Q: Is the wiring harness between combination meter

connector C-101 (terminal 3 and 5) and ground in good
condition?
YES : Retest the system.
NO :  Repair the wiring harness. Check that the

combination meter is normally.

STEP 8. Retest the system.
Q: Is the check result satisfactory?

YES : The procedure is complete. (If no malfunctions are

found in all steps, an intermittent malfunction is
suspected. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-14

).

NO :  Replace the combination meter.

AC305231CT

CONNECTOR: C-101

HARNESS SIDE

AC209364

CONNECTOR C-101
(HARNESS SIDE)

JR

AC305231CT

CONNECTOR: C-101

HARNESS SIDE

COMBINATION METER ASSEMBLY

TSB Revision

CHASSIS ELECTRICAL

54A-83

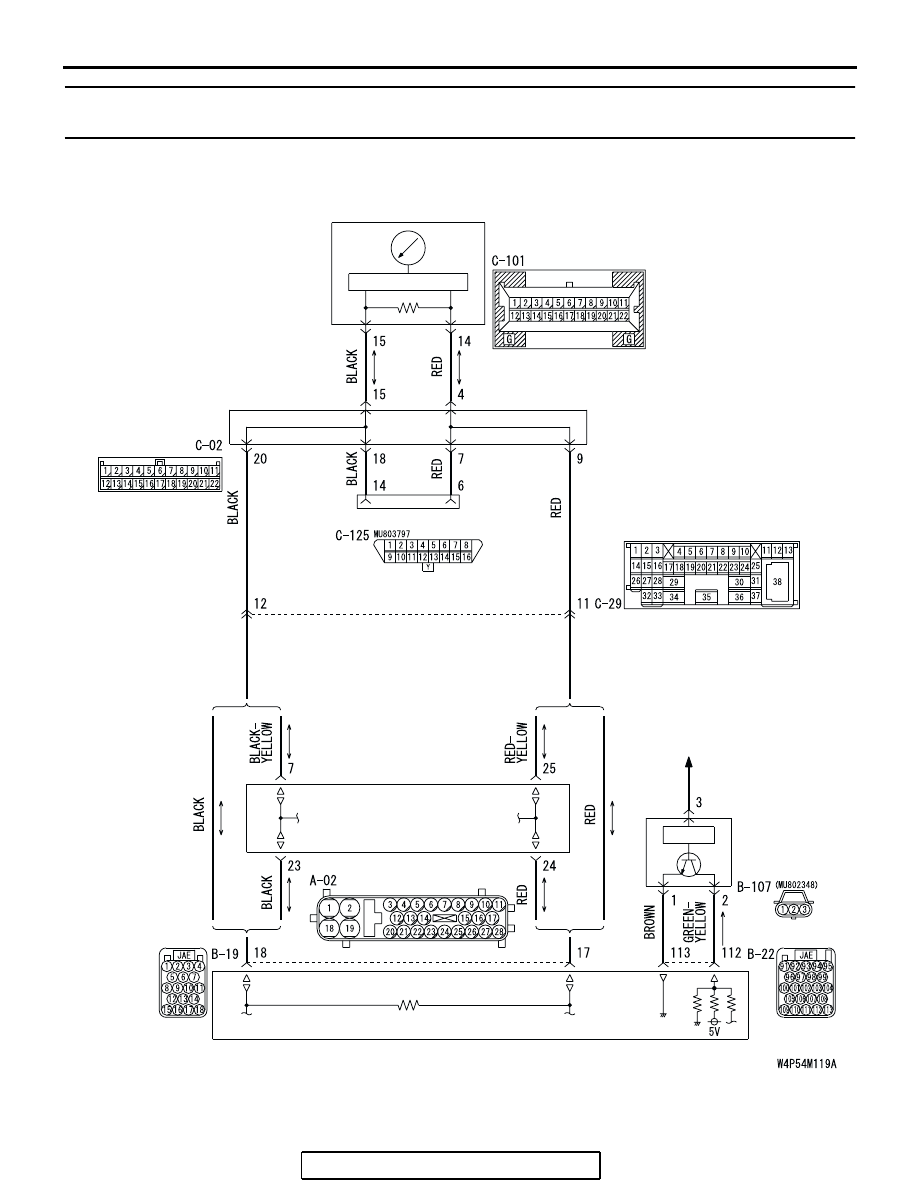

INSPECTION PROCEDURE 6: Speedometer does not Work. INSPECTION PROCEDURE 7: The Fuel
Gauge Needle Moves Excessively.

WITHOUT ELECTRONIC
BRAKE-FORCE
DISTRIBUTION (EBD)
AND ANTI-LOCK
BRAKING SYSTEM
(ABS)

WITHOUT ELECTRONIC
BRAKE-FORCE
DISTRIBUTION (EBD)
AND ANTI-LOCK
BRAKING SYSTEM
(ABS)

WITH ELECTRONIC
BRAKE-FORCE
DISTRIBUTION (EBD)
AND ANTI-LOCK
BRAKING SYSTEM
(ABS)

WITH ELECTRONIC
BRAKE-FORCE
DISTRIBUTION (EBD)
AND ANTI-LOCK
BRAKING SYSTEM
(ABS)

JOINT
CONNECTOR (3)

COMBINATION
METER

ABS-ECU OR ABS/TCL-ECU

DATA LINK CONNECTOR

POWERTRAIN CONTROL MODULE

SPEED
METER

CPU

OUTPUT
SHAFT
SPEED
SENSOR

TO IGNITION
SWITCH (IG1)

Speed Meter Circuit
