POWER STEERING HOSES

TSB Revision

POWER STEERING

37-62

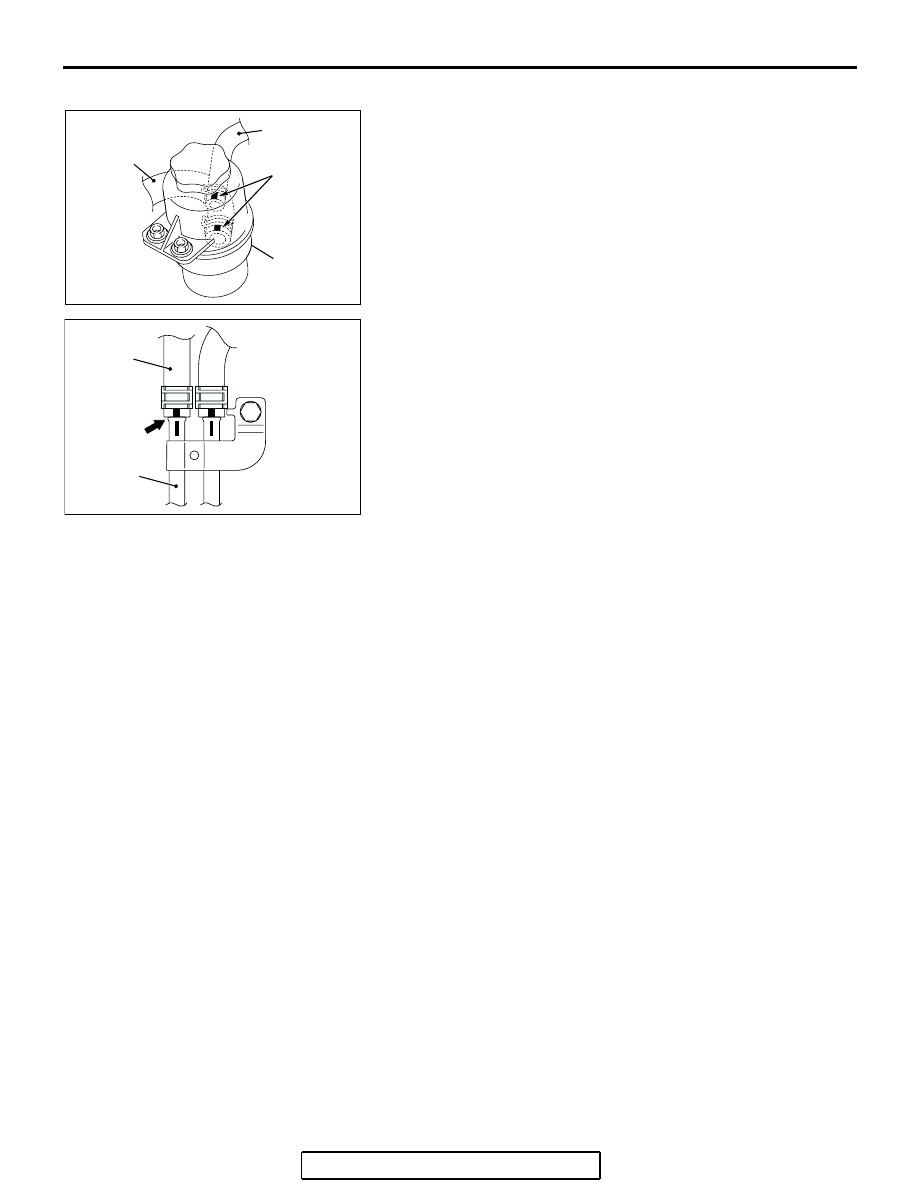

>>E<< RETURN HOSE (M) INSTALLATION

Install the return hose (M) so that the markings are positioned
as shown in the illustration.

.

AC307226AB

MARKING

SUCTION
HOSE

RETURN
HOSE (M)

OIL
RESERVOIR

AC205025

AC

RETURN
HOSE (M)

COOLER TUBE
ASSEMBLY

POWER STEERING HOSES

TSB Revision

POWER STEERING

37-63

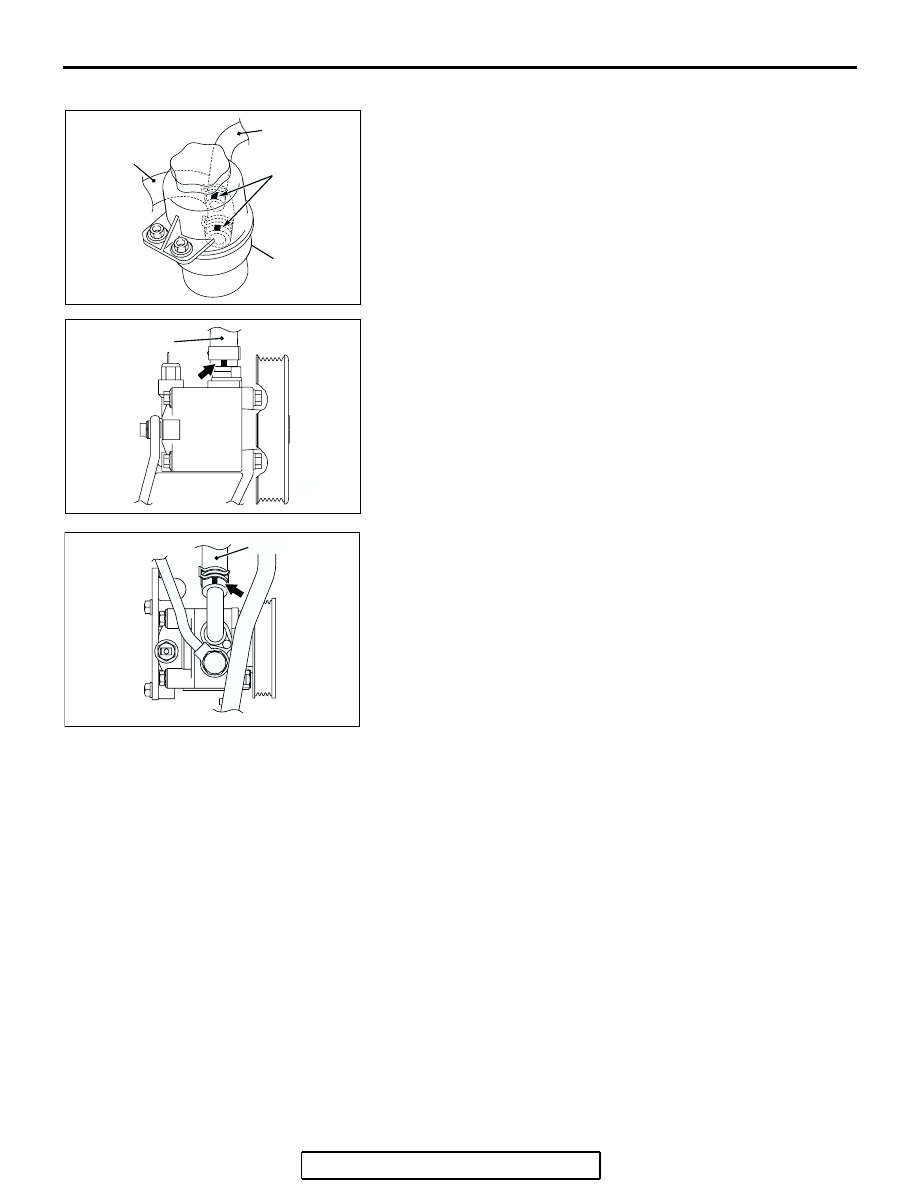

>>F<< SUCTION HOSE  INSTALLATION

Install the suction hose so that the marking is positioned as
shown in the illustration.

AC307226AB

MARKING

SUCTION
HOSE

RETURN
HOSE (M)

OIL
RESERVOIR

AC307220AC

SUCTION HOSE

<2.4L ENGINE>

AC205022

SUCTION HOSE

AD

<3.8L ENGINE>

SPECIFICATIONS

TSB Revision

POWER STEERING

37-64

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1372008400310

ITEM

SPECIFICATION

Power steering gear box and linkage (removal and installation)
Crossmember mounting bolt

180

± 20 N⋅m (133 ± 14 ft-lb)

Crossmember mounting nut

180

± 20 N⋅m (133 ± 14 ft-lb)

Front axle crossmember stay mounting bolt and nut

83

± 12 N⋅m (61 ± 9 ft-lb)

Lower arm and crossmember connecting nut

165

± 15 N⋅m (122 ± 11 ft-lb)

Power steering gear bracket mounting bolt

58

± 7 N⋅m (43 ± 5 ft-lb)

Pressure tube flare nut

15

± 3 N⋅m (11 ± 2 ft-lb)

Pressure hose mounting bolt and nut

12

± 2 N⋅m (102 ± 22 in-lb)

Rear roll stopper mounting bolt

58

± 7 N⋅m (43 ± 5 ft-lb)

Rear roll stopper to power steering gear bracket connecting bolt 58

± 7 N⋅m (43 ± 5 ft-lb)

Rear roll stopper to rear roll stopper bracket connecting nut

58

± 7 N⋅m (43 ± 5 ft-lb)

Return tube flare nut

15

± 3 N⋅m (11 ± 2 ft-lb)

Return tube mounting bolt and nut

12

± 2 N⋅m (102 ± 22 in-lb)

Steering column assembly and steering gear connecting bolt

18

± 2 N⋅m (13 ± 2 ft-lb)

Steering gear and linkage mounting bolt

83

± 12 N⋅m (61 ± 9 ft-lb)

Steering gear and linkage protector mounting bolt

12

± 2 N⋅m (102 ± 22 in-lb)

Tie rod

89

± 9 N⋅m (65 ± 7 ft-lb)

Tie rod end jam nut

52

± 2 N⋅m (38 ± 2 ft-lb)

Tie rod end to knuckle self-locking nut

29

± 4 N⋅m (21 ± 3 ft-lb)

Power steering gear box and linkage (disassembly and assembly)
P/S oil feed tube assembly flare nut

13

± 3 N⋅m (116 ± 26 in-lb)

Steering gear inner nut (pinion and valve assembly jam nut)

25

± 4 N⋅m (18 ± 3 ft-lb)

Steering gear inner nut (rack support cover jam nut)

59

± 10 N⋅m (44 ± 7 ft-lb)

Steering gear nut (tie rod end jam nut)

52

± 2 N⋅m (38 ± 2 ft-lb)

Steering gear plug (end plug)

59

± 10 N⋅m (44 ± 7 ft-lb)

Steering gear rack support cover

12

± 2 N⋅m (107 ± 17 in-lb)

Steering tie rod

84

± 14 N⋅m (62 ± 10 ft-lb)

Valve housing bolt

22

± 4 N⋅m (16 ± 3 ft-lb)

Power steering hose
Cooler tube clamp bolt <2.4L ENGINE>

12

± 2 N⋅m (102 ± 22 in-lb)

Oil pump eye bolt

57

± 7 N⋅m (42 ± 5 ft-lb)

Oil reservoir nut

12

± 2 N⋅m (102 ± 22 in-lb)

Pressure hose, pressure tube, return tube clamp bolt

12

± 2 N⋅m (102 ± 22 in-lb)

Pressure hose clamp nut <3.8L ENGINE>

12

± 2 N⋅m (102 ± 22 in-lb)

Pressure tube, return tube flare nut

15

± 3 N⋅m (11 ± 2 ft-lb)

Return tube clamp nut

12

± 2 N⋅m (102 ± 22 in-lb)

SPECIFICATIONS

TSB Revision

POWER STEERING

37-65

GENERAL SPECIFICATIONS

M1372000200282

Power steering oil pump
Belt tensioner bracket to power steering pump bracket
connecting bolt (long) <3.8L ENGINE>

41

± 8 N⋅m (30 ± 6 ft-lb)

Belt tensioner bracket to power steering pump bracket
connecting bolt (short) <3.8L ENGINE>

49

± 9 N⋅m (36 ± 7 ft-lb)

Belt tensioner pulley mounting nut <3.8L ENGINE>

15

± 4 N⋅m (11 ± 3 ft-lb)

Oil pump eye bolt

57

± 7 N⋅m (42 ± 5 ft-lb)

Power steering oil pump mounting bolt <2.4L ENGINE>

22

± 4 N⋅m (16 ± 3 ft-lb)

Power steering oil pump mounting bolt <3.8L ENGINE>

46

± 8 N⋅m (34 ± 6 ft-lb)

Power steering oil pump mounting nut <3.8L ENGINE>

42

± 7 N⋅m (31 ± 5 ft-lb)

Power steering oil pump bracket mounting bolt <2.4L ENGINE>  24

± 4 N⋅m (18 ± 3 ft-lb)

Power steering oil pump bracket mounting bolt <3.8L ENGINE>  41

± 8 N⋅m (30 ± 6 ft-lb)

Pressure hose clamp bolt <2.4L ENGINE>

12

± 2 N⋅m (102 ± 22 in-lb)

Pressure hose clamp nut <3.8L ENGINE>

12

± 2 N⋅m (102 ± 22 in-lb)

Steering shaft
Steering column assembly and steering gear connecting bolt

18

± 2 N⋅m (13 ± 2 ft-lb)

Steering column assembly mounting bolt

12

± 2 N⋅m (102 ± 22 in-lb)

Steering wheel
Steering wheel dynamic damper

3.9

± 0.9 N⋅m (35 ± 8 in-lb)

Steering wheel mounting nut

41

± 8 N⋅m (30 ± 6 ft-lb)

Torx screw

9.0

± 2.0 N⋅m (80 ± 17 in-lb)

ITEM

SPECIFICATION

ITEMS

SPECIFICATIONS
2.4L ENGINE

3.8L ENGINE
16-INCH
WHEELS

17-INCH
WHEELS

Steering wheel

Type

4-spoke type

4-spoke type

4-spoke type

Outside diameter mm (in)

380 (14.9)

380 (14.9)

380 (14.9)

Maximum number of turns

2.94

2.94

2.76

Steering column

Column mechanism

Shock absorbing mechanism and Tilt steering mechanism

Power steering type

Integral type

Integral type

Integral type

Oil pump

Type

vane pump

vane pump

vane pump

Basic discharge amount
cm

3

/rev. (cu in/rev)

9.6 (0.59)

9.6 (0.59)

9.6 (0.59)

Relief pressure MPa (psi)

8.8 (1,422)

9.8 (1,422)

9.8 (1,422)

Reservoir type

Separate type (plastic)

Pressure switch

Equipped

Equipped

Equipped
