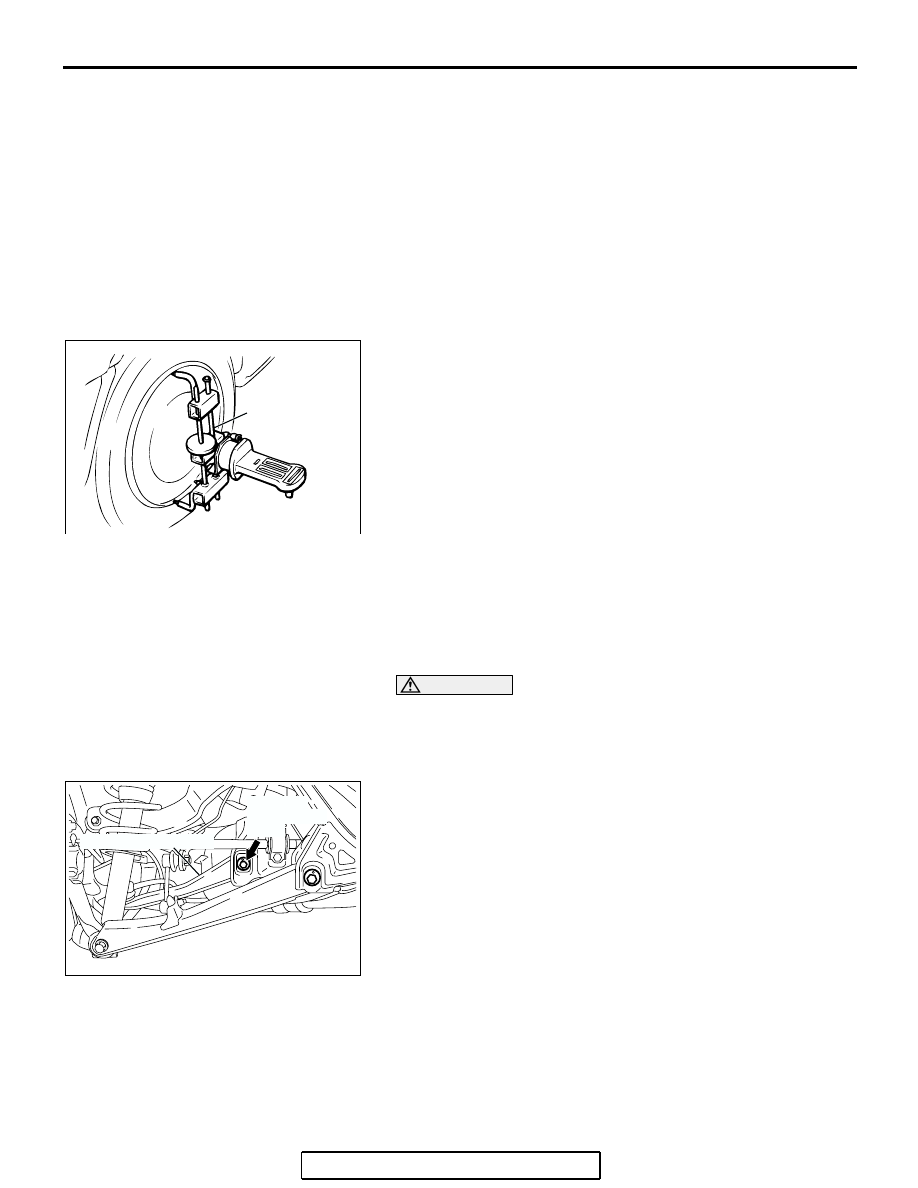

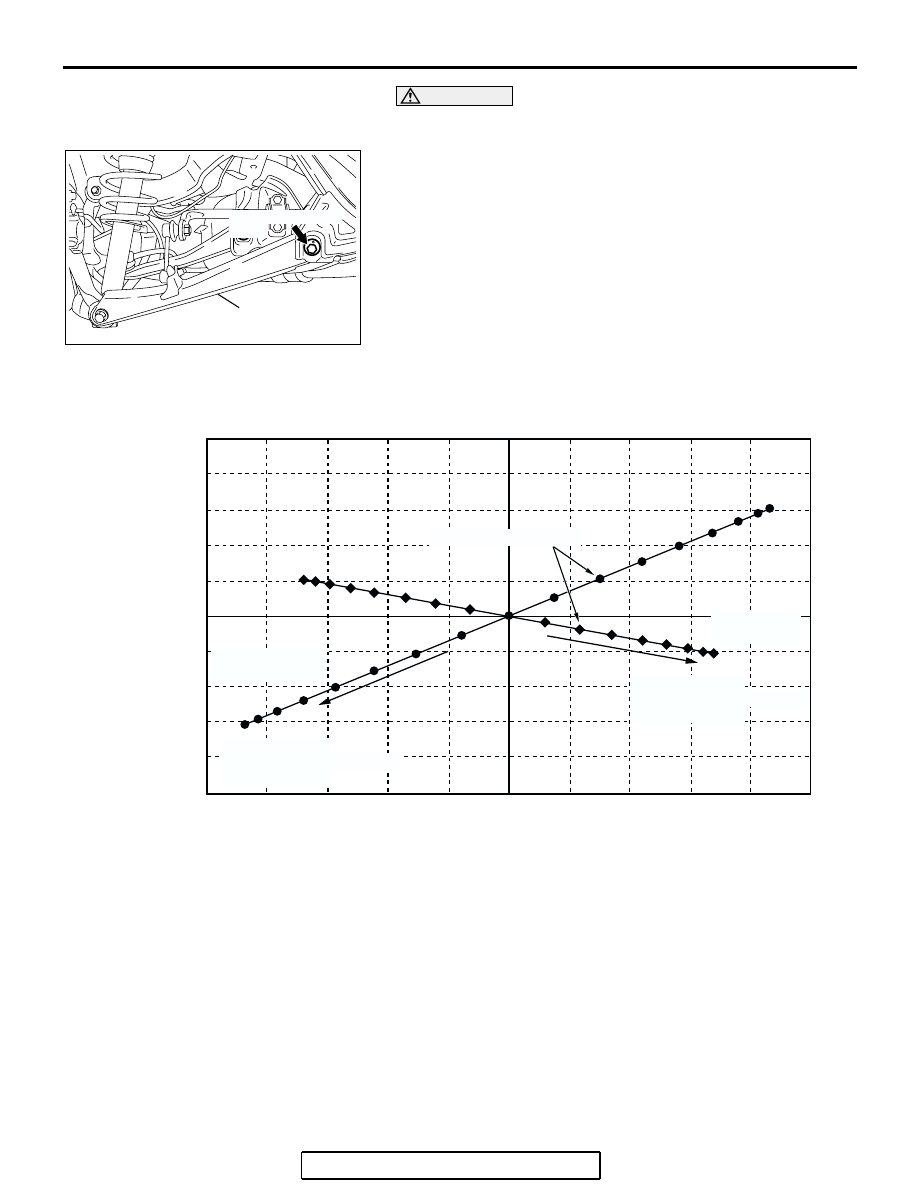

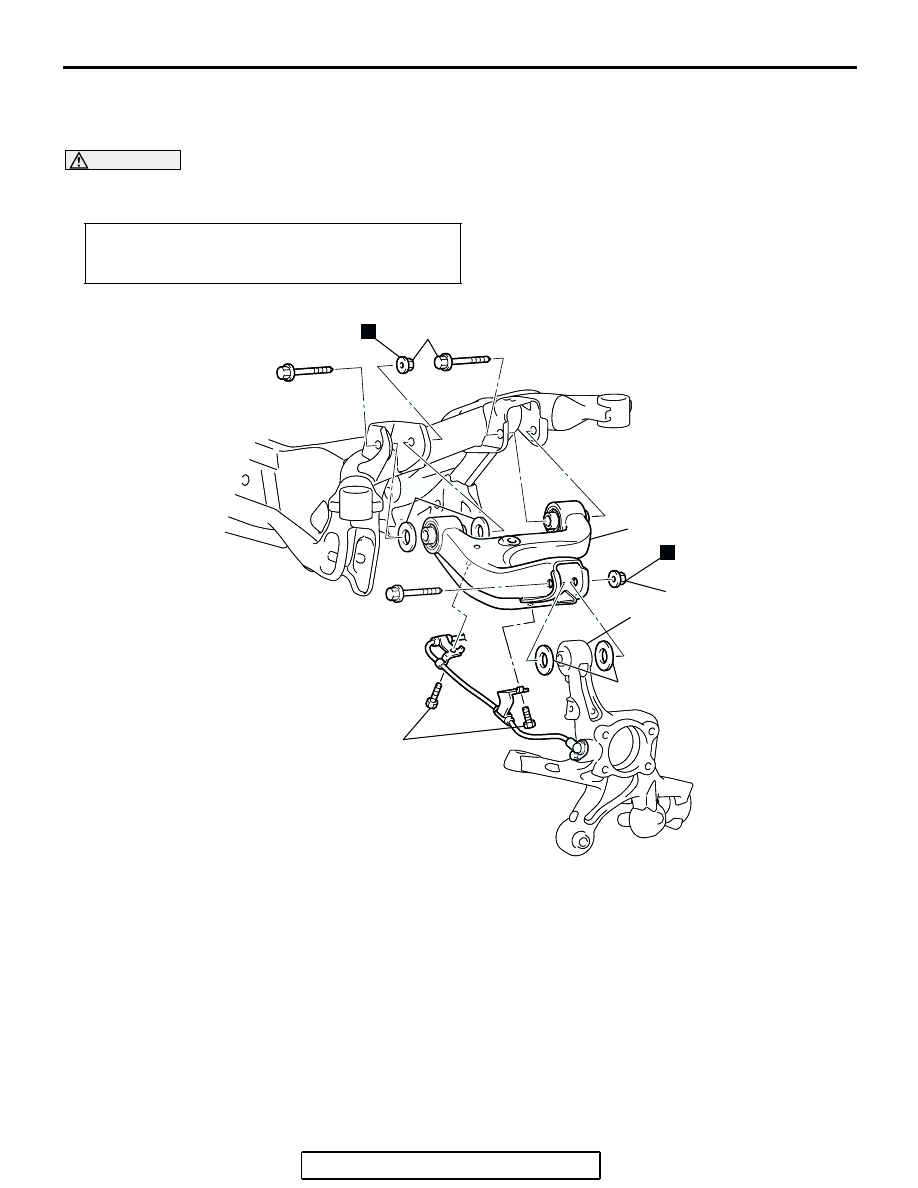

ON-VEHICLE SERVICE TSB Revision REAR SUSPENSION 34-6 ON-VEHICLE SERVICE REAR WHEEL ALIGNMENT CHECK AND M1341011000394 Measure wheel alignment with an alignment equipment on . CAMBER Standard value: − 0° 50’ ± 30’ (Left/right deviation within 30’) NOTE: For vehicles with aluminum wheels, attach the cam- . TOE-IN Standard value: 3 ± 3 mm (0.12 ± 0.12 inch) . If camber and/or toe-in is not within the standard value, adjust CAUTION • When adjusting the camber, tighten the lower arm assembly and the trailing arm assembly, not the toe • After adjusting the camber, be sure to adjust the toe. 1. Carry out camber adjustment by turning the camber adjusting bolt. . • LH: Clockwise viewed from the rear → ( − ) camber • RH: Clockwise viewed from the rear → (+) camber • If either the camber or toe is adjusted, both should fluctu- ). AC305848 AB COMPENSATOR AC305842 AB TOE CONTROL ARM CAMBER |
