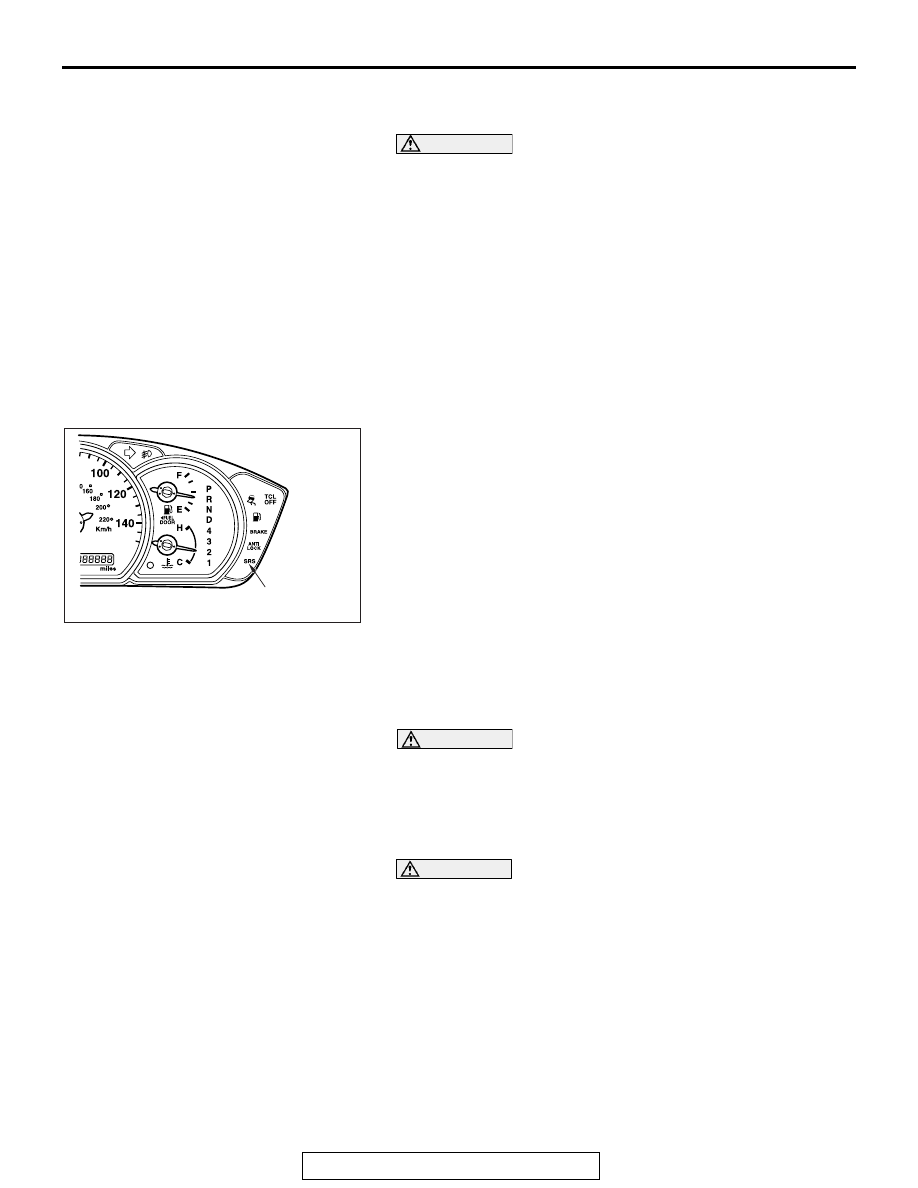

AIR BAG MODULES AND CLOCK SPRING

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-374

>>C<< STEERING WHEEL ASSEMBLY/AIR BAG
MODULE ASSEMBLY INSTALLATION

CAUTION

When installing the steering wheel and air bag module,
ensure that the harness of the clock spring does not
become caught or tangled.
1. Before installing the steering wheel and air bag module, turn

the vehicle’s front wheels to the straight-ahead position and
align the mating marks of the clock spring.

2. After securing the steering wheel, turn the steering wheel all

the way in both directions to confirm that the steering wheel
rotation is normal.

.

>>D<< POST-INSTALLATION INSPECTION

1. Reconnect the negative (

−) battery cable.

2. Turn the ignition switch to “ON” position.
3. Does the "SRS" warning light illuminate for approximately

seven seconds, and go out?

4. If yes, the SRS system is functioning properly. If not, refer to

P.52B-31

.

INSPECTION

M1524002500422

.

AIR BAG MODULE CHECK

DANGER

Never attempt to measure the circuit resistance of the
air bag modules (squib), even if you are using the
specified tester. If the circuit resistance is measured
with a tester, accidental air bag deployment will
result, and possible serious personal injury.

WARNING

If any component damage is found during the follow-
ing inspection, replace the air bag module with a new
one. Dispose of the old one according to the specified
procedure. (Refer to

P.52B-387

).

1. Check the pad cover for dents, cracks or deformation.

AC307341

SRS WARNING LIGHT

AB

AIR BAG MODULES AND CLOCK SPRING

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-375

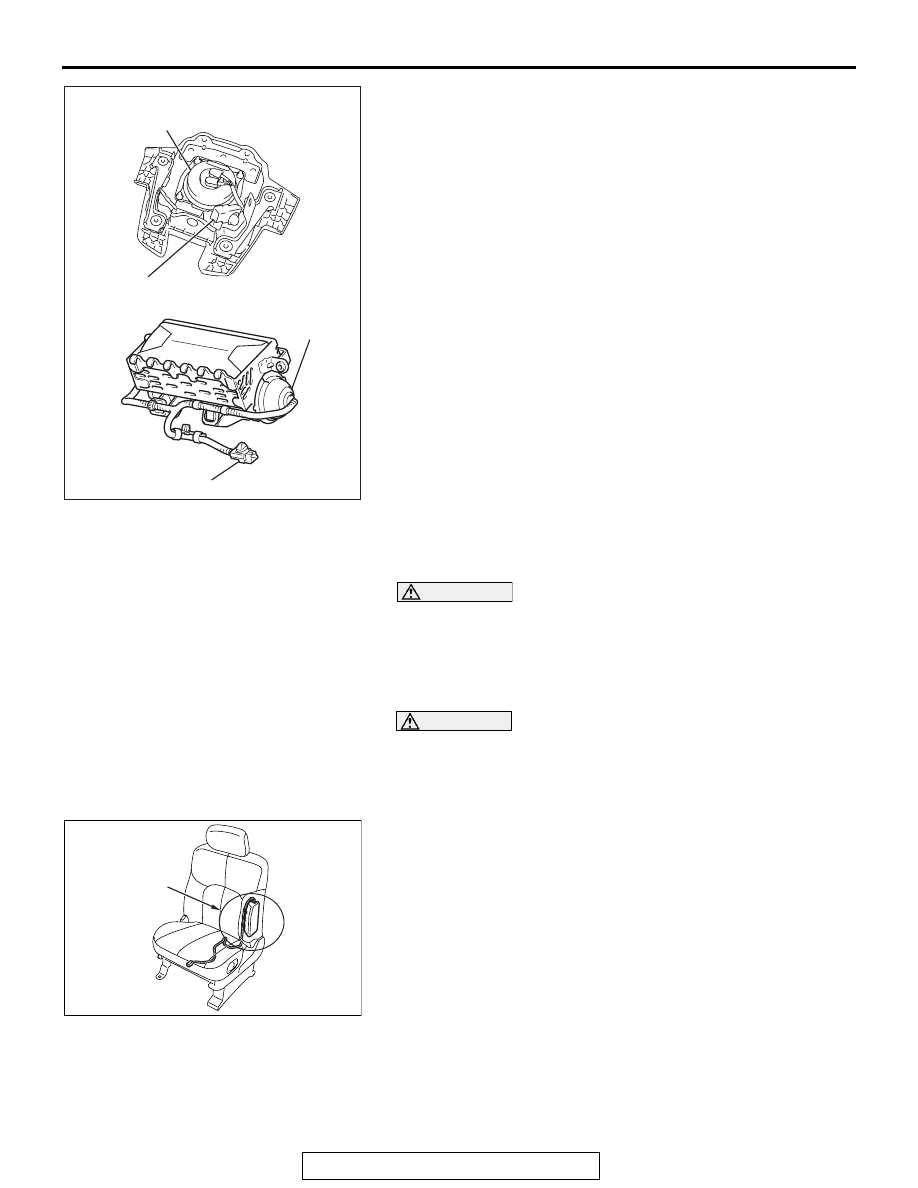

2. Check the connectors for damage, the terminals for

deformation, and the harness for binding.

3. Check the air bag inflator case for dents, cracks or

deformation.

4. Install the air bag module (driver’s side) to the steering

wheel and check fit and alignment with the steering wheel.

5. Install the air bag module (front passenger’s side) to the

instrument panel and front deck crossmember and check fit
and alignment.

.

FRONT SEATBACK ASSEMBLY WITH
SIDE-AIRBAG MODULE CHECK

DANGER

Never attempt to measure the circuit resistance of the
air bag module (squib), even if you are using the
specified tester. If the circuit resistance is measured
with a tester, accidental air bag deployment will
result, and possible serious personal injury.

WARNING

If any improper part is found during the following
inspection, replace the front seatback assembly with
a new one. Dispose of the old one according to the
specified procedure. (Refer to

P.52B-387

).

1. Check the air bag module deployment section for dents or

deformation.

2. Check the connector for damage, the terminals for

deformation, and the harness for binding.

.

AC307662AB

<DRIVER'S SIDE>

<FRONT PASSENGER'S SIDE>

INFLATOR CASE

CONNECTOR

CONNECTOR

INFLATOR
CASE

AC206854

AIR BAG MODULE
DEPLOYMENT
SECTION

AB

AIR BAG MODULES AND CLOCK SPRING

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-376

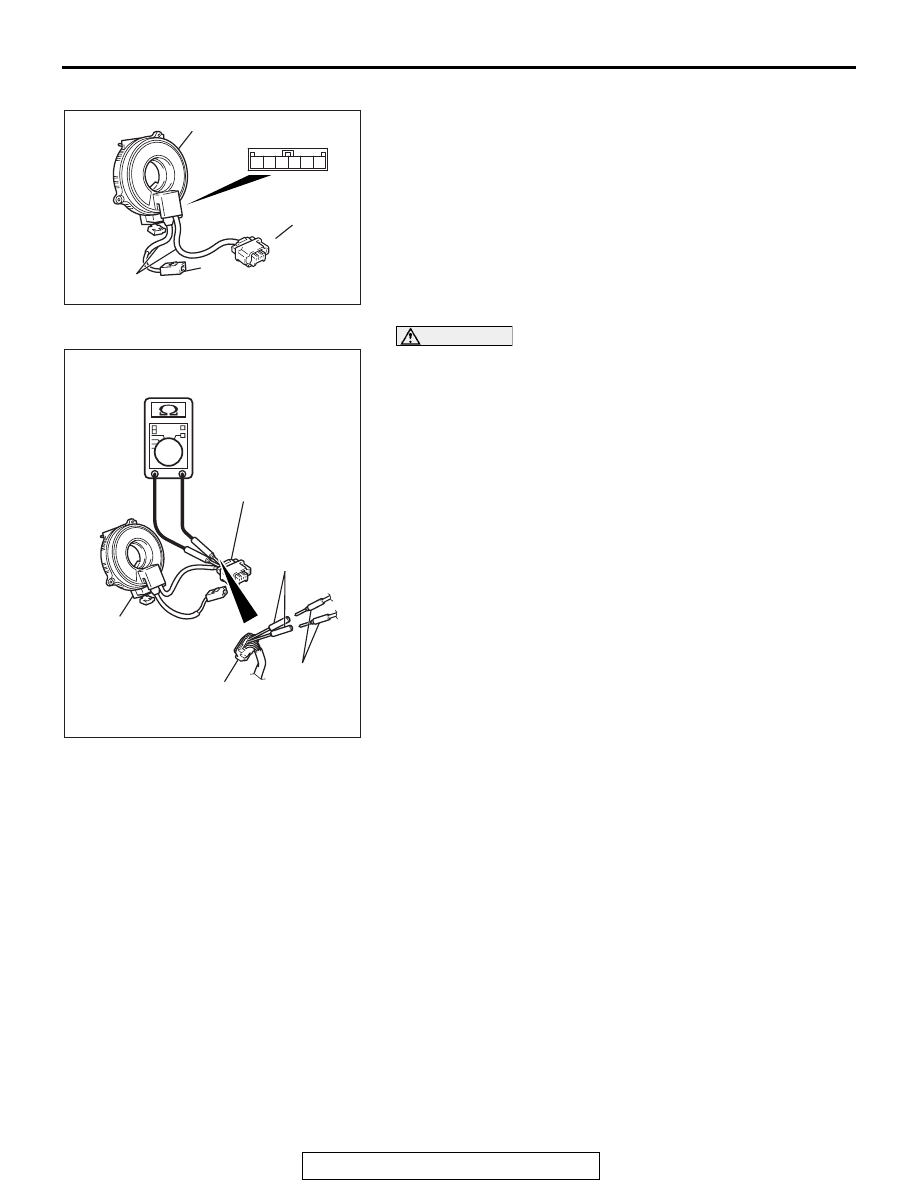

CLOCK SPRING CHECK

If any malfunction is found in the following inspections, replace
the clock spring with a new one.
1. Check the connectors and protective tube for damage, and

the terminals for deformation.

2. Visually check the case for damage.

3. Check to see that there is a charge (continuity) between the

C-306 clock spring connector terminal 1 and C-304 horn
switch.

CAUTION

 Do not directly insert a probe, etc. into the terminal from
the front of the connector.
4.  Insert the special tool (MB991222) from behind the airbag

module connector of the C-305 driver's side.

5.  As shown in the figure, connect the circuit tester to the

special tool (MB991222) and check to see that there is a
continuity between the terminals.

1 2 3 4 5 6

AC306765

D-306 CLOCK SPRING
CONNECTOR

C-304
HORN SWITCH
CONNECTOR

AB

CASE

PROTECTIVE
TUBE

C-305 AIR BAG
MODULE
CONNECTOR

AC306759

CLOCK SPRING

PLOBE
(MB991222)

DIGITAL
MULTI-METER

AB

C-305 AIR BAG
MODULE CONNECTOR
(DRIVER'S SIDE)

C-305 AIR BAG
MODULE CONNECTOR
(DRIVER'S SIDE)

SIDE IMPACT SENSOR

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-377

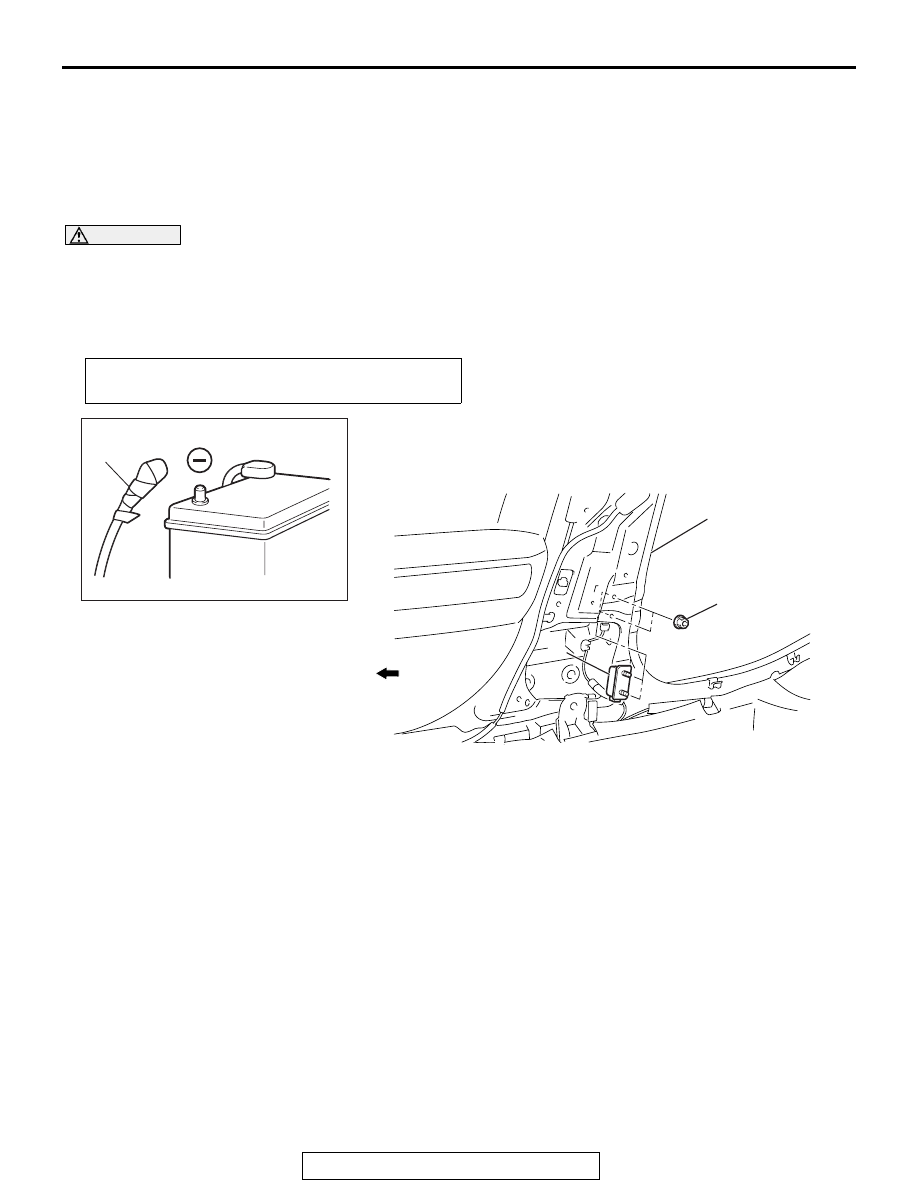

SIDE IMPACT SENSOR

M1524004600317

REMOVAL AND INSTALLATION

A side impact sensor is installed behind the center pillar trim on both driver and passenger sides of the vehi-
cle.

WARNING

Never attempt to disassemble or repair the side impact sensor. If faulty, replace it.

Do not drop or subject the side impact sensor to impact or vibration. Replace the side
impact sensor, if dents, cracking, deformation, or rust are present.

Replace the side impact sensor after the air bag has deployed.

NOTE: The illustration above shows the side impact
sensor (RH). The position of the side impact sensor
(LH) is symmetrical to this.

Pre-removal Operation
• Turn the ignition key to the "LOCK" (OFF) position.

AC307661AB

FRONT OF
VEHICLE

7.5 ± 2.5 N·m
67 ± 22 in-lb

CENTER PILLAR

1

2

REMOVAL STEPS

<<A>>

1.

NEGATIVE (

−) BATTERY CABLE

CONNECTION

CENTER PILLAR TRIM LOWER
(REFER TO GROUP 52A, TRIMS

P.52A-10

).

SEAT BELT WITH
PRE-TENSIONER (REFER TO
GROUP 52B

P.52B-380

).

2.

SIDE IMPACT SENSOR

INSTALLATION STEPS

>>A<<

PRE-INSTALLATION INSPECTION

>>B<<

2.

SIDE IMPACT SENSOR

SEAT BELT WITH
PRE-TENSIONER (REFER TO
GROUP 52B

P.52B-380

).

CENTER PILLAR TRIM LOWER
(REFER TO GROUP 52A, TRIMS

P.52A-10

).

1.

NEGATIVE (

−) BATTERY CABLE

CONNECTOR

>>C<<

POST-INSTALLATION
INSPECTION
