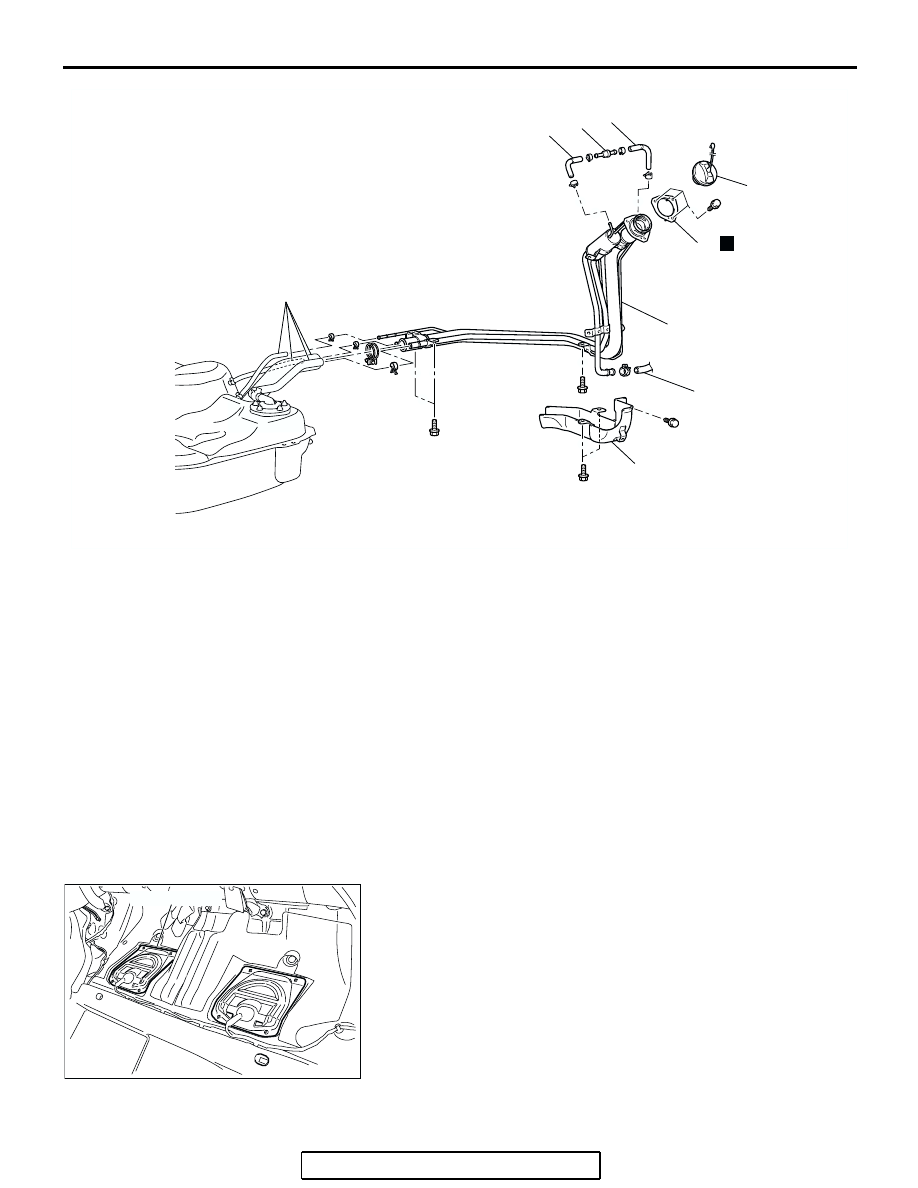

FUEL TANK

TSB Revision

FUEL SUPPLY

13C-12

REMOVAL SERVICE POINTS

.

<<A>> FUEL PUMP MODULE CONNECTOR CON-
NECTION REMOVAL

1. Remove the rear seat cushion assembly. (Refer to GROUP

52A, Rear Seat Assembly

P.52A-29

.)

2. Remove the hole cover (LH).

AC306993

36

37

35

38

39

34

40

40 41

AB

N

FUEL TANK FILLER TUBE
REMOVAL STEPS

34. FUEL CAP
35. VAPOR HOSE CONNECTION
36. FUEL FILLER HOSE AND FUEL

TANK VAPOR HOSE
CONNECTION

37. FUEL TANK FILLER TUBE

PROTECTOR

38. FUEL TANK FILLER TUBE
39. FUEL TANK FILLER TUBE

PACKING

40. FUEL TANK FILLER TUBE VAPOR

HOSE

41. CHECK VALVE

FUEL TANK FILLER TUBE
REMOVAL STEPS (Continued)

AC306089

HOLE COVER

AB

FUEL TANK

TSB Revision

FUEL SUPPLY

13C-13

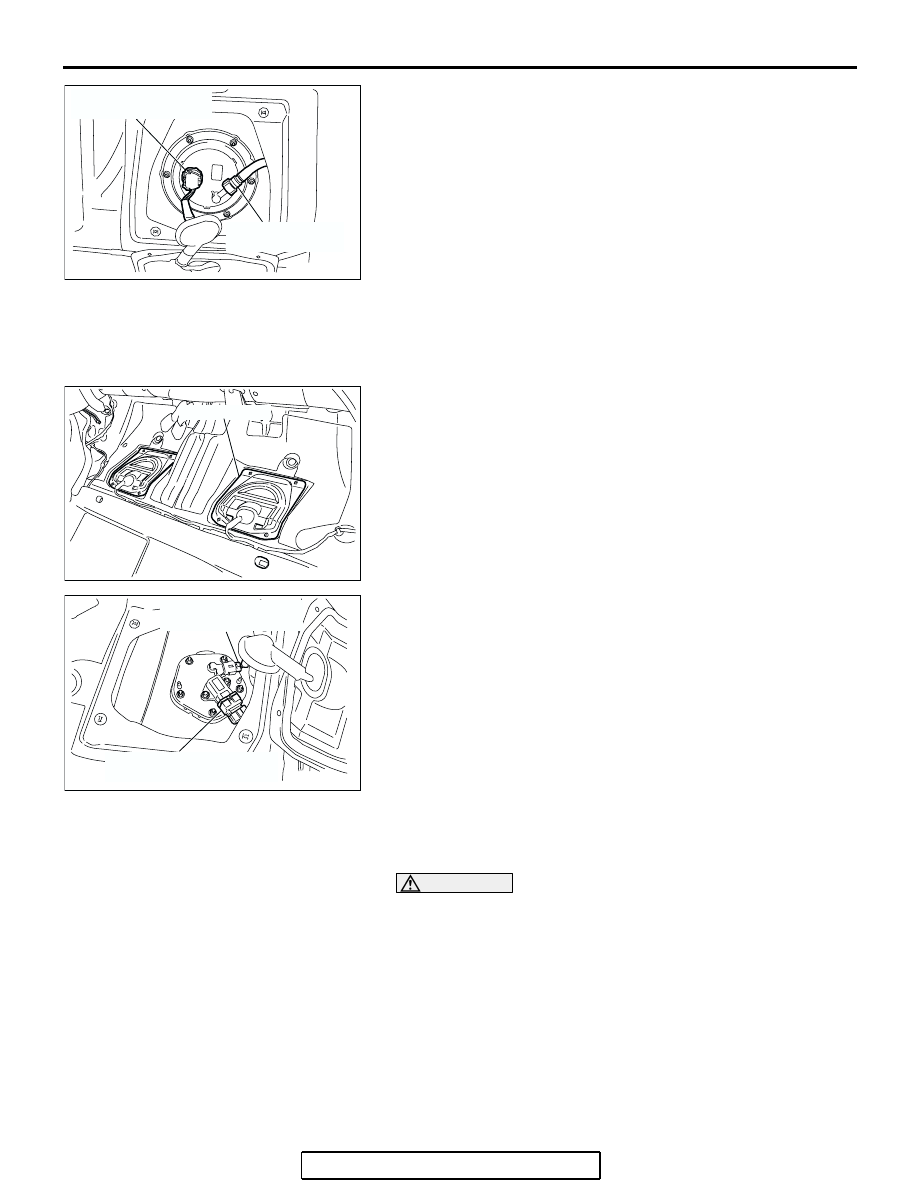

3. Disconnect the fuel pump module connector.

.

<<B>> FUEL TANK DIFFERENTIAL PRESSURE
SENSOR CONNECTOR/FUEL LEVEL SENSOR
(SUB) CONNECTOR CONNECTION REMOVAL

1. Remove the hole cover (RH).

2. Disconnect the fuel level sensor (sub) connector and fuel

tank differential pressure sensor connector.

.

<<C>> FUEL HIGH-PRESSURE HOSE
CONNECTION REMOVAL

CAUTION

As there will be some pressure remaining in the fuel pipe
line, cover it with a shop towel to prevent fuel from spray-
ing out.

.

AC306090

FUEL PUMP MODULE
CONNECTOR

FUEL HIGH-
PRESSURE HOSE

AB

AC306089AD

HOLE COVER

 AC306093

FUEL LEVEL SENSOR
(SUB) CONNECTOR

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

AB

FUEL TANK

TSB Revision

FUEL SUPPLY

13C-14

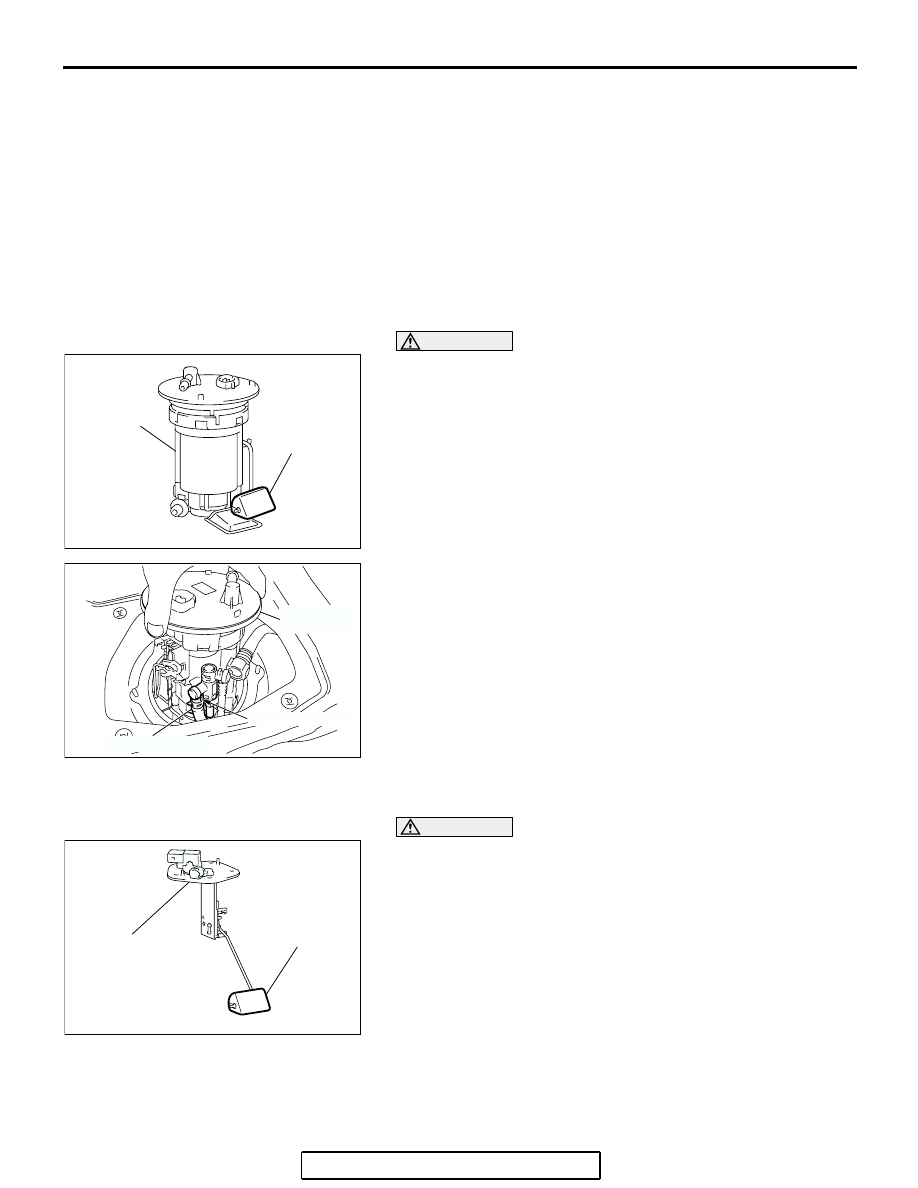

<<D>> FUEL TANK ASSEMBLY/FUEL TANK BAND
REMOVAL

1. Support the fuel tank with a transaxle jack.
2. Remove the fuel tank band and fuel tank assembly as

follows.

(1) Remove the front securing nut of the fuel tank band.
(2) Tilt the fuel tank assembly forward and lower it gradually

to remove it.

(3) Remove the fuel tank band.

.

<<E>> FUEL PUMP MODULE REMOVAL

CAUTION

When withdrawing the fuel pump module from the fuel
tank, be careful not to damage the module  unit and the
float.

Make alignment marks between the suction hose and the fuel
pump module and then disconnect the suction hose to remove
the fuel pump module.

.

<<F>> FUEL LEVEL SENSOR (SUB) REMOVAL

CAUTION

When withdrawing the fuel level sensor (sub) from the fuel
tank, be careful not to damage the sensor unit and the
float.

AC307207

FUEL PUMP
MODULE

FLOAT

AB

AC306092AB

SUCTION HOSE

FUEL PUMP
MODULE

MATING MARKS

AC307206AB

FLOAT

FUEL LEVEL
SENSOR (SUB)

FUEL TANK

TSB Revision

FUEL SUPPLY

13C-15

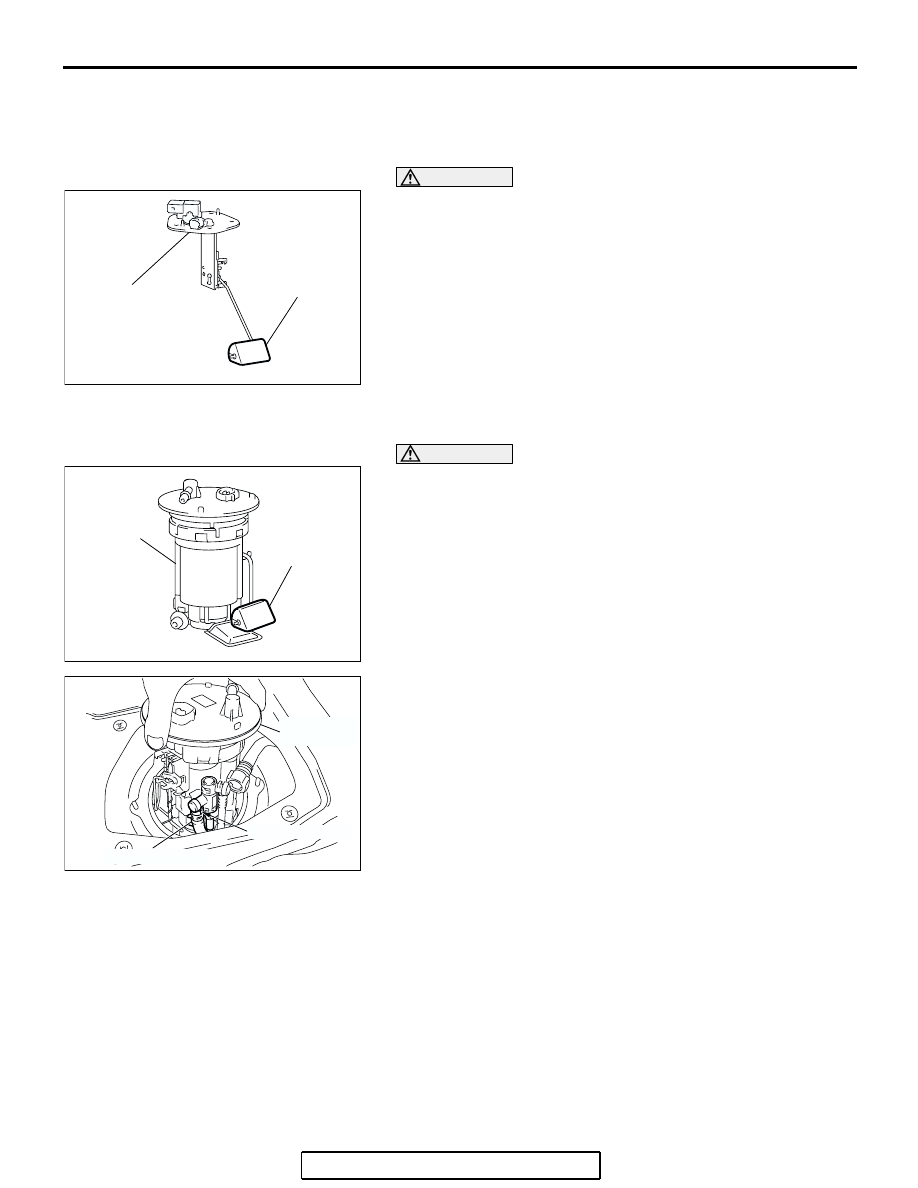

INSTALLATION SERVICE POINS

.

>>A<< FUEL LEVEL SENSOR (SUB) INSTALLA-
TION

CAUTION

When inserting the fuel level sensor (sub) into the fuel
tank, be careful not to damage the sensor unit and the
float.

.

>>B<< FUEL PUMP MODULE INSTALLATION

CAUTION

When installing the fuel pump module into the fuel tank, be
careful not to damage the module unit and the float.

1. Align the mark of the suction hose with that of the fuel pump

module, and then connect the suction hose to the fuel pump
module.

2. Install the fuel pump module into the fuel tank while ensuring

that the suction hose is not kinked.

.

AC307206AB

FLOAT

FUEL LEVEL
SENSOR (SUB)

AC307207

FUEL PUMP
MODULE

FLOAT

AB

AC306092AB

SUCTION HOSE

FUEL PUMP
MODULE

MATING MARKS
