ON-VEHICLE SERVICE

TSB Revision

FUEL SUPPLY

13C-8

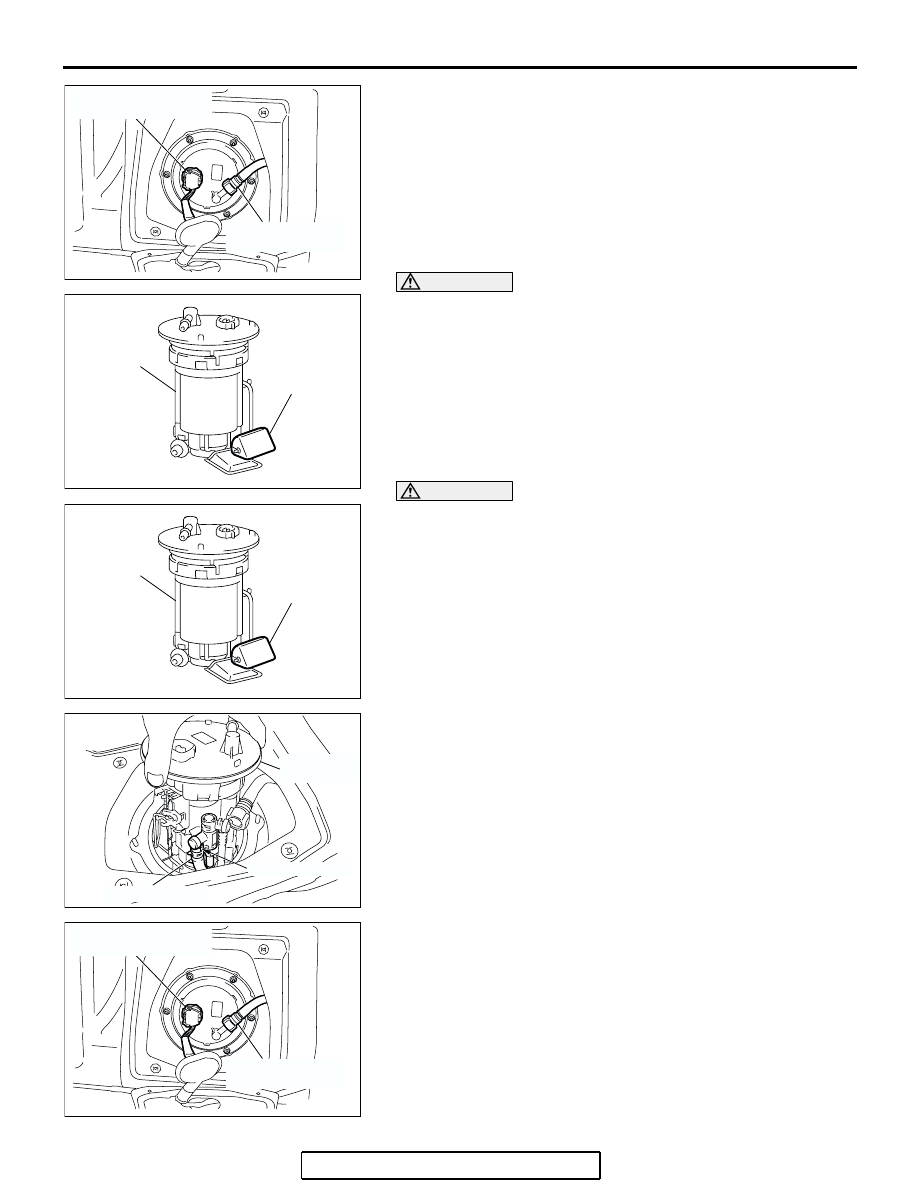

3. Disconnect the fuel pump module connector and fuel

high-pressure hose.

CAUTION

When withdrawing the fuel pump module from the fuel
tank, be careful not to damage the module  unit and the
float.
4. Remove the mounting nuts and plate, and remove the fuel

pump module from the fuel tank.

CAUTION

When installing the fuel pump module into the fuel tank, be
careful not to damage the module unit and the float.

5. Connect the suction hose to the fuel pump module, and

install the fuel pump module to the fuel tank whilst ensuring
that the suction hose is not kinked.

6. Install the plate to the fuel tank.

7. Connect the fuel pump module connector and fuel

high-pressure hose.

AC306090

FUEL PUMP MODULE
CONNECTOR

FUEL HIGH-
PRESSURE HOSE

AB

AC307207

FUEL PUMP
MODULE

FLOAT

AB

AC307207

FUEL PUMP
MODULE

FLOAT

AB

AC306092AB

SUCTION HOSE

FUEL PUMP
MODULE

MATING MARKS

AC306090

FUEL PUMP MODULE
CONNECTOR

FUEL HIGH-
PRESSURE HOSE

AB

ON-VEHICLE SERVICE

TSB Revision

FUEL SUPPLY

13C-9

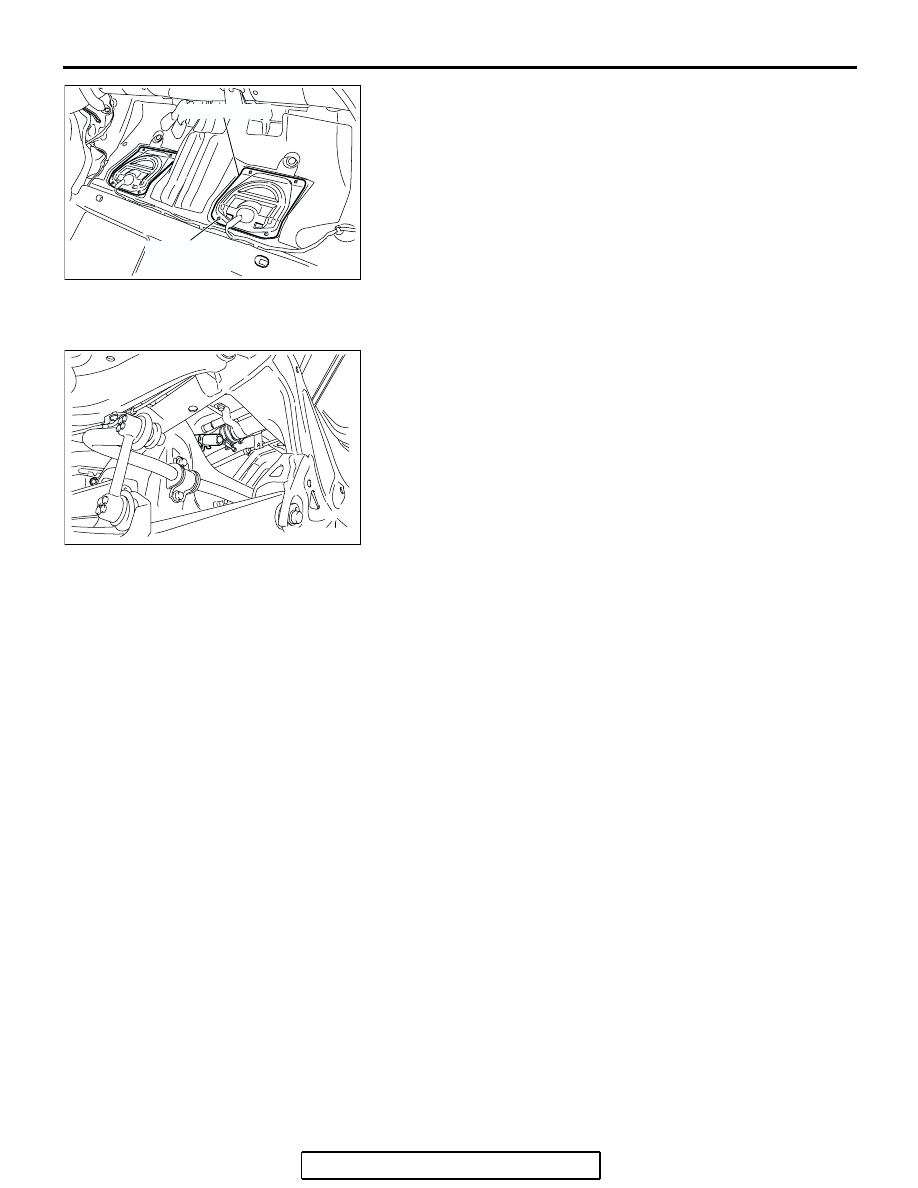

8. Install the hole cover (LH).

Tightening torque: 1.5

± 0.5 N⋅m (14 ± 4 in-lb)

9. Install the rear seat cushion assembly. (Refer to GROUP

52A, Rear Seat Assembly

P.52A-29

.)

LEVELING VALVE CHECK

M1135004300129

1.  Place a drain pan, and disconnect the fuel leveling hose at

pipe side.
NOTE:  If fuel leaks from the fuel leveling hose at this stage,
the leveling valve may be defective.

2.  Open the fuel cap, and fill the fuel tank up.
3.  If fuel does not leak from the fuel tank filler leveling hose

with the fuel tank full, the leveling valve is normal. If not so,
the leveling valve may be defective. Lower the fuel tank from
the vehicle and replace the valve.

4.  Reconnect the fuel leveling hose at the pipe side.

AC306089

1.5 ± 0.5 N·m
14 ± 4 in-lb

AE

HOLE COVER

AC306094AB

FUEL TANK

TSB Revision

FUEL SUPPLY

13C-10

FUEL TANK

REMOVAL AND INSTALLATION

M1135001900508

Pre-removal Operation
• Draining Fuel

• Fuel Pump Connector Disconnection (How to Reduce

Fuel Pressure) (Refer to GROUP 13A - On-vehicle Ser-

vice

P.13A-1127

).

• Center Exhaust Pipe Removal (Refer to GROUP 15

P.15-20

).

Pre-installation Operation
• Center Exhaust Pipe Installation (Refer to GROUP 15

P.15-20

).

• Refilling Fuel

• Checking for Fuel Leaks

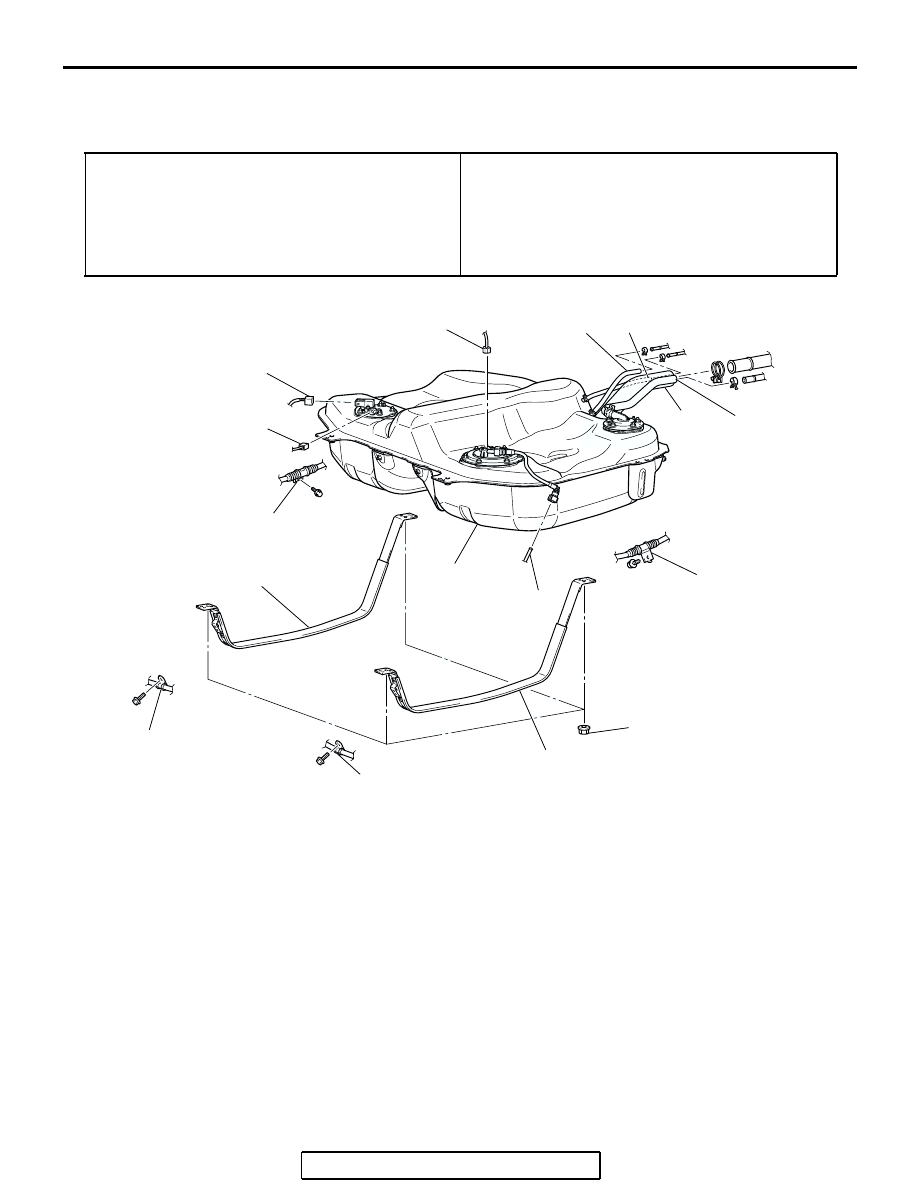

AC306991

1

2

3

4

4

5

5

6

7

8

9

10

11

11

12

26 ± 5 N·m
19 ± 4 ft-lb

AB

FUEL TANK REMOVAL STEPS

<<A>>

1.

FUEL PUMP  MODULE
CONNECTOR CONNECTION

<<B>>

2.

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR
CONNECTOR CONNECTION

<<B>>

3.

FUEL LEVEL SENSOR (SUB)
CONNECTOR CONNECTION

4.

PARKING BRAKE CABLE CLAMP
CONNECTION

5.

PARKING BRAKE CABLE CLAMP
CONNECTION

<<C>>

>>C<<

6.

FUEL HIGH-PRESSURE HOSE
CONNECTION

7.

FUEL TANK VAPOR HOSE C
CONNECTION

8.

FUEL TANK VAPOR HOSE B
CONNECTION

9.

FUEL FILLER HOSE
CONNECTION

10. FUEL VAPOR HOSE A

CONNECTION

<<D>>

>>D<<

11. FUEL TANK ASSEMBLY

<<D>>

>>D<<

12. FUEL TANK BAND

FUEL TANK REMOVAL STEPS

FUEL TANK

TSB Revision

FUEL SUPPLY

13C-11

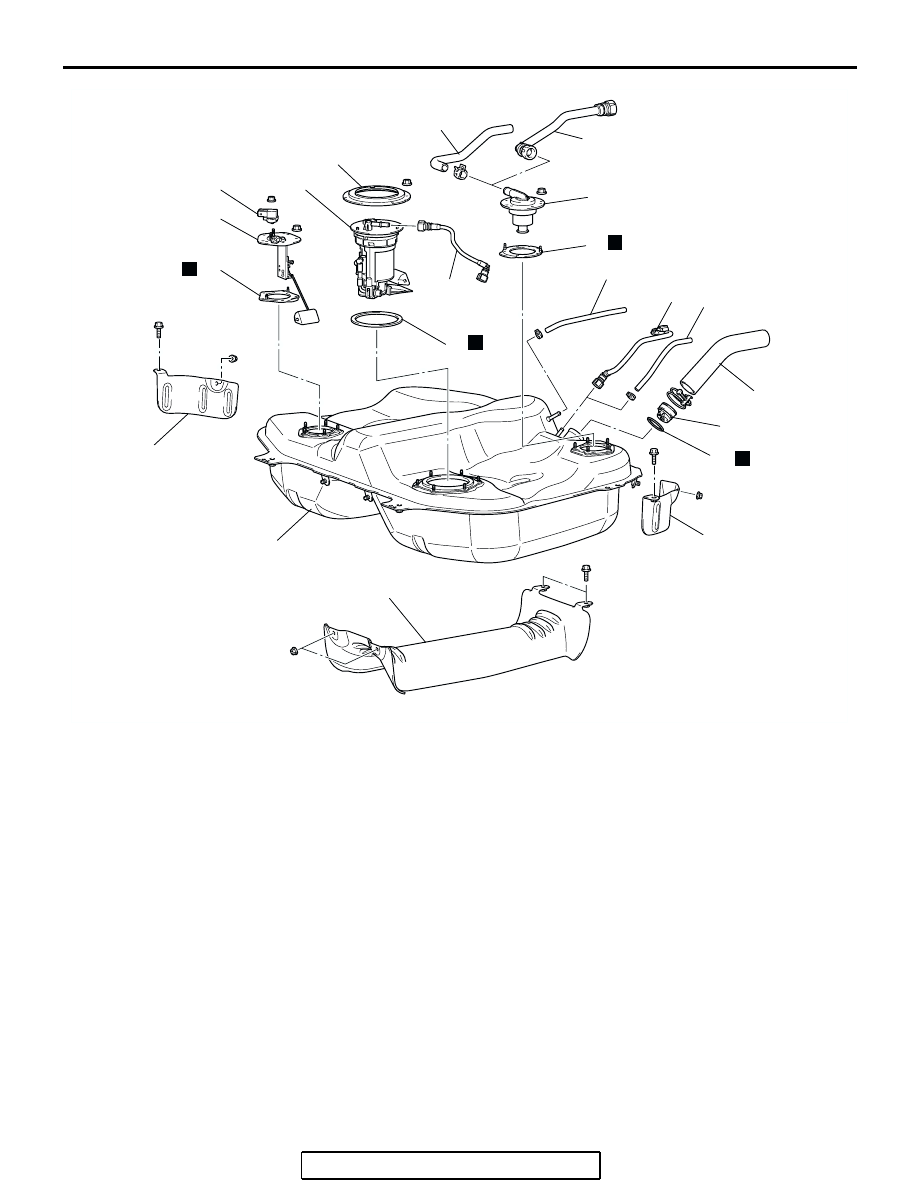

AC306992

20

21

23

14

15

16

13

17

18

19

24

26

27

28

29

30

31

32

N

N

N

N

AB

33

22

25

FUEL TANK REMOVAL STEPS

>>C<<

13. FUEL HIGH-PRESSURE HOSE
14. PLATE

<<E>> >>B<<

15. FUEL PUMP  MODULE
16. PACKING
17. FUEL TANK DIFFERENTIAL

PRESSURE SENSOR

<<F>>

>>A<<

18. FUEL LEVEL SENSOR (SUB)
19. PACKING
20. FUEL TANK VAPOR HOSE A

<EXCEPT VEHICLES FOR
CALIFORNIA EMISSION
REGULATION>

21. FUEL TANK VAPOR TUBE A

<VEHICLES FOR CALIFORNIA
EMISSION REGULATION>

22. LEVELING VALVE ASSEMBLY
23. PACKING

24. FUEL TANK VAPOR HOSE C
25. FUEL TANK VAPOR HOSE B

<EXCEPT VEHICLES  FOR
CALIFORNIA EMISSION
REGULATION>

26. FUEL TANK VAPOR TUBE B

<VEHICLES FOR CALIFORNIA
EMISSION REGULATION>

27. FUEL FILLER HOSE
28. FUEL SHUT-OFF VALVE
29. O-RING
30. FUEL TANK PROTECTOR (A)
31. FUEL TANK PROTECTOR (B)
32. FUEL TANK CENTER

PROTECTOR

33. FUEL TANK

FUEL TANK REMOVAL STEPS
