Mitsubishi Galant 9G. Manual - part 132





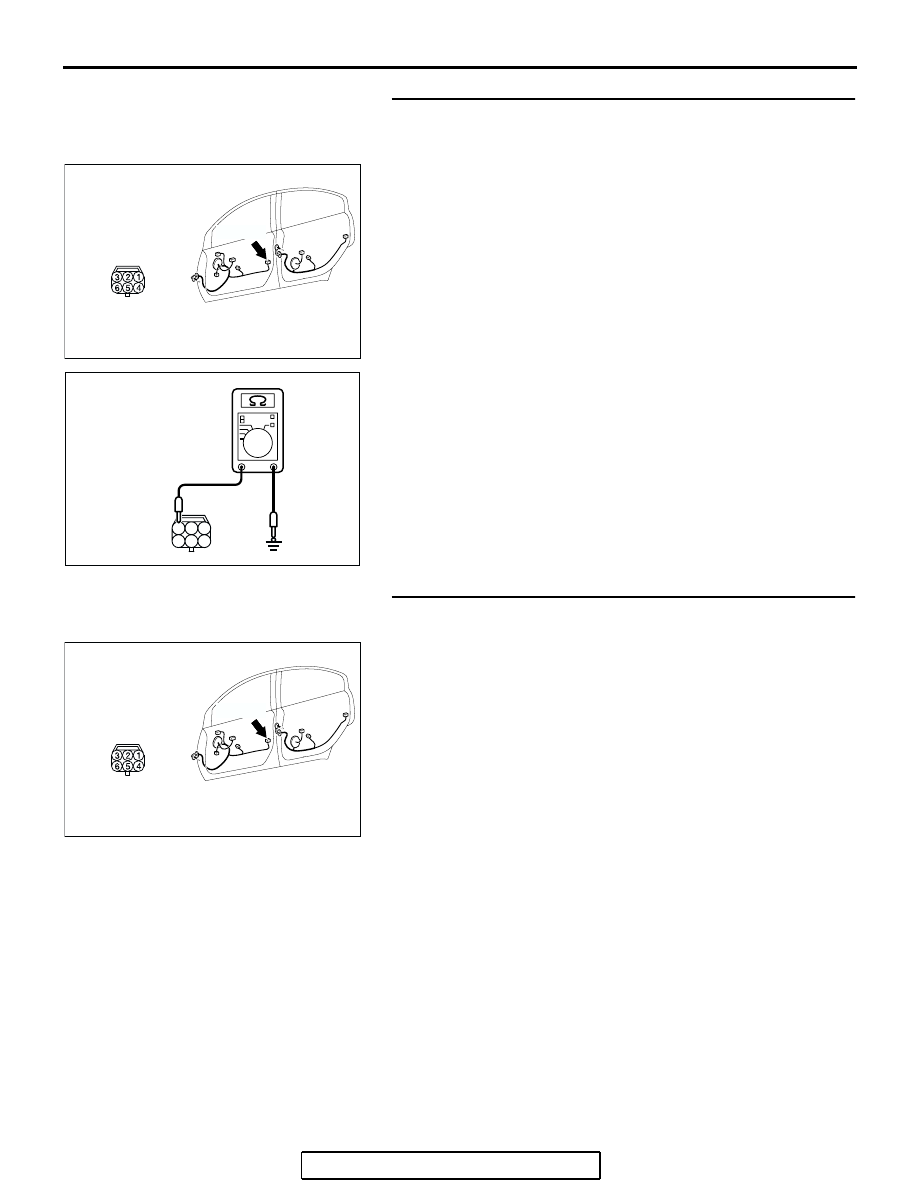

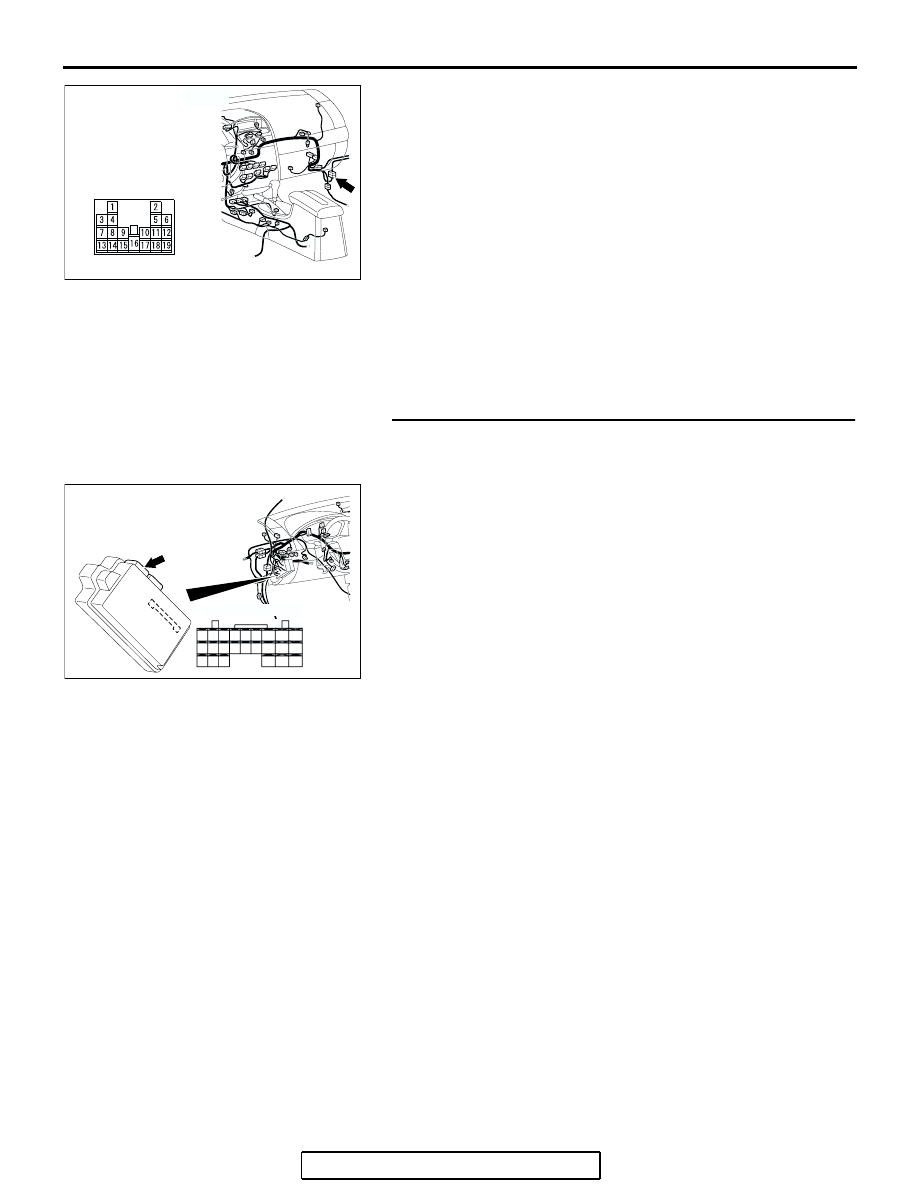

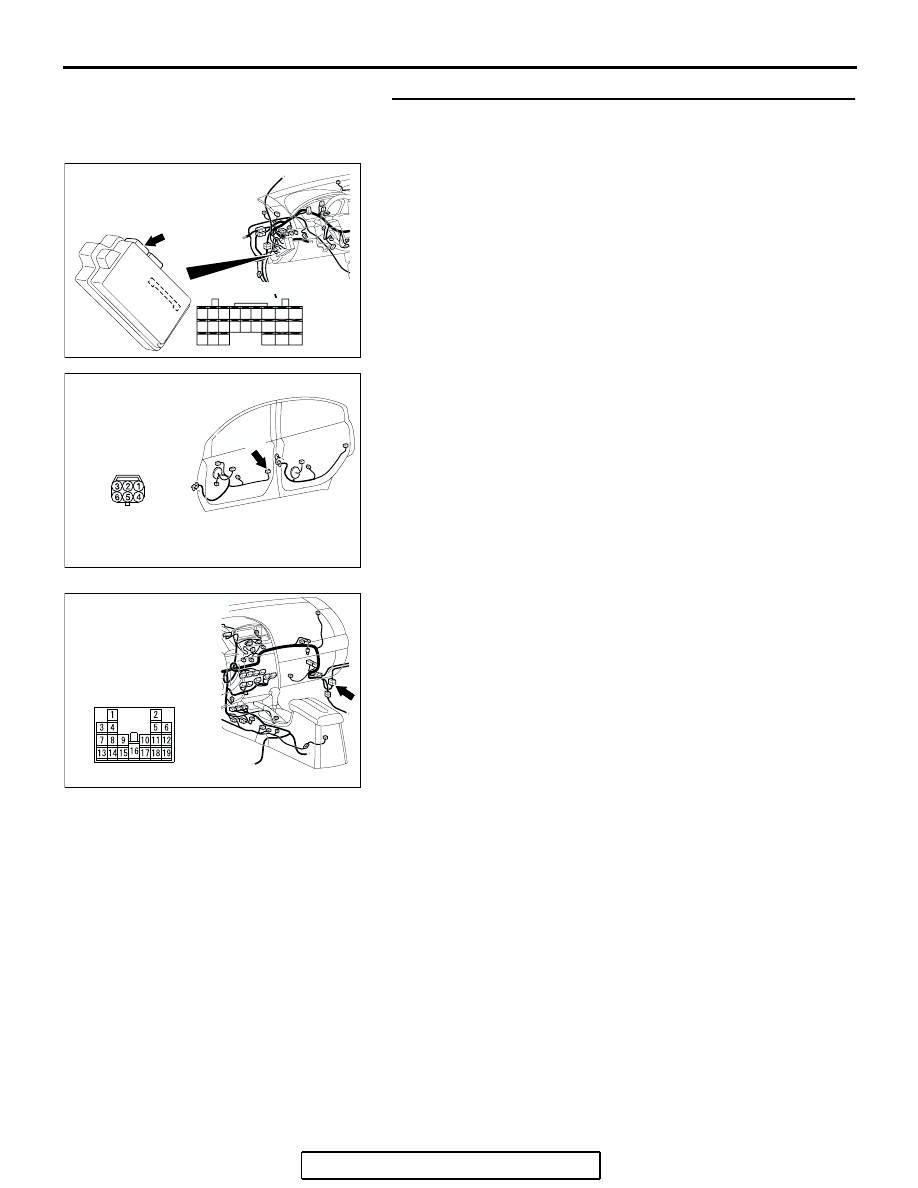

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-524

STEP 10. Check the ground circuit to the front door lock
actuator (RH). Measure the resistance at front door lock
actuator (RH) connector E-05.
(1) Disconnect front door lock actuator (RH) connector E-05

and measure the resistance available at the wiring harness
side of the connector.

(2) Measure the resistance value between terminal 3 and

ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 12.
NO :  Go to Step 11.

STEP 11. Check the wiring harness between front door
lock actuator (RH) connector E-05 (terminal 3) and ground.

AC305333

AH

CONNECTOR: E-05

E-05 (B)

HARNESS SIDE

5

6

4

2

3

1

AC209830AD

CONNECTOR E-05
(HARNESS SIDE)

AC305333

AH

CONNECTOR: E-05

E-05 (B)

HARNESS SIDE

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-525

NOTE: Also check intermediate connector C-12 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-12 is damaged, repair or
replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the wiring harness between front door lock actuator

(RH) connector E-05 (terminal 3) and ground in good
condition?
YES :
No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the
functions described in "CIRCUIT OPERATION" work
normally, the input signal from the front door lock
actuator (RH) should be normal.

STEP 12. Check ETACS-ECU connector C-217 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-217 in good condition?

YES : Go to Step 13.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the functions described in "CIRCUIT

OPERATION" work normally, the input signal from the
front door lock actuator (RH) should be normal.

AC305233

CONNECTOR:C-12

AB

AC305413AH

CONNECTOR: C-217

HARNESS SIDE

25

26

27

28

29

21

22

23

24

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

JUNCTION BLOCK

(REAR VIEW)

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-526

STEP 13. Check the wiring harness between front door
lock actuator (RH) connector E-05 (terminal 2) and
ETACS-ECU connector C-217 (terminal 43).

NOTE: Also check intermediate connector C-12 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-12 is damaged, repair or
replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the wiring harness between front door lock actuator

(RH) connector E-05 (terminal 2) and ETACS-ECU
connector C-217 (terminal 43) in good condition?
YES :
Replace the ETACS-ECU. If the functions described

in "CIRCUIT OPERATION" work normally, the input
signal from the front door lock actuator (RH) should
be normal.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the
functions described in "CIRCUIT OPERATION" work
normally, the input signal from the front door lock
actuator (RH) should be normal.

AC305413AH

CONNECTOR: C-217

HARNESS SIDE

25

26

27

28

29

21

22

23

24

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

JUNCTION BLOCK

(REAR VIEW)

AC305333

AH

CONNECTOR: E-05

E-05 (B)

HARNESS SIDE

AC305233

CONNECTOR:C-12

AB

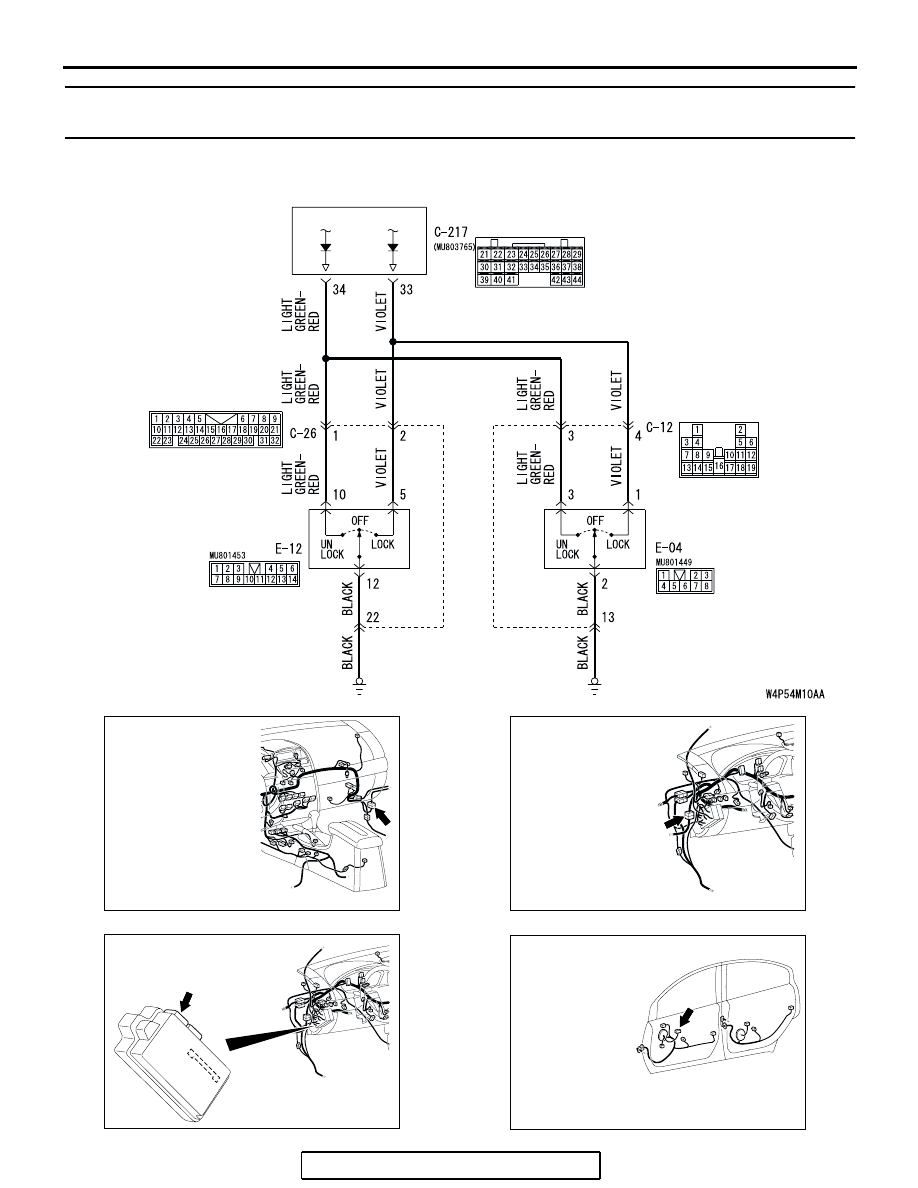

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-527

INSPECTION PROCEDURE N-6: ETACS-ECU does not receive any signal from the door lock switch
(incorporated in the power window main switch and front power window sub switch).

POWER WINDOW
MAIN SWITCH

FRONT POWER WINDOW
SUB SWITCH

ETACS-ECU

Door Lock Switch Input Circuit

AC305233

CONNECTOR: C-12

AE

AC305231

CONNECTOR: C-26

AL

AC305413

CONNECTOR: C-217

AK

JUNCTION BLOCK

(REAR VIEW)

AC305333

CONNECTOR: E-04

AJ
