INJECTOR

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-1188

EGR VALVE CHECK

M1131051500031

Refer to GROUP 17, Emission Control System

− Exhaust Gas

Recirculation (EGR) System

− EGR Valve Check.

P.17-90

INJECTOR

REMOVAL AND INSTALLATION

M1131007100768

Pre-removal Operation
• Fuel Discharge Prevention (Refer to

P.13B-1181

).

• Intake Manifold Plenum Removal (Refer to GROUP 15,

Intake Manifold Plenum

P.15-6

).

Post-installation Operation
• Intake Manifold Plenum Installation (Refer to GROUP 15,

Intake Manifold Plenum

P.15-6

).

• Fuel Leakage Inspection.

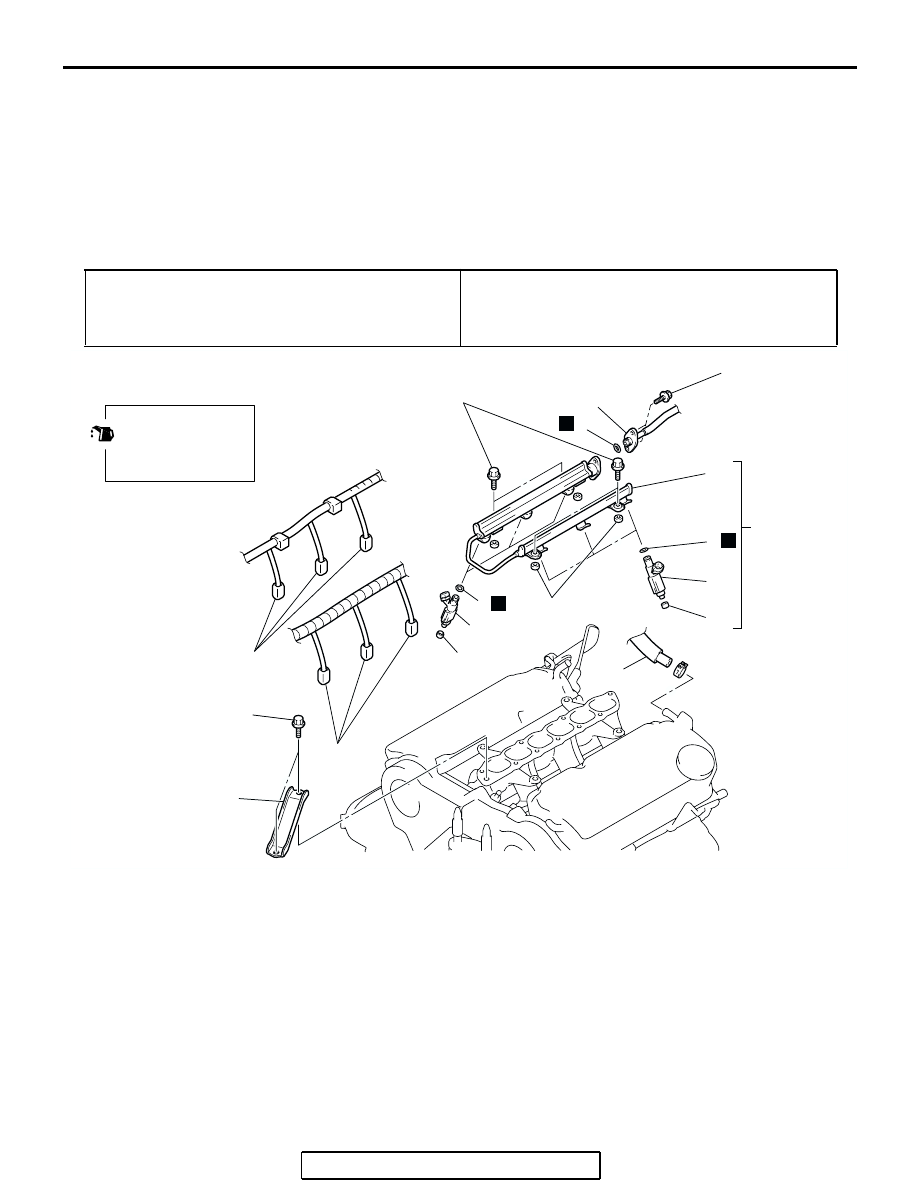

AC307253

1

1

3

4

6

5

10

9

8

7

11

N

N

2

5.0 ± 1.0 N·m
44 ± 9 in-lb

12 ± 1 N·m
102 ± 13 in-lb

AB

9

8

7

N

APPLY ENGINE OIL
TO ALL MOVING
PARTS BEFORE
INSTALLATION.

36 ± 6 N·m
27 ± 4 ft-lb

REMOVAL STEPS

1.

INJECTOR CONNECTOR

2.

ENGINE MOUNT STAY

>>A<<

3.

FUEL HIGH-PRESSURE HOSE
CONNECTION  (FUEL RAIL SIDE)

>>A<<

4.

O-RING

5.

BLOW-BY HOSE CONNECTION

<<A>>

6.

FUEL RAIL AND INJECTOR
ASSEMBLY

7.

INSULATORS

>>A<<

8.

FUEL  INJECTORS

>>A<<

9.

O-RING

10. FUEL RAIL
11. INSULATORS

REMOVAL STEPS (Continued)

INJECTOR

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-1189

REMOVAL SERVICE POINTS

.

<<A>> FUEL RAIL AND INJECTOR ASSEMBLY
REMOVAL

CAUTION

Do not drop the fuel injector.
Remove the fuel rail with the fuel injectors attached to it.

INSTALLATION SERVICE POINT

.

>>A<< O-RING/FUEL INJECTORS/FUEL
HIGH-PRESSURE HOSE CONNECTION (FUEL
RAIL SIDE)  INSTALLATION

CAUTION

• Do not kink the fuel high-pressure hose as it is made of

plastics.

• Do not let the engine oil get into the fuel rail.

1. Apply a drop of new engine oil to the O-ring.
2. Turn the fuel injector to the right and left to install to the fuel

rail. Repeat for fuel damper and fuel high-pressure hose. Be
careful not to damage the O-ring. After installing, check that
they turn smoothly.

3. If some of them dose not turn smoothly, the O-ring may be

trapped, remove it, re-install it into the fuel rail and check
again.

4. Tighten the fuel high-pressure hose to the specified torque.

Tightening torque: 5.0

± 1.0 N⋅m (44 ± 9 in-lb)

THROTTLE BODY ASSEMBLY

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-1190

THROTTLE BODY ASSEMBLY

REMOVAL AND INSTALLATION

M1131007700652

CAUTION

Do not loosen the fixing screws for the resin cover of throttle body assembly. If the screws are loos-
ened, the sensor incorporated in the resin cover becomes misaligned and the throttle body cannot
work normally.

Pre-removal Operation
• Engine Coolant Draining [Refer to GROUP 00, Mainte-

nance Service

− Engine Coolant (Change)

P.00-56

].

• Air Intake Hose Removal (Refer to GROUP 15, Air

Cleaner

P.15-4

).

Post-installation Operation
• Air Intake Hose Installation (Refer to GROUP 15, Air

Cleaner

P.15-4

).

• Engine Coolant Refilling [Refer to GROUP 00, Mainte-

nance Service

− Engine Coolant (Change)

P.00-56

].

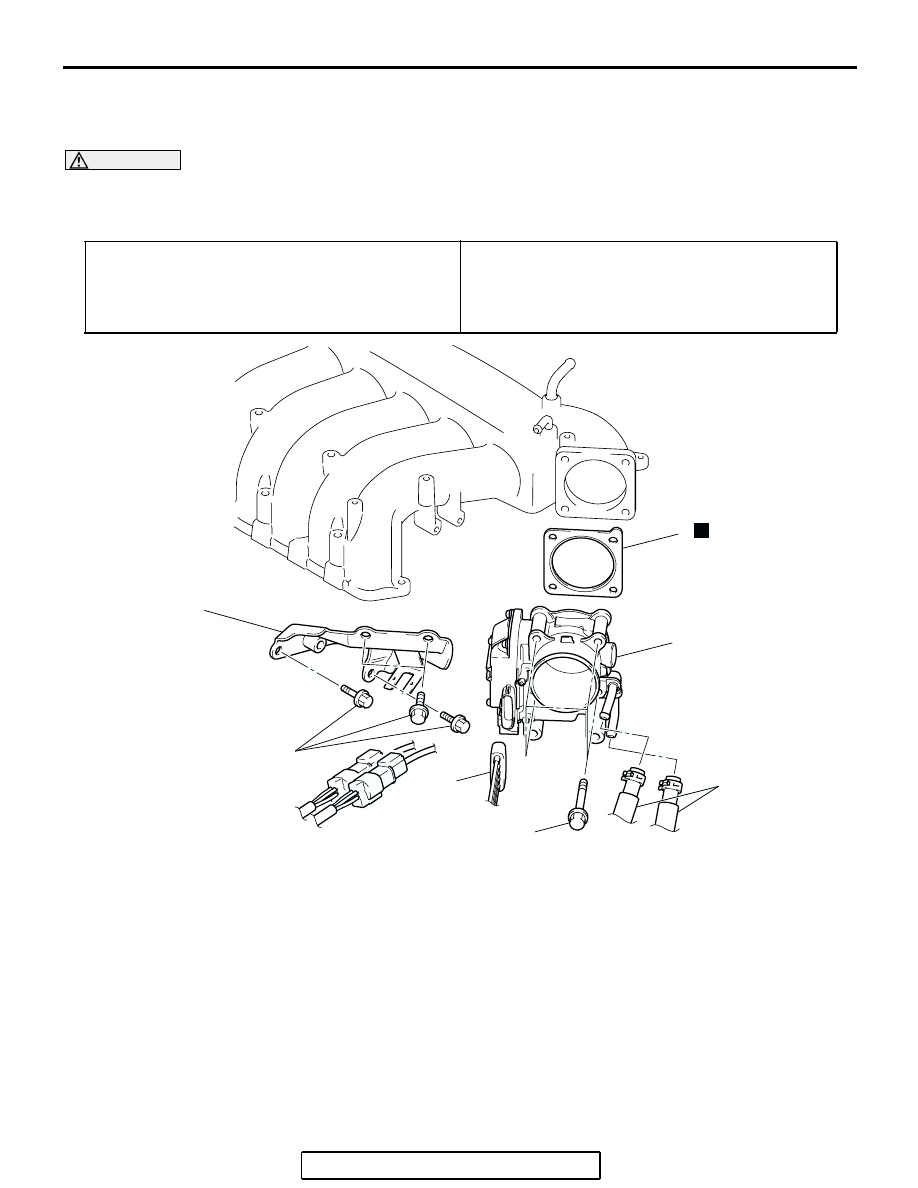

AC307254

18 ± 2 N·m
13 ± 2 ft-lb

2

3

4

5

1

AB

N

28 ± 4 N·m
21 ± 3 ft-lb

REMOVAL STEPS

>>B<<

•

INITIALIZATION PROCEDURE
(INSTALLATION ONLY)

1.

THROTTLE POSITION SENSOR
CONNECTOR

2.

WATER HOSE CONNECTION

3.

THROTTLE BODY

>>A<<

4.

THROTTLE BODY GASKET

5.

THROTTLE BODY STAY

REMOVAL STEPS (Continued)

THROTTLE BODY ASSEMBLY

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-1191

INSTALLATION SERVICE POINT

.

>>A<<THROTTLE BODY GASKET INSTALLATION

CAUTION

Poor idling etc. may result if the throttle body gasket is
installed incorrectly.
Install the gasket as its protrusion is in the direction shown.

.

>>B<< INITIALIZATION PROCEDURE

Turn the ignition switch on then off, and keep it off for at least
10 seconds.

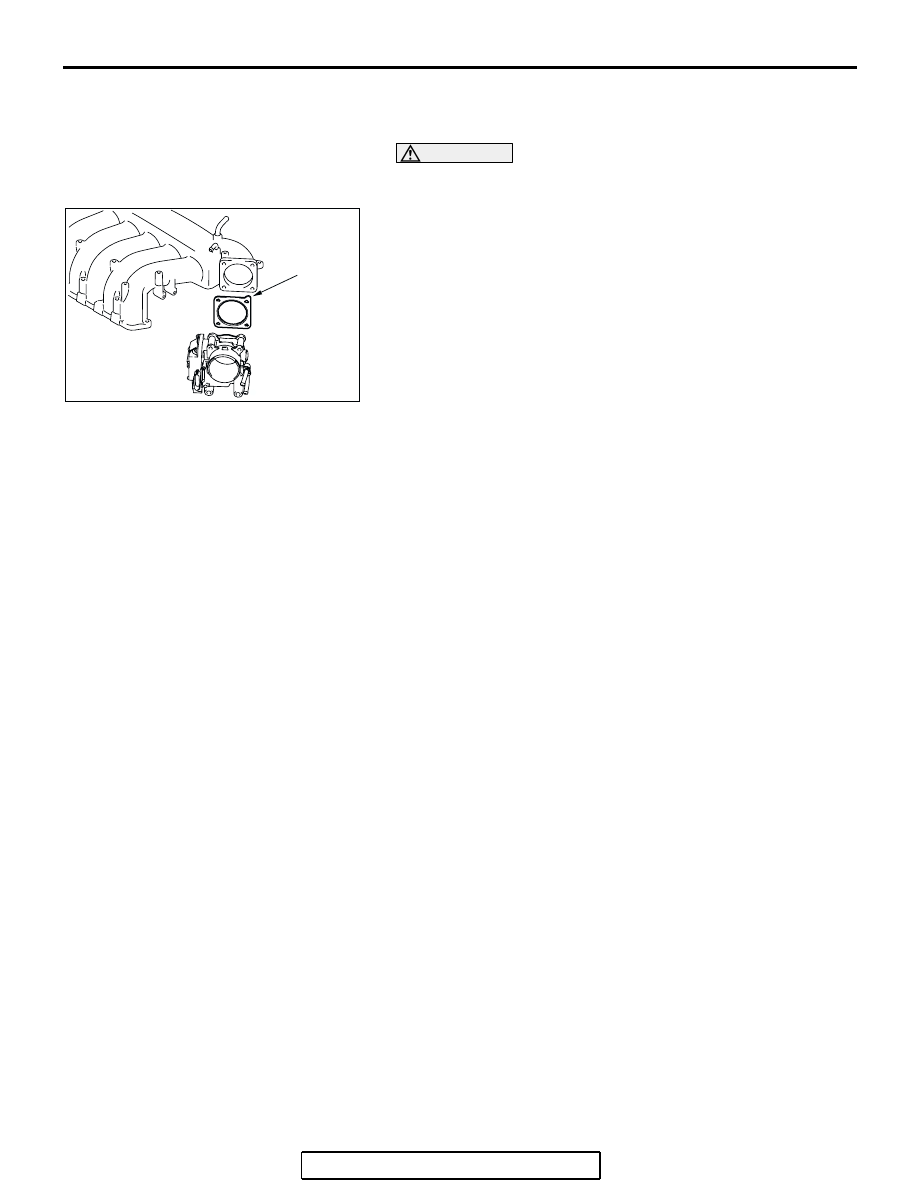

AC308086AB

PROJECTION
