ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-1184

HEATED OXYGEN SENSOR CHECK

M1131005000691

Required Special Tools:

• MB991958: Scan tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

• MB991316: Test Harness

• MD998464: Test Harness

.

<Right bank and left bank heated oxygen sensor
(front)>

1. Using scan tool MB991958, observe HO

2

S reading. If

values are unsatisfactory, or if a scan tool is not available,
use the following procedure:

(1) Disconnect the heated oxygen sensor connector and

connect special tool MD998464 to the connector on the
heated oxygen sensor side.

(2) Make sure that there is continuity [4.5-8.0 ohms at 20

°C

(68

°F)] between terminal No. 1 (red clip) and terminal No.

3 (blue clip) on the heated oxygen sensor connector.

(3) If there is no continuity, replace the heated oxygen

sensor.

(4) Warm up the engine until engine coolant is 80

°C (176°F)

or higher.

(5) Perform a tracing for 5 minutes or more with the engine

speed of 4,500 r/min.

(6) Connect a digital voltage meter between terminal No. 2

(black clip) and terminal No. 4 (white clip).

2. While repeatedly revving the engine, measure the heated

oxygen sensor output voltage.

Standard value:

ENGINE

HEATED OXYGEN
SENSOR OUTPUT
VOLTAGE

REMARKS

When revving
engine

0.6

− 1.0 V

If you make the
air/fuel ratio rich by
revving the engine
repeatedly, a
normal heated
oxygen sensor will
output a voltage of
0.6

− 1.0 V.

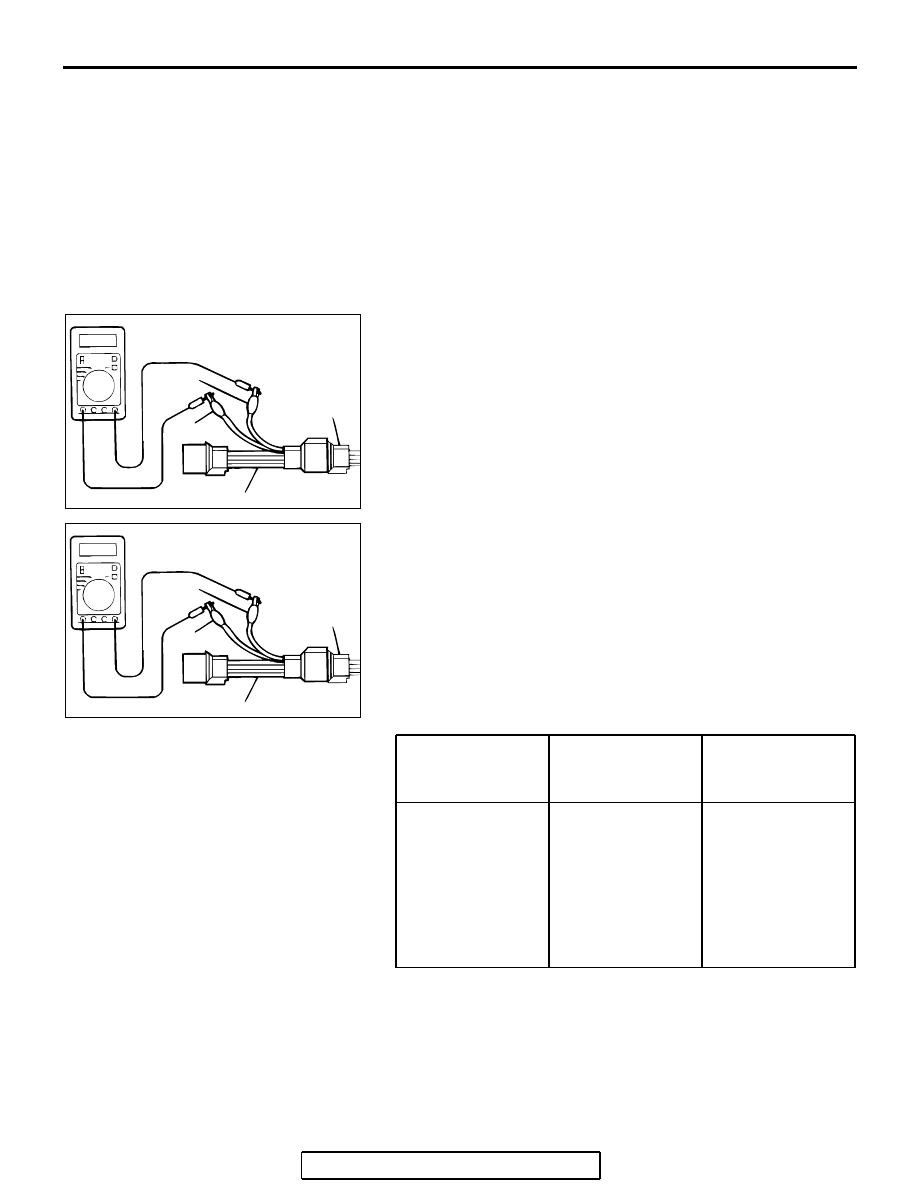

AKX01624

HEATED
OXYGEN
SENSOR
EQUIPMENT
SIDE
CONNECTOR

MD998464

BLUE

RED

AC

AKX01624

HEATED
OXYGEN
SENSOR
COMPONENT
SIDE
CONNECTOR

MD998464

WHITE

BLACK

AL

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-1185

CAUTION

• Be very careful when connecting the jumper wire;

incorrect connection can damage the oxygen sensor.

• Be careful the heater is broken when voltage of beyond

8V is applied to the oxygen sensor heater.

NOTE: If the sufficiently high temperature (of approximate
400

°

C or more) is not reached although the oxygen sensor is

normal, the output voltage would be possibly low although the
rich air-fuel ratio. Therefore, if the output voltage is low, use a
jumper wire to connect the terminal No.1 (red clip of special
tool) and the terminal No. 3 (blue clip of special tool) of the oxy-
gen sensor with a (+) terminal and (-) terminal of 8 V power
supply respectively, then check again.
3. If the output voltage is not within the standard value, replace

the heated oxygen sensor.

NOTE: For removal and installation of the heated oxygen sen-
sor, refer to GROUP 15, Exhaust Pipe and Main Muffler

P.15-20

.

.

<Right bank and left bank heated oxygen sensor
(rear)>

1. Using scan tool MB991958, observe HO

2

S reading. If

values are unsatisfactory, or if Scan tool is not available, use
the following procedure:

(1) Disconnect the heated oxygen sensor connector and

connect special tool MB991316 to the connector on the
heated oxygen sensor side.

(2) Make sure that there is continuity [11-18 ohms at 20

°C

(68

°F)] between terminal No. 1 (red clip) and terminal No.

3 (blue clip) on the heated oxygen sensor connector.

(3) If there is no continuity, replace the heated oxygen

sensor.

(4) Warm up the engine until engine coolant is 80

°C (176°F)

or higher.

(5) Perform a tracing for 5 minutes or more with the engine

speed of 4,500 r/min.

(6) Connect a digital voltage meter between terminal No. 2

(black clip) and terminal No. 4 (white clip).

2. While repeatedly revving the engine, measure the heated

oxygen sensor output voltage.

Standard value:

AKX01624 AB

MB991316

HEATED
OXYGEN
SENSOR
EQUIPMENT
SIDE
CONNECTOR

BLUE

RED

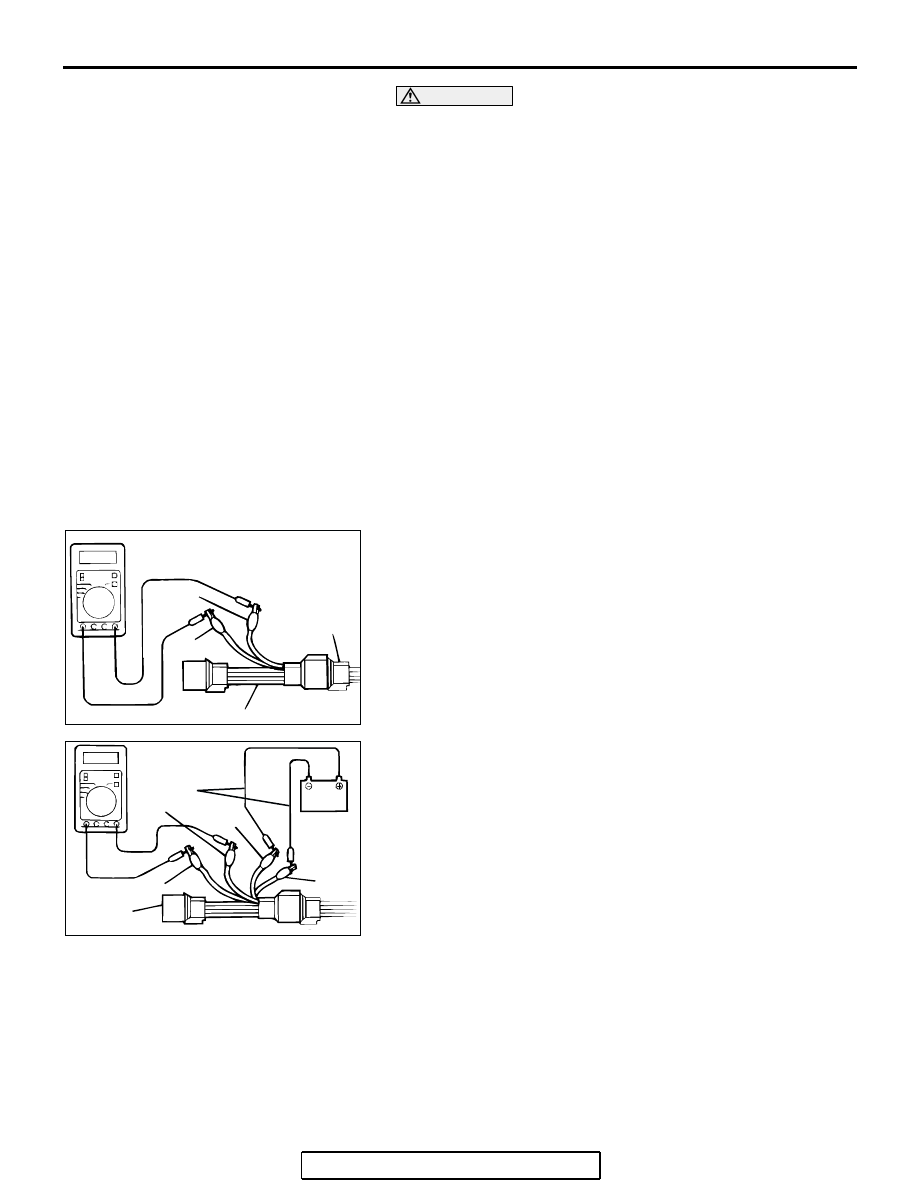

AKX01625 AB

BLUE

JUMPER
WIRES

BLACK

RED

WHITE

MB991316

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-1186

CAUTION

• Be very careful when connecting the jumper wire;

incorrect connection can damage the oxygen sensor.

• Be careful the heater is broken when voltage of beyond

8V is applied to the oxygen sensor heater.

3. If the output voltage is not within the standard value, replace

the heated oxygen sensor.

NOTE: If the sufficiently high temperature (of approximate
400

°

C or more) is not reached although the oxygen sensor is

normal, the output voltage would be possibly low although the
rich air-fuel ratio. Therefore, if the output voltage is low, use a
jumper wire to connect the terminal No.2 and the terminal No. 1
of the oxygen sensor with a (+) terminal and (-) terminal of 12 V
power supply respectively, then check again.
NOTE: For removal and installation of the heated oxygen sen-
sor, refer to GROUP 15, Exhaust Pipe and Main Muffler

P.15-20

.

INJECTOR CHECK

M1131005200521

.

<Right bank side (number 1, 3, 5 cylinders)>

1. Disconnect the intermediate connector B-32.
2. Measure the resistance between the injector intermediate

connector terminals.

Standard value:

3. Connect the injector intermediate connector.

.

ENGINE

HEATED OXYGEN
SENSOR OUTPUT
VOLTAGE

REMARKS

When revving
engine

0.6

− 1.0 V

If you make the
air/fuel ratio rich by
revving the engine
repeatedly, a
normal heated
oxygen sensor will
output a voltage of
0.6

− 1.0 V.

INJECTOR NO.

MEASUREMENT
TERMINAL

RESISTANCE

NO.1

5

− 9

10.5

− 13.5 Ω [20°C

(68

°F)]

NO.3

9

− 10

NO.5

4

− 9

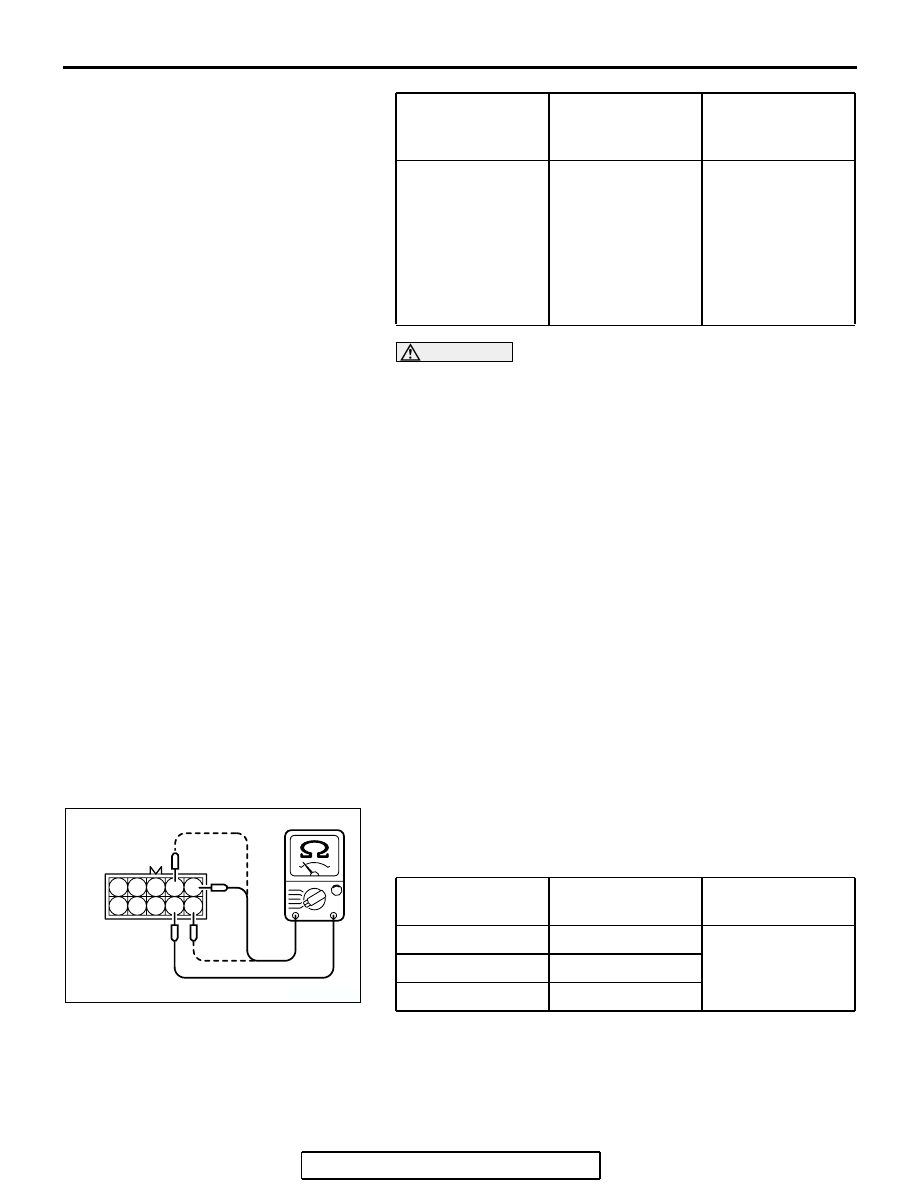

1

2 3

6

7 8

4 5

9 10

AK203093

B-32
INTERMEDIATE
CONNECTOR

AB

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-1187

<Left bank side (number 2, 4, 6 cylinders)>

1. Disconnect the injector connector.
2. Measure the resistance between injector side connector

terminals 1 and 2.

Standard value: 10.5

− 13.5 ohms [at 20°C (68°F)]

3. Connect the injector connector.

THROTTLE ACTUATOR CONTROL MOTOR
CHECK

M1131051000070

.

<Operation Inspection>

1. Disconnect the air intake hose from the throttle body.
2. Set the ignition switch to the "ON" position.
3. Operate the accelerator pedal and confirm that the throttle

valve is opening and closing accordingly.

.

<Checking the Terminal Resistance>

1. Disconnect the throttle position sensor connector.
2. Measure the resistance between terminal No. 1 and No. 2.

Standard value: 0.3

− 80 ohms [at 20°C (68°F)]

3. If resistance is outside the standard value, replace the

throttle body assembly.

EVAPORATIVE EMISSION PURGE SOLENOID
CHECK

M1131005600240

Refer to GROUP 17, Emission Control System

− Evaporative

Emission System

− Evaporative Emission Purge Solenoid

Check

P.17-87

.

EVAPORATVE EMISSION VENTILATION
SOLENOID CHECK

M1131012800224

Refer to GROUP 17, Emission Control System

− Evaporative

Emission Canister and Fuel Tank Pressure Relief Valve

−

Evaporative Emission Canister and Fuel Tank Pressure Relief
Valve Inspection

P.17-96

.

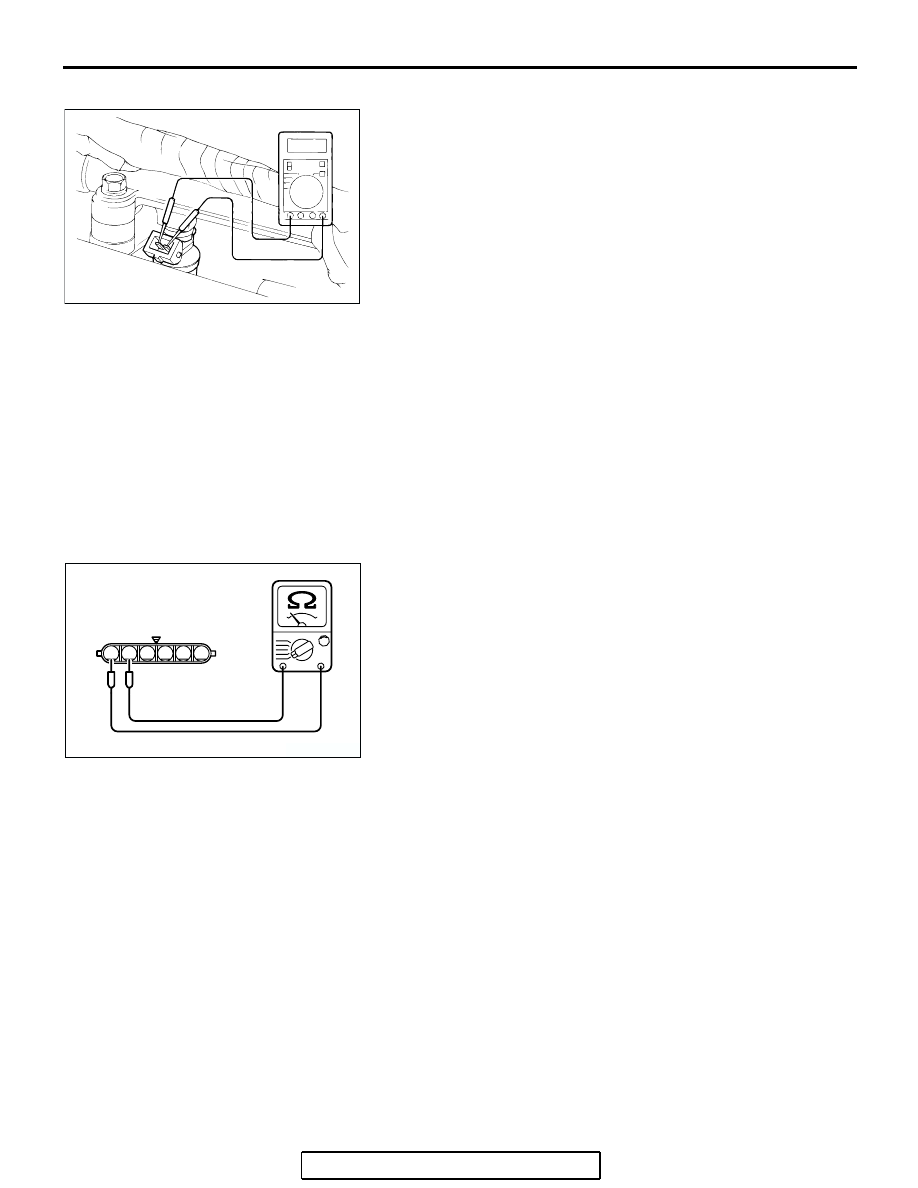

AK000126

6

1 2 3 4 5

AK202992

THROTTLE ACTUATOR
CONTROL MOTOR
CONNECTOR

AB
