SYMPTOM PROCEDURES
TSB Revision
SIMPLIFIED WIRING SYSTEM (SWS)
54B-464
INSPECTION PROCEDURE L-1: Can not customize the functions by operating the multi center display
(middle-grade type).
NOTE: This troubleshooting procedure requires the
use of scan tool MB991958 and SWS monitor kit
MB991813. For details on how to use the SWS mon-
itor, refer to "How to use SWS monitor
P.54B-15
."
.
CIRCUIT OPERATION
The ETACS-ECU enables/disables the functions and
changes their operation time, based on the informa-
tion sent from the multi center display (middle-grade
type)
.
TECHNICAL DESCRIPTION (COMMENT)
If it is impossible to customize the functions by oper-
ating the multi center display (middle-grade type),
connector(s) or wiring harness in the CAN bus lines,
the ETACS-ECU or the multi center display unit (mid-
dle-grade type) may be defective.
.
TROUBLESHOOTING HINTS
• Trouble in input signal system
• The wiring harness or connectors may have
loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector
• Malfunction of the multi center display (mid-
dle-grade type)
• The ETACS-ECU may be defective
.
DIAGNOSIS

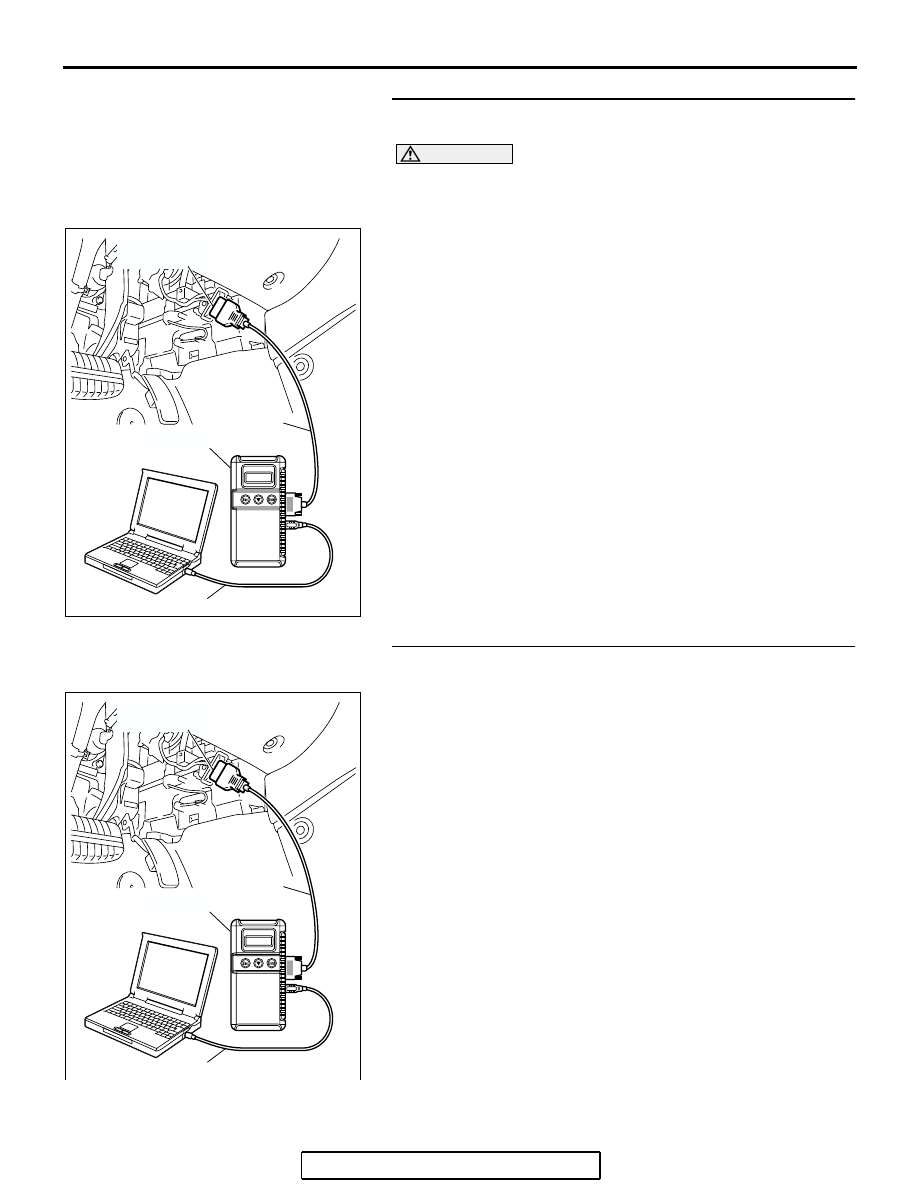

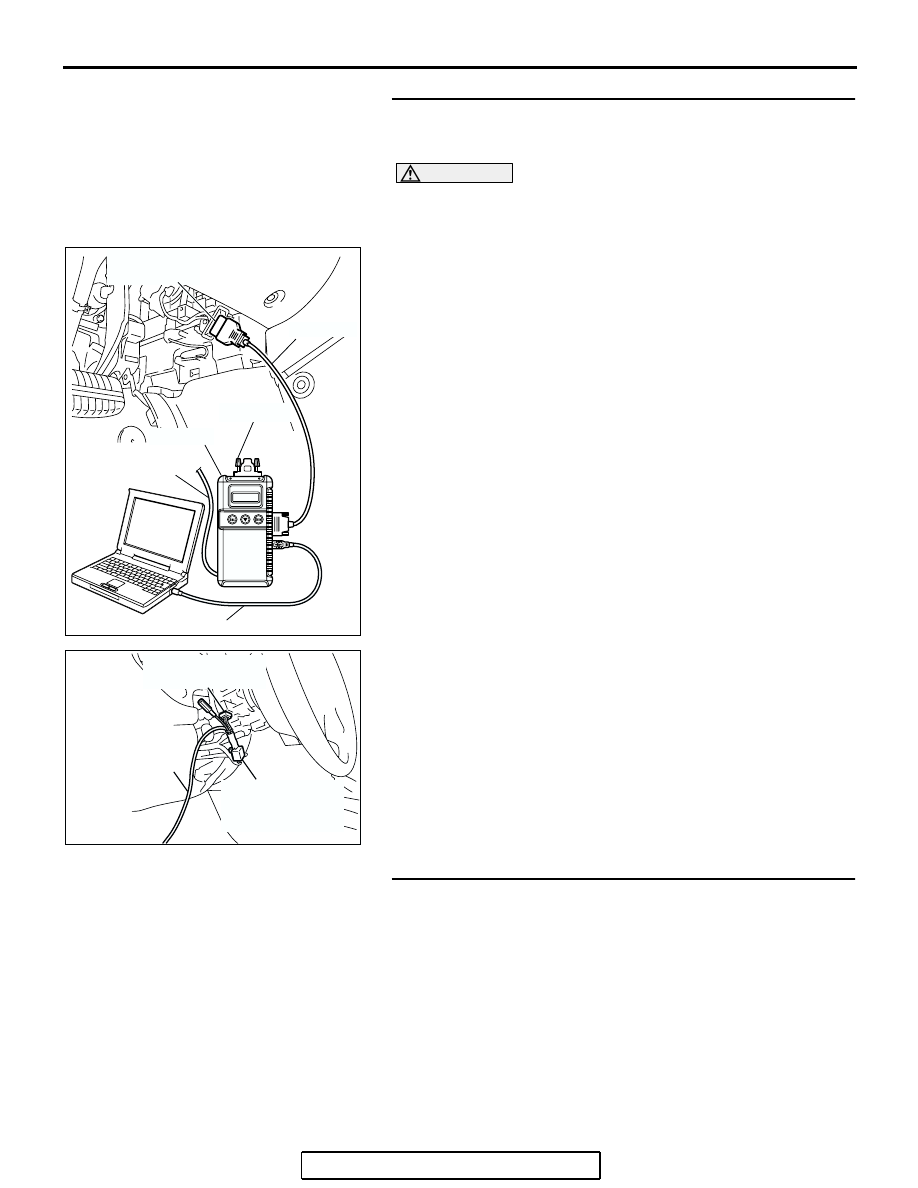

Required Special Tools:
• MB991223: Harness Set
• MB991958: Scan Tool (MUT-III Sub Assembly)
• MB991824: Vehicle Communication Interface (V.C.I.)
• MB991827: MUT-III USB Cable
• MB991910: MUT-III Main Harness A
• MB991813: SWS Monitor Kit
• MB991806: SWS Monitor Cartridge
• MB991812: SWS Monitor Harness (For Column-ECU)
• MB991822: Probe Harness

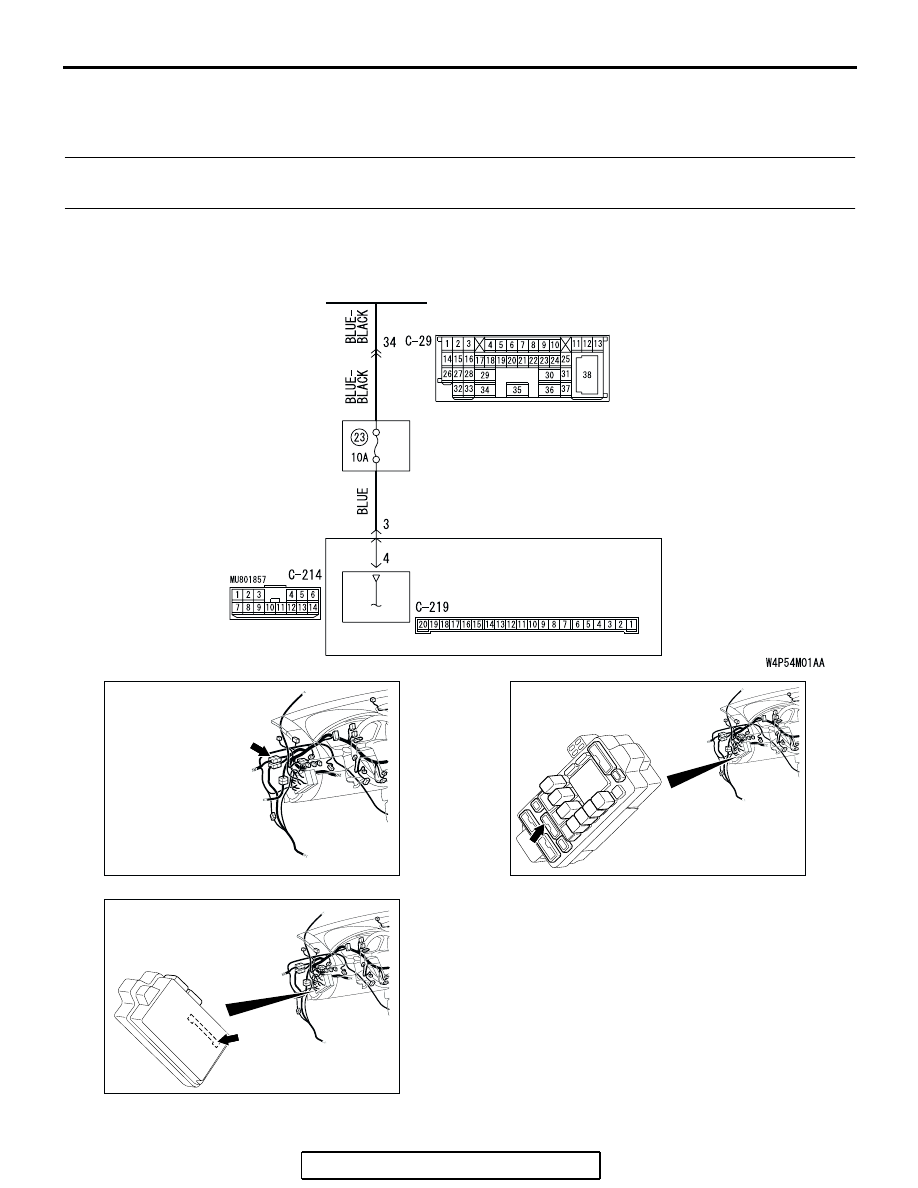

ETACS-
ECU
MULTI CENTER
DISPLAY
(MIDDLE-GRADE TYPE)
CAN COMMUNICATION LINE
(CAN_L LINE)
CAN COMMUNICATION LINE
(CAN_H LINE)
Configuration Function
