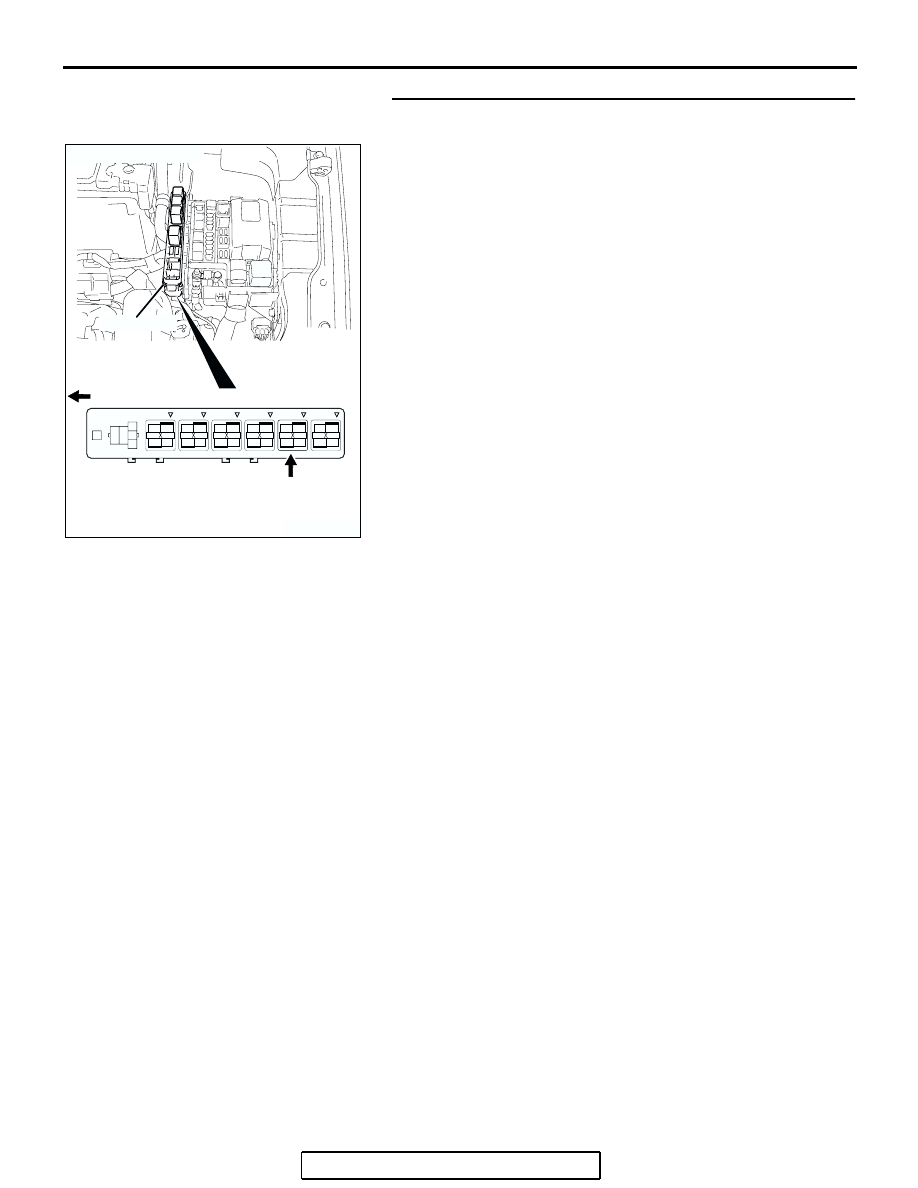

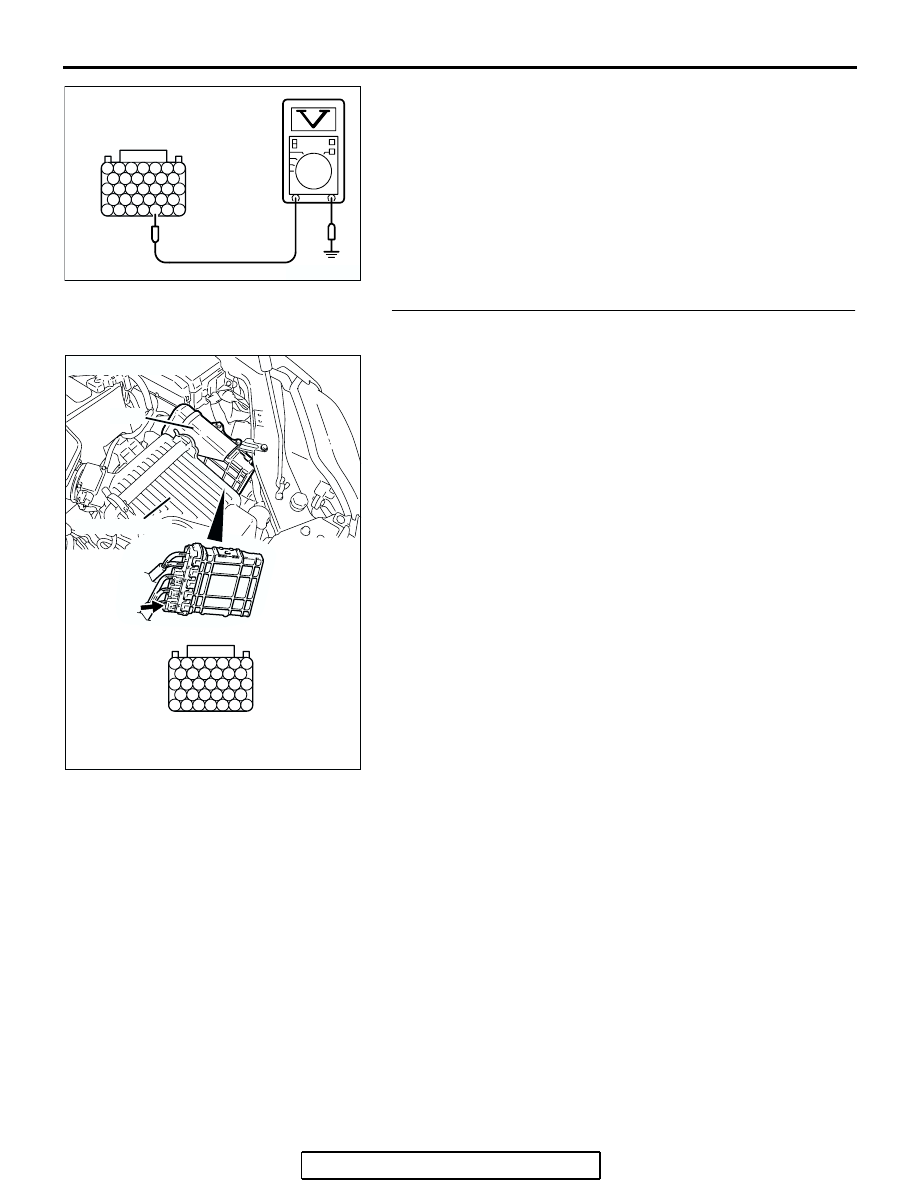

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS TSB Revision MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE> 13B-692 STEP 3 Check the evaporative emission purge solenoid. connector B-05. (2) Measure the resistance between evaporative emission purge solenoid side connector terminal No. 1 and No. 2. Standard value: 30 − 34 ohms [at 20°C (68°F)] Q: Is the measured resistance between 30 and 34 ohms [at 20 °C (68°F)]? YES : Go to Step 4. Then go to Step 12. STEP 4. Measure the power supply voltage at evaporative side. (2) Turn the ignition switch to the "ON" position. (3) Measure the voltage between terminal No. 2 and ground. • Voltage should be battery positive voltage. (4) Turn the ignition switch to the "LOCK" (OFF) position. present? 1 2 AK303142 CONNECTOR: B-05 B-05 (B) HARNESS AB 1 2 AK202961 EVAPORATIVE EMISSION AB 1 2 AK303142 CONNECTOR: B-05 B-05 (B) HARNESS AB AK303144 1 2 B-05 HARNESS AB |
