MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-688

DTC P0443: Evaporative Emission Control Evaporative Emission Control System Purge Control Valve
Circuit

1 2

1

2

3

4

121 122 123 124 125 126 127

128 129 130 131 132 133

134 135 136 137 138 139 140

141 142 143 144 145 146

147 148 149 150 151 152 153

AK400892

RED-

WHITE

RED-

WHITE

BLUE

RED

MFI RELAY

BATTERY

149

2

4

B-17X

1

3

1

2

POWERTRAIN
CONTROL
MODULE (PCM)

EVAPORATIVE EMISSION
PURGE SOLENOID

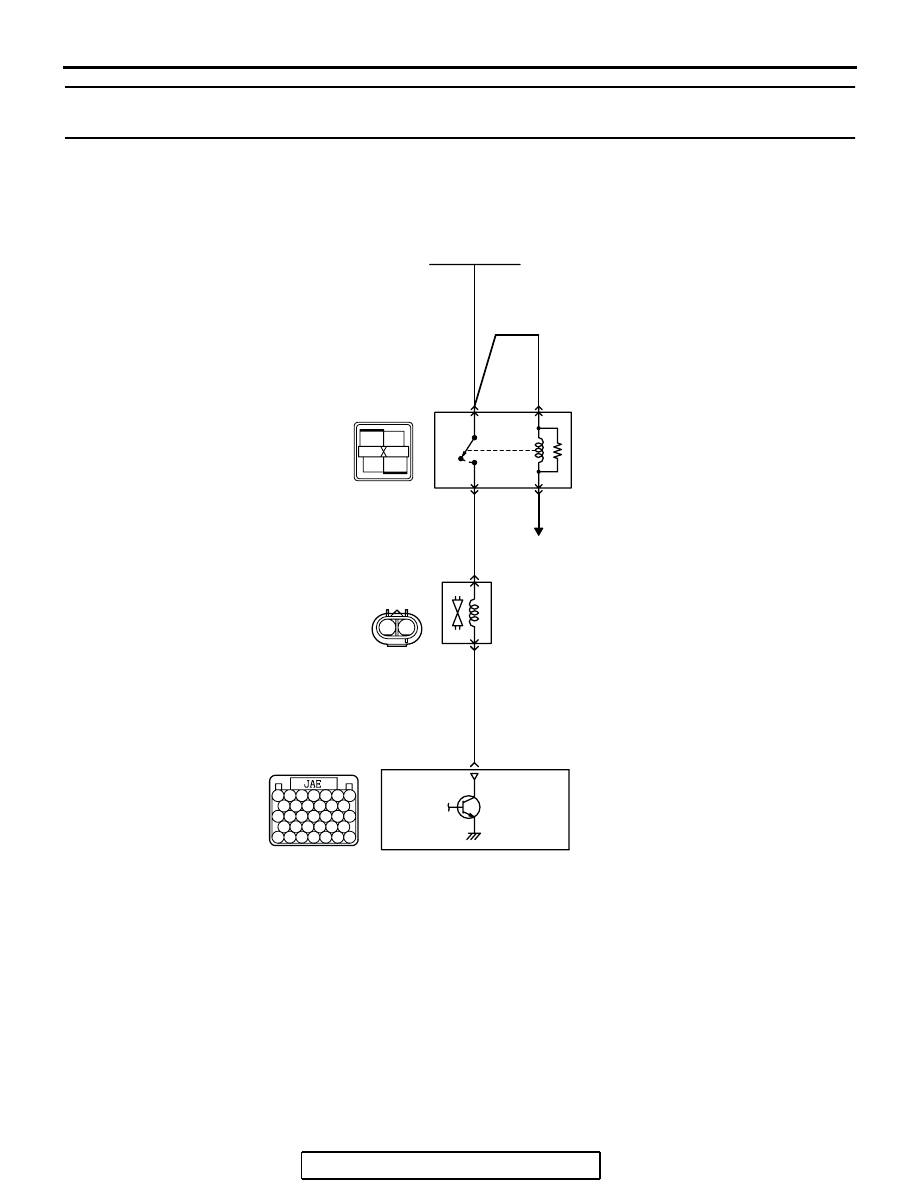

Evaporative Emission Purge Solenoid Circuit

B-05

MU802779

B-23

TO PCM

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-689

.

CIRCUIT OPERATION

• The evaporative emission purge solenoid power

is supplied from the MFI relay (terminal No. 4).

• The PCM controls ground evaporative emission

purge solenoid by turning the power transistor in
the PCM "ON" and "OFF".

.

TECHNICAL DESCRIPTION

• To judge if there is open circuit in the evaporative

emission purge solenoid drive circuit, the PCM
measures the surge voltage of the evaporative
emission ventilation solenoid coil.

.

DESCRIPTIONS OF MONITOR METHODS

Off-surge does not occur after solenoid is operated

from on to off.

.

MONITOR EXECUTION

continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

1

2

3

4

1

2

3

4

1

2

3

4

1

2

3

4

AK303014

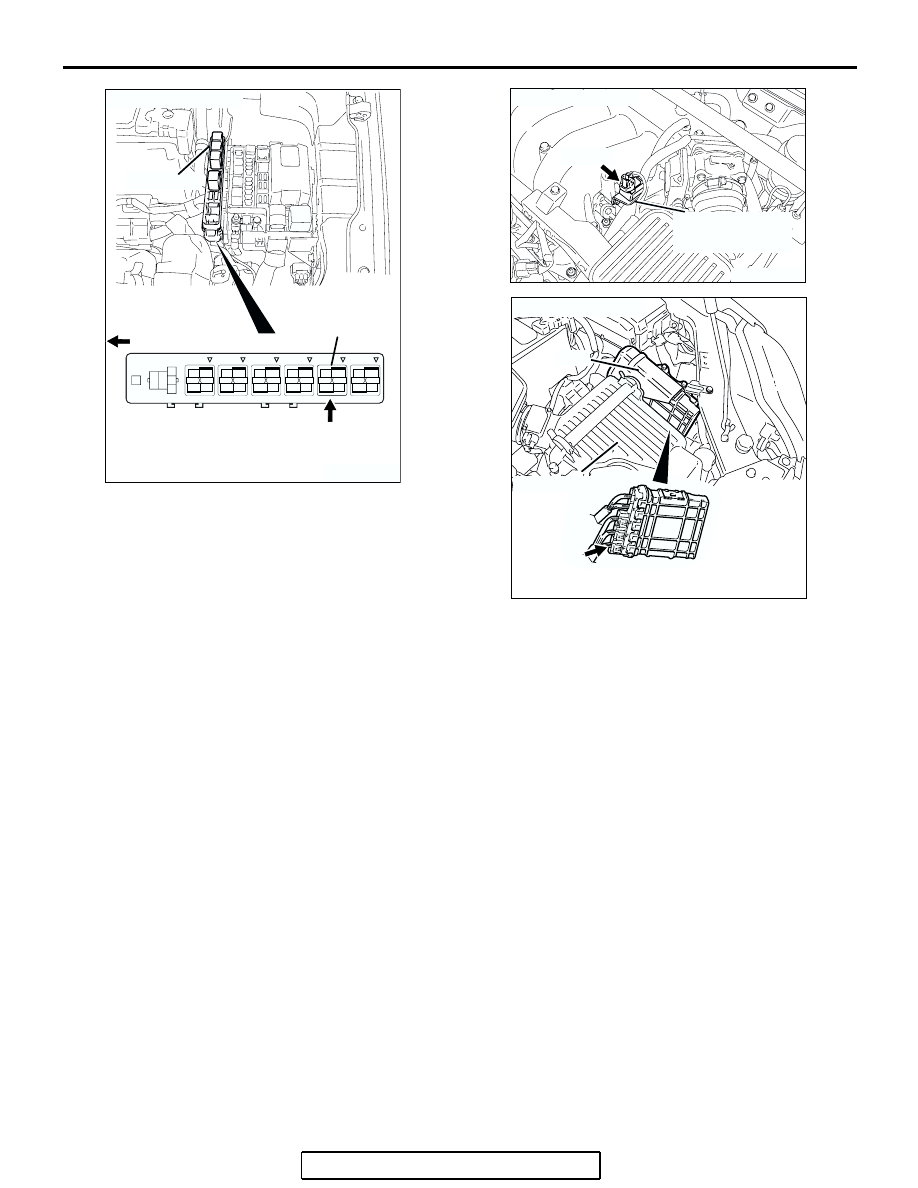

CONNECTOR: B-17X

MFI RELAY

MFI RELAY

FRONT OF VEHICLE

B-17X

AB

AK303026

EVAPORATIVE
EMISSION PURGE
SOLENOID

CONNECTOR: B-05

B-05 (B)

AB

AK303059

CONNECTOR: B-23

PCM

AB

AIR CLEANER

B-23

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-690

DTC SET CONDITIONS
Logic Flow Chart

.

Check Conditions

• Engine is being cranked.

• Battery positive voltage is between 10 and 16.5

volts.

Judgment Criteria

• The evaporative emission purge solenoid coil

surge voltage (battery positive voltage + 2 volts)
is not detected for 0.2 second.

• The PCM monitors for this condition once during

the drive cycle.

.

Check Conditions

• Battery positive voltage is between 10 and 16.5

volts.

• ON duty cycle of the evaporative emission purge

solenoid is between 10 and 90 percent.

• Evaporative emission ventilation solenoid is off.

• More than 1 second has elapsed after the above

mentioned conditions have been met.

Judgment Criteria

• The evaporative emission purge solenoid coil

surge voltage (battery positive voltage + 2 volts)
is not detected for 1 second after the evaporative
emission purge solenoid is turned off.

.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function

− OBD-II Drive Cycle −

Procedure 6

− Other Monitor

P.13B-6

.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are: )

• Evaporative emission purge solenoid failed.

• Open or shorted evaporative emission purge

solenoid circuit, harness damage, or connector
damage.

• PCM failed.

MONITORING

CONDITIONS

NO

NO

YES

YES

GOOD

MALFUNCTION

WAS SURGE VOLTAGE

(> VB+2V) DETECTED?

START

END

AK302405

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-691

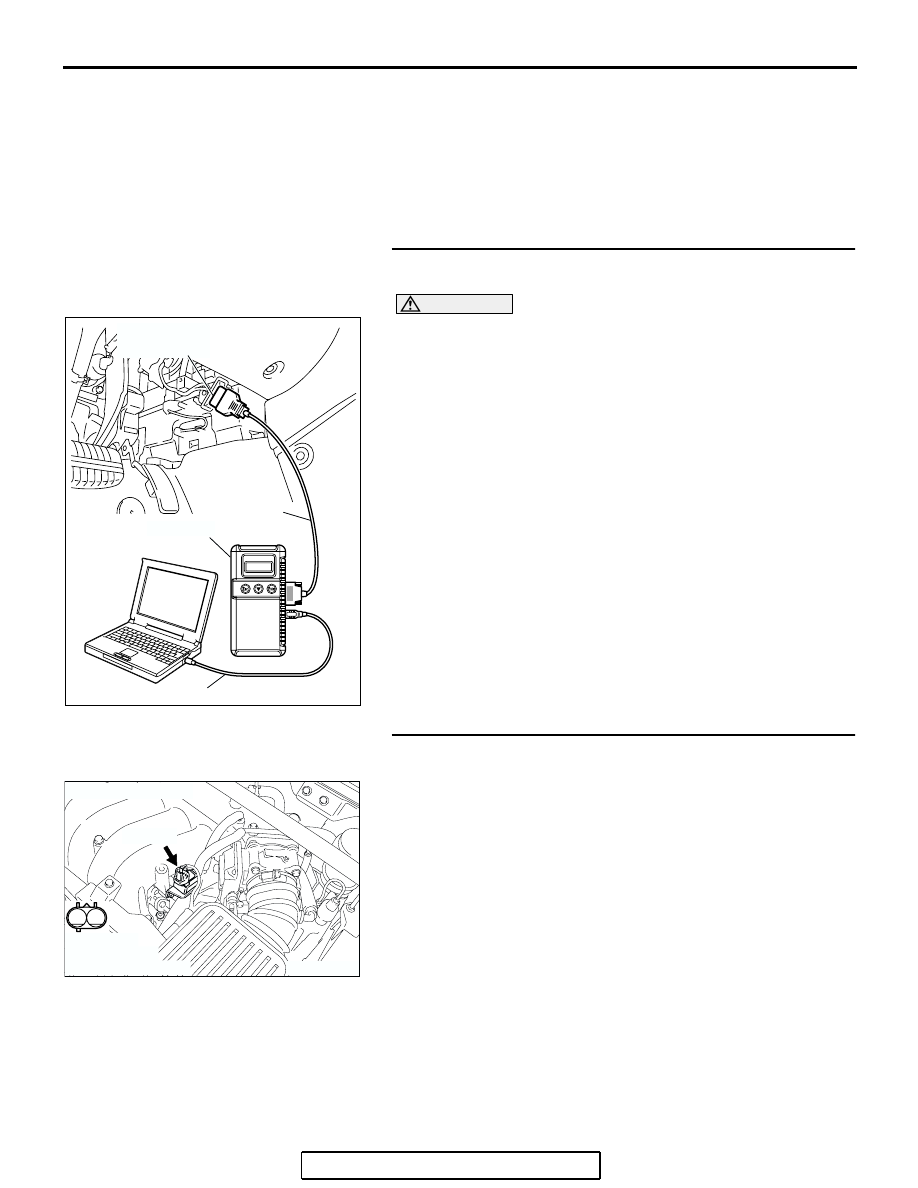

DIAGNOSIS

Required Special Tools:

• MB991958: Scan tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

• MB991923: Power Plant ECU Check Harness

STEP 1. Using scan tool MB991958, check actuator test
item 08: Evaporative Emission Purge Solenoid.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the actuator test mode for item

08, Evaporative emission purge solenoid.

• An operation sound should be heard and vibration

should be felt when the evaporative emission purge
solenoid is operated.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the solenoid operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

NO :  Go to Step 2.

STEP 2 Check harness connector B-05 at the evaporative
emission purge solenoid for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 3.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

1

2

AK303142

CONNECTOR: B-05

B-05 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AB
