SYMPTOM PROCEDURES
TSB Revision
SIMPLIFIED WIRING SYSTEM (SWS)
54B-344
STEP 12. Check the headlight (RH) bulb.
(1) Remove the headlight (RH) bulb.
(2) Verify that the headlight (RH) bulb is not damaged or
burned out.
Q: Is headlight (RH) bulb normal?
YES : Go to Step 13.
NO : Replace the headlight (RH) bulb. Verify that the
headlights illuminate normally.
STEP 13. Check the wiring harness between headlight (RH)
connector A-33 (terminal 1) and front-ECU connector
A-11X (terminal 6).
Q: Is the wiring harness between headlight (RH) connector
A-33 (terminal 1) and front-ECU connector A-11X
(terminal 6) in good condition?
YES : No action is necessary and testing is complete.
NO : The wiring harness may be damaged or the
connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the headlights illuminate normally.

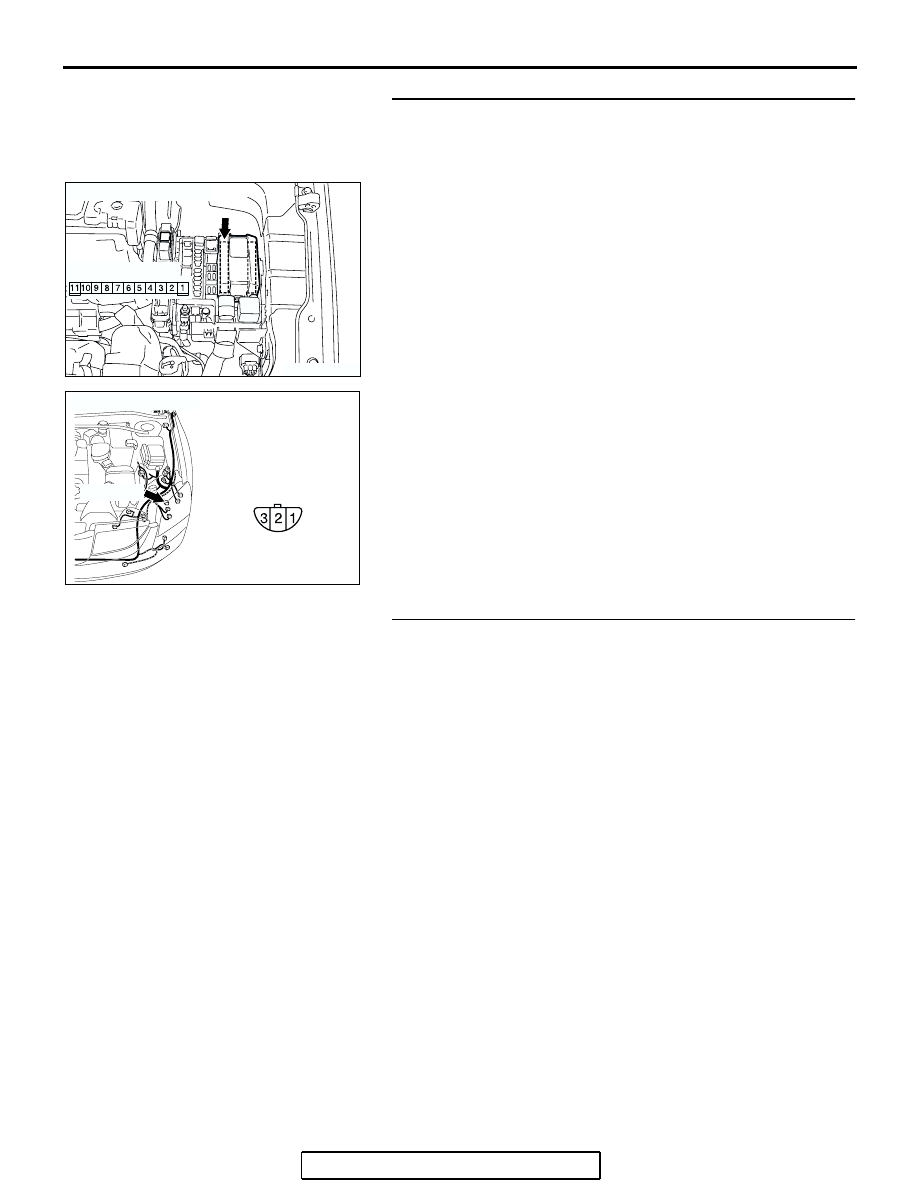

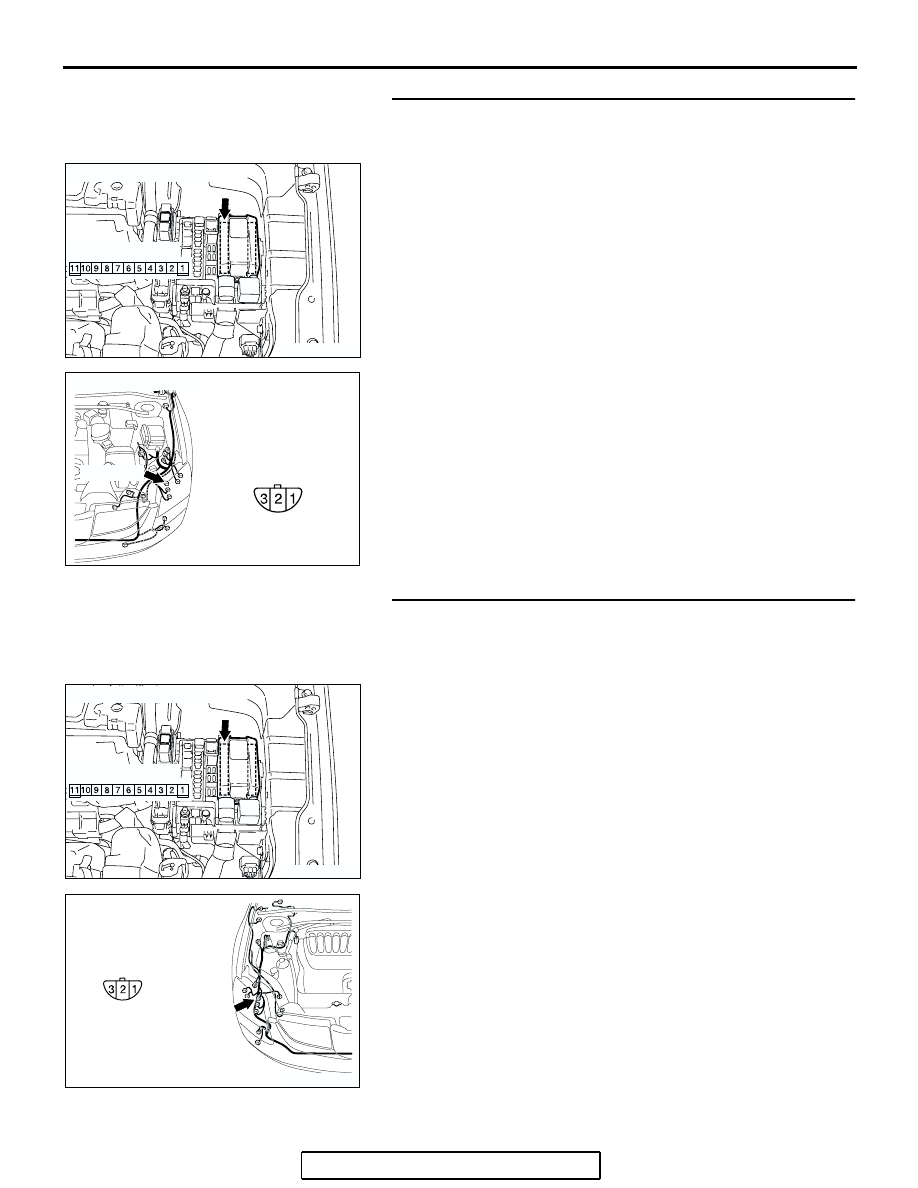

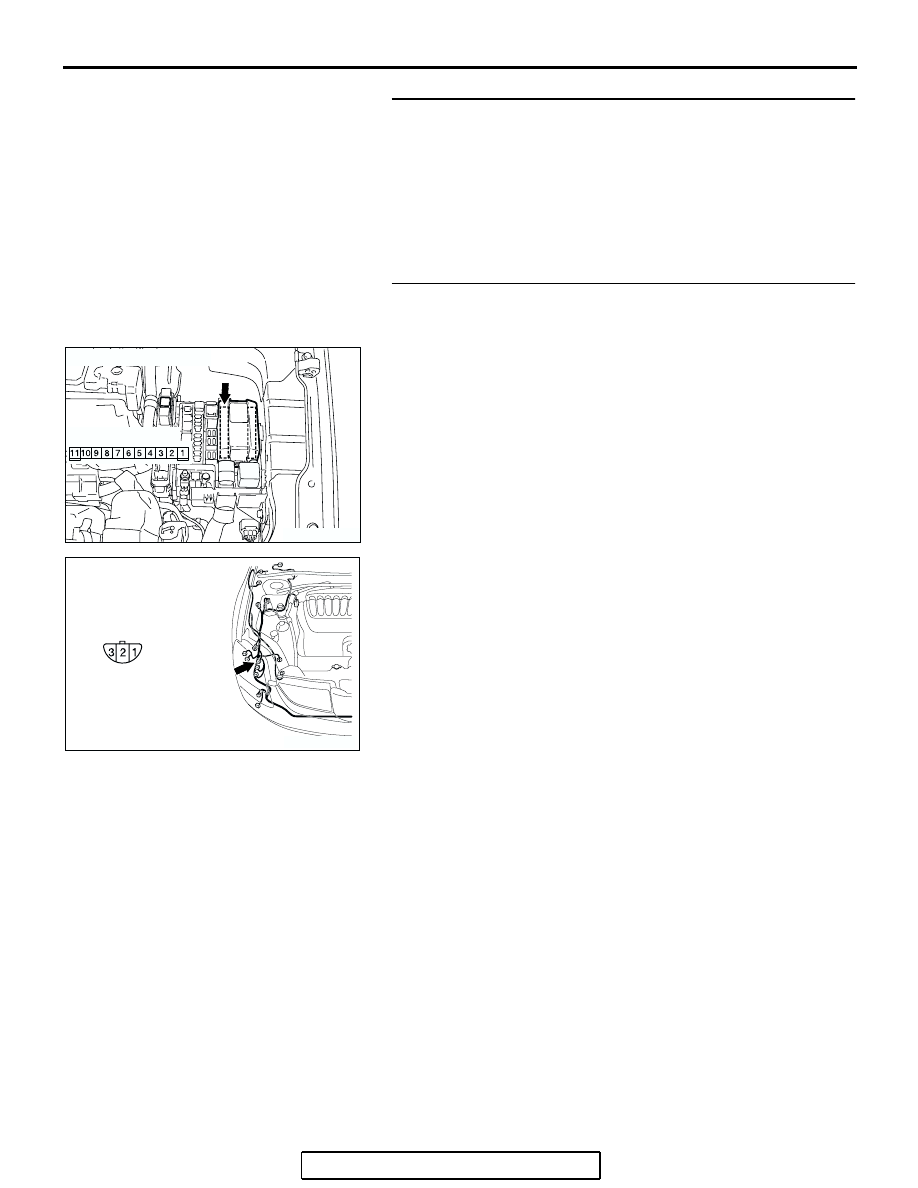

AC305977AH
CONNECTOR: A-11X
RELAY BOX SIDE
AC305206AM
CONNECTOR: A-33
A-33(GR)
HARNESS SIDE
