SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-336

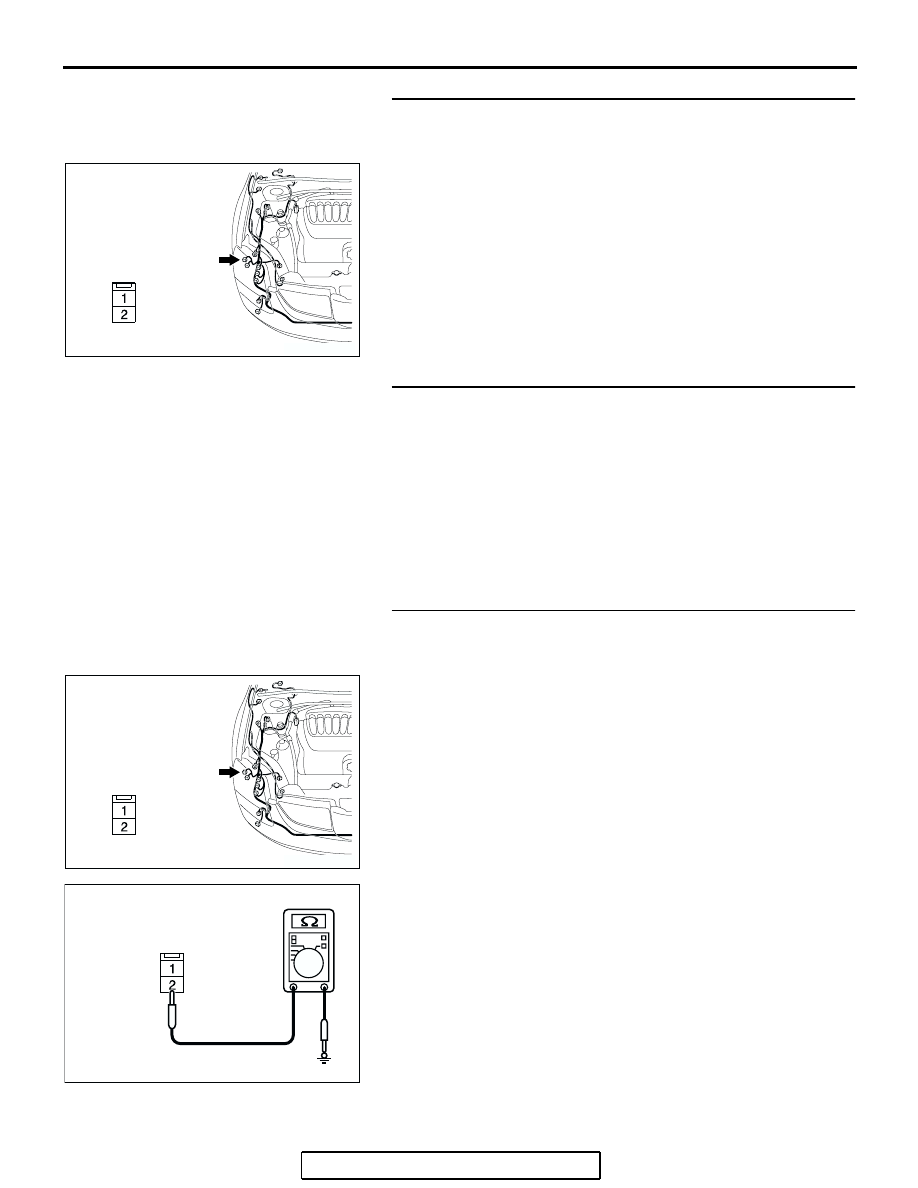

STEP 44. Check front side marker light (RH) connector
A-35 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Is front side marker light (RH) connector A-35 in good

condition?
YES :
Go to Step 45.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the front side marker light (RH)

illuminates normally.

STEP 45. Check the front side marker light bulb (RH).
(1) Remove the front side marker light bulb (RH).
(2) Verify that the front side marker light bulb (RH) is not

damaged or burned out.

Q: Is the front side marker light bulb (RH) in good

condition?
YES :
Go to Step 46.
NO :  Replace the front side marker light bulb (LH). Verify

that the front side marker light (LH) illuminates
normally.

STEP 46. Check the ground circuit to the front side marker
light (RH). Measure the resistance at front side marker light
(RH) connector A-35.
(1) Disconnect front side marker light (RH) connector A-35 and

measure the resistance available at the wiring harness side
of the connector.

(2) Measure the resistance value between terminal 2 and

ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 48.
NO :  Go to Step 47.

AC305206 AX

CONNECTOR: A-35

HARNESS SIDE

AC305206 AX

CONNECTOR: A-35

HARNESS SIDE

AC209364GV

CONNECTOR A-35
(HARNESS SIDE)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-337

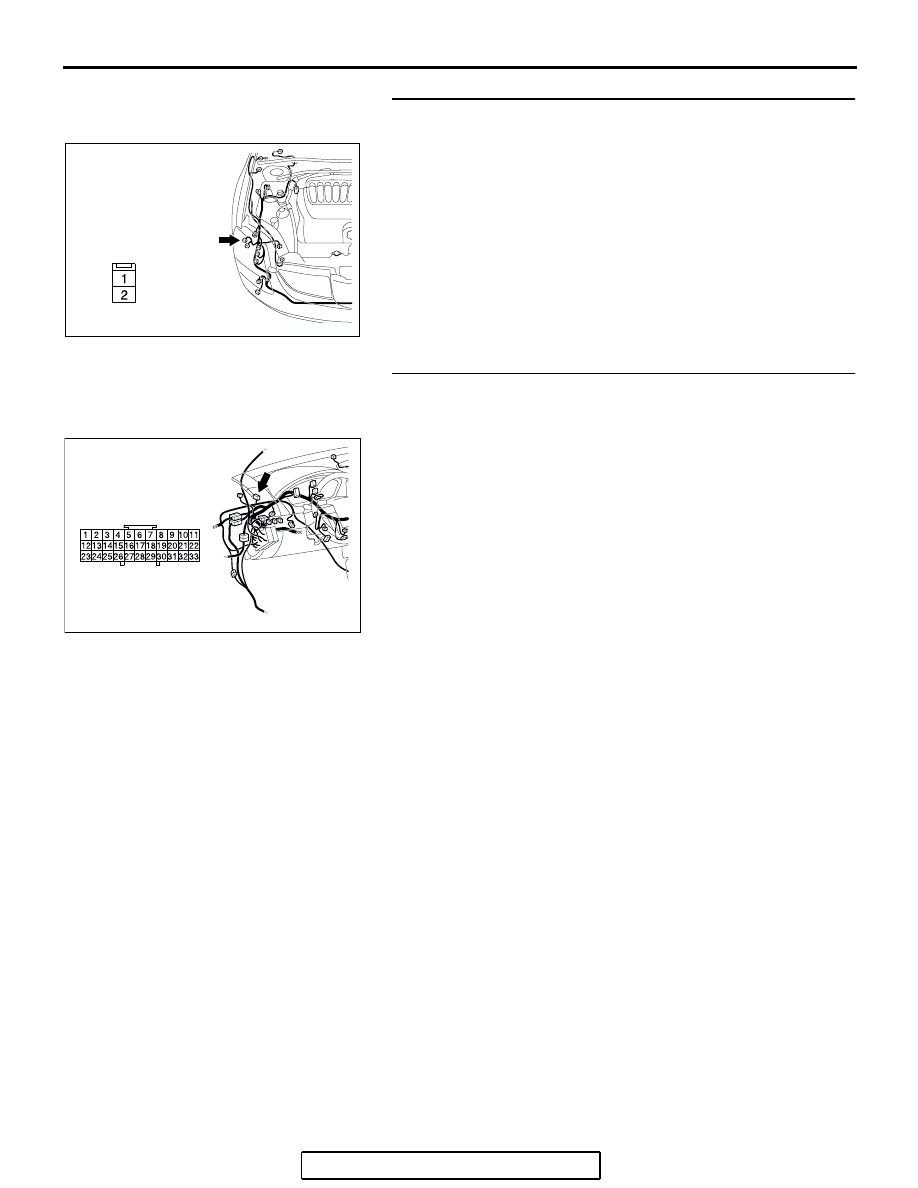

STEP 47. Check the wiring harness between front side
marker light (RH)  connector A-35 (terminal 2) and ground.
Q: Is the wiring harness between front side marker light

(RH) connector A-35 (terminal 2) and ground in good
condition?
YES :
Replace the front combination light socket (RH).

Verify that the front side marker light (RH) illuminates
normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the front side marker light (RH) illuminates normally.

STEP 48. Check joint connector C-01 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.
Q: Is joint connector C-01 in good condition?

YES : Go to Step 49.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the front side marker light (RH)

illuminates normally.

AC305206 AX

CONNECTOR: A-35

HARNESS SIDE

AC305231

CONNECTOR: C-01

BO

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-338

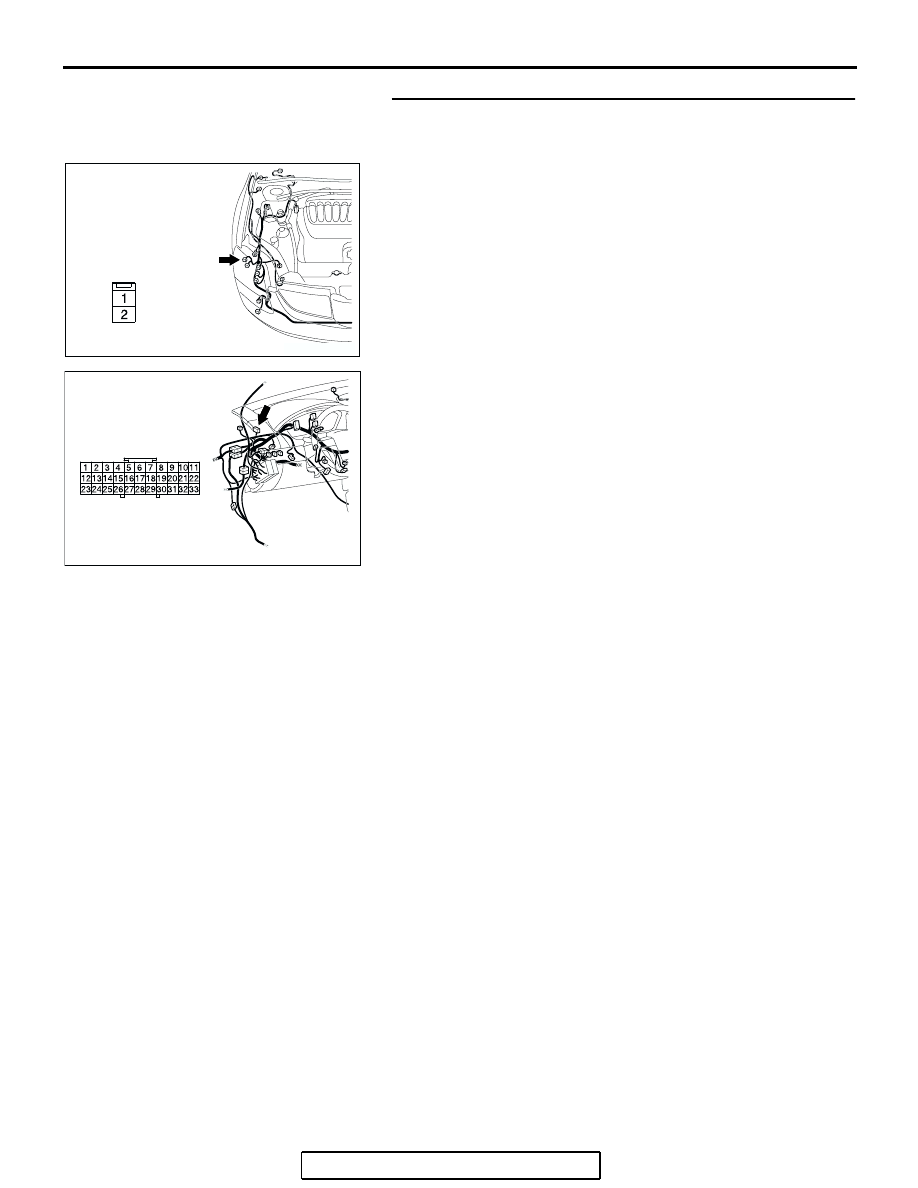

STEP 49. Check the wiring harness between front side
marker light (RH) connector A-35 (terminal 1) and joint
connector C-01 (terminal 3).
Q: Is the wiring harness between front side marker light

(RH) connector A-35 (terminal 1) and joint connector
C-01 (terminal 3) in  good condition?
YES :
No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the front side marker light (RH) illuminates normally.

AC305206 AX

CONNECTOR: A-35

HARNESS SIDE

AC305231

CONNECTOR: C-01

BO

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-339

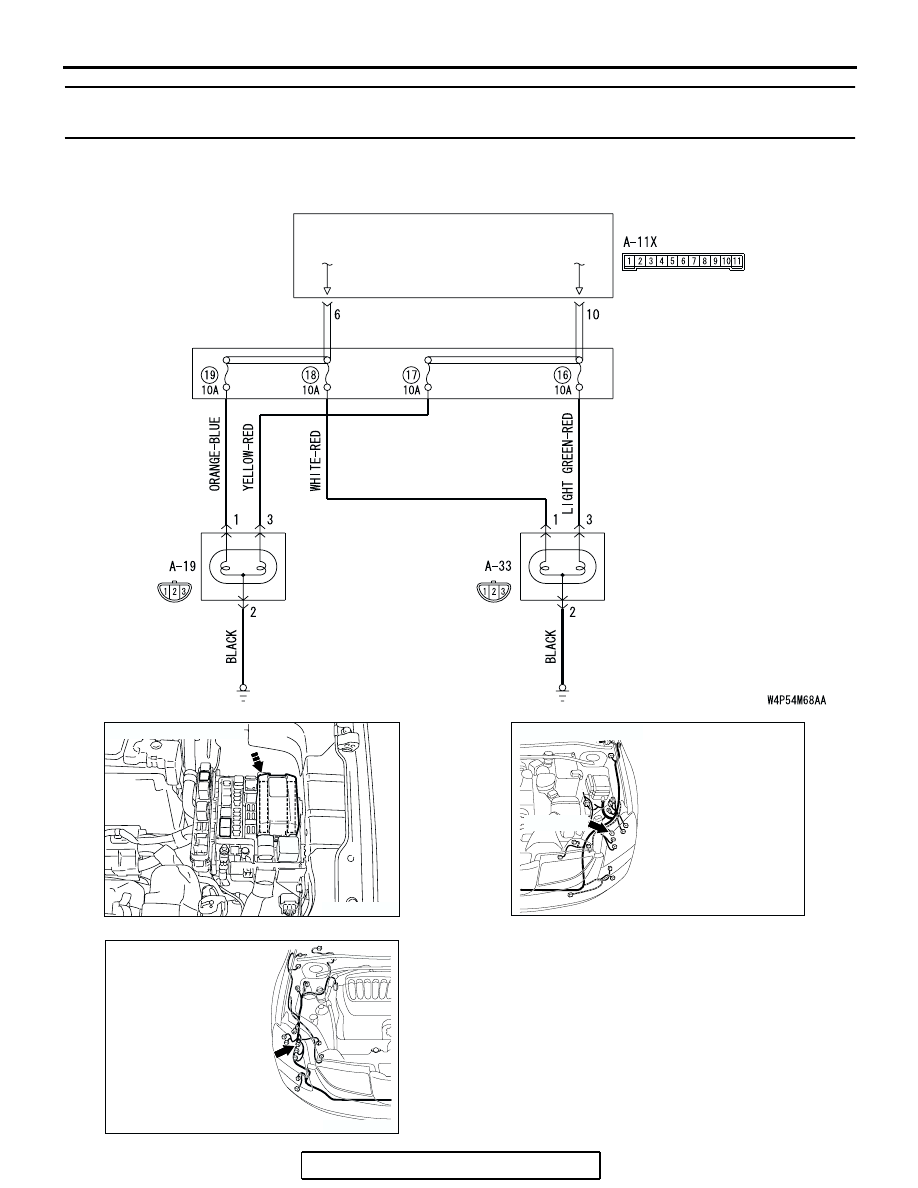

INSPECTION PROCEDURE H-7: Headlight and Taillight: One of the headlights does not illuminate.
<2-bulb type>

HEADLIGHT
RELAY: HIGH

PULSE WIDTH
MODULATOR

HEADLIGHT
(LH)

HEADLIGHT
(RH)

RELAY
BOX

FRONT-ECU

Headlights Circuit <2-bulb type>

AC305977AE

CONNECTOR: A-11X

AC400526

AI

CONNECTOR: A-19

A-19 (GR)

AC305206AL

CONNECTOR: A-33

A-33 (GR)
