SYMPTOM PROCEDURES
TSB Revision
SIMPLIFIED WIRING SYSTEM (SWS)
54B-328

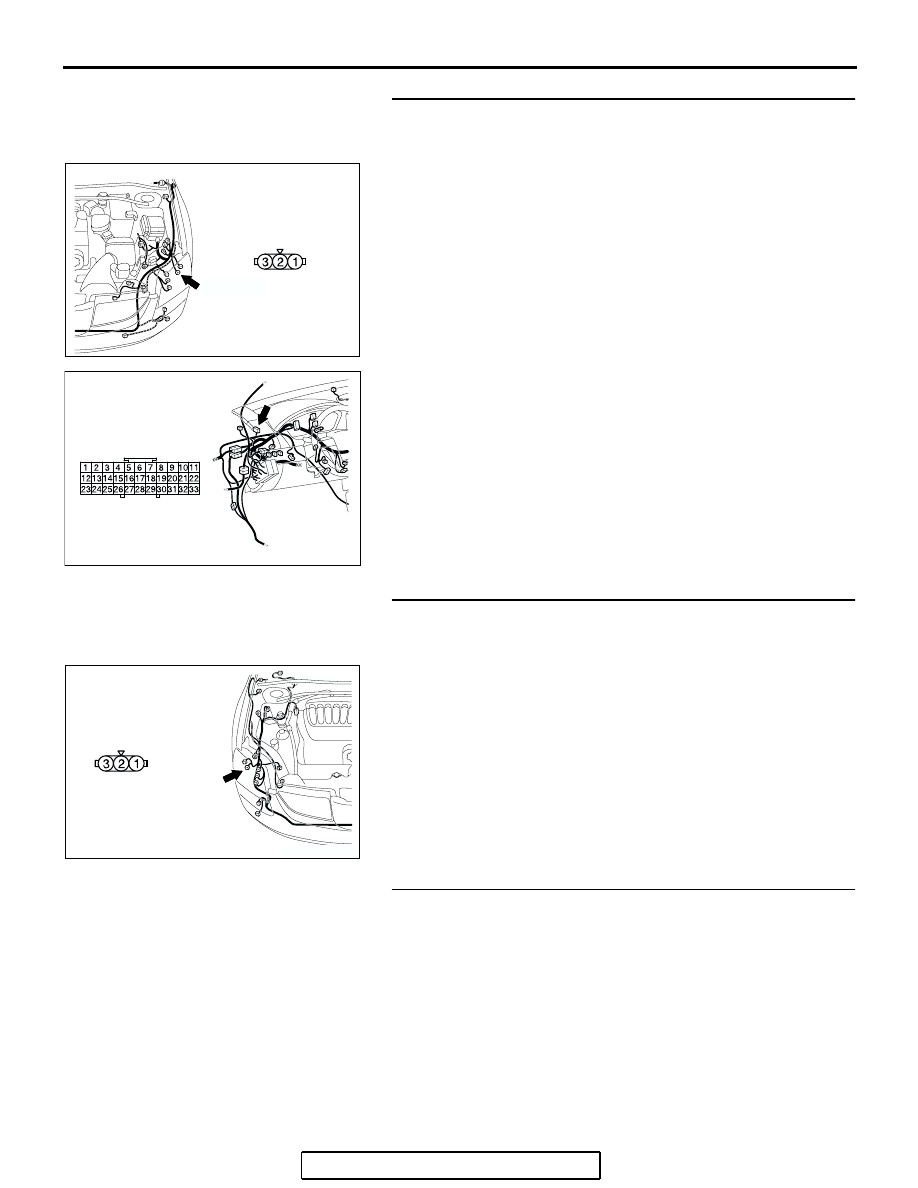

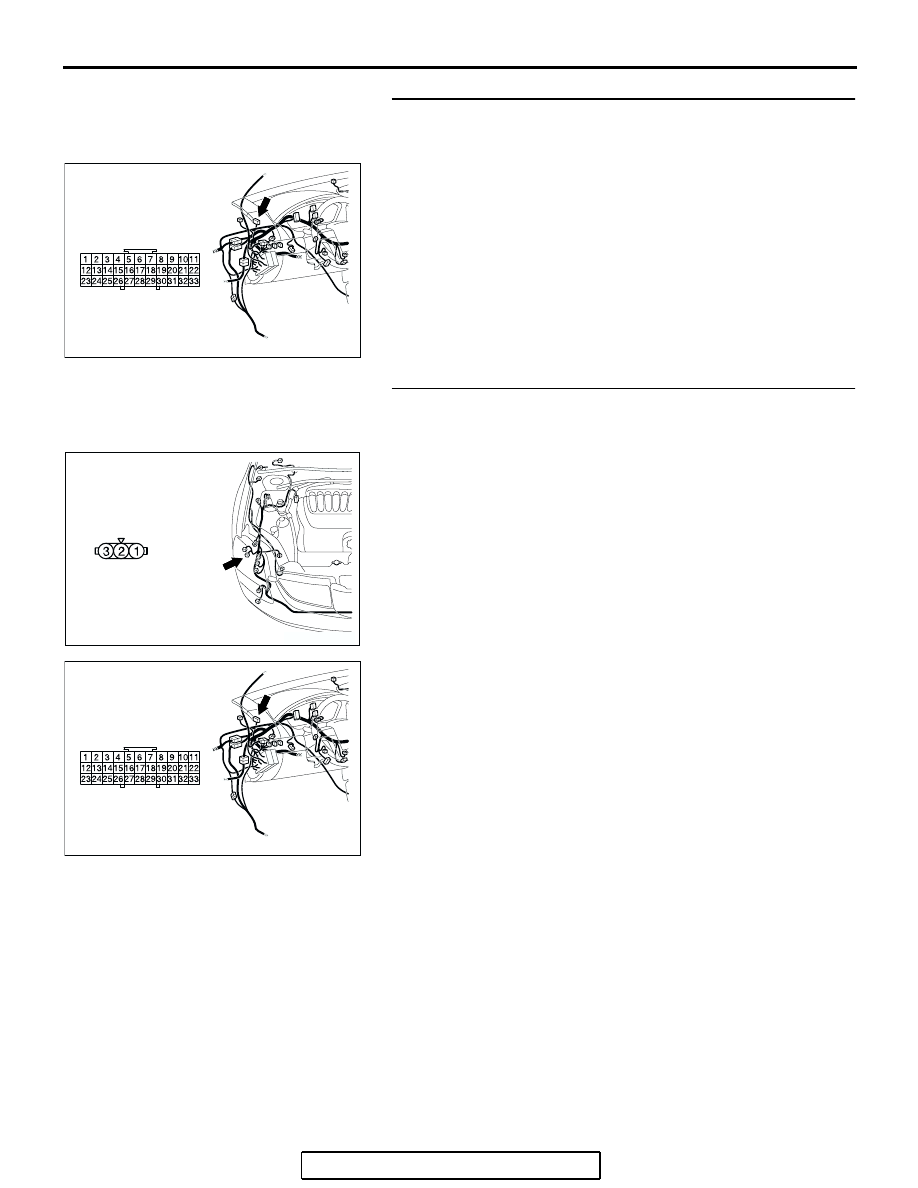

STEP 24. Check the wiring harness between front
combination light (LH) connector A-18 (terminal 3) and
joint connector C-01 (terminal 15).
Q: Is the wiring harness between front combination light
(LH) connector A-18 (terminal 3) and joint connector
C-01 (terminal 15) in good condition?
YES : No action is necessary and testing is complete.
NO : The wiring harness may be damaged or the
connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the front parking light (LH) illuminates normally.

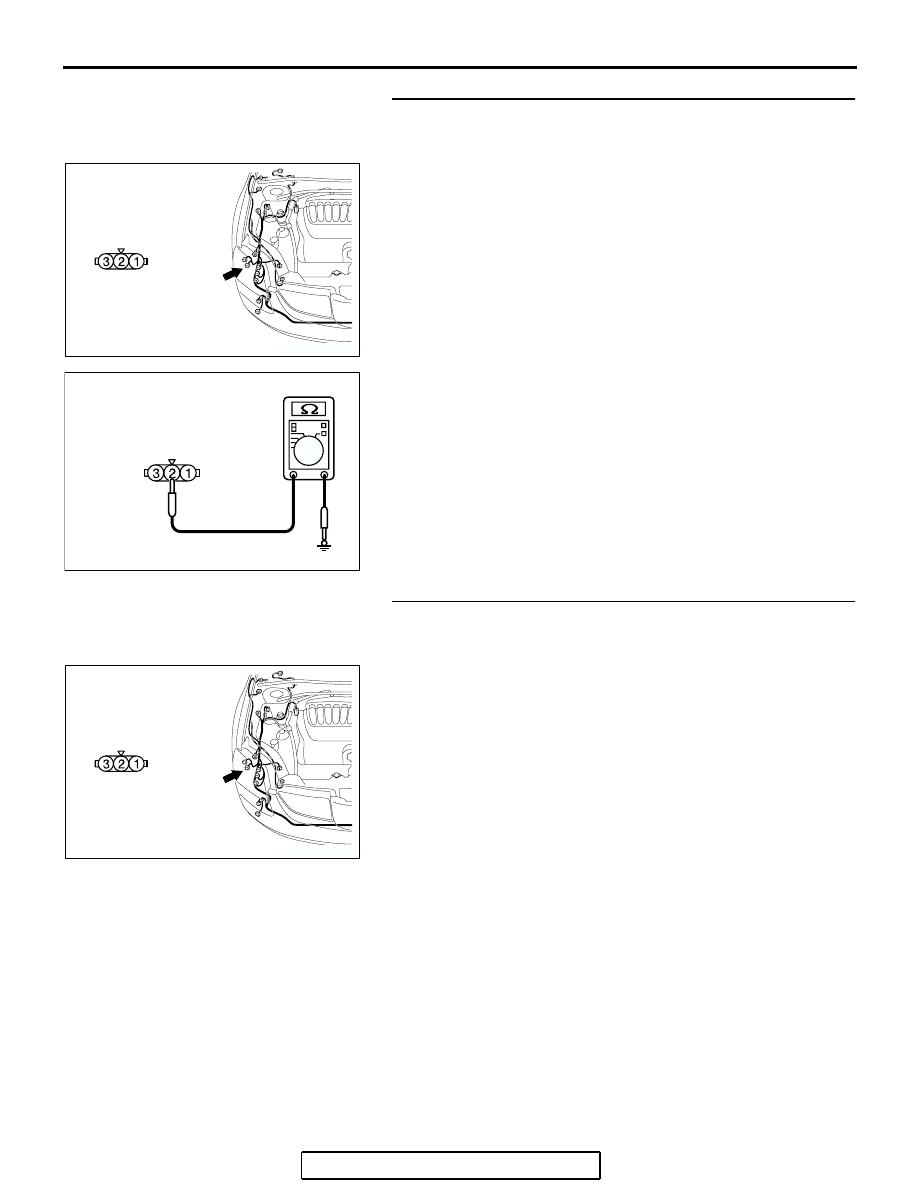

STEP 25. Check front combination light (RH) connector
A-34 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Is front combination light (RH) connector A-34 in good
condition?
YES : Go to Step 26.
NO : Repair or replace the damaged component(s). Refer
to GROUP 00E, Harness Connector Inspection
P.00E-2
. Check that the front parking light (RH)
illuminates normally.
STEP 26. Check the front parking light bulb (RH).
(1) Remove the front parking light bulb (RH).
(2) Verify that the front parking light bulb (RH) is not damaged
or burned out.
Q: Is the front parking light bulb (RH) in good condition?
YES : Go to Step 27.
NO : Replace the front side marker light bulb (RH). Verify
that the front parking light (RH) illuminates normally.
AC400526
A-18 (GR)
CONNECTOR: A-18
AL
HARNESS SIDE
AC305231
CONNECTOR: C-01
BO
AC305206
HARNESS SIDE
A-34 (GR)
CONNECTOR: A-34
AW
