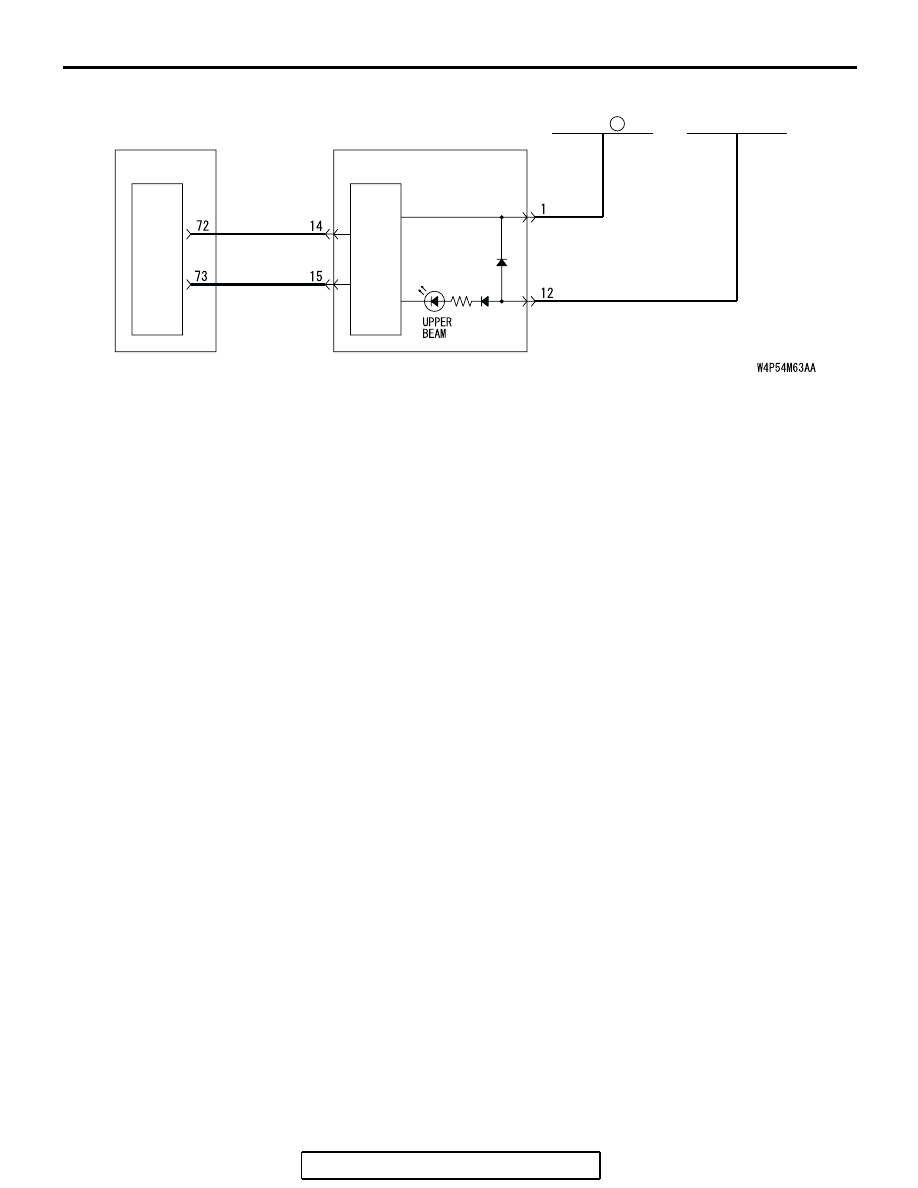

SIMPLIFIED WIRING SYSTEM (SWS)

54B-296

RELAY BOX
(FUSE     )

22

IGNITION
SWITCH (IG1)

ETACS-
ECU

CPU

JUNCTION
BLOCK

COMBINATION
METER

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-297

INSPECTION PROCEDURE H-1: Headlight and Taillight: The taillights do not illuminate normally.

NOTE: This troubleshooting procedure requires the
use of scan tool MB991958 and SWS monitor kit
MB991813. For details on how to use the SWS mon-
itor, refer to "How to use SWS monitor

P.54B-15

."

.

TAILLIGHT
RELAY

· FRONT
  COMBINATION
  LIGHT (LH)
· FRONT SIDE
  MARKER
  LIGHT (LH)
· LICENSE PLATE
  LIGHT
· REAR
  COMBINATION
  LIGHT (LH)

· FRONT
  COMBINATION
  LIGHT (RH)
· FRONT SIDE
  MARKER
  LIGHT (RH)
· REAR
  COMBINATION
  LIGHT (RH)

· HEADLIGHT
  AUTOMATIC
  SHUTDOWN
·TAILLIGHT
  SWITCH

INPUT SIGNAL

BATTERY

FRONT-ECU

RELAY
BOX

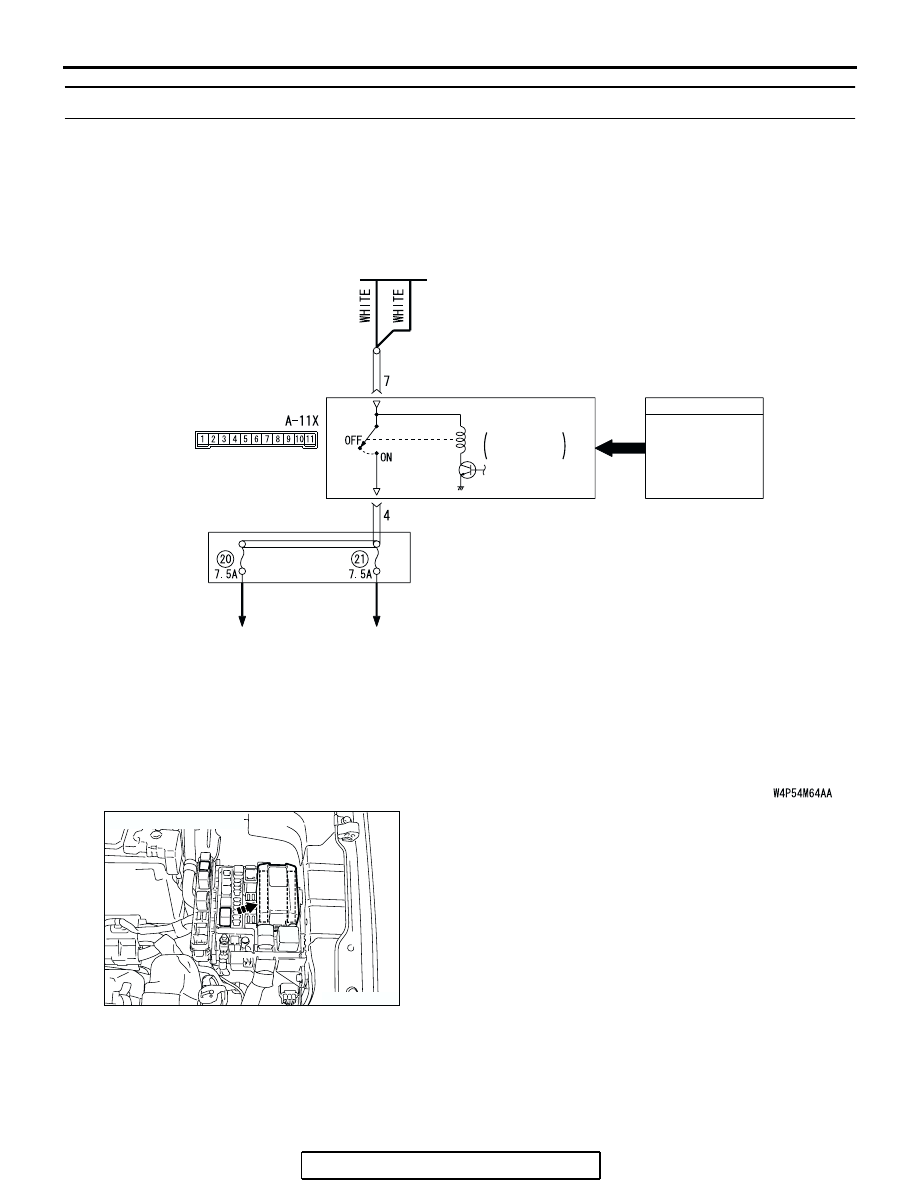

Taillight Relay Circuit

AC305977AP

CONNECTOR: A-11X

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-298

CIRCUIT OPERATION

When the lighting switch is set to "TAIL" position, the
"TAIL" signal is sent through the column-ECU (incor-
porated in the column switch) to the front-ECU. If the
front-ECU receives the "TAIL" signal through the col-
umn-ECU, the front-ECU turns on the taillight relay
(incorporated in the front-ECU), thus causing the tail-
lights to illuminate.

.

TECHNICAL DESCRIPTION (COMMENT)

If the taillights do not illuminate normally, the column
switch or the front-ECU may be defective.

.

TROUBLESHOOTING HINTS

• Trouble in input signal system

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• The front-ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

• MB991813: SWS Monitor Kit

• MB991806: SWS Monitor Cartridge

• MB991812: SWS Monitor Harness (For Column-ECU)

• MB991822: Probe Harness

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-299

STEP 1. Use scan tool MB991958 to select "ECU COMM
Check" on the SWS monitor display.
Check the following ECUs:

• Column switch (column-ECU)

• Front-ECU

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958. Connect
special tool MB991910 before connecting special tool
MB991812. Be sure to connect special tool MB991806 after
turning on special tool MB991824.

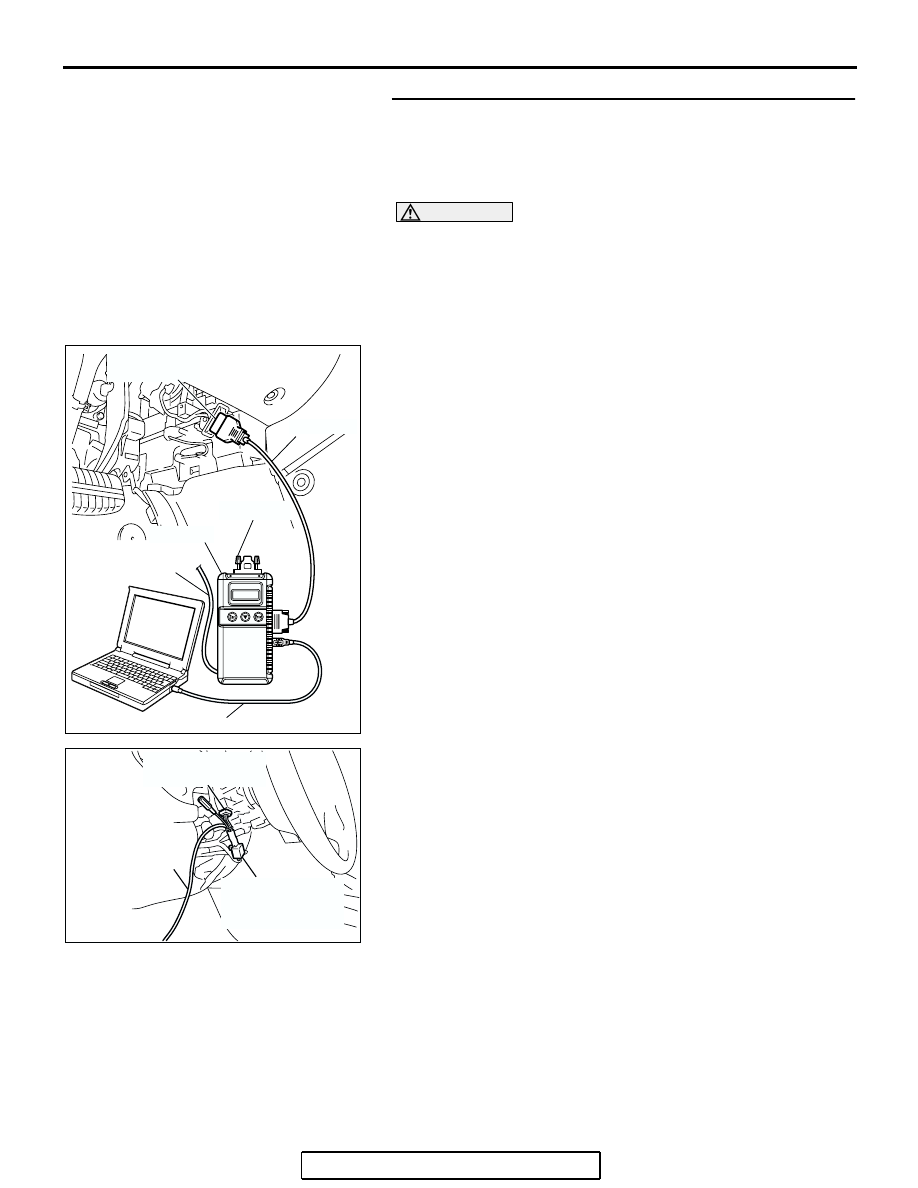

(1) Connect the special tool. Refer to "How to connect SWS

monitor

P.54B-13

."

(2) Turn the ignition switch to the "LOCK" (OFF) position.
(3) Operate scan tool MB991958 according to the procedure

below to display "ECU COMM Check."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "ECU COMM Check."

(4) Scan tool MB991958 should show "OK" on the "ECU

COMM Check" menus for both the "COLUMN ECU" and
the "FRONT ECU" menus.

Q: Is "OK" displayed for both the "COLUMN ECU" and

"FRONT ECU" menu?
"OK" is displayed for all the items :
Go to Step 2.
"NG" is displayed for the "COLUMN ECU" menu : Refer

to Inspection Procedure A-2 "Communication with the
column switch (column-ECU) is not possible

P.54B-71

."

"NG" is displayed for the "FRONT ECU" menu : Refer to

Inspection Procedure A-4 "Communication with the
front-ECU is not possible

P.54B-86

."

AC305411AB

MB991910

DATA LINK

CONNECTOR

MB991827

MB991824

MB991806

MB991812

AC302210

COLUMN SWITCH
CONNECTOR

COLUMN SWITCH
CONNECTOR AT
HARNESS SIDE

MB991812

AB
