SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-248

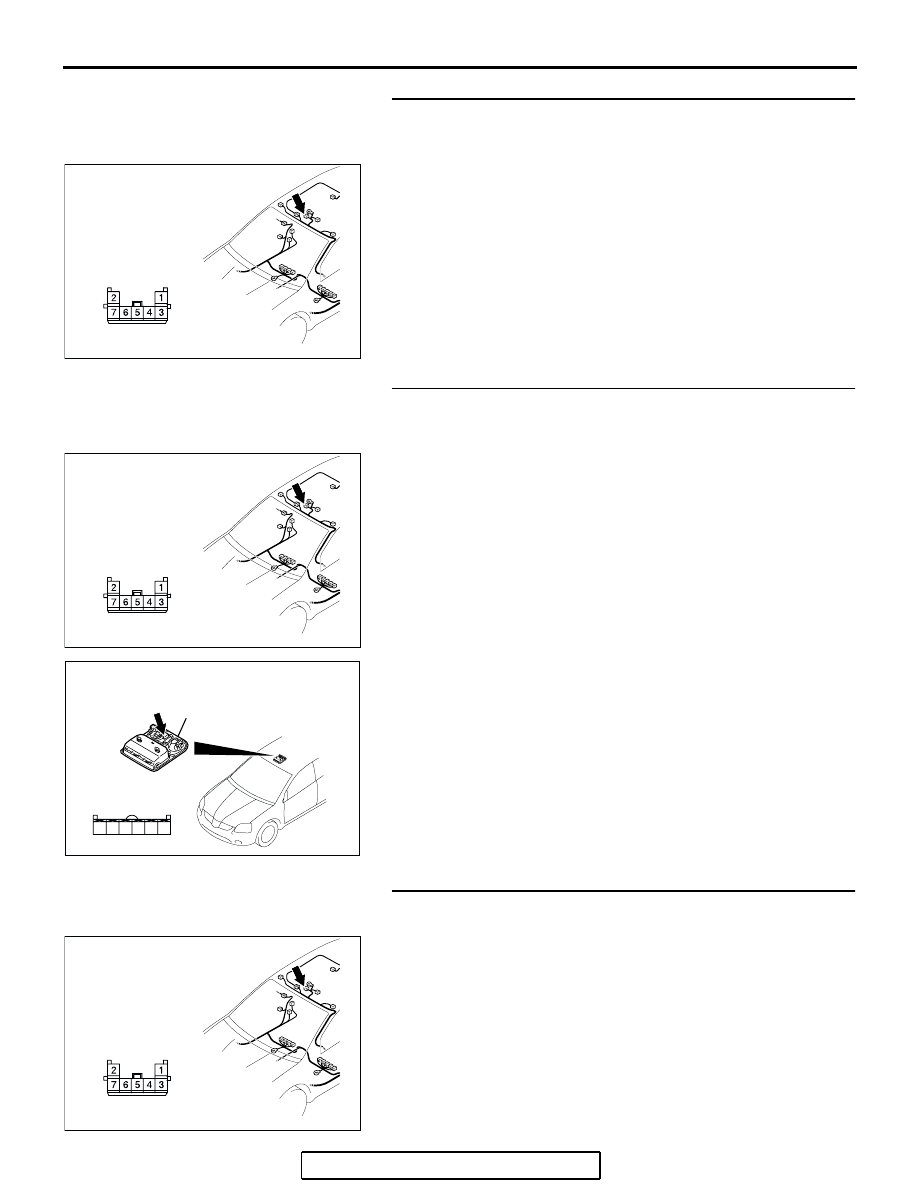

STEP 11. Check overhead console assembly connector
D-03 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Is overhead console assembly connector D-03 in good

condition?
YES :
Go to Step 12.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the sunroof works normally.

STEP 12. Check the wiring harness between sunroof
switch connector D-03-1 (terminal 4) and overhead
console assembly connector D-03 (terminal 6).
Q: Is the wiring harness between sunroof switch connector

D-03-1 (terminal 4) and overhead console assembly
connector D-03 (terminal 6) in good condition?
YES :
Go to Step 13.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Check that
the sunroof works normally.

STEP 13. Check the wiring harness between overhead
console assembly connector D-03 (terminal 6) and ground.
Q: Is the wiring harness between overhead console

assembly connector D-03 (terminal 6) and ground in
good condition?
YES :
No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Check that
the sunroof works normally.

AC400530

AJ

CONNECTOR: D-03

HARNESS SIDE

AC400530

AJ

CONNECTOR: D-03

HARNESS SIDE

AC307976

OVERHEAD CONSOLE
ASSEMBLY

CONNECTOR: D-03-1

HARNESS SIDE

AB

6

4

5

3 2 1

AC400530

AJ

CONNECTOR: D-03

HARNESS SIDE

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-249

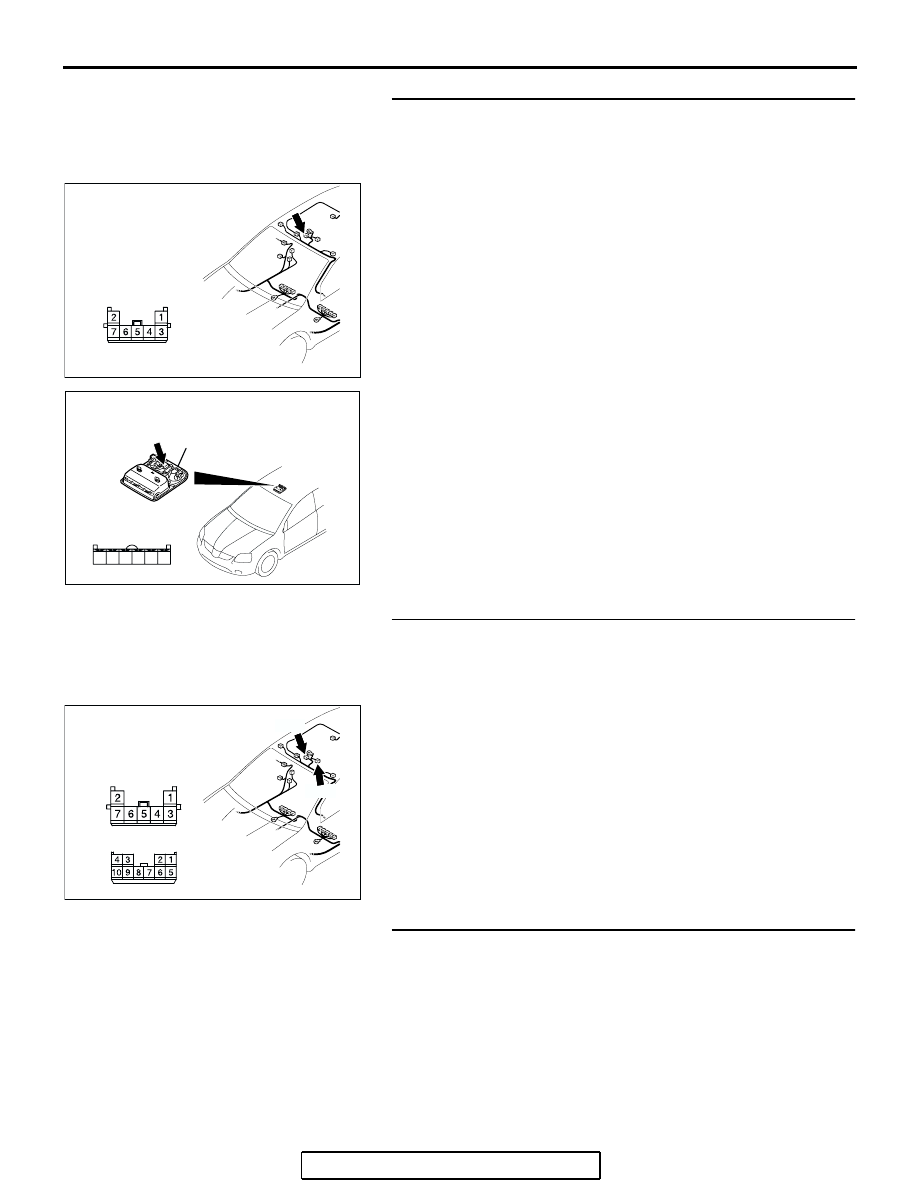

STEP 14. Check the wiring harness between sunroof
switch connector D-03-1 (terminals 3, 5 and 6) and
overhead console assembly connector D-03 (terminals 7, 5
and 4).
Q: Is the wiring harness between sunroof switch connector

D-03-1 (terminals 3, 5 and 6) and overhead console
assembly connector D-03 (terminals 7, 5 and 4) in good
condition?
YES :
Go to Step 15.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Check that
the sunroof works normally.

STEP 15. Check the wiring harness between sunroof motor
assembly connector D-04 (terminals 6, 7 and 8) and
overhead console assembly connector D-03 (terminals 4, 7
and 5).
Q: Is the wiring harness between sunroof motor assembly

connector D-04 (terminals 6, 7 and 8) and overhead
console assembly connector D-03 (terminals 4, 7 and 5)
in good condition?
YES :
Go to Step 16.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Check that
the sunroof works normally.

STEP 16. Replace the sunroof switch.
(1) Replace the sunroof switch.
(2) Check that the sunroof works normally.
Q: Does the sunroof works normally?

YES : No action is necessary and testing is complete.
NO :  Replace the sunroof motor assembly. Check that the

sunroof works normally.

AC400530

AJ

CONNECTOR: D-03

HARNESS SIDE

AC307976

OVERHEAD CONSOLE
ASSEMBLY

CONNECTOR: D-03-1

HARNESS SIDE

AB

6

4

5

3 2 1

AC400530

AK

CONNECTORS: D-03, D-04

D-04

D-03

D-03

D-04

HARNESS SIDE

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-250

INSPECTION PROCEDURE F-2: Sunroof: Any  of the sunroof switch positions is defective.

.

TECHNICAL DESCRIPTION (COMMENT)

The sunroof switch or the sunroof motor assembly
may be defective.

.

TROUBLESHOOTING HINTS

• The sunroof switch may be defective

• The sunroof motor assembly may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

SUNROOF-ECU

SUNROOF
SWITCH

OVERHEAD
CONSOLE
ASSEMBLY

SUNROOF MOTOR
ASSEMBLY

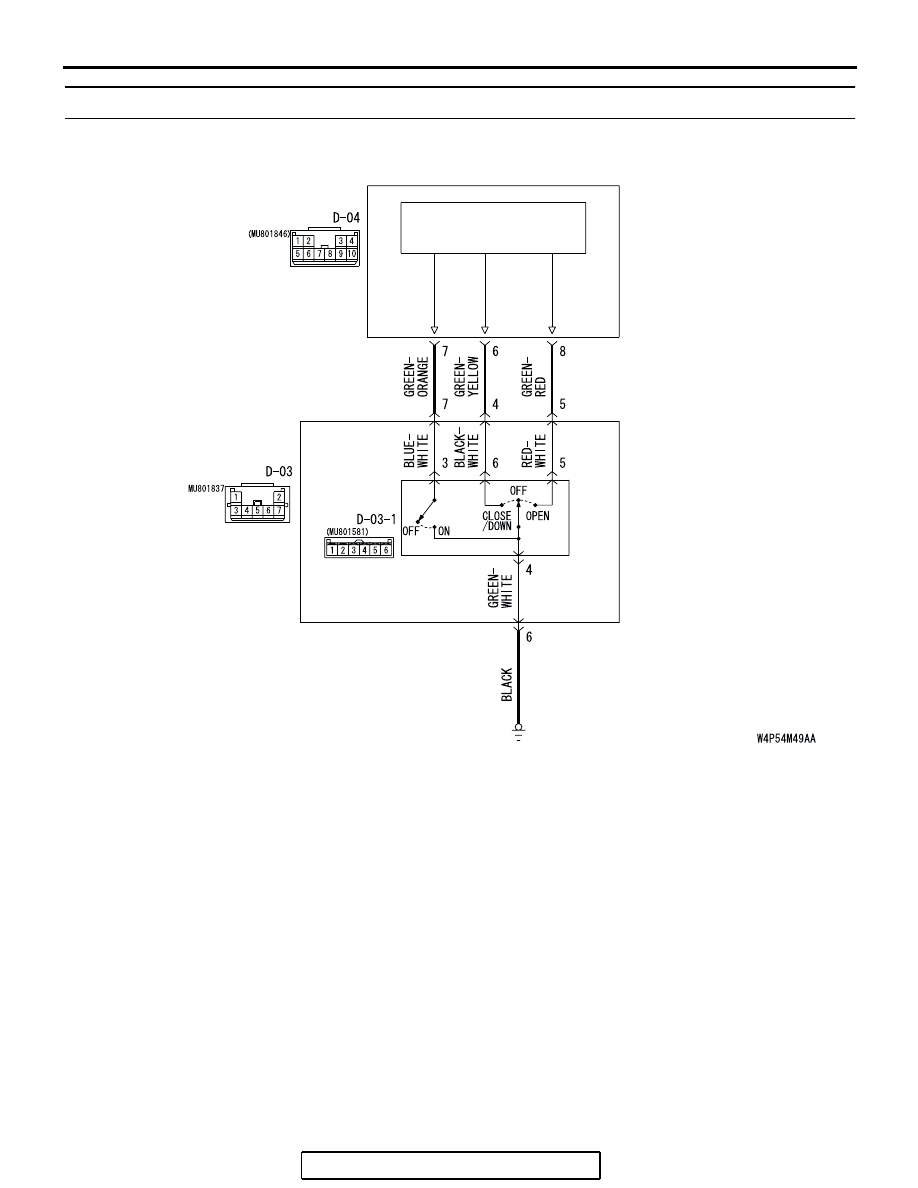

Sunroof Switch Circuit

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-251

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

Check the input signal (by using the pulse check mode of
the monitor).
Check the input signals from the sunroof switch.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

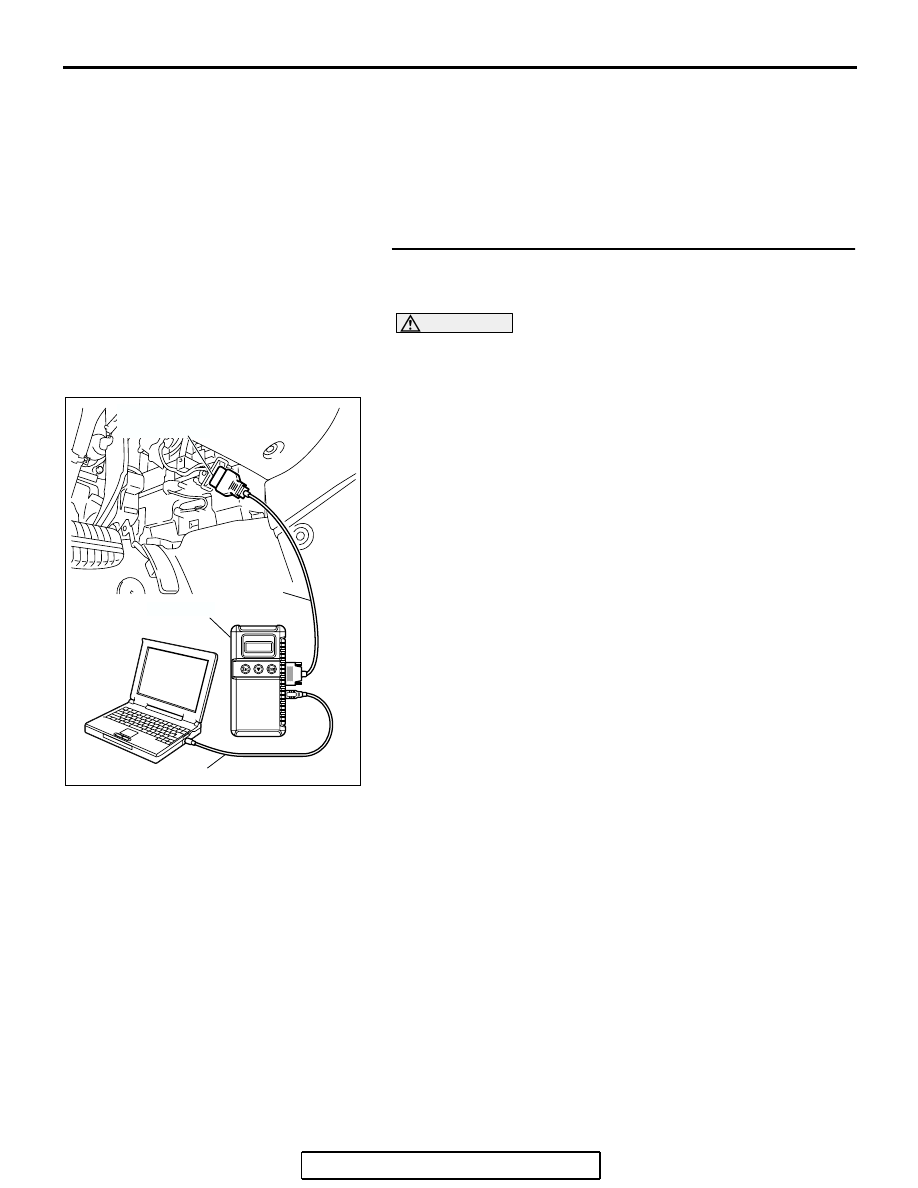

(1) Connect scan tool MB991958.Refer to "How to connect

SWS monitor

P.54B-13

."

(2) Operate the scan tool MB991958 according to the

procedure below to display "Pulse check."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "Pulse Checking."

(3) When each function of the sunroof switch is operated

(turned on), check that scan tool MB991958 sounds.

Q: Does scan tool MB991958 sound when the sunroof

switch is operated?
YES :
Replace the sunroof motor assembly. Check that the

sunroof works at all positions normally.

NO :  Refer to Inspection Procedure M-8 "ETACS-ECU

does not receive any signal from the up, open or
close/down switch

P.54B-494

."

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
