SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-244

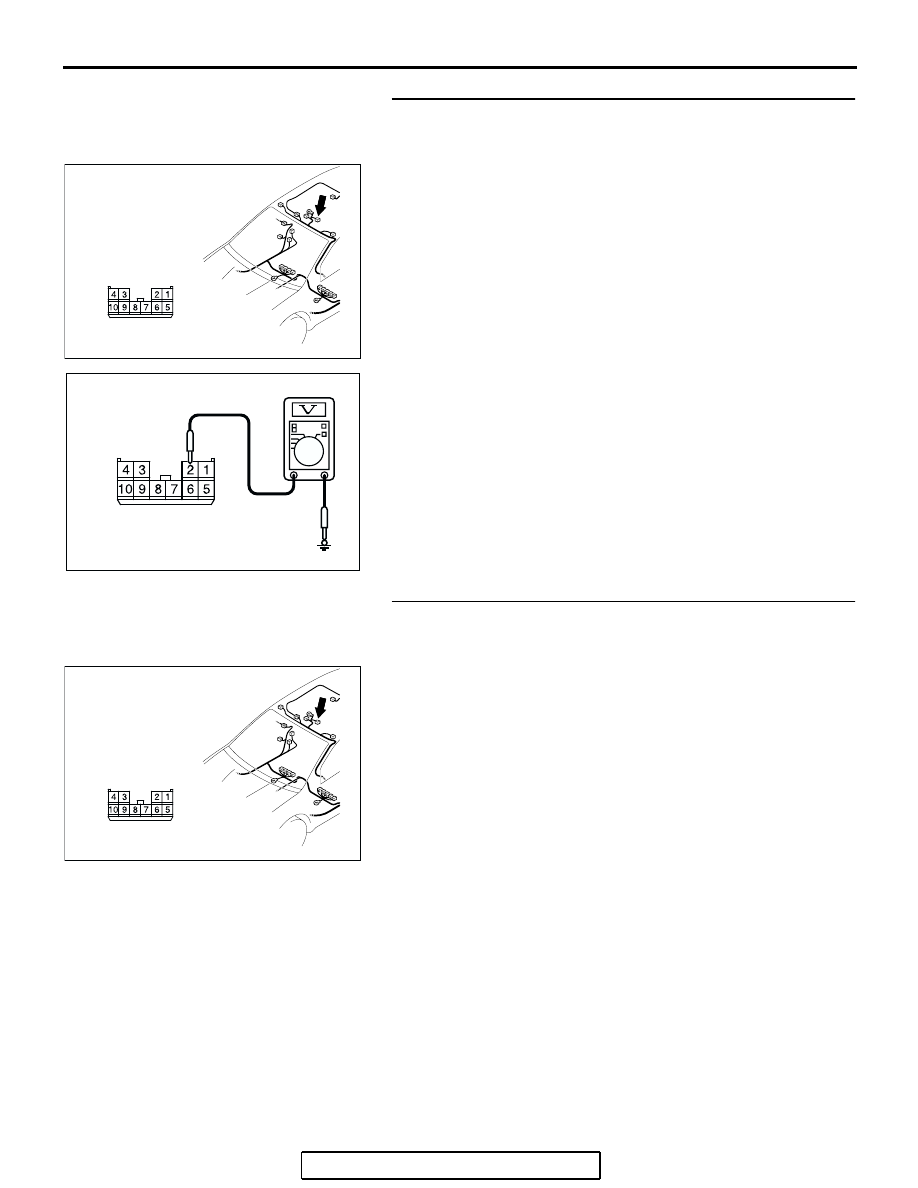

STEP 4. Check the ignition switch (IG2) circuit to the
sunroof motor assembly. Measure the voltage at sunroof
motor assembly connector D-04.
(1) Disconnect sunroof motor assembly connector D-04 and

measure the voltage available at the wiring harness side of
the connector.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal 2 and ground.

• The voltage should measure approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 6.
NO :  Go to Step 5.

STEP 5. Check the wiring harness between sunroof motor
assembly connector D-04 (terminal 2) and ignition switch
(IG2).

AC400530

AI

CONNECTOR: D-04

HARNESS SIDE

AC209365 FH

CONNECTOR D-04
(HARNESS SIDE)

AC400530

AI

CONNECTOR: D-04

HARNESS SIDE

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-245

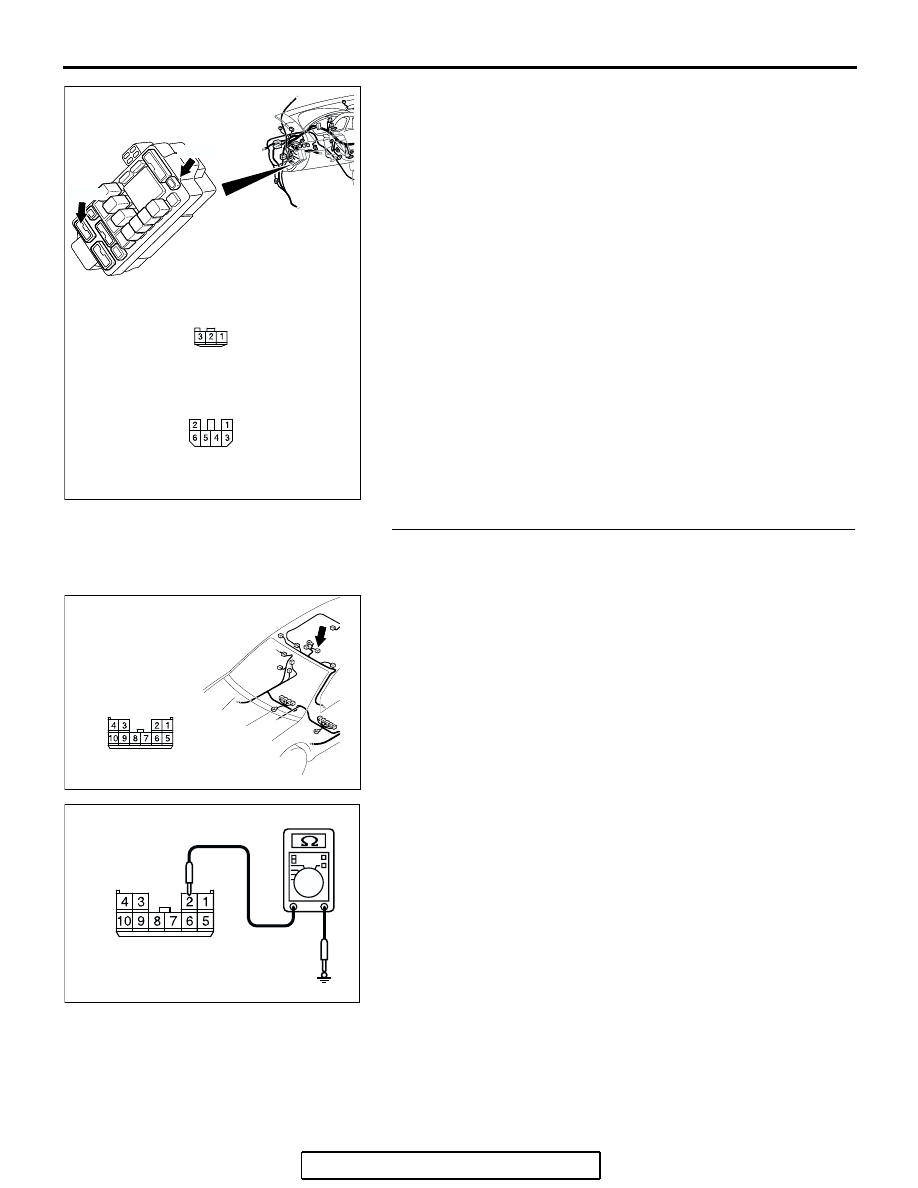

NOTE: Also check junction block connectors C-215 and C-205
for loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If junction block connector C-215 or
C-205 is damaged, repair or replace the damaged compo-
nent(s) as described in GROUP 00E, Harness Connector
Inspection

P.00E-2

.

Q: Is the wiring harness between sunroof motor assembly

connector D-04 (terminal 2) and the ignition switch (IG2)
in good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Check that
the sunroof works normally.

STEP 6. Check the ground circuit to the sunroof motor
assembly. Measure the resistance at sunroof motor
assembly connector D-04.
(1) Disconnect sunroof motor assembly connector D-04 and

measure the resistance available at the wiring harness side
of the connector.

(2) Measure the resistance value between terminal 2 and

ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 8.
NO :  Go to Step 7.

AC305416

AC305416

C-205

HARNESS SIDE

HARNESS SIDE

C-215

CONNECTORS: C-205,C-215

AH

C-205

C-215

JUNCTION BLOCK

(FRONT VIEW)

AC400530

AI

CONNECTOR: D-04

HARNESS SIDE

AC209364 JA

CONNECTOR D-04
(HARNESS SIDE)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-246

STEP 7. Check the wiring harness between sunroof motor
assembly  connector D-04  (terminal 5) and ground.
Q: Is the wiring harness between sunroof motor assembly

connector D-04 (terminal 5) and ground in good
condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Check that
the sunroof works normally.

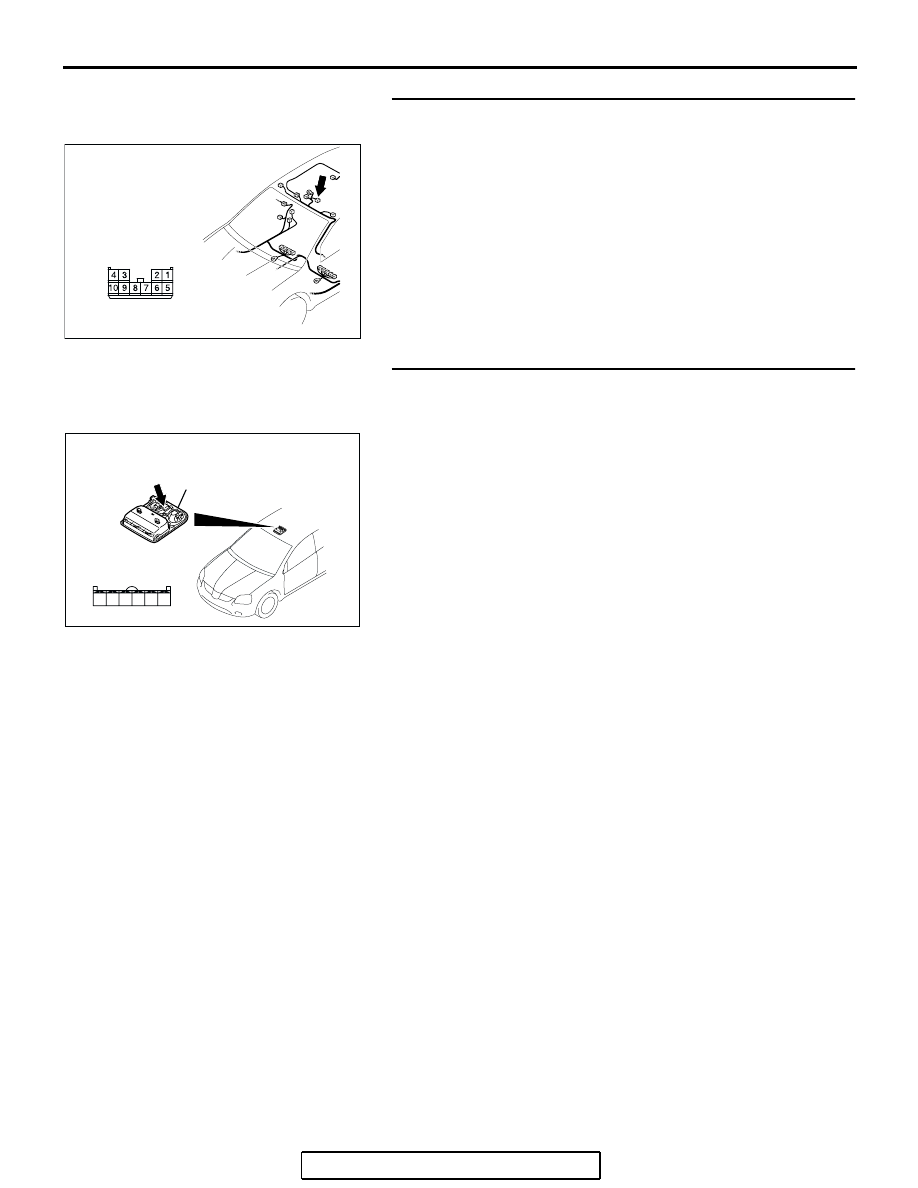

STEP 8. Check the sunroof switch connector D-03-1 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is sunroof switch connector D-03-1 in good condition?

YES : Go to Step 9.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the sunroof works normally.

AC400530

AI

CONNECTOR: D-04

HARNESS SIDE

AC307976

OVERHEAD CONSOLE
ASSEMBLY

CONNECTOR: D-03-1

HARNESS SIDE

AB

6

4

5

3 2 1

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-247

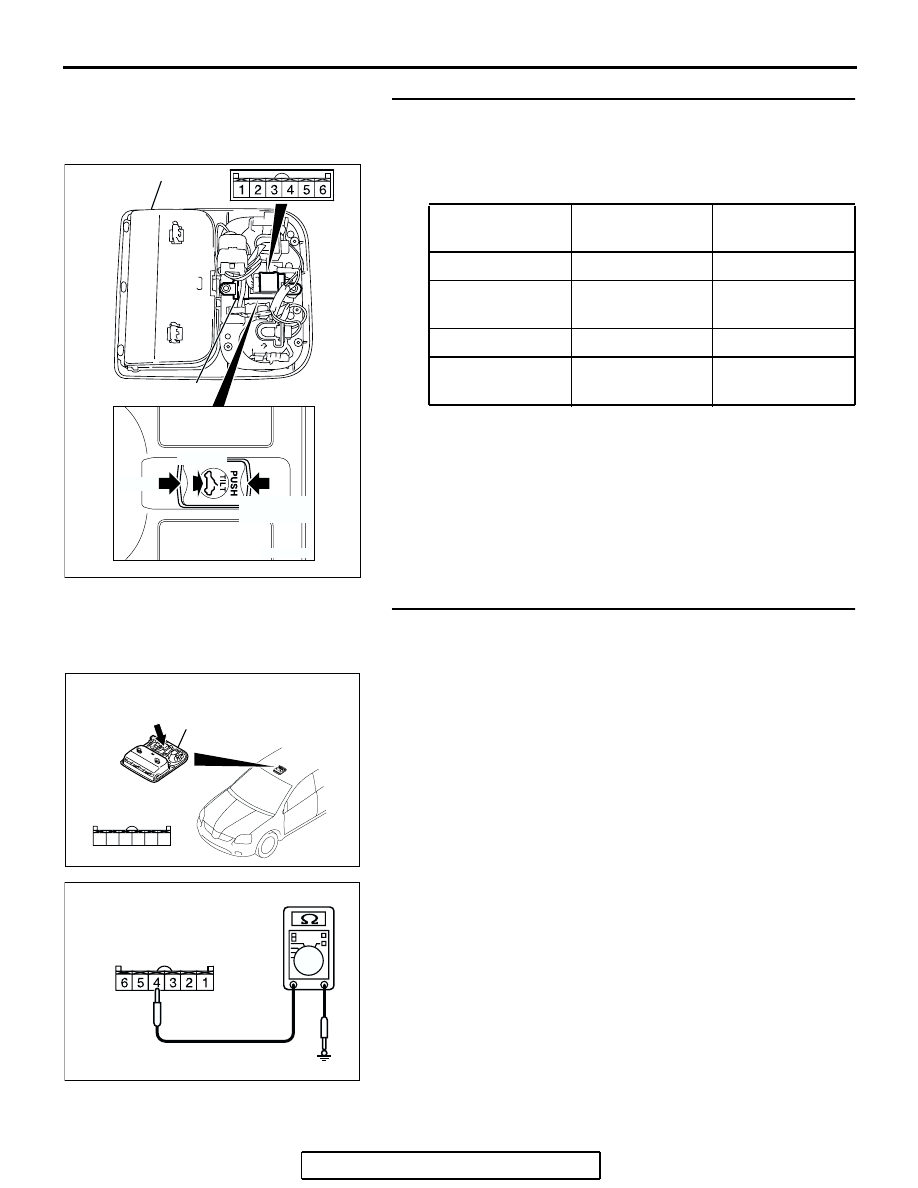

STEP 9. Check the sunroof switch.
(1) Remove the sunroof switch. Refer to GROUP 42, Sunroof

Assembly

P.42-78

.

(2) Check continuity when the sunroof switch is operated to

"OPEN", "TILT UP" or "CLOSE/TILT DOWN" positions.

Q: Does the check meet the specified conditions?

YES : Go to Step 10.
NO :  Replace the sunroof switch. Check that the sunroof

works normally.

STEP 10. Check the ground circuit to the sunroof switch.
Measure the resistance at sunroof switch connector
D-03-1.
(1) Disconnect sunroof switch connector D-03-1 and measure

the resistance available at the wiring harness side of the
connector.

(2) Measure the resistance between terminal 4 and ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 14.
NO :  Go to Step 11.

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

OPEN

4

− 5

Less than 2 ohms

OFF

3

− 4, 3 − 5, 3 − 6,

4

− 5, 4 − 6, 5 − 6

Open circuit

TILT UP

3

− 4

Less than 2 ohms

CLOSE/TILT-DO
WN

4

− 6

Less than 2 ohms

AC306720

AC307038

AC209094

AB

OPEN

OVERHEAD CONSOLE

CLOSE/
TILT-DOWN

TILT-UP

SUNROOF SWITCH

AC307976

OVERHEAD CONSOLE
ASSEMBLY

CONNECTOR: D-03-1

HARNESS SIDE

AB

6

4

5

3 2 1

AC209364HH

CONNECTOR D-03-1
(HARNESS SIDE)
