SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-228

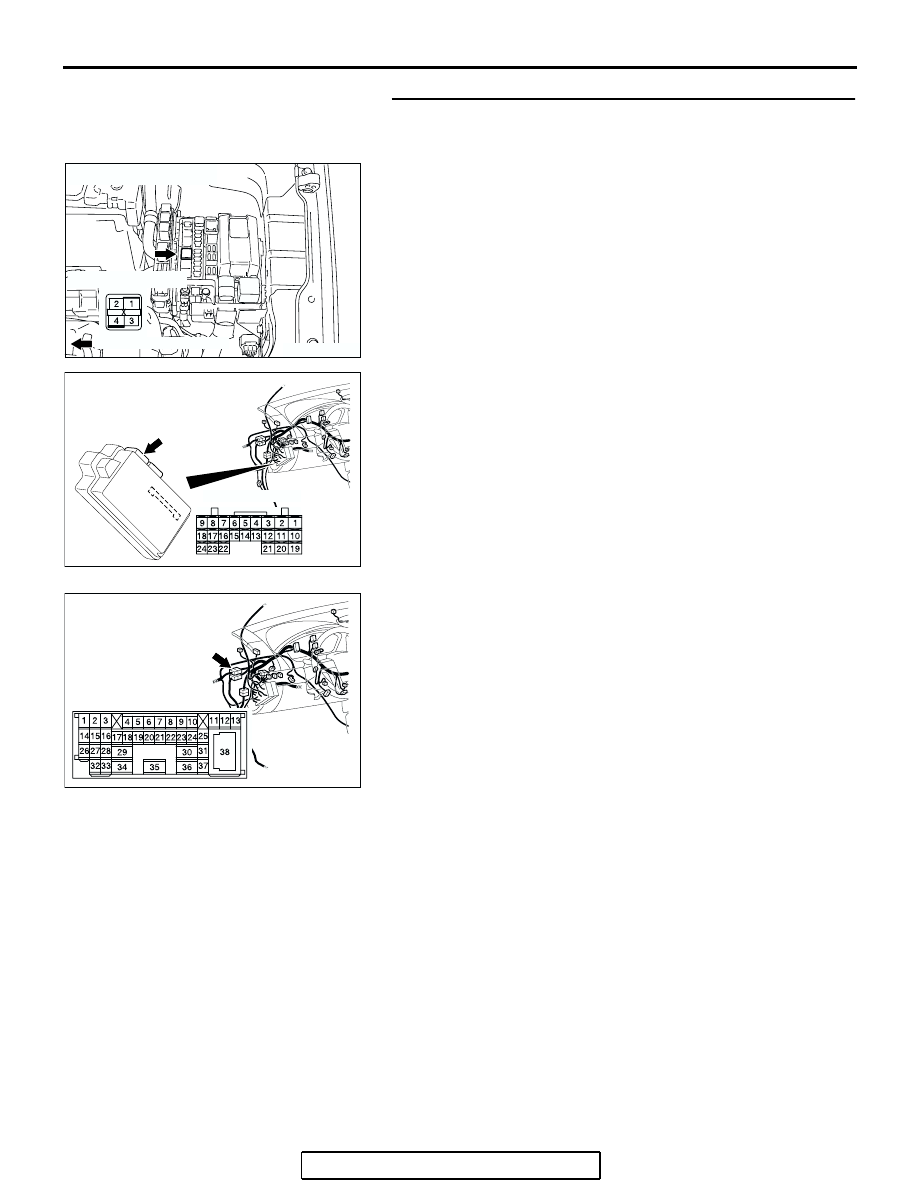

STEP 20. Check the wiring harness between horn relay
connector A-06X (terminal 3) and ETACS-ECU connector
C-217 (terminal 44).

NOTE: Also check intermediate connector C-29 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-29 is damaged, repair or
replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between horn relay connector

A-06X (terminal 3) and ETACS-ECU connector C-217
(terminal 44) in good condition?
YES :
Go to Step 21.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the horn sounds normally.

AC305992

RELAY BOX SIDE

CONNECTOR: A-06X

AC

FRONT OF VEHICLE

AC305413

C-217

CONNECTOR: C-217

AE

HARNESS SIDE

JUNCTION BLOCK

(REAR VIEW)

AC305231AI

CONNECTOR: C-29

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-229

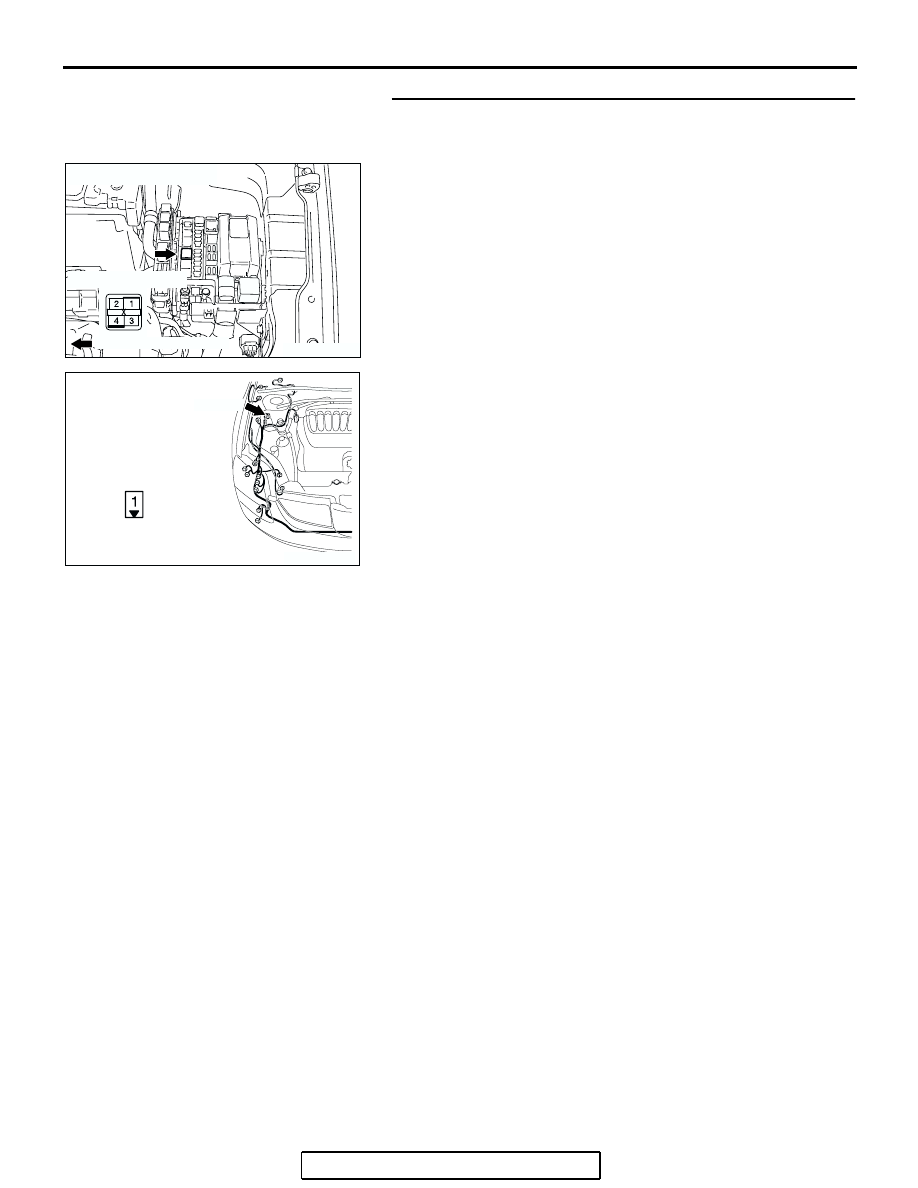

STEP 21. Check the wiring harness between horn relay
connector A-06X (terminal 4) and horn (HIGH) connector
A-39 (terminal 1).
Q: Is the wiring harness between horn relay connector

A-06X (terminal 4) and horn (HIGH) connector A-39
(terminal 1) in good  condition?
YES :
Replace the ETACS-ECU. Verify that the horn sounds

normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the horn sounds normally.

AC305992

RELAY BOX SIDE

CONNECTOR: A-06X

AC

FRONT OF VEHICLE

AC305206

CONNECTOR: A-39

BE

A-39 (B)

HARNESS SIDE

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-230

INSPECTION PROCEDURE E-3: Keyless Entry System: Encrypted code cannot be registered.

.

CIRCUIT OPERATION

The ETACS-ECU operates the encrypted code regis-
ter mode according to the following signals:

• Key reminder switch

• Hazard warning light switch

.

TECHNICAL DESCRIPTION (COMMENT)

If the encrypted code register mode cannot be set,
the input circuits from the switches described in
"CIRCUIT OPERATION" or the ETACS-ECU may be
defective.

If the encrypted code register mode can be set but
the transmitter cannot be registered, the transmitter
or the ETACS-ECU may be defective.

.

TROUBLESHOOTING HINTS

• The key reminder switch may be defective

• The hazard warning light switch may be defective

• The transmitter may be defective

• The ETACS-ECU may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

STEP 1. Verify trouble symptom.
Q: Can the encrypted code register mode be set?

YES : Go to Step 3.
NO :  Go to Step 2.

ETACS-
ECU

· KEY REMINDER SWITCH
· HAZARD WARNING LIGHT SWITCH

Encrypted Transmitter Code Register Mode

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-231

STEP 2. Check the input signal (by using the pulse check
mode of the monitor).
Check the input signals from the following switches:

• Key reminder switch

• Hazard warning light switch

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

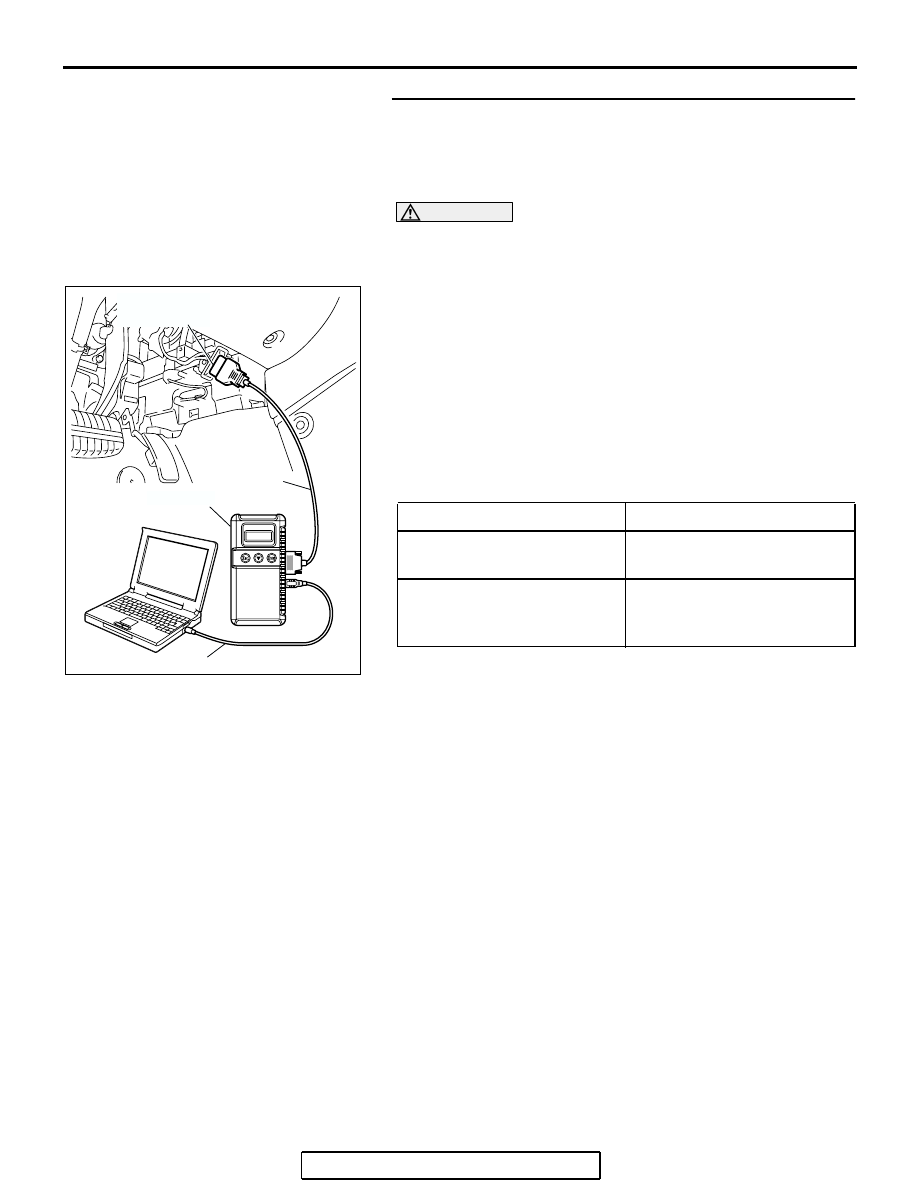

(1) Connect scan tool MB991958.Refer to "How to connect

SWS monitor

P.54B-13

."

(2) Operate scan tool MB991958 according to the procedure

below to display "Pulse check."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "Pulse Checking."

(3) Check the switches (see table below) applicable for the

input signal check are operated.

(4) Check scan tool MB991958 sounds or not.

Q: When the key reminder switch and the hazard warning

light switch are operated, does scan tool MB991958
sound in each case?
Buzzer of scan tool MB991958 sounds normally. :

Replace the ETACS-ECU. Verify that the encrypted
code can be registered in the transmitter.

Scan tool MB991958 does not sound when the ignition
key is removed and reinserted :
Refer to Inspection

Procedure N-1 "ETACS-ECU does not receive any
signal from the key reminder switch

P.54B-497

."

Scan tool MB991958 does not sound when the hazard
warning light switch is turned from "OFF" to "ON" :

Refer to Inspection Procedure N-2 "ETACS-ECU
does not receive any signal from the hazard warning
light switch

P.54B-501

."

ITEM NAME

CHECK CONDITION

Key reminder switch

Remove and reinsert the
ignition key

Hazard warning light switch

Turn the hazard warning light
switch from "OFF" to "ON"
position.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
