SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-204

NOTE: Also check intermediate connectors C-26, C-28 and
D-19. If intermediate connector C-26, C-28 or D-19 is dam-
aged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between power window main

switch connector E-12 (terminals 1 and 2) and rear
power window sub switch (LH) connector E-17
(terminals 8 and 5) in good condition?
YES :
Replace the power window main switch. When the

rear power window sub switch (LH) is operated, the
rear power window (LH) should raise and lower
normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. When the
rear power window sub switch (LH) is operated, the
rear power window (LH) should raise and lower
normally.

STEP 22. Check the wiring harness between rear power
window sub switch (LH) connector E-17 (terminals 4 and 7)
and rear power window  regulator motor (LH) connector
E-16 (terminals 1 and 2).
Q: Is the wiring harness between rear power window sub

switch (LH) connector E-17 (terminals 4 and 7) and rear
power window regulator motor (LH) connector E-16
(terminals 1 and 2) in good condition?
YES :
Replace the power window main switch. When the

rear power window sub switch (LH) is operated, the
rear power window (LH) should raise and lower
normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. When the
rear power window sub switch (LH) is operated, the
rear power window (LH) should raise and lower
normally.

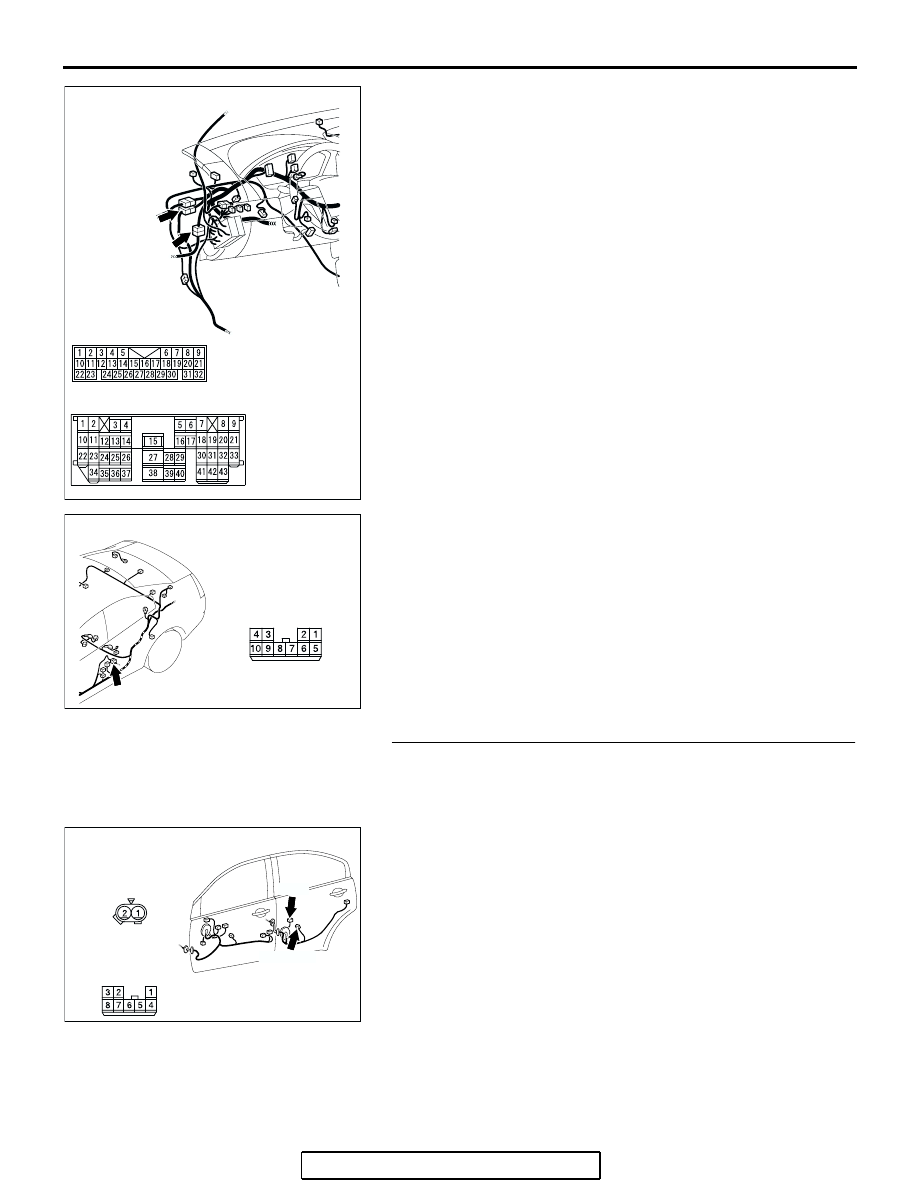

AC305232

C-26

C-28

CONNECTORS: C-26,C-28

AB

C-26

C-28

AC400532

AC

CONNECTOR: D-19

AC305262

CONNECTORS:E-16,E-17

AF

E-16

E-17

HARNESS SIDE

E-17

E-16(GR)

HARNESS SIDE

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-205

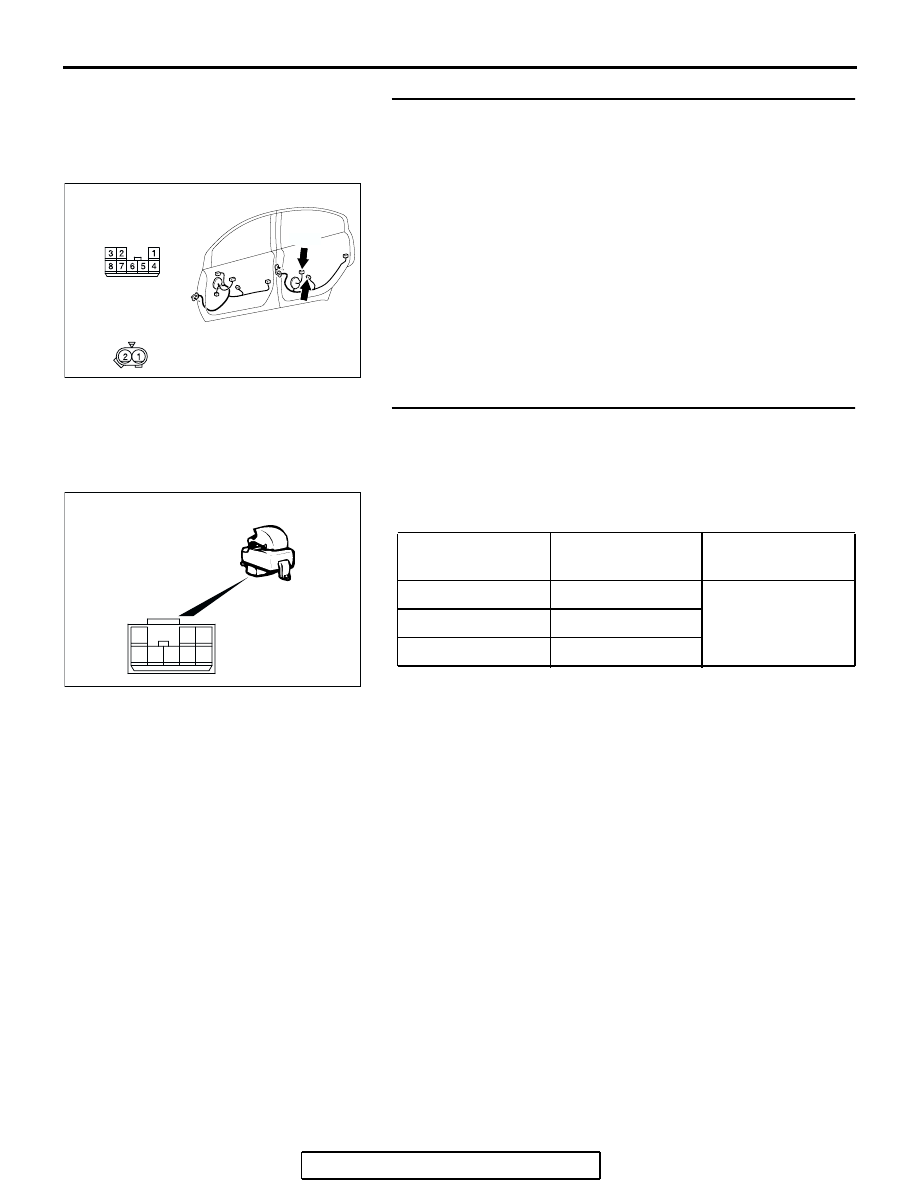

STEP 23. Check rear power window sub switch (RH)
connector E-06 and rear power window regulator motor
(RH) connector E-07 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Are rear power window sub switch (RH) connector E-06

and rear power window regulator motor (RH) connector
E-07 in good  condition?
YES :
Go to Step 24.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. When the rear power window sub switch

(RH) is operated, the rear power window (RH) should
raise and lower normally.

STEP 24. Check the rear power window sub switch (RH) for
continuity.
(1) Remove the rear power window sub switch (RH). Refer to

GROUP 42, Door, Door Glass and Regulator

P.42-39

.

(2) Check continuity when the rear power window sub switch

(RH) is operated to "UP" or "DOWN" position.

Q: Is the rear power window sub switch (RH) normal?

YES : Go to Step 25.
NO :  Replace the rear power window sub switch (RH).

When the rear power window sub switch (RH) is
operated, the rear power window (RH) should raise
and lower normally.

AC305333

AD

HARNESS SIDE

CONNECTOR:E-06,E-07

E-06

E-07

E-06

E-07(GR)

HARNESS SIDE

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

UP

− 5, 6 − 7

Less than 2 ohms

OFF

− 5, 7 − 8

DOWN

− 6, 7 − 8

AC210747

8

3

1

4 5 6

2

7

AB

<REAR>

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-206

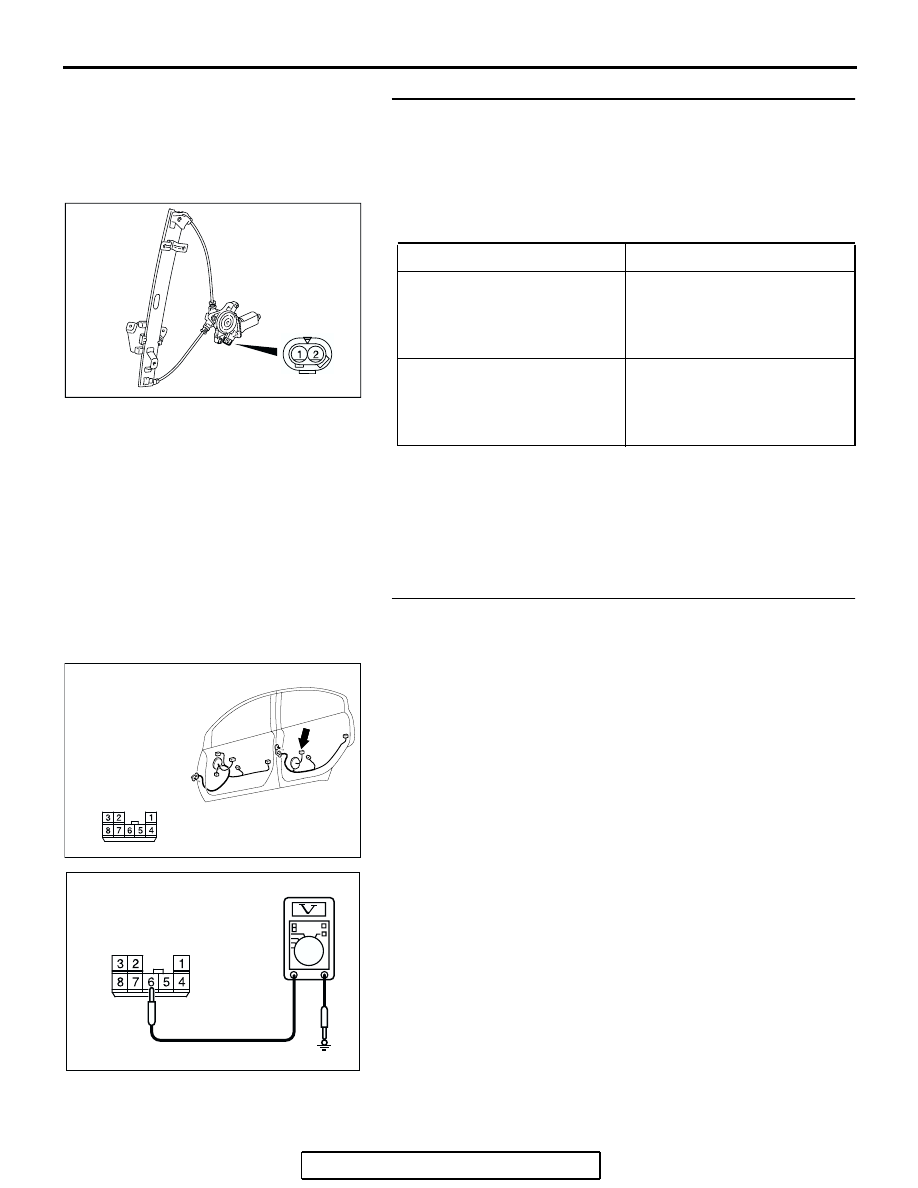

STEP 25. Check the rear power window regulator motor
(RH).
(1) Remove the rear power window regulator assembly (RH).

Refer to GROUP 42, Door, Door Glass and Regulator

P.42-39

.

(2) Connect a battery to the motor terminal, and check that the

motor runs freely.

Q: Is the rear power  window regulator  motor (RH) normal?

YES : Go to Step 26.
NO :  Replace the rear power regulator assembly (RH).

When the rear power window sub switch (RH) is
operated, the rear power window (RH) should raise
and lower normally.

STEP 26. Check the battery power supply circuit to the rear
power window sub switch (RH). Measure the voltage at
rear power window sub switch (RH) connector E-06.
(1) Disconnect rear power window sub switch (RH) connector

E-06 and measure the voltage available at the wiring
harness side of the connector.

(2) Measure the voltage between terminal 6 and ground.

• The voltage should measure approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES :
Go to Step 29.
NO :  Go to Step 27.

BATTERY CONNECTION

SLIDER POSITION

• Connect terminal 1 to the

negative battery terminal

• Connect terminal 2 to the

positive battery terminal

UP

• Connect terminal 2 to the

negative battery terminal

• Connect terminal 1 to the

positive battery terminal

DOWN

1 2

AC206013AB

AC305333

CONNECTOR:E-06

HARNESS SIDE

AE

AC209365EJ

CONNECTOR E-06
(HARNESS SIDE)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-207

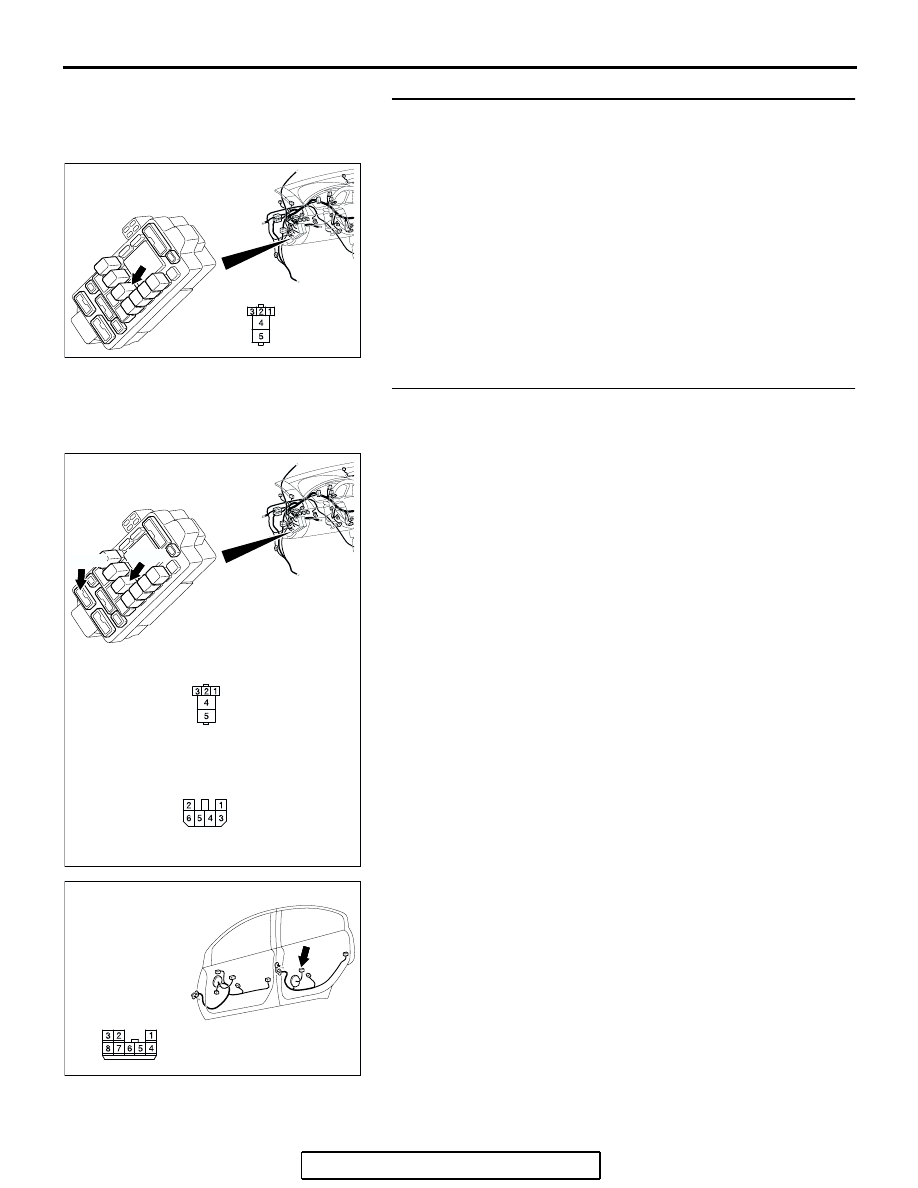

STEP 27. Check power window relay connector C-203 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is power window relay connector C-203 in good

condition?
YES :
Go to Step 28.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. When the rear power window sub switch

(RH) is operated, the rear power window (RH) should
raise and lower normally.

STEP 28. Check the wiring harness between power
window relay connector C-203 (terminal 4) and rear power
window sub switch (RH) connector E-06 (terminal 6).

AC305415 AC

JUNCTION BLOCK SIDE

CONNECTOR:C-203

JUNCTION BLOCK

(FRONT VIEW)

AC305416

JUNCTION BLOCK SIDE

C-203

HARNESS SIDE

C-215

CONNECTORS: C-203,C-215

AE

C-203

C-215

JUNCTION BLOCK

(FRONT VIEW)

AC305333

CONNECTOR:E-06

HARNESS SIDE

AE
