SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-180

Q: Is the wiring harness between power window main

switch connector E-12 (terminal 12) and ground in good
condition?
YES :
No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. The power
windows function should now work normally.

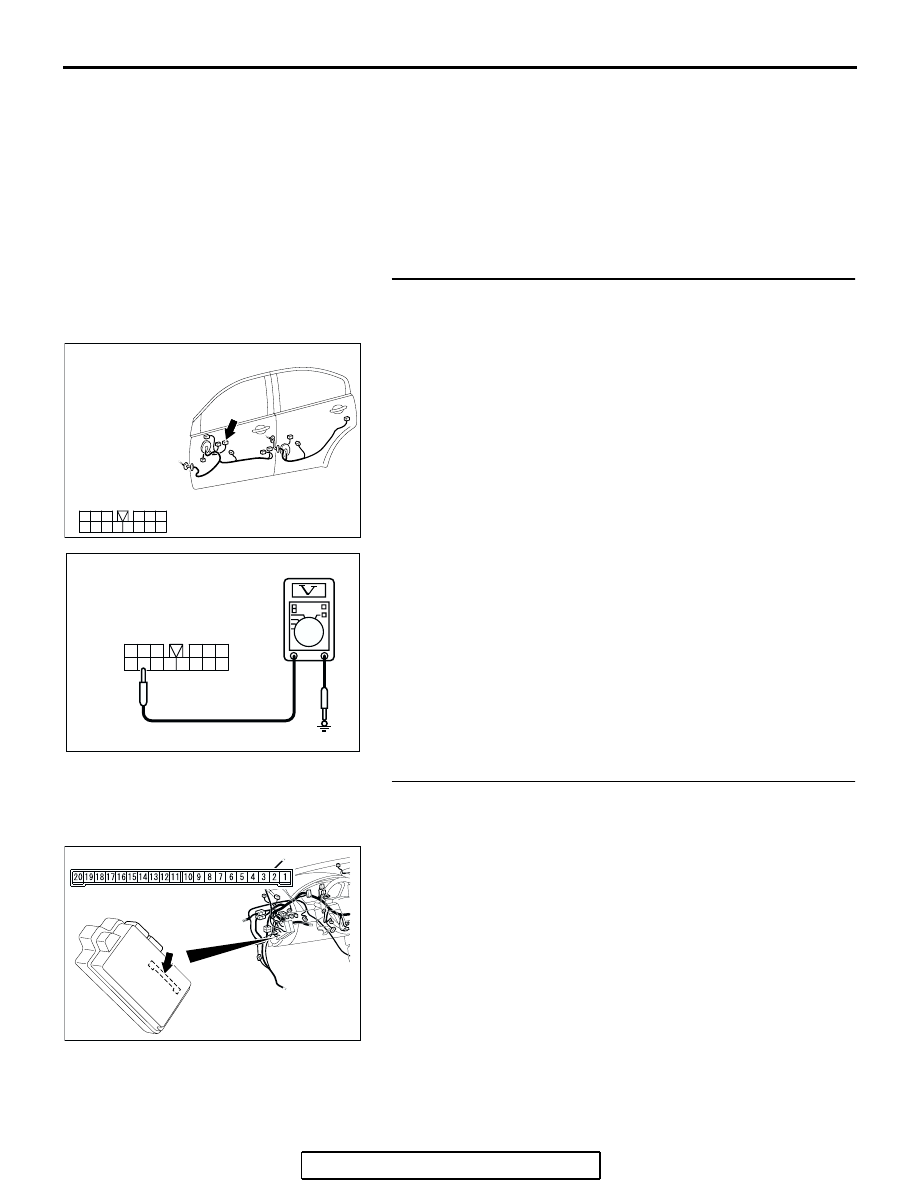

STEP 12. Check the battery power supply circuit to the
power window main switch. Measure the voltage at power
window main switch connector E-12.
(1) Disconnect power window main switch connector E-12 and

measure the voltage available at the harness side of the
connector.

(2) Turn the ignition switch to "ON" position.

(3) Measure the voltage between terminal 13 and ground.

• The voltage should measure approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES :
Replace the power window main switch. The power

windows function should now work normally.

NO :  Go to Step 13.

STEP 13. Check ETACS-ECU connector C-219 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-219 in good condition?

YES : Go to Step 14.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. The power windows function should now

work normally.

AC305262

3
9

4

12

14

6

13

5

1110

8

2

7

1

HARNESS SIDE

CONNECTOR:E-12

AC

AC209365

3
9

4

12

14

6

13

5

1110

8

2

7

1

EG

CONNECTOR E-12
(HARNESS SIDE)

AC305413

CONNECTOR:C-219

AC

JUNCTION BLOCK

(REAR VIEW)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-181

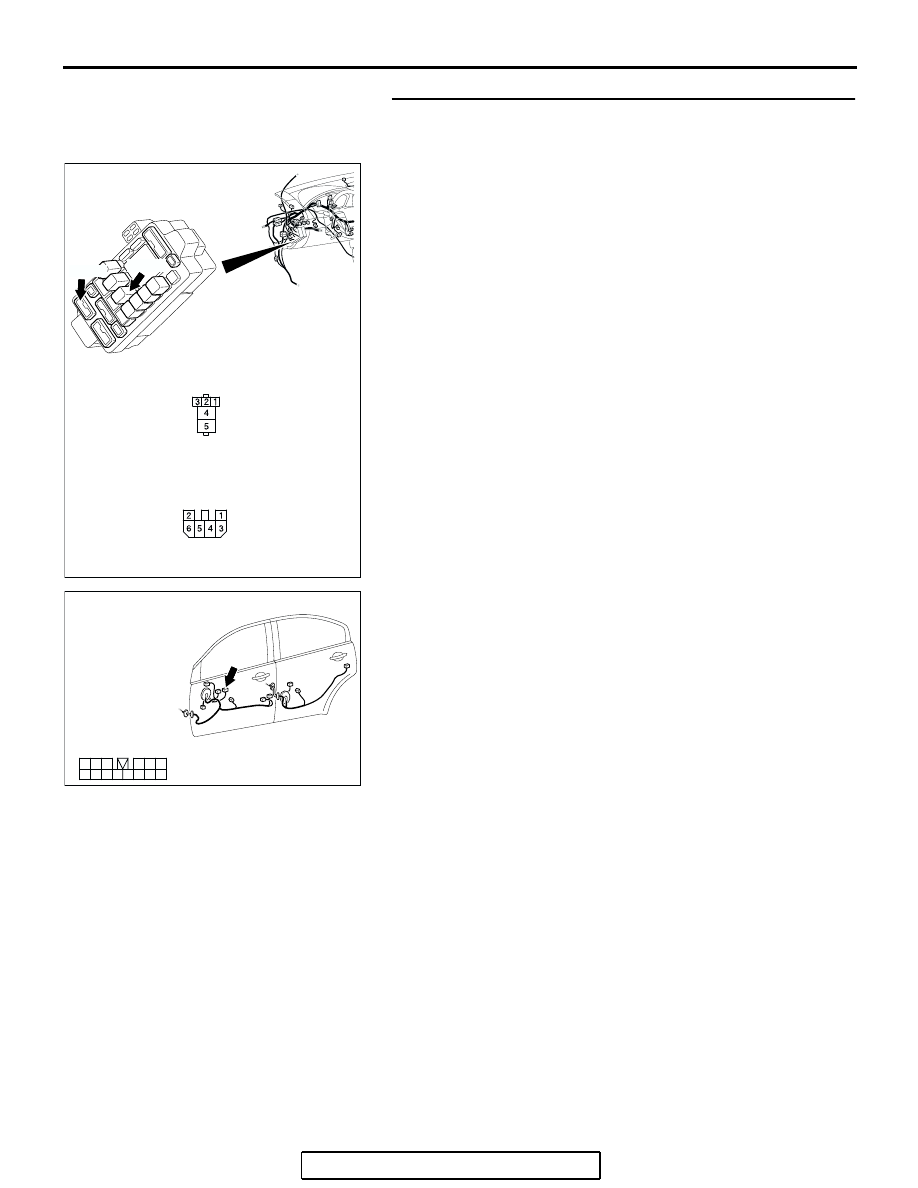

STEP 14. Check the wiring harness between power
window relay connector C-203 (terminal 4) and power
window main switch connector E-12 (terminal 13).

AC305416

JUNCTION BLOCK SIDE

C-203

HARNESS SIDE

C-215

CONNECTORS: C-203,C-215

AE

C-203

C-215

JUNCTION BLOCK

(FRONT VIEW)

AC305262

3
9

4

12

14

6

13

5

1110

8

2

7

1

HARNESS SIDE

CONNECTOR:E-12

AC

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-182

NOTE: Also check junction block connector C-215 and inter-
mediate connectors C-26 for loose, corroded or damaged ter-
minals, or terminals pushed back in the connectors. If junction
block connector C-215 or intermediate connector C-26 is dam-
aged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between power window relay

connector C-203 (terminal 4) and power window main
switch connector E-12 (terminal 13) in good condition?
YES :
Replace the ETACS-ECU. The power windows

function should now work normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. The power
windows function should now work normally.

INSPECTION PROCEDURE D-2: Power Window: The power window timer function  does not work
normally.

NOTE: This troubleshooting procedure requires use
of scan tool MB991958 and SWS monitor kit
MB991813. For details on how to use the SWS mon-
itor, refer to "How to use SWS monitor

P.54B-15

."

.

AC305231AC

CONNECTOR:C-26

HARNESS SIDE

E

IGNITION SWITCH (IG1)

E

FRONT DOOR SWITCH

POWER WINDOW
MOTOR

5

FUSIBLE LINK

ETACS-
ECU

JUNCTION
BLOCK SIDE

POWER
WINDOW
RELAY

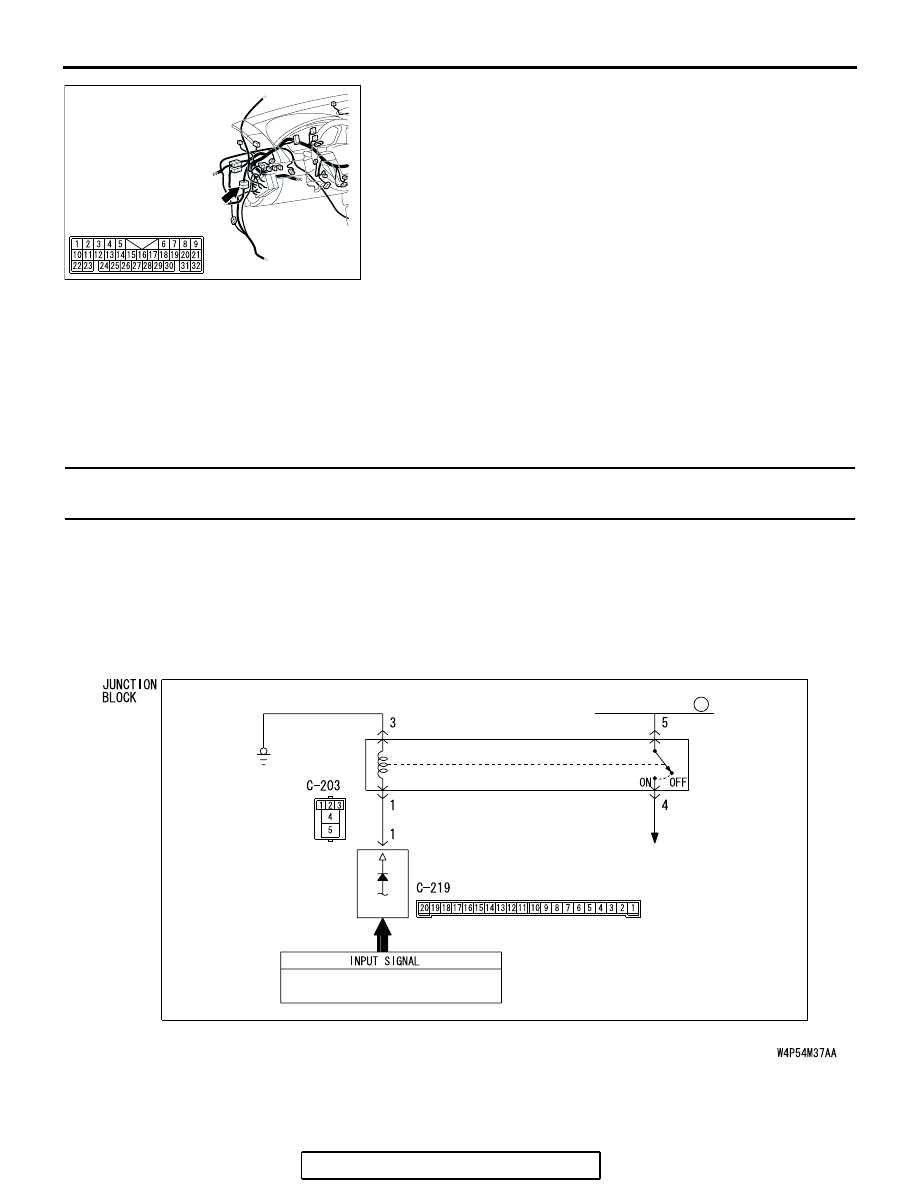

Power Window Timer Function Circuit

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-183

CIRCUIT OPERATION

The ETACS-ECU operates the power window timer
function according to the following signals:

• Ignition switch (IG1)

• Front door switch

.

TECHNICAL DESCRIPTION (COMMENT)

If the power window timer function does not work
normally, its input circuit, the ETACS-ECU or the
front-ECU may be defective.

.

TROUBLESHOOTING HINTS

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• The ETACS-ECU may be defective
