SRS –

Air Bag Modules and Clock Spring

52B-43

Caution
Never measure circuit resistance in the air bag modules
(squib) even with the specified tester. Measuring the circuit
resistance with a tester causes accidental air bag
deployment due to current that flows or static, resulting
in serious personal injury.

1.

Check the side air bag module deployment section for
dents and deformation.

2.

Check the harness and connector for damage and the
terminals for deformation.

SRS –

Seat Belt with Pre-tensioner

52B-44

SEAT BELT WITH PRE-TENSIONER

Caution
1.

Never attempt to disassemble or repair the
seat belt with pre-tensioner. If faulty, replace
it.

2.

Be extremely careful when handling the seat
belt with pre-tensioner. Do not subject it to
shocks, drop it, bring it close to strong
magnets or allow contact with water, grease
or oil. Always replace it with a new part if
any dents, cracks or deformation is found.

3.

Do not place anything on top of the seat
belt pre-tensioner.

4.

Do not expose the seat belt with
pre-tensioner to temperatures over 90

_

C.

5.

After operating the seat belt pre-tensioner,
replace the seat belt pre-tensioner with a
new part.

6.

Gloves and protective goggles should be
worn when handling a pre-tensioner once
it has been used.

7.

If disposing of a seat belt with pre-tensioner
which has not yet been used, its
pre-tensioner should be operated first before
disposal. (Refer to P.52B-48.)

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation

D

Turn Ignition Key to LOCK (OFF) Position

D

Disconnect the Negative (–) Battery Terminal.

44 Nm

2

1

44 Nm

1

44 Nm

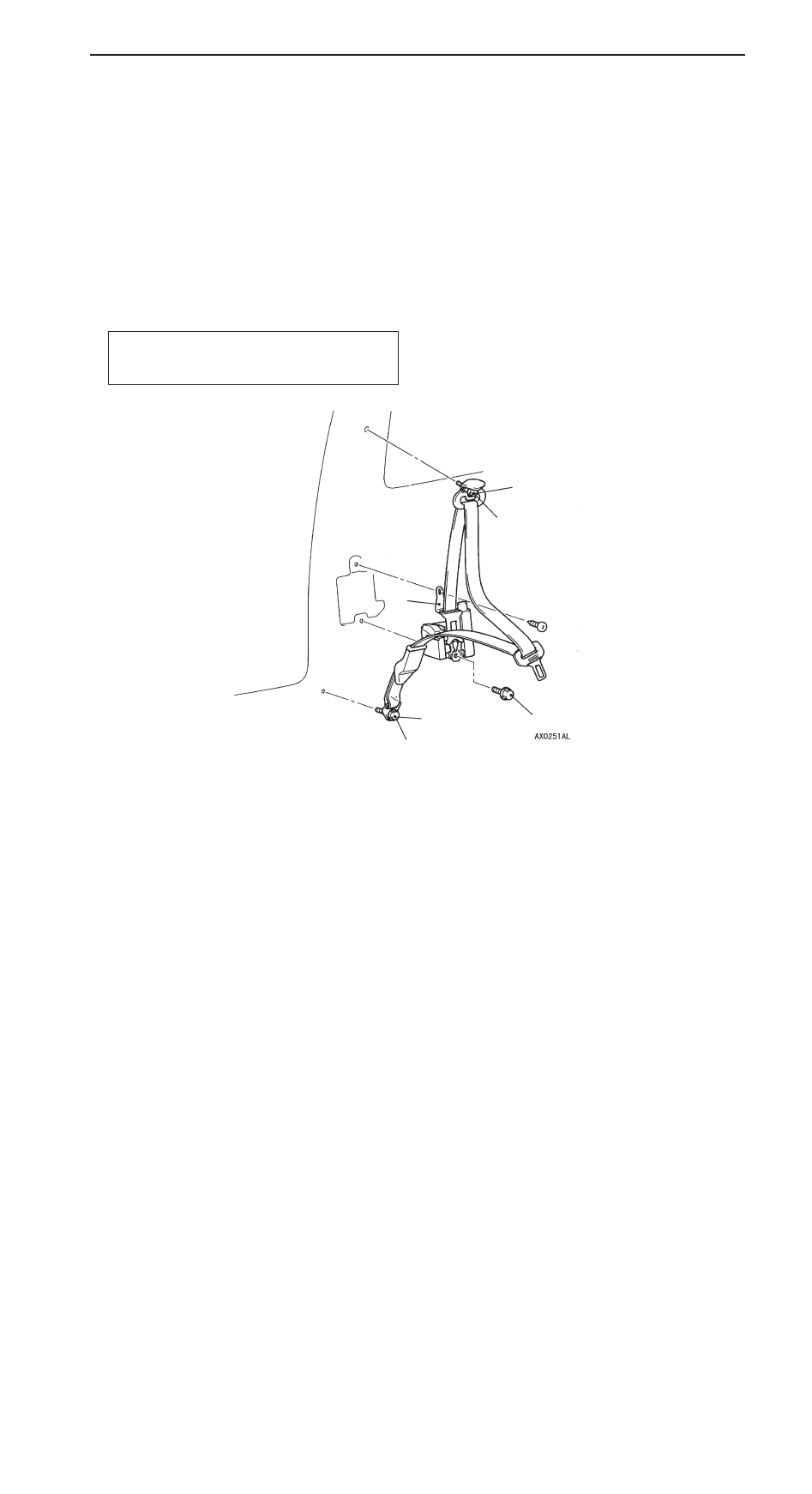

Removal steps

1. Outer seat belt connection

D

Quarter Trim (Refer to GROUP 52A.)

2. Seat belt with pre-tensioner

Installation steps

"

A

A D

Post-installation inspection

2. Seat belt with pre-tensioner

D

Quarter Trim (Refer to GROUP 52A.)

1. Outer seat belt connection

D

Negative (–) battery cable connection

"

B

A D

Pre-installation inspection

NOTE
The figure shows the seat belt with pre-tensioner
(R.H.)

SRS –

Seat Belt with Pre-tensioner

52B-45

INSTALLATION SERVICE POINTS

"

A

A

PRE-INSTALLATION INSPECTION

When installing a new seat belt with pre-tensioner refer to
“INSPECTION”.

Caution
Disposal of the pre-tensioner must be carried out as stated
in the procedure. (Refer to P.52B-48.)

"

B

A

POST-INSTALLATION INSPECTION

1.

Reconnect the negative battery terminal.

2.

Turn the ignition key to the “ON” position.

3.

Does the “SRS” warning lamp illuminate for about 7
seconds, and then remain extinguished for at least 5
seconds after turning OFF?

4.

If yes, SRS system is functioning properly. If no, consult
page 52B-8.

INSPECTION

SEAT BELT WITH PRE-TENSIONER CHECK

If any part is found to be faulty during the inspection, it must
be replaced with a new one.
Dispose of the old one according to the specified procedure.
(Refer to P.52B-48.)

D

Check seat belt pre-tensioner for dents, cracks or
deformation.

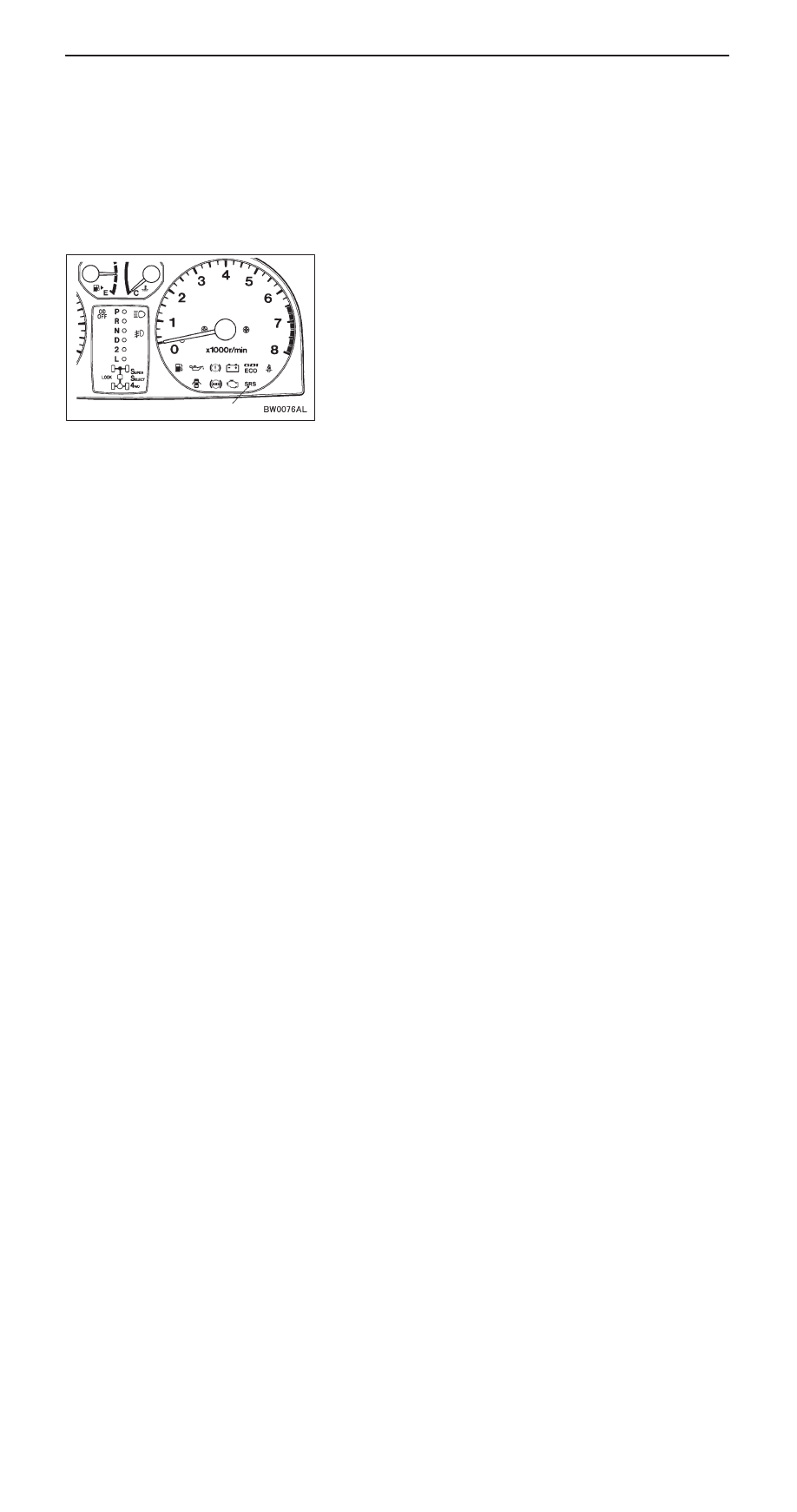

SRS warning lamp

SRS –

Side Impact Sensor

52B-46

SIDE IMPACT SENSOR

Caution
1.

Disconnect the negative (–) battery terminal
and wait for 60 seconds or more before
starting work. Also, the disconnected battery
terminal should be insulated with tape.
(Refer to P.52B-4.)

2.

Never attempt to disassemble or repair the
side impact sensors. If faulty, just replace
with new ones.

3.

Do not drop or subject the side impact
sensors to impact or vibration.
If denting, cracking, deformation, or rust are
found in the side impact sensors, replace
it with new ones. Discard the old ones.

4.

After deployment of the air bags, replace
the side impact sensors with new ones.

5.

Never use an ohmmeter on or near the side
impact sensors, and use only the special
test equipment described on P.52B-7.

REMOVAL AND INSTALLATION

Pre-removal Operation

D

Turn Ignition Switch to LOCK (OFF) Position.

D

Disconnect the Negative (–) Battery Terminal.

1

2

5 Nm

Quarter panel, inner

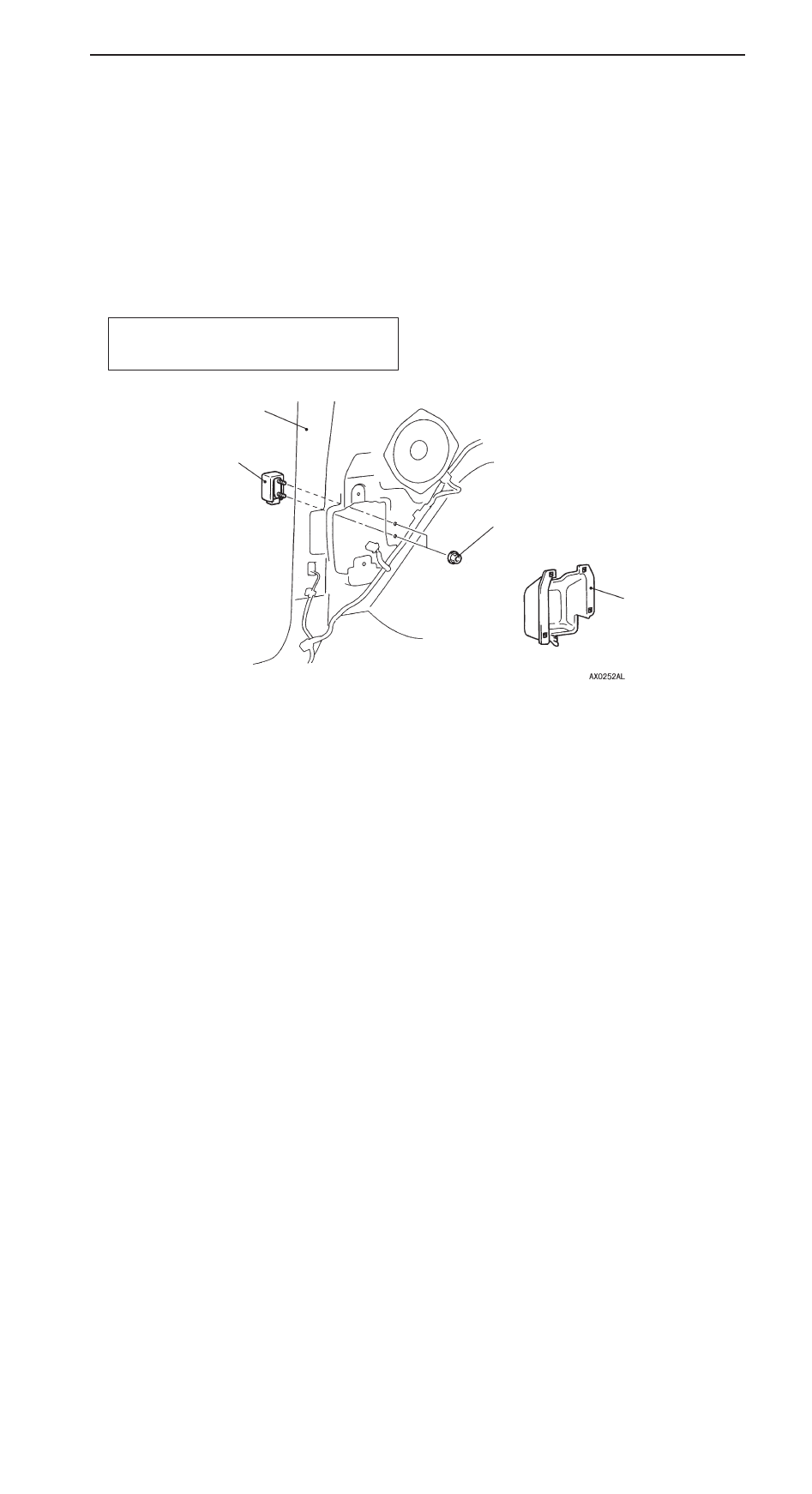

Removal steps

D

Front seat belt (Refer to GROUP 52A.)

1. Front noise protector
2. Side impact sensor

Installation steps

"

A

A D

Pre-installation inspection

"

B

A

2. Side impact sensor
1. Front noise protector

D

Front seat belt (Refer to GROUP 52A.)

D

Negative (–) battery cable connection

"

C

A D

Post-installation inspection

NOTE
The figure shows the side impact sensor (R.H.).

"

A

A

PRE-INSTALLATION INSPECTION

Even new side impact sensor requires inspection before
installation. (Refer to Inspection.)
