EXTERIOR –

Rear Bumper

51-4

REAR BUMPER

REMOVAL AND INSTALLATION

1

2

4

6

3

5

7

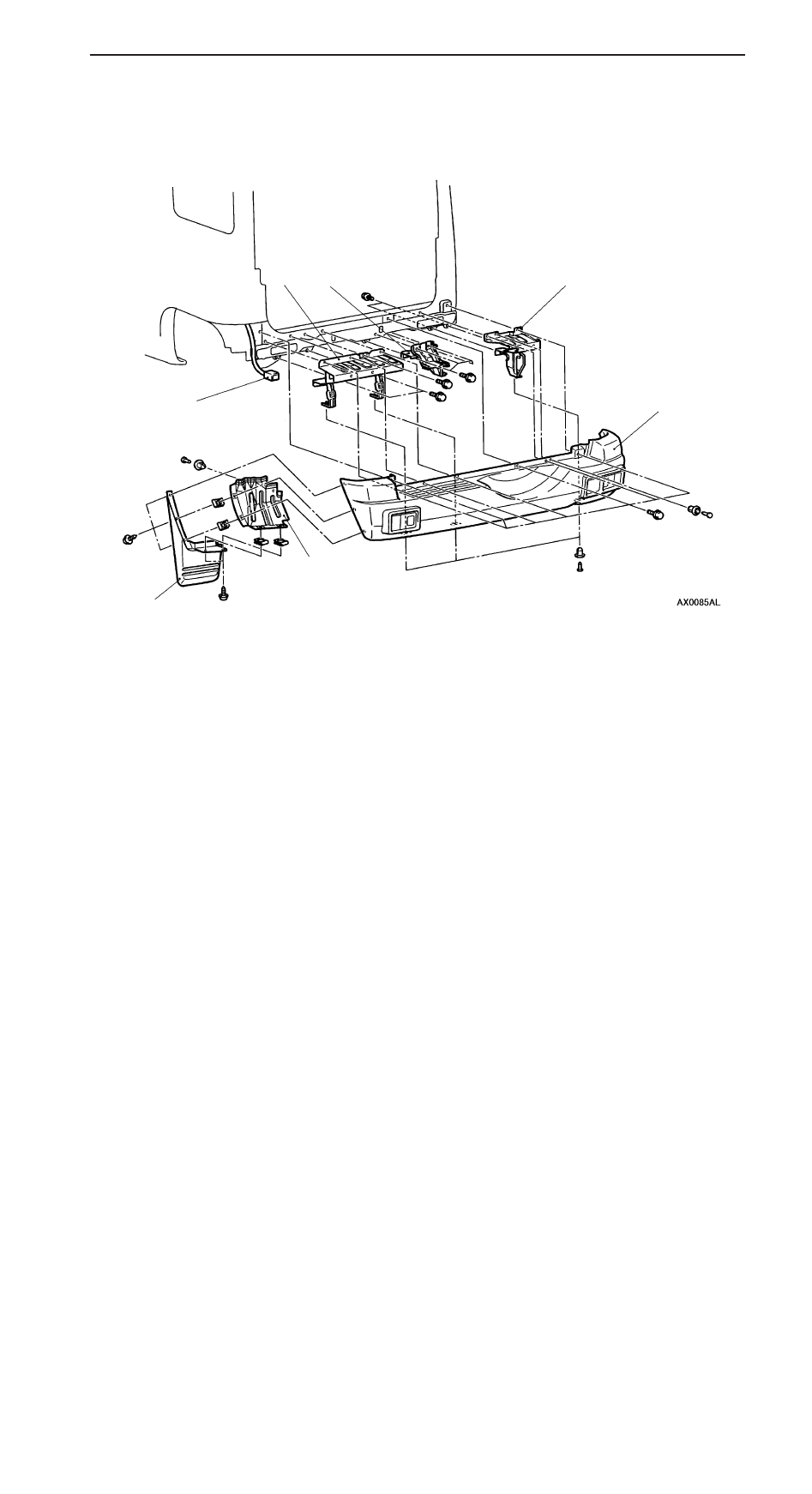

Removal steps

1. Rear mud guard
2. Rear splash shield
3. Rear combination lamp or rear fog

lamp connection

4. Rear bumper assembly
5. Bumper step reinforcement

assembly

6. Bumper center reinforcement

assembly

7. Bumper side reinforcement

assembly

EXTERIOR –

Rear Bumper/Exterior Parts

51-5

DISASSEMBLY AND REASSEMBLY

2

1

3

4

5

1

4.9 Nm

4.9 Nm

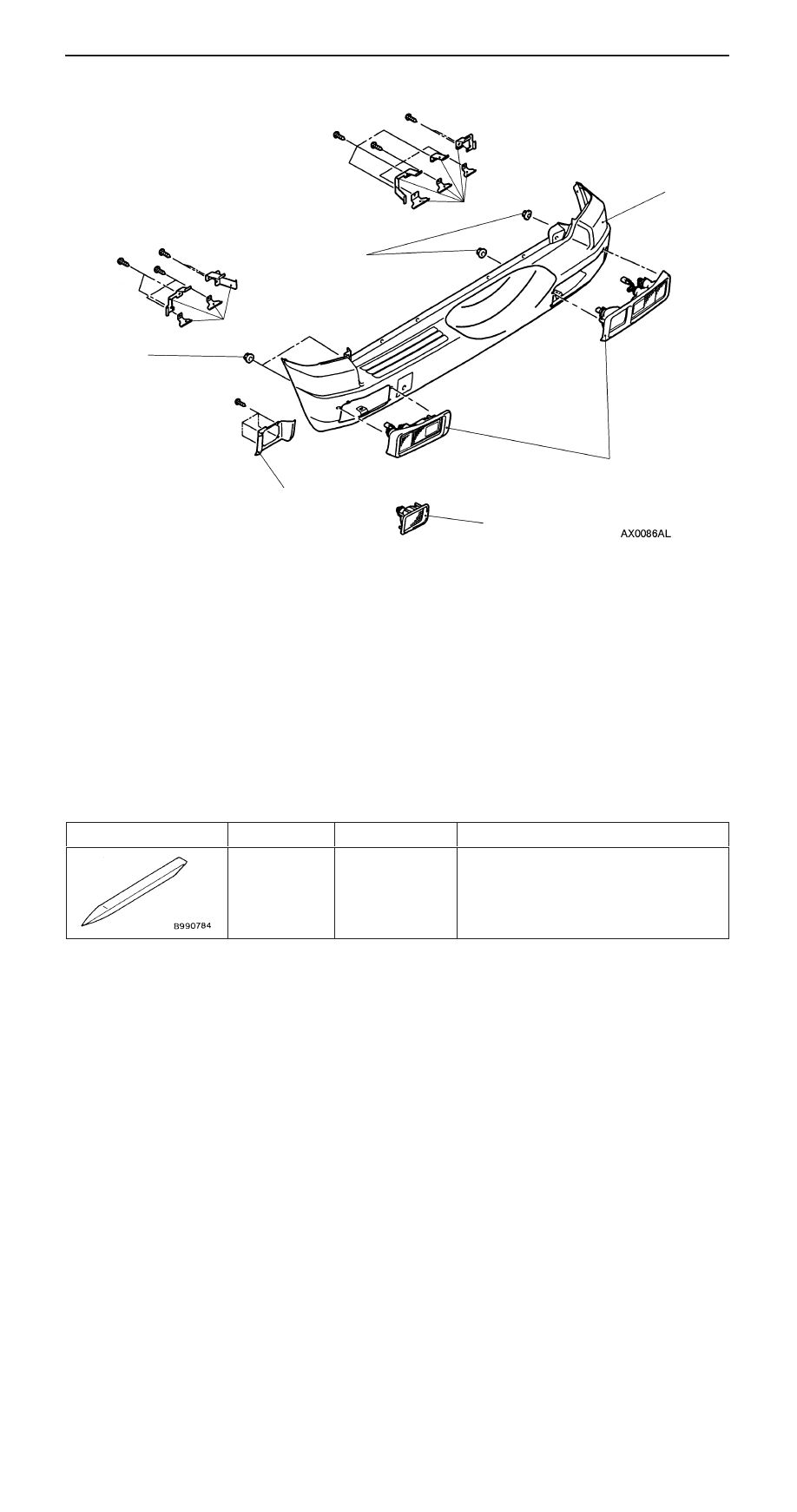

Disassembly steps

1. Bracket <R.H. drive vehicles>
2. Bracket <L.H. drive vehicles>
3. Rear combination lamp assembly

<R.H. drive vehicles>

4. Rear fog assembly

<L.H. drive vehicles>

5. Rear bumper face

EXTERIOR PARTS

SPECIAL TOOL

Tool

Number

Name

Use

MB990784

Ornament remover

Removal of roof rack cover.

EXTERIOR –

Exterior Parts

51-6

EXTERIOR PARTS

REMOVAL AND INSTALLATION

Section A – A

Section B – B

2

5 Nm

Section C – C

Section D – D

2

1

1

1

1

3

3

4

4

5 Nm

5 Nm

23 Nm

23 Nm

5

2

4

4

1

1

4

4

1

A

A

C

C

B

B

D

D

A

A

Section E – E

5

6

Body

6

7

E

E

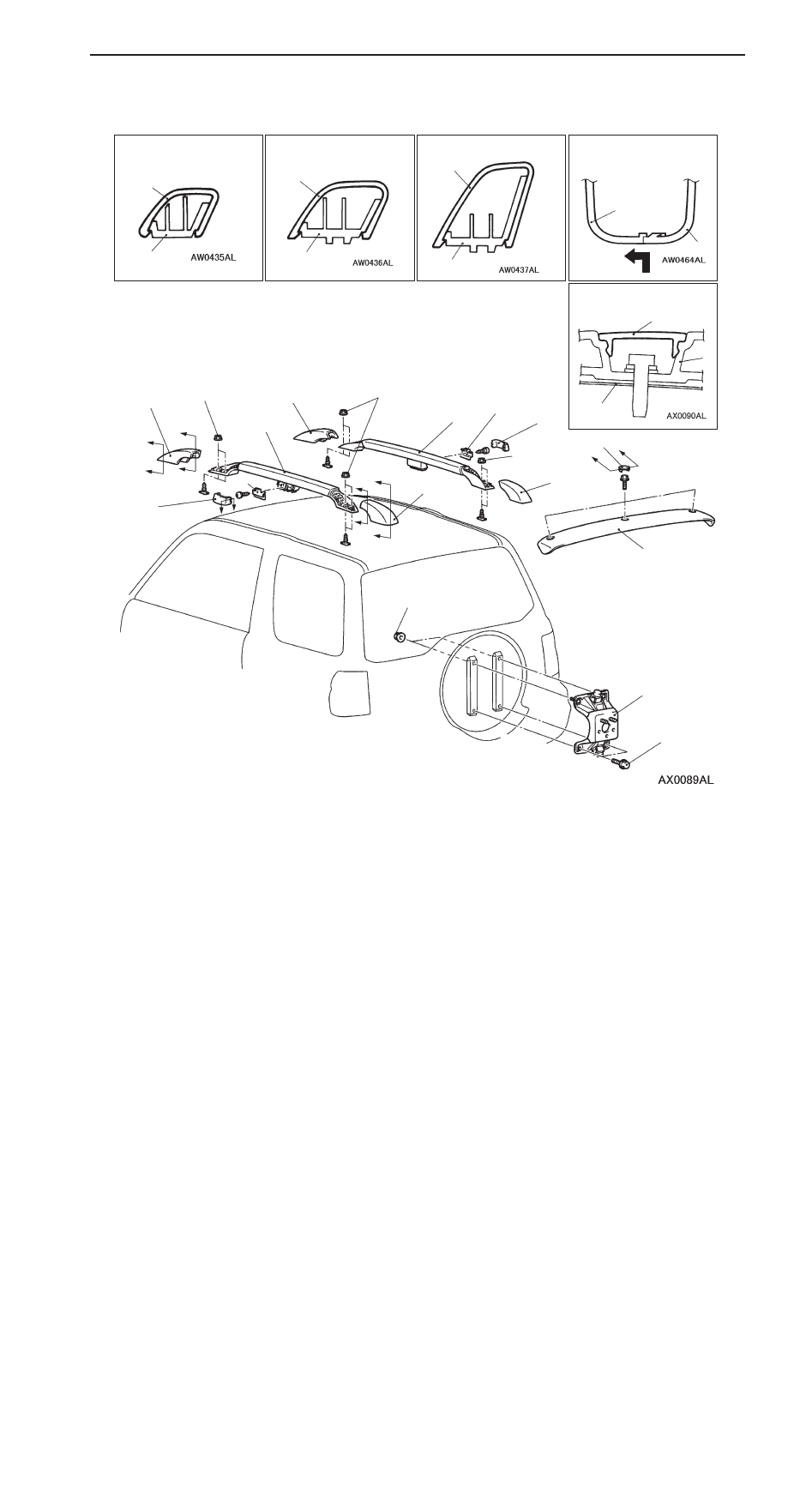

Roof rail removal steps

A

A

"

1. Roof rack cover (front, rear)
2. Roof rack cover (side)
3. Center bracket
4. Roof bar

Roof spoiler removal steps

5. cover
6. Roof spoiler

Spare tyre carrier removal steps

D

Spare tyre cover
(Refer to GROUP 31.)

D

Spare tyre

D

Back door trim and waterproof film
(Refer to GROUP 42.)

7. Spare tyre carrier

EXTERIOR –

Exterior Parts/Moulding and Garnish

51-7

REMOVAL SERVICE POINT

A

A

"

ROOF RACK COVER (FRONT, REAR) REMOVAL

1.

Insert the special tool into the slit.

NOTE
The roof rack assembly has the slit.

2.

Insert the special tool as far as possible and remove the
claw (front) by prying the roof rack cover toward you.

3.

Remove the claw (rear).

Caution
Spread out the roof rack cover sufficiently and pull
it upward, otherwise the claws will be broken.

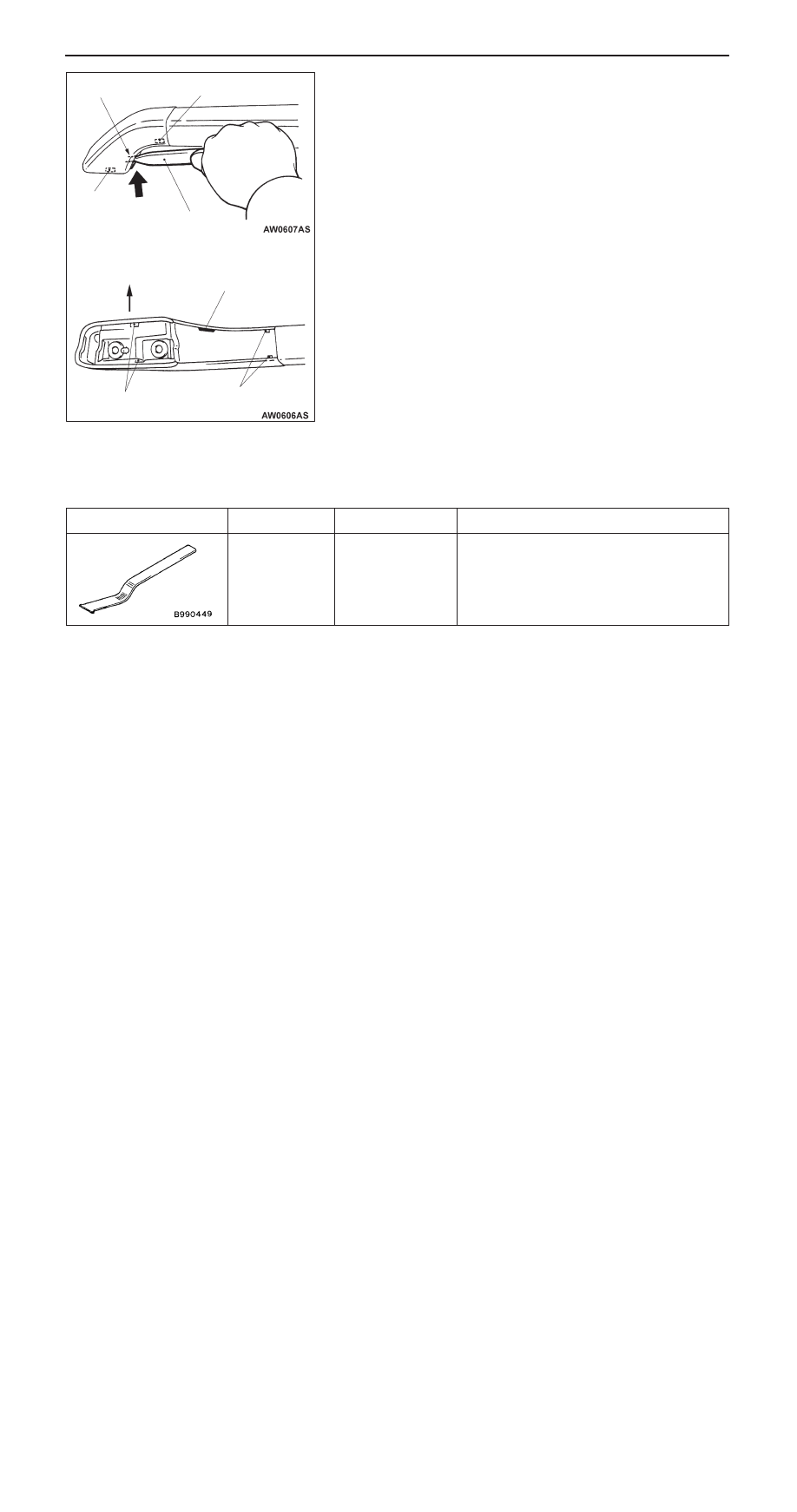

MOULDING AND GARNISH

SPECIAL TOOL

Tool

Number

Name

Use

MB990449

Window moulding
remover

Removal of roof drip moulding.

View A

MB990784

Claw (rear)

Claw (front)

Slit

Slit

Claw (rear)

Claw (front)

View A

Outside of vehicle
