Mitsubishi Pajero Pinin. Manual - part 277





BODY –

Back Door

42-34

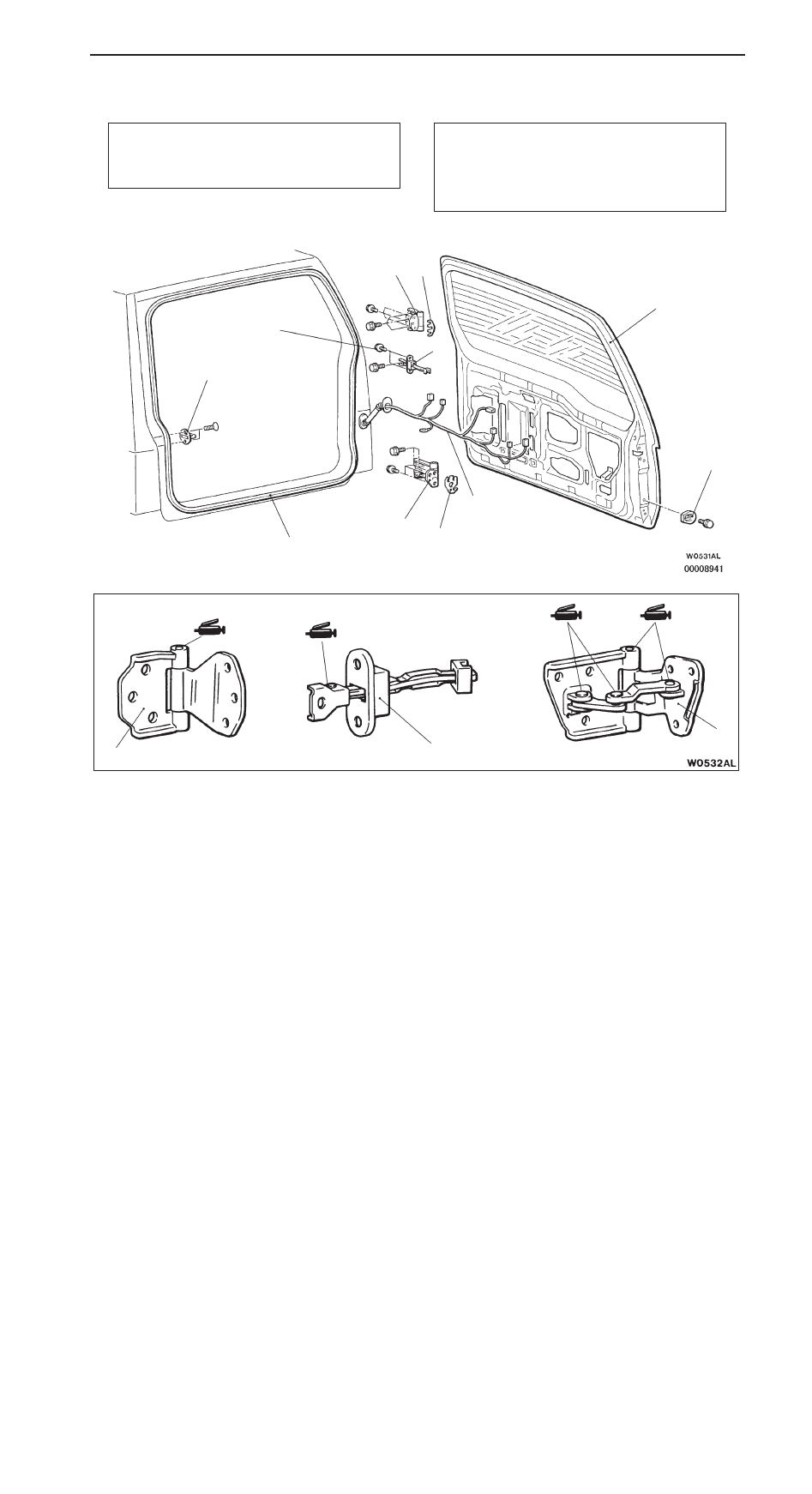

BACK DOOR ASSEMBLY

REMOVAL AND INSTALLATION

Pre–removal Operation

D

High–mounted Stop Lamp Removal
(Refer to GROUP 54A.)

D

Spare Tyre Carrier Removal (Refer to GROUP 51.)

Post–installation Operation

D

High–mounted Stop Lamp Installation
(Refer to GROUP 54A.)

D

Spare Tyre Carrier Installation
(Refer to GROUP 51.)

D

Back Door Fit Adjustment (Refer to P.42-33.)

22 Nm

4

3

5

2

9

6

1

8

10

7

5

3

6

Removal steps

D

Back door trim and waterproof film
(Refer to P.42-36.)

1. Harness connector
2. Back door assembly
3. Back door upper hinge
4. Shim

5. Door check
6. Back door lower hinge
7. Shim
8. Damper mail

"

B

A

9. Striker

"

A

A

10. Back door opening weatherstrip

BODY –

Back Door

42-35

INSTALLATION SERVICE POINT

"

A

A

BACK DOOR OPENING WEATHERSTRIP
INSTALLATION

Align the marking section on the back door opening
weatherstrip with the centre of the body.

"

B

A

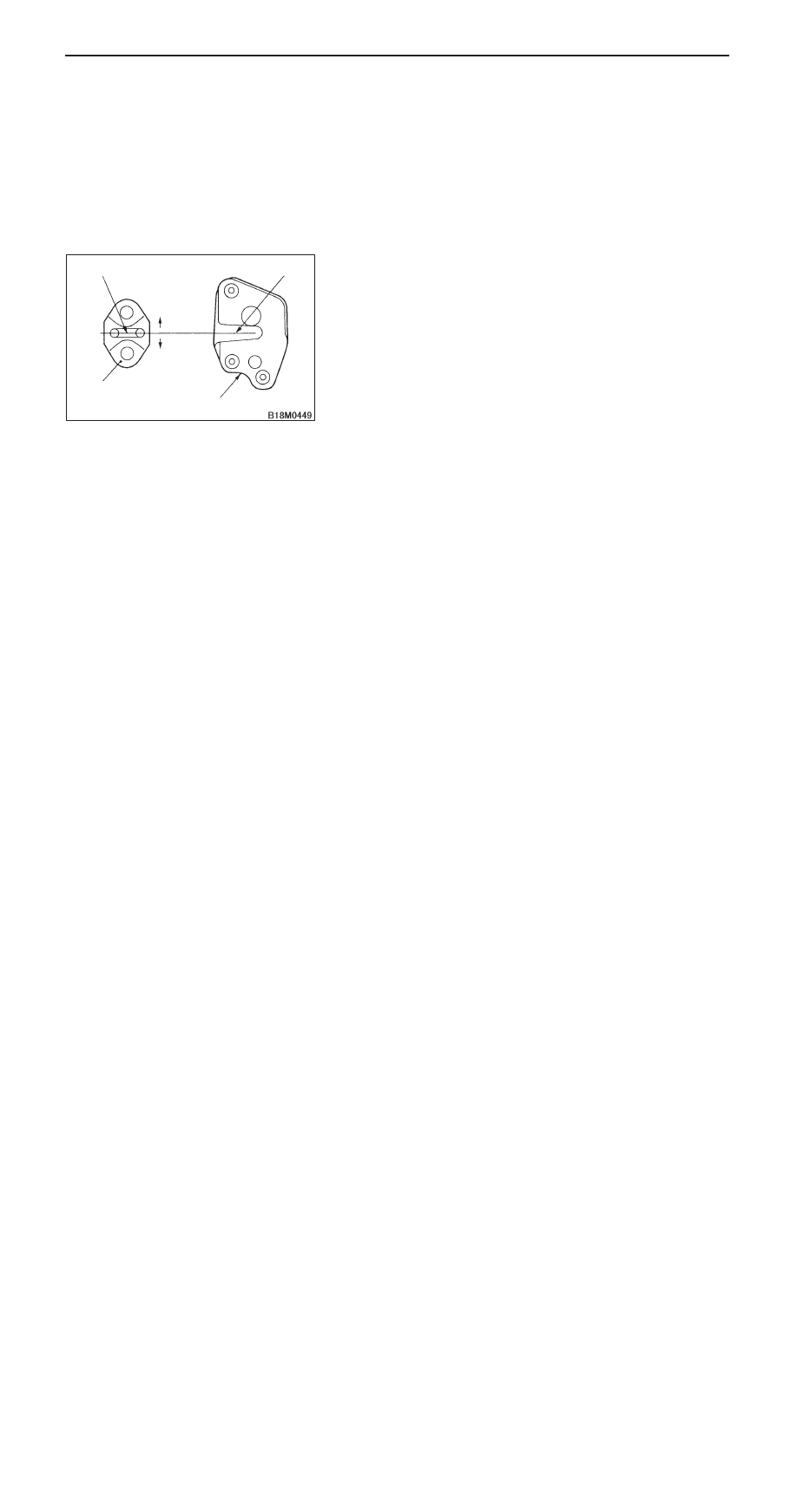

STRIKER INSTALLATION

Install the striker so that the striker centre does not deviate
more than



1.5 mm from the latch centre.

Striker centre

Latch centre

Striker

Latch

– 1.5 mm

+1.5 mm

BODY –

Back Door

42-36

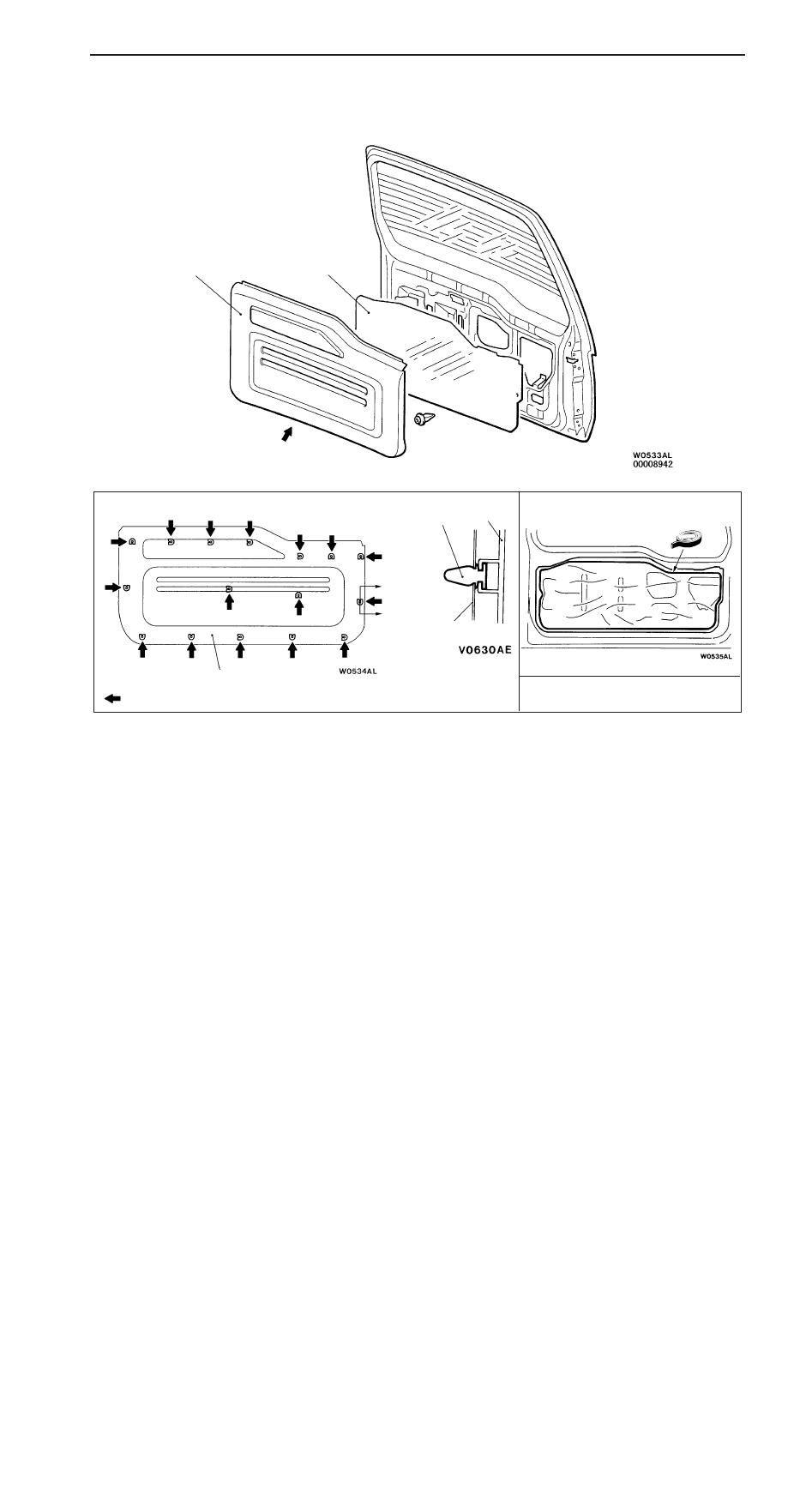

BACK DOOR TRIM AND WATERPROOF FILM

REMOVAL AND INSTALLATION

2

1

View A

View A

Section A – A

1

: Clip positions

Door panel

Clip

1

A

A

Sealant:
3M ATD Part No. 8625 or equivalent

Removal steps

1. Back door trim
2. Waterproof film

BODY –

Back Door

42-37

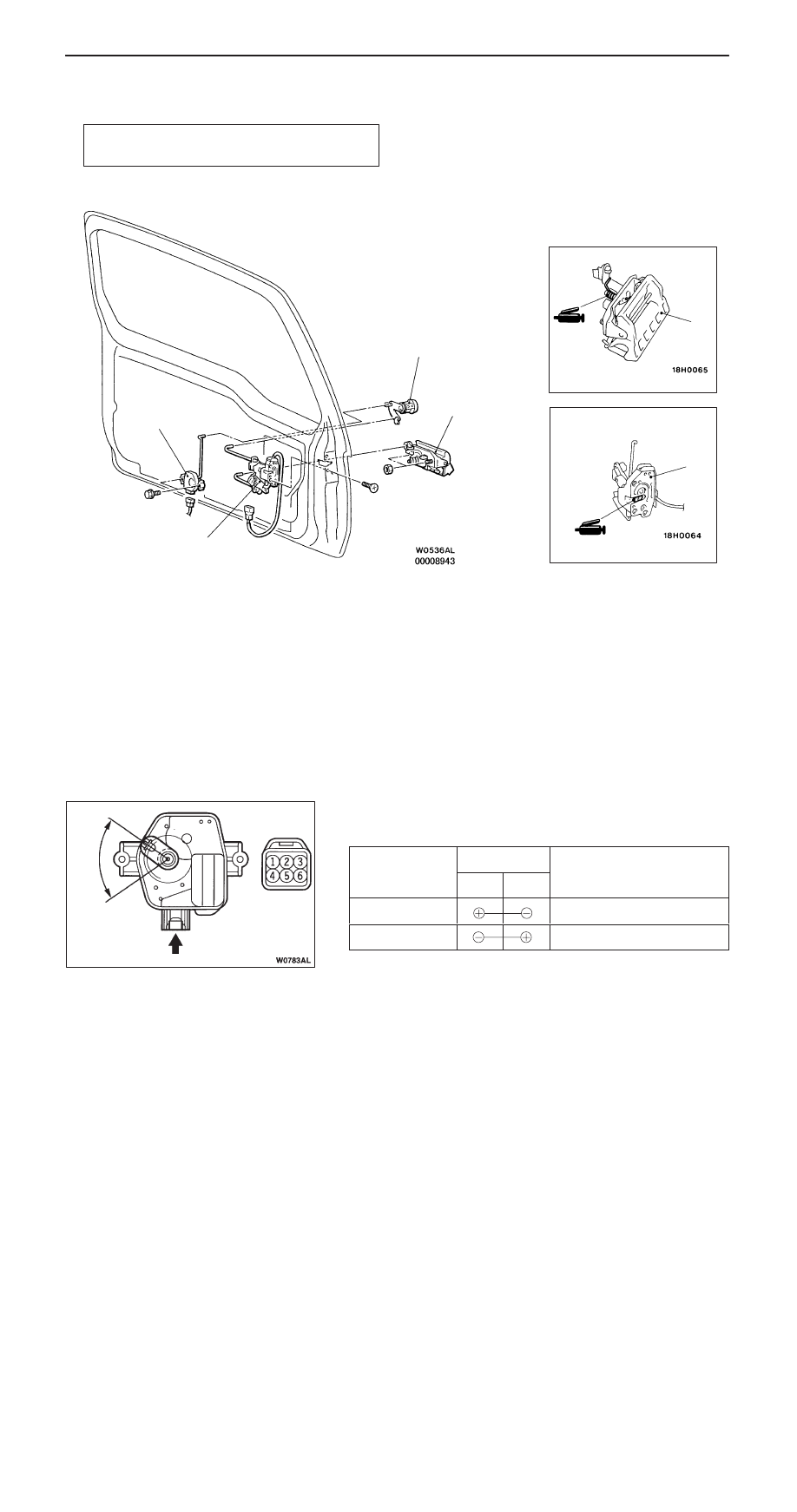

BACK DOOR HANDLE AND LATCH

REMOVAL AND INSTALLATION

Post-installation Operation
Back Door Handle Play Check (Refer to P.42-33.)

1

4

4

3

2

1

Back door handle and lock key
cylinder removal steps

D

Back door trim and waterproof film
(Refer to P.42-36.)

1. Back door handle
2. Back door lock key cylinder

Back door latch removal steps

D

Back door trim and waterproof film
(Refer to P.42-36.)

3. Back door lock actuator
4. Back door latch assembly

INSPECTION

BACK DOOR LOCK ACTUATOR CHECK

Rod position

Terminal No.

Rod operation

4

6

LOCK

LOCK to UNLOCK

UNLOCK

UNLOCK to LOCK

A

Lock

Unlock

View A
