Mitsubishi Pajero Pinin. Manual - part 224

POWER PLANT MOUNT –

General/Engine Mounting

32-1

GROUP 32

POWER PLANT MOUNT

GENERAL

OUTLINE OF CHANGE

The following service procedures have been added due to the change of the engine mount and transmission
mount.

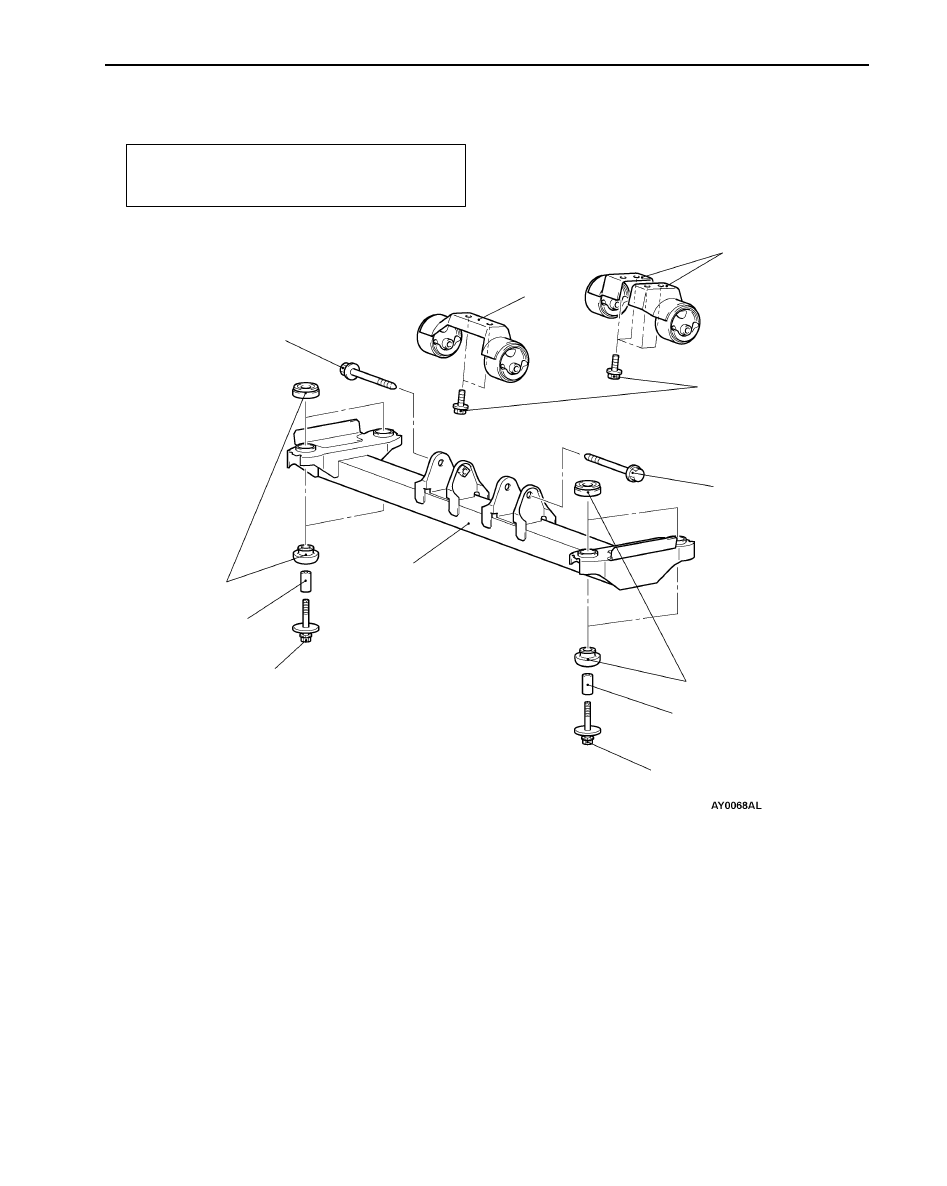

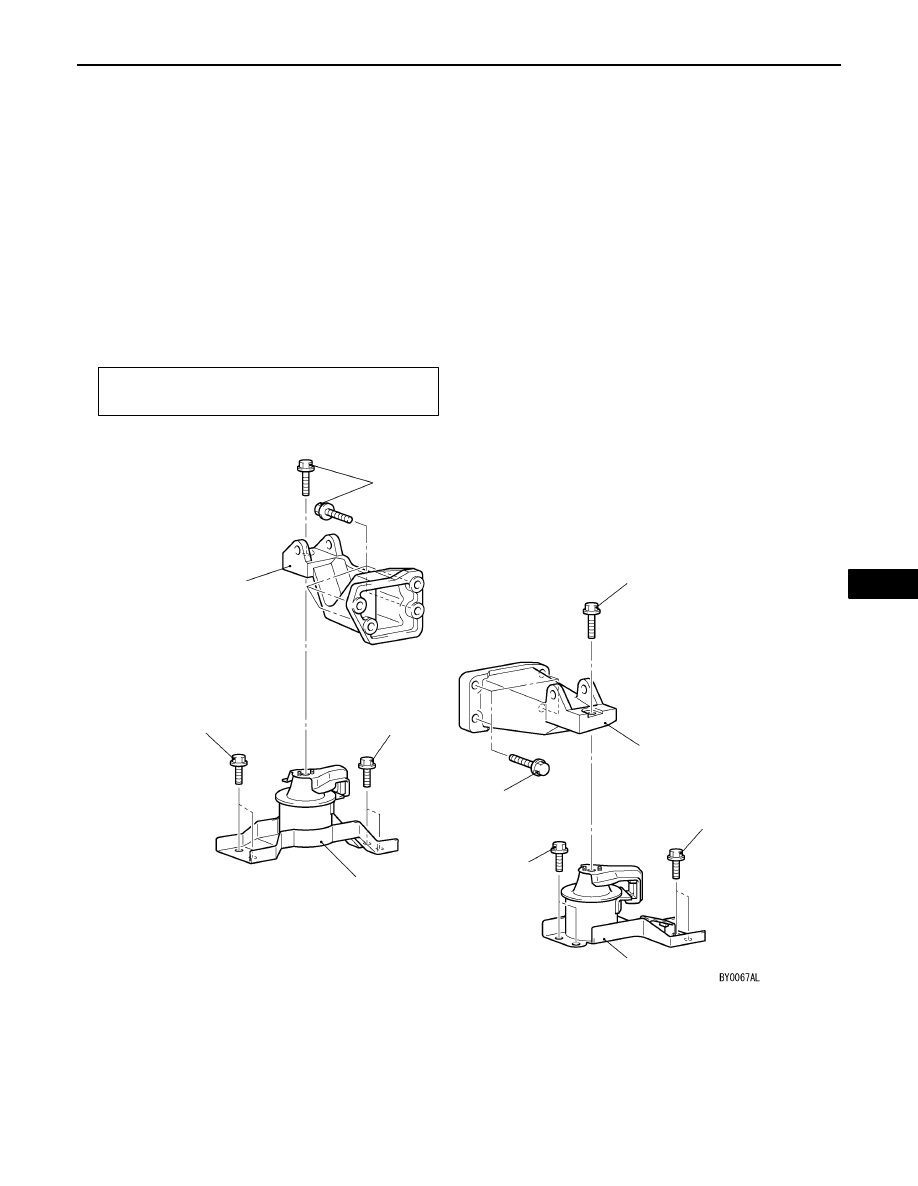

ENGINE MOUNTING

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation
Crossmember Removal and Installation

1

2

3

4

49 Nm

49 Nm

49 Nm

49 Nm

49 Nm

49 Nm

49 Nm

Removal steps

1. Engine mount insulator Assembly

(L.H.)

2. Engine mount insulator Assembly

(R.H.)

3. Engine mount bracket (L.H.)
4. Engine mount bracket (R.H.)

POWER PLANT MOUNT –

Transmission Mounting

32-2

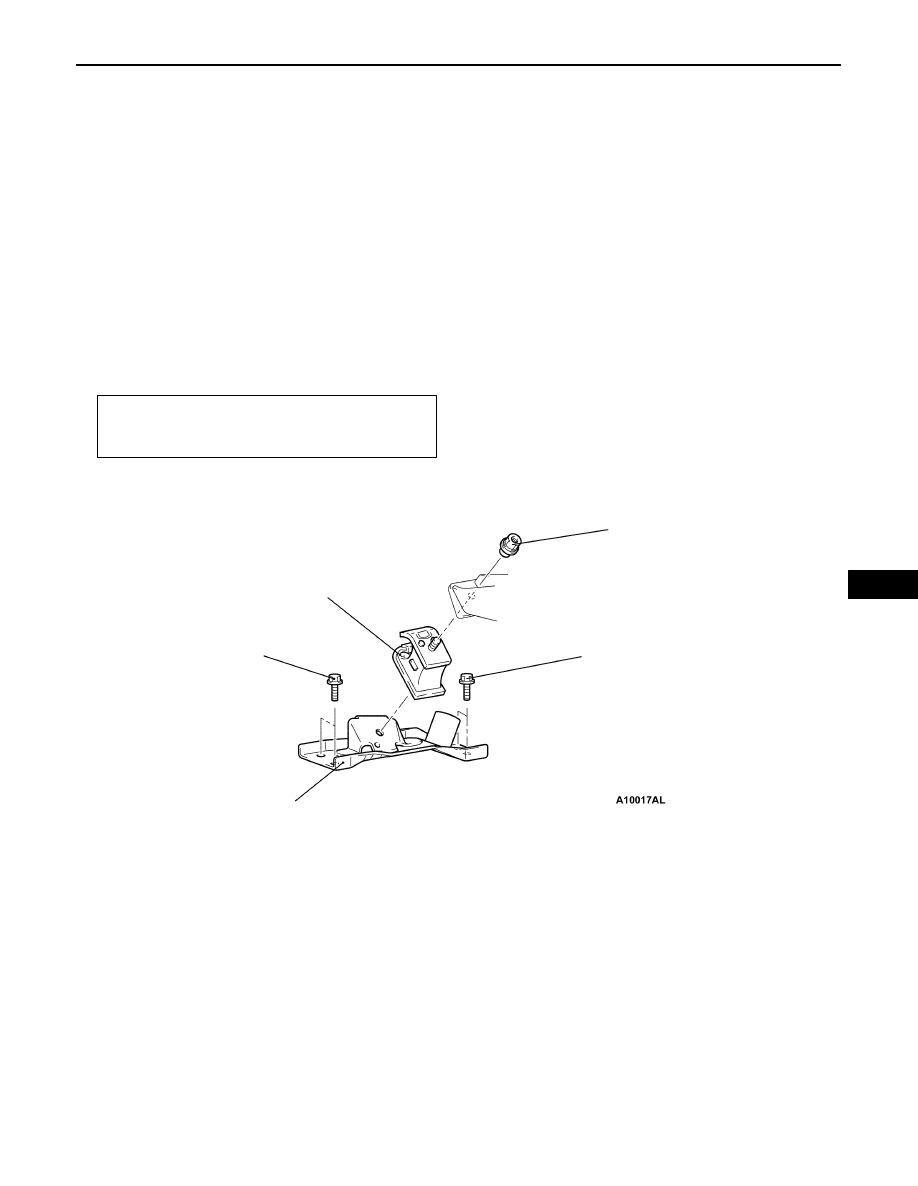

TRANSMISSION MOUNTING

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation
Jack up the Engine and Transmission Assembly until
there is no weight on the Engine Mount Bracket Insulator.

1

3

4

4

2

2

49 Nm

49 Nm

49 Nm

49 Nm

49 Nm

<A/T>

<M/T>

1

Removal steps

1. Collar
2. Transmission mount bushing
3. Transmission mount crossmember

Assembly

4. Transmission mount insulator

Assembly

POWER PLANT MOUNT –

General/Engine Mounting

32-1

GROUP 32

POWER PLANT MOUNT

GENERAL

OUTLINE OF CHANGE

The following service procedures have been established due to the addition of vehicles with 4G9-MPI
engine. The other service procedures are the same as the vehicles with GDI engine.

ENGINE MOUNTING

REMOVAL AND INSTALLATION

Caution
Provisionally tighten the parts marked by an asterisk (*), and then fully tighten after loading the
full weight of the engine on the vehicle body.

Pre-removal and Post-installation Operation
Crossmember Removal and Installation
(Refer to GROUP 33.)

2

1

49

±

 10 N·m

26

±

 5 N·m*

49

±

 10 N·m

Removal steps

1. Engine mount bracket <RH>
2. Engine mount insulator
