32-1

POWER PLANT

MOUNT

CONTENTS

ENGINE MOUNTING

2

. . . . . . . . . . . . . . . . . . . . . . .

TRANSMISSION MOUNTING

3

. . . . . . . . . . . . . . . .

POWER PLANT MOUNT –

Engine Mounting

32-2

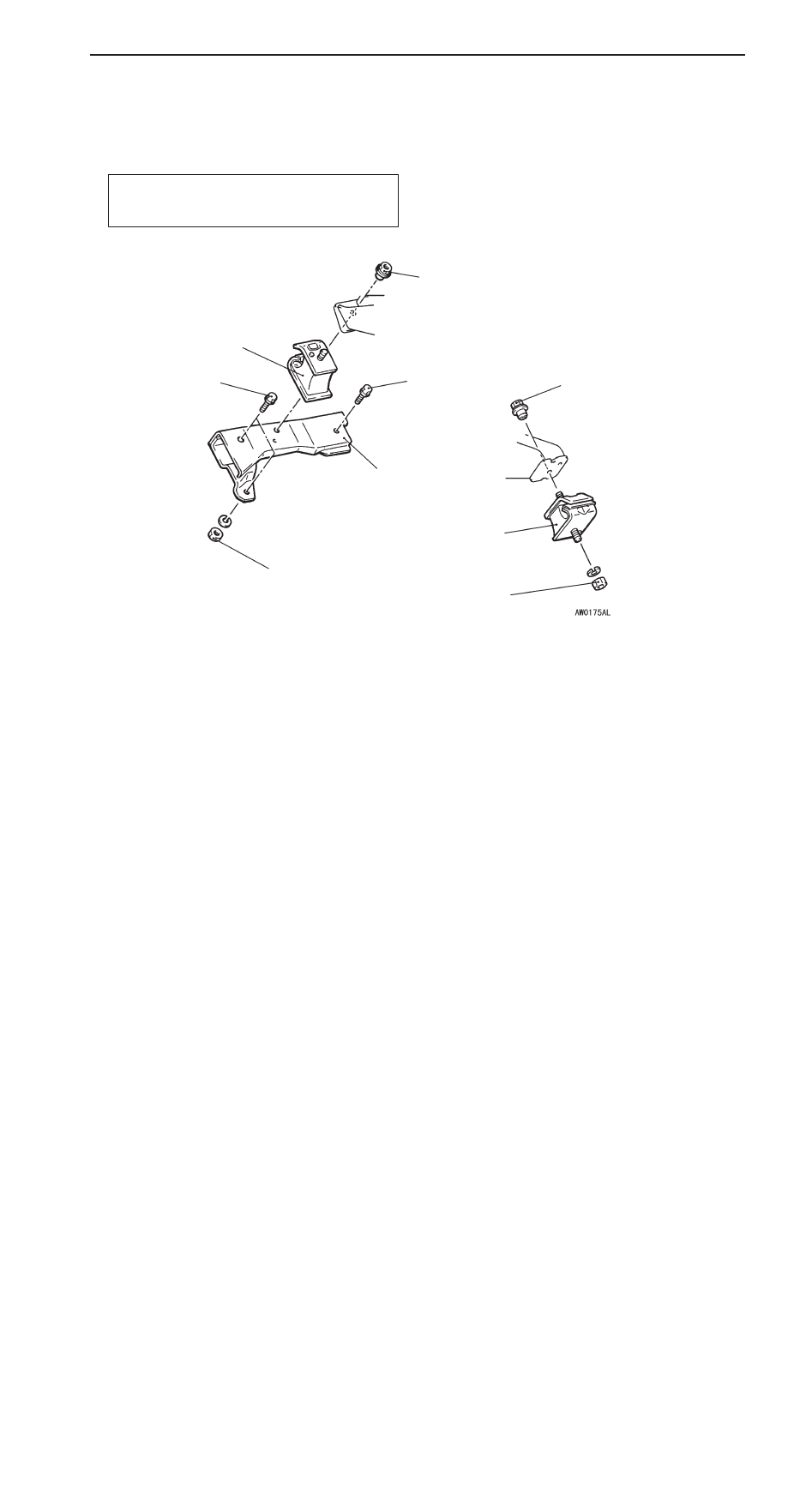

ENGINE MOUNTING

REMOVAL AND INSTALLATION

Caution
Provisionally tighten the parts marked by an asterisk (*), and then fully tighten after loading the
full weight of the engine on the vehicle body.

Pre-removal and Post-installation Operation
Crossmember Removal and Installation (Refer to
GROUP 33.)

25 Nm*

2

44 Nm

44 Nm

25 Nm*

25 Nm

25 Nm

2

1

Removal steps

1. Engine mount bracket
2. Engine mount insulator

POWER PLANT MOUNT –

Transmission Mounting

32-3

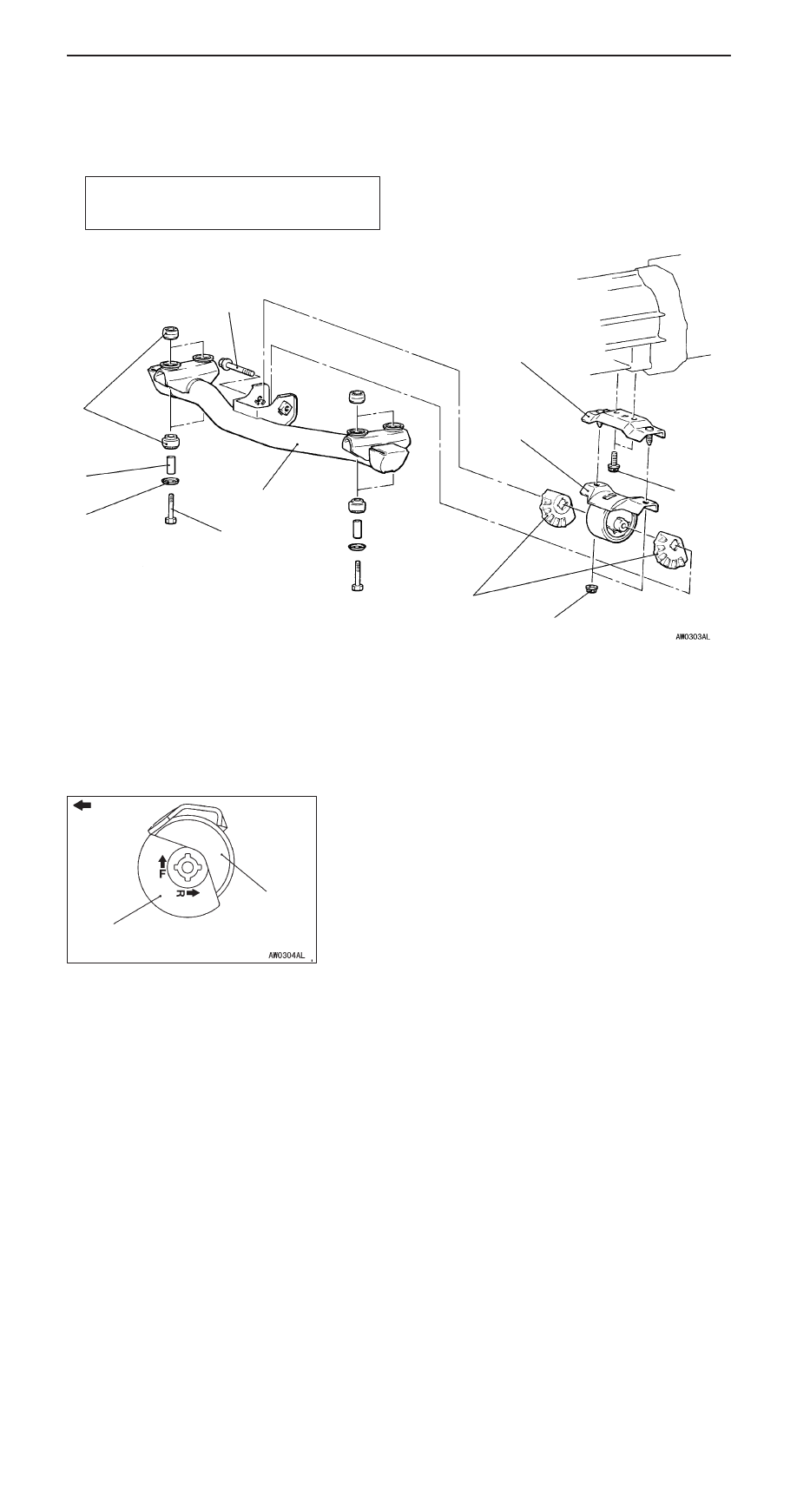

TRANSMISSION MOUNTING

REMOVAL AND INSTALLATION

Caution
Provisionally tighten the parts marked by an asterisk (*), and then fully tighten after loading the
full weight of the transmission on the vehicle body.

Pre-removal and Post-installation Operation
Jack up the Engine and Transmission Assembly until
there is no weight on the Engine Mount Bracket Insulator.

93 Nm*

3

49 Nm

49 Nm

49 Nm

2

1

4

7

5

6

Removal steps

1. Washer
2. Spacer
3. Transmission mount bushing
4. Transmission mount crossmember

assembly

5. Transmission mount insulator assembly

"

A

A

6. Transmission mount stopper
7. Adaptor

INSTALLATION SERVICE POINT

"

A

A

TRANSMISSION MOUNT STOPPER INSTALLATION

Install the transmission mount stopper so that the arrow faces
the direction shown.

NOTE
Disregard F and R stamped as a shared part.

Transmission
mount stopper

Front of
vehicle

Transmission
mount insula-
tor assembly
