FRONT AXLE –

Front Differential Mount

26-51

DIFFERENTIAL MOUNT INSULATOR
REPLACEMENT

FRONT

1.

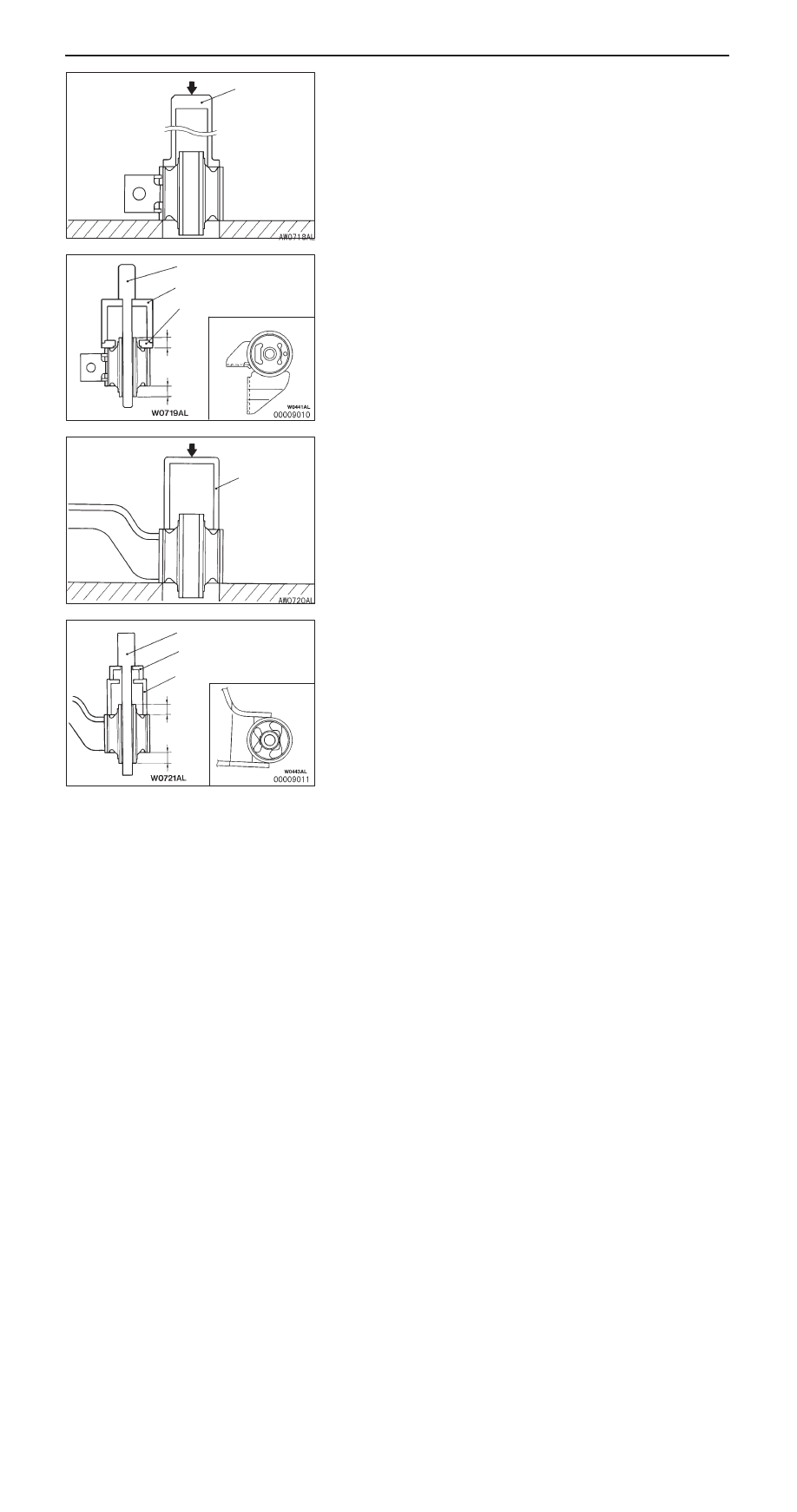

Use the special tool to drive out the insulator.

2

.

Use the special tools and a press to press-fit the insulators
so that their hollow portion points to the shown direction
and the insulator protrudes evenly (Distance A is equal
to distance B).

REAR

1.

Use the special tool to drive out the insulator.

2

.

Use the special tools  and a press to press-fit the insulators
so that their hollow portion points to the shown direction
and the insulator protrudes evenly (Distance C is equal
to distance D).

MD999547

MB990947

MB990847

MB990981

A

B

MD999570

MB991318

MB991183

MB990843

D

C

NOTES

FRONT AXLE –

General/General Information

26-1

GROUP 26

FRONT AXLE

GENERAL

OUTLINE OF CHANGE



The front differential reduction gear ratio has been changed due to the introduction of 2000-mL engine.



The service procedure has been changed since the wheel bearing has been changed from the previous
oil seal separate type to the integrated type.

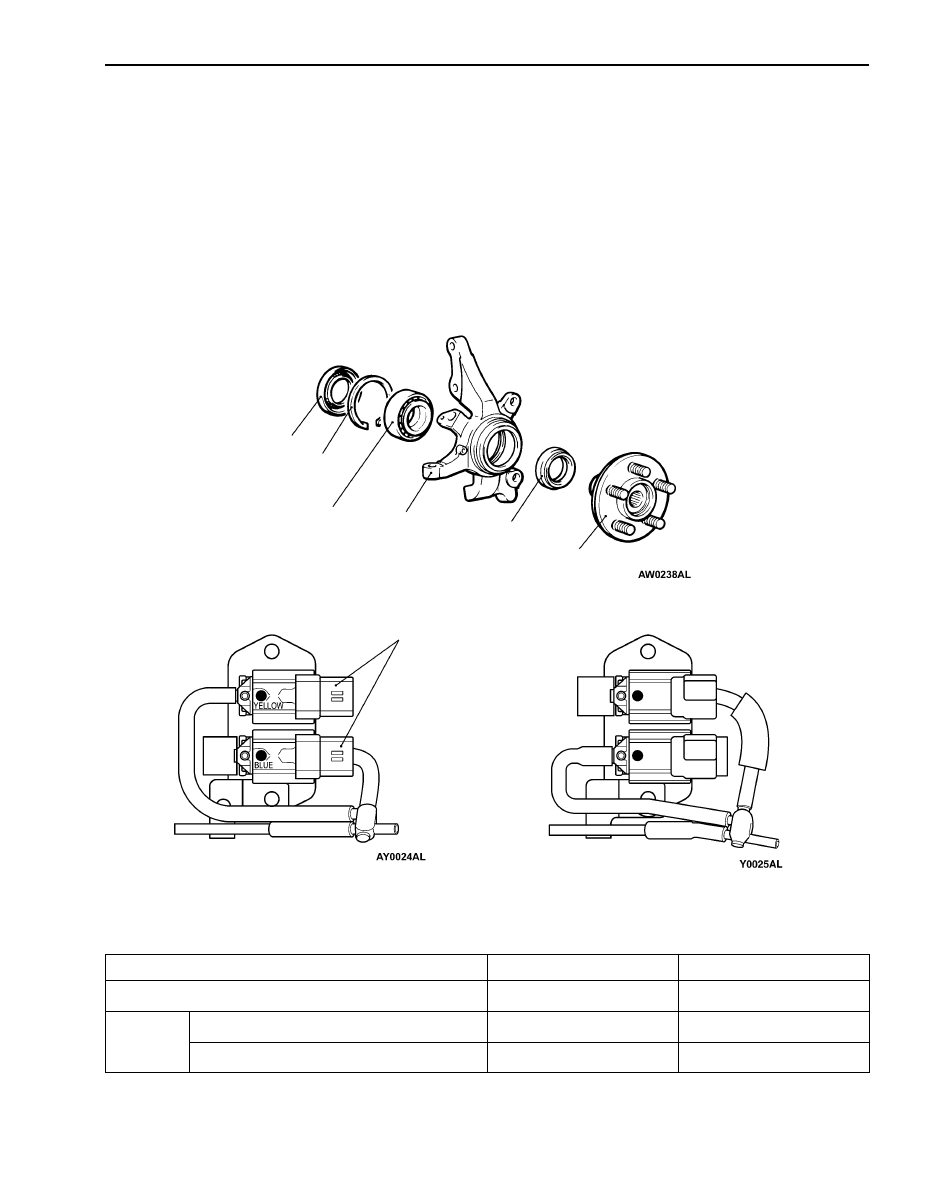

Inner oil seal
<abolished>

Snap ring

Knuckle

Wheel bearing
<Oil seal inte-
grated>

Hub

Outer oil seal
<abolished>



The solenoid valve for the free-wheeling mechanism has been changed.

Waterproof type connector

New

Old

GENERAL INFORMATION

FRONT DIFFERENTIAL

Item

New

Old

Reduction ratio

4.636*

1

, 4.900*

2

4.875

Number
of teeth

Drive gear

51*

1

, 49*

2

39

of teeth

Drive pinion

11*

1

, 10*

2

8

NOTE
*

1

: M/T, *

2

: A/T

FRONT AXLE –

Hub and Knuckle Assembly

26-2

HUB AND KNUCKLE ASSEMBLY

DISASSEMBLY AND REASSEMBLY

3

2

4

1

Disassembly steps

D



Hub rotation starting torque check

C



Wheel bearing axial play check

A

1.

Hub

B

2.

Snap ring

B A

3.

Wheel bearing

4.

Knuckle

NOTE
The disassembly service points are the same as
before.

REASSEMBLY SERVICE POINTS

Only the service procedure below has been added. The other
service procedures are the same as before.



B



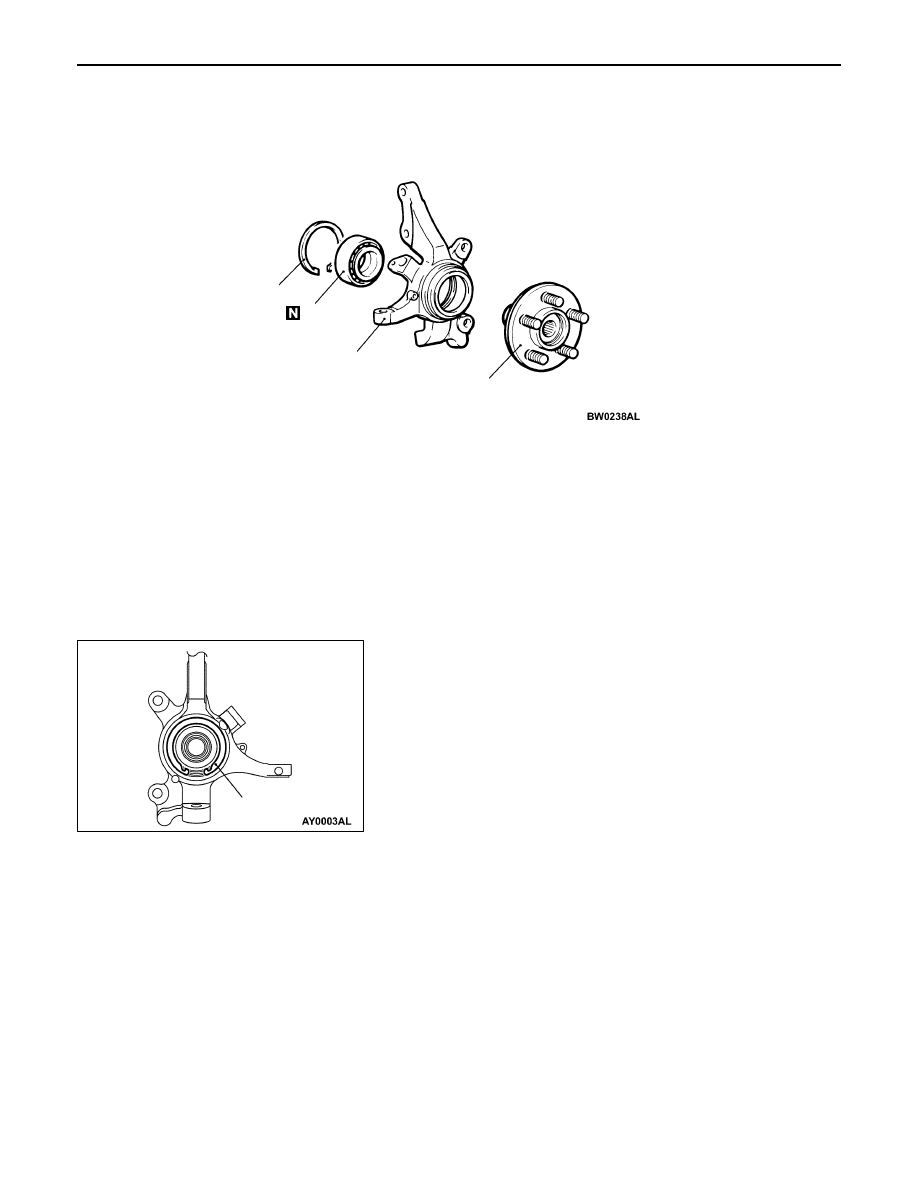

SNAP RING INSTALLATION

The notch in the snap ring should face down.

Caution
The sealing performance between the snap ring and the
bearing seal can be ensured by making the snap ring
face down. If the snap ring notches face toward the
different direction, the sealing performance may be
impaired.

Snap ring
