Mitsubishi Pajero Pinin. Manual - part 185





AUTOMATIC TRANSMISSION –

Transmission Control

23-50

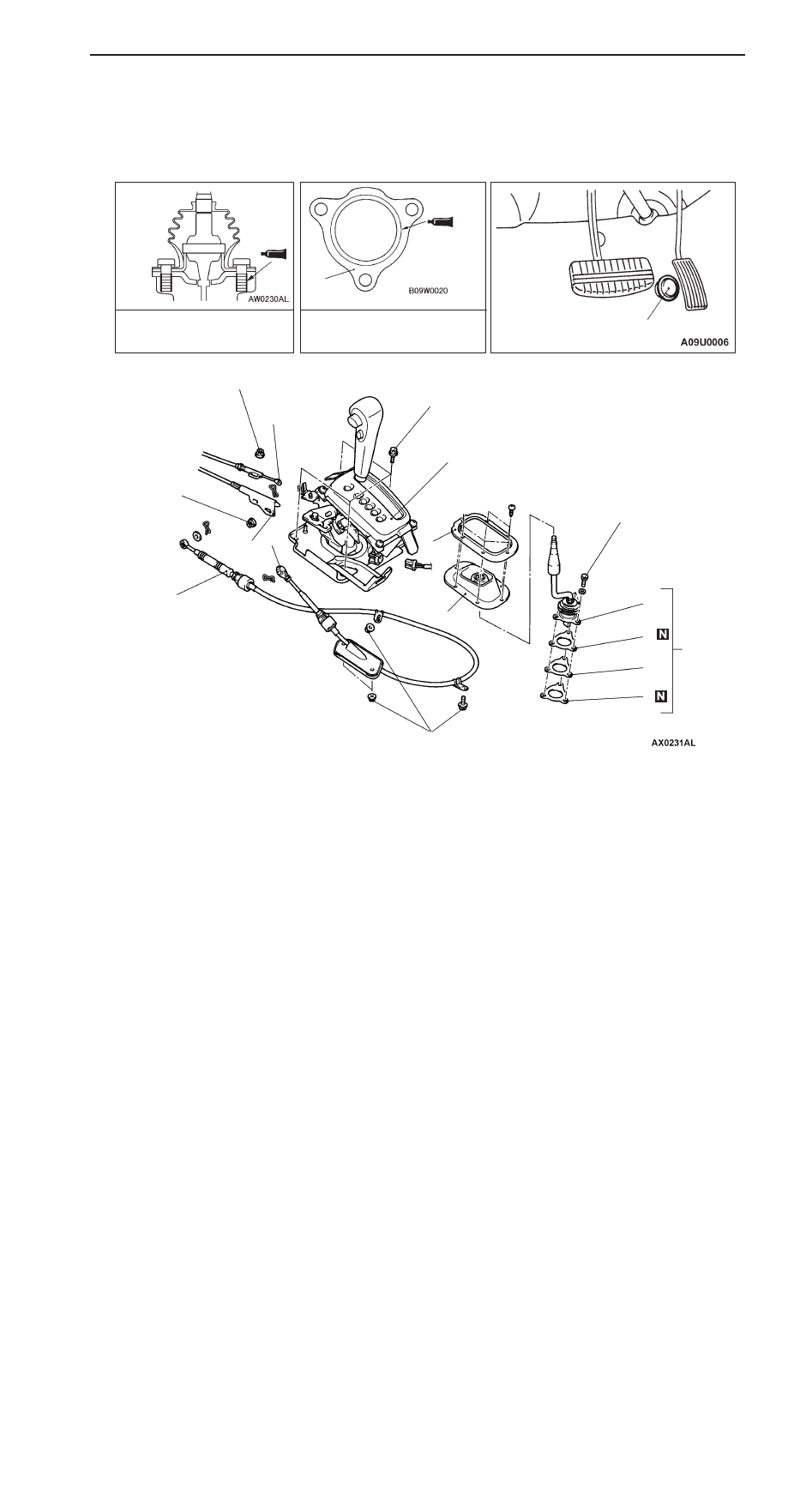

TRANSMISSION CONTROL

REMOVAL AND INSTALLATION

Caution
Do not strike the SRS-ECU when removing and installing the transmission control cable, key interlock
cable, shift lever assembly and the A/T-ECU.

Sealant:

3M Stud Locking
No.4170 or equivalent

Apply sealant
to both sides

Sealant:

3M ATD Part No.8663
or equivalent

11

12

9

8

10

2

1

7

6

5

3

4

12 Nm

12 Nm

12 Nm

15 – 22 Nm

9, 11

12 Nm

13

6

Selector lever assembly and
transmission control cable assembly
removal steps

D

Rear floor console assembly
(Refer to GROUP 52A.)

1. Key interlock cable connection
2. Shift lock cable connection
3. Transmission control cable connection

(selector lever side)

4. Selector lever assembly
5. Transmission control cable connection

(transmission side)

Transfer control lever assembly
removal steps

D

Front floor console assembly
(Refer to GROUP 52A.)

6. Retainer plate

"

A

A

7. Transfer lever inner boot
8. Transfer control lever assembly
9. Gasket

10. Stopper plate

11. Gasket

12. Transfer control lever

Wide open throttle switch removal

13. Wide open throttle switch

AUTOMATIC TRANSMISSION –

Transmission Control

23-51

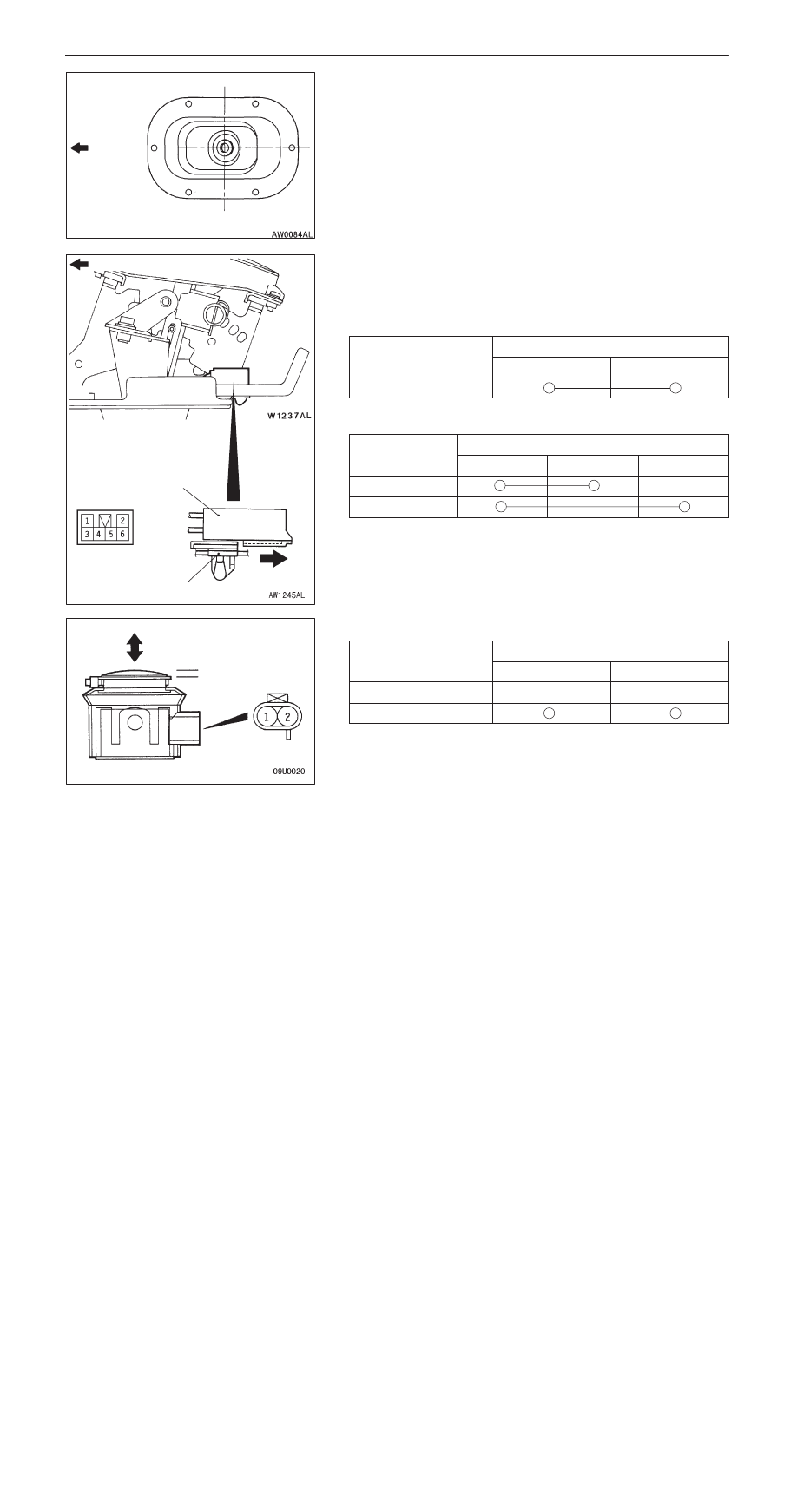

INSTALLATION SERVICE POINT

"

A

A

TRANSFER LEVER INNER BOOT INSTALLATION

Install the transfer lever inner boot as shown in the illustration.

INSPECTION

Slide the connector in the direction of arrow shown in the
illustration to remove it from the bracket.

POSITION INDICATOR LAMP CHECK

Check requirement

Terminal No.

q

1

2

Always

OVERDRIVE SWITCH CHECK

Switch position

Terminal No.

3

4

5

ON

OFF

WIDE OPEN THROTTLE SWITCH CHECK

Switch position

Terminal No.

1

2

OFF

ON

Front of
vehicle

Front of vehicle

Connector

Bracket

OFF
ON

AUTOMATIC TRANSMISSION –

Transmission Control

23-52

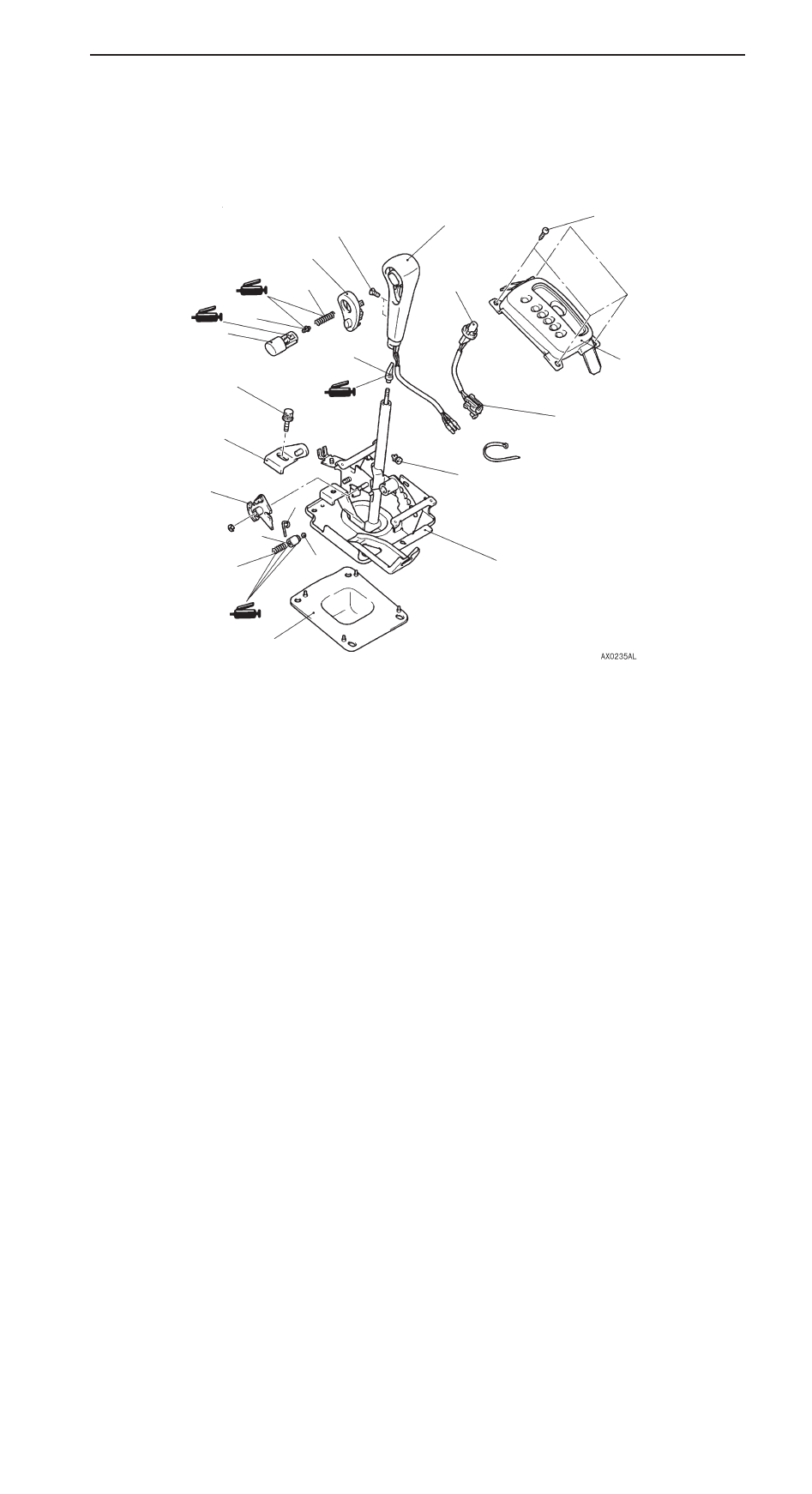

SELECTOR LEVER ASSEMBLY
DISASSEMBLY AND REASSEMBLY

15 Nm

4

3

2

5

6

7

8

1

9

10

12

17

14

15

16

11

13

15 Nm

18

12 Nm

Disassembly steps

A

A

"

1. Position indicator socket assembly
2. Bulb
3. Shift knob
4. Push button
5. Stopper
6. Spring
7. Overdrive switch
8. Indicator panel assembly

"

A

A

9. Sleeve

10. Adjuster lever

11. Lock cam

12. Pin
13. Ball spring
14. Ball support
15. Ball
16. Packing
17. Selector lever assembly
18. Stopper

AUTOMATIC TRANSMISSION –

Transmission Control

23-53

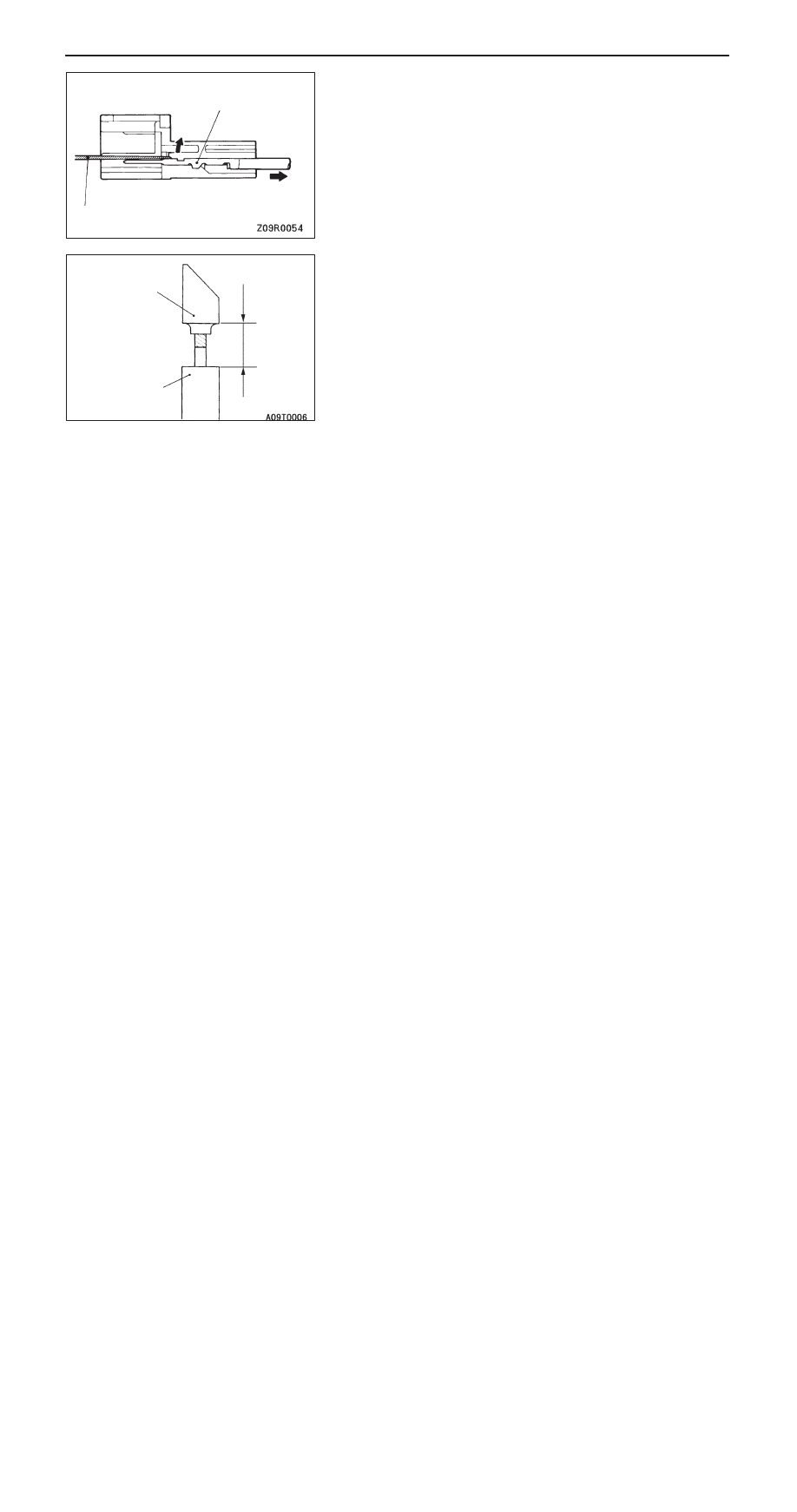

DISASSEMBLY SERVICE POINT

A

A

"

POSITION INDICATOR SOCKET ASSEMBLY
REMOVAL

Use a flat-tipped screwdriver, etc. to remove the terminal of
shift knob side from the position indicator socket assembly
connector.

REASSEMBLY SERVICE POINT

"

A

A

SLEEVE INSTALLATION

Shift the selector lever to the N position, and then turn the
sleeve so that the clearance between the sleeve and lever
assembly end is within the dimension shown in the illustration.

Terminal

Screwdriver

Sleeve

Selector
lever
assembly

16.0 – 16.7 mm
