Mitsubishi Pajero Pinin. Manual - part 144





ENGINE ELECTRICAL –

Charging System

16-6

This test determines whether the alternator output
current is normal.
(1) Before the test, always be sure to check the

following.

D

Alternator installation

D

Battery

NOTE
The battery should be slightly discharged.
The load needed by a fully-charged battery
is insufficient for an accurate test.

D

Alternator drive belt tension

D

Fusible link

D

Abnormal noise from the alternator while
the engine is running.

(2) Turn the ignition switch to the LOCK (OFF)

position.

(3) Disconnect the negative battery cable.
(4) Disconnect the alternator output wire from the

alternator “B” terminal. Connect a DC test
ammeter with a range of 0 – 100 A in series
between the “B” terminal and the disconnected
output wire. (Connect the (+) lead of the
ammeter to the “B” terminal. Connect the (–)
lead of the ammeter to the disconnected output
wire.)

Caution
Never use clips but tighten bolts and nuts
to connect the line. Otherwise loose
connections (e.g. using clips) will lead to
a serious accident because of high current.

NOTE
An inductive-type ammeter which enables
measurements to be taken without disconnect-
ing the alternator output wire should be
recommended.

(5) Connect a voltmeter with a range of 0 – 20 V

between the alternator “B” terminal and the
earth. (Connect the (+) lead of the voltmeter
to the “B” terminal, and then connect the (–)
lead of the voltmeter to the earth.)

(6) Connect the negative battery cable.
(7) Connect a tachometer or the MUT-

II

.

(8) Leave the hood open.
(9) Check that the reading on the voltmeter is equal

to the battery voltage.

NOTE
If the voltage is 0 V, the cause is probably an
open circuit in the wire or fusible link between
the alternator “B” terminal and the battery (+)
terminal.

(10)Turn the light switch on to turn on headlamps

and then start the engine.

(11) Immediately after setting the headlamps to high

beam and turning the heater blower switch to
the high revolution position, increase the engine
speed to 2,500 r/min and read the maximum
current output value displayed on the ammeter.

Limit: 70% of normal current output

NOTE

D

For the nominal current output, refer to the
Alternator Specifications.

D

Because the current from the battery will
soon drop after the engine is started, the
above step should be carried out as quickly
as possible in order to obtain the maximum
current output value.

D

The current output value will depend on
the electrical load and the temperature of
the alternator body.

D

If the electrical load is small while testing,
the specified level of current may not be
output even though the alternator is normal.
In such cases, increase the electrical load
by leaving the headlamps turned on for
some time to discharge the battery or by
using the lighting system in another vehicle,
and then test again.

D

The specified level of current also may not
be output if the temperature of the alternator
body or the ambient temperature is too high.
In such cases, cool the alternator and then
test again.

(12)The reading on the ammeter should be above

the limit value. If the reading is below the limit
value and the alternator output wire is normal,
remove the alternator from the engine and check
the alternator.

(13)Run the engine at idle after the test.
(14)Turn the ignition switch to the LOCK (OFF)

position.

(15)Remove the tachometer or the MUT-

II

.

(16)Disconnect the negative battery cable.
(17)Disconnect the ammeter and voltmeter.
(18)Connect the alternator output wire to the

alternator “B” terminal.

(19)Connect the negative battery cable.

ENGINE ELECTRICAL –

Charging System

16-7

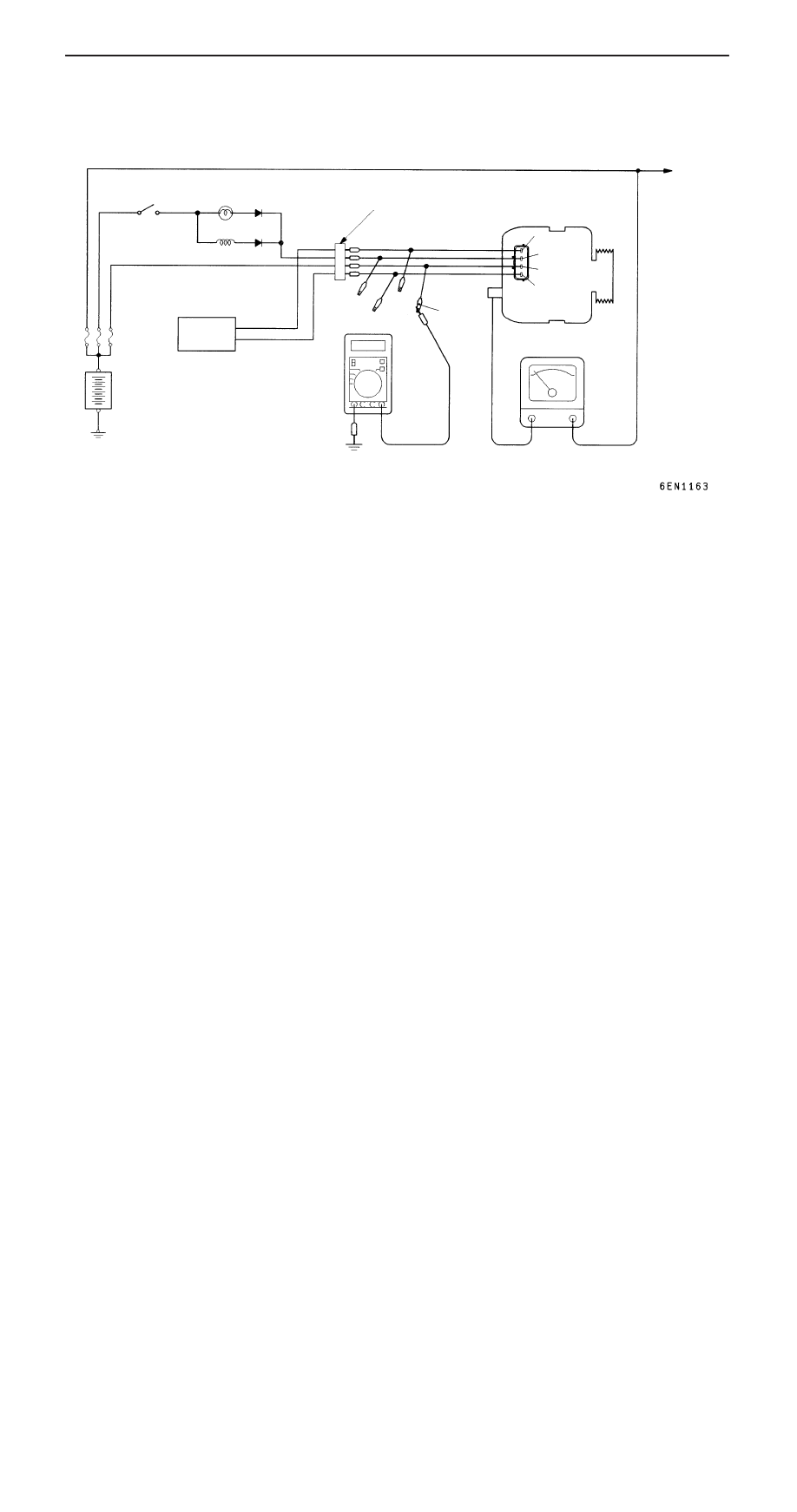

REGULATED VOLTAGE TEST

Ignition
switch

Charging warning
lamp

Load

Alternator

Alternator relay

Yellow

Engine-
ECU

Battery

Voltmeter

Ammeter

+

+

FR

L

S

G

MB991519

ENGINE ELECTRICAL –

Charging System

16-8

This test determines whether the voltage regulator
is correctly controlling the alternator output voltage.
(1) Always be sure to check the following before

the test.

D

Alternator installation

D

Check that the battery installed in the vehicle
is fully charged.

D

Alternator drive belt tension

D

Fusible link

D

Abnormal noise from the alternator while
the engine is running

(2) Turn the ignition switch to the LOCK (OFF)

position.

(3) Disconnect the negative battery cable.
(4) Use the special tool (Alternator test harness:

MB991519) to connect a digital voltmeter
between the alternator S terminal and earth.
(Connect the (

+

) lead of the voltmeter to the

“S” terminal, and then connect the (

) lead of

the voltmeter to a secure earth or to the battery
(

) terminal.)

(5) Disconnect the alternator output wire from the

alternator “B” terminal.

(6) Connect a DC test ammeter with a range of

0 – 100 A in series between the “B” terminal
and the disconnected output wire. (Connect the
(+) lead of the ammeter to the “B” terminal.
Connect the (–) lead of the ammeter to the
disconnected output wire.)

(7) Reconnect the negative battery cable.
(8) Connect a tachometer or the MUT-

II

.

(9) Turn the ignition switch to the ON position and

check that the reading on the voltmeter is equal
to the battery voltage.

NOTE
If the voltage is 0 V, the cause is probably an
open circuit in the wire or fusible link between
the alternator “S” terminal and the battery (+)
terminal.

(10)Turn all lamps and accessories off.
(11) Start the engine.
(12)Increase the engine speed to 2,500 r/min.
(13)Read the value displayed on the voltmeter when

the alternator output current alternator becomes
10 A or less.

(14)If the voltage reading conforms to the value

in the voltage regulation, then the voltage
regulator is operating normally.
If the voltage is not within the standard value,
there is a malfunction of the voltage regulator
or of the alternator.

(15)After the test, lower the engine speed to the

idle speed.

(16)Turn the ignition switch to the LOCK (OFF)

position.

(17)Remove the tachometer or the MUT-

II

.

(18)Disconnect the negative battery cable.
(19)Disconnect the ammeter and voltmeter.
(20)Connect the alternator output wire to the

alternator “B” terminal.

(21)Remove the special tool, and return the

connector to the original condition.

(22)Connect the negative battery cable.

Voltage Regulation Table

Standard value:

Inspection terminal

Voltage regulator ambient temperature

_

C

Voltage V

Terminal “S”

– 20

14.2 – 15.4

20

13.9 – 14.9

60

13.4 – 14.6

80

13.1 – 14.5

ENGINE ELECTRICAL –

Charging System

16-9

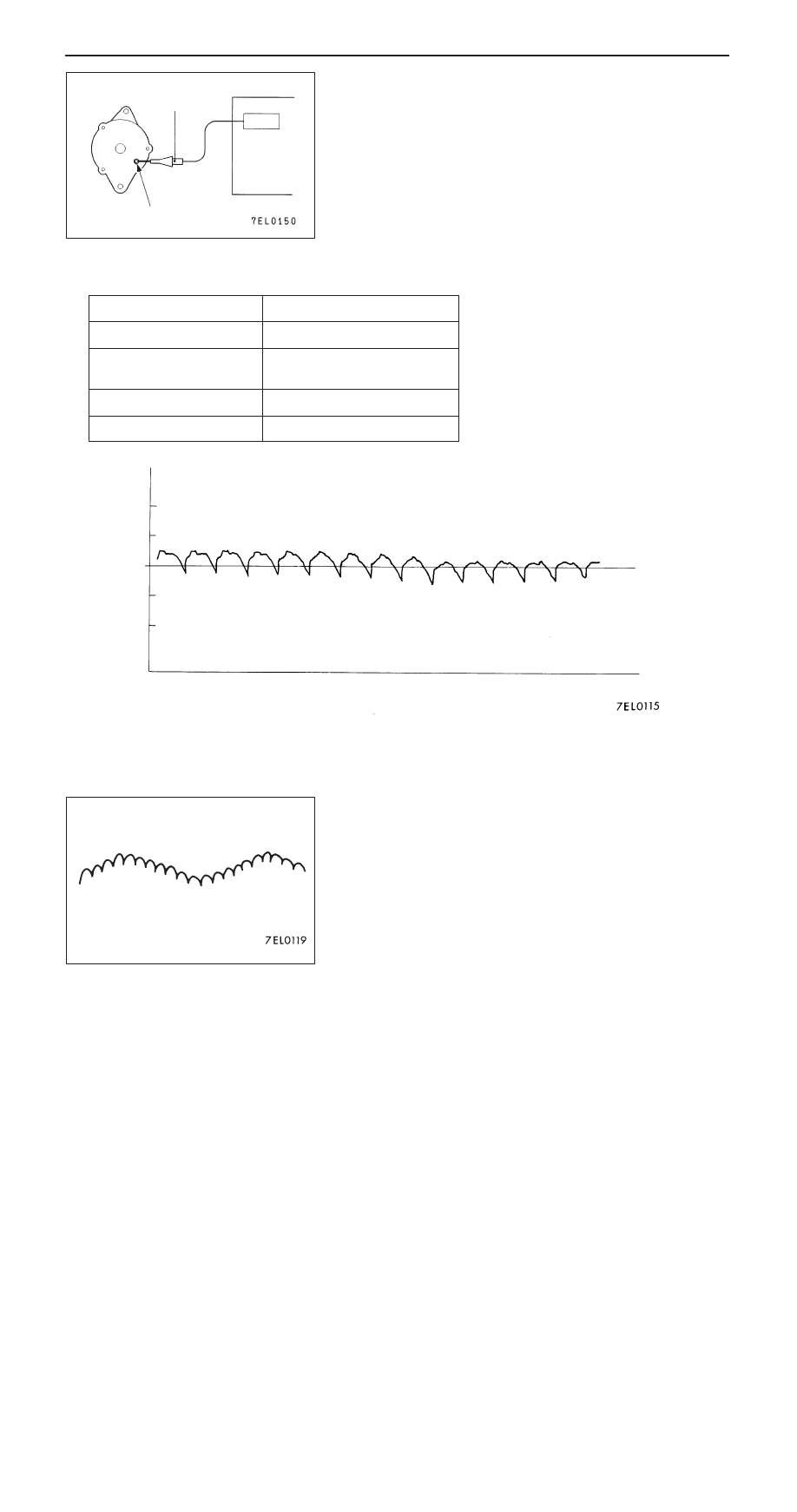

WAVEFORM CHECK USING AN ANALYZER

MEASUREMENT METHOD

Connect the analyzer special patterns pick-up to the alternator
B terminal.

STANDARD WAVEFORM

Observation Conditions

FUNCTION

SPECIAL PATTERNS

PATTERN HEIGHT

VARIABLE

VARIABLE knob

Adjust while viewing the wave-
form.

PATTERN SELECTOR

RASTER

Engine speed

Curb idle speed

Voltage at
alternator
B terminal

0.4

0.2

0

– 0.2

– 0.4

Time

NOTE
The voltage waveform of the alternator “B” terminal can
undulate as shown at left. This waveform is produced when
the regulator operates according to fluctuations in the alternator
load (current), and is normal for the alternator.
In addition, when the voltage waveform reaches an excessively
high value (approx. 2 V or higher at idle), it often indicates
an open circuit due to a brown fuse between alternator “B”
terminal and battery, but not a defective alternator.

Alternator

Special
patterns
pickup

Analyzer

B terminal
