MPI <4G9> –

Injector

13C-110

REMOVAL SERVICE POINT

A

A

"

DELIVERY PIPE/INJECTOR REMOVAL

Remove the delivery pipe (with the injectors attached to it).

Caution
Care must be taken, when removing the delivery pipe,
not to drop the injector.

INSTALLATION SERVICE POINT

"

A

A

INJECTOR/FUEL PRESSURE REGULATOR/
HIGH-PRESSURE FUEL HOSE INSTALLATION

1.

Apply a drop of new engine oil to the O-ring.

Caution
Be sure not to let engine oil in the delivery pipe.

2.

While turning the injector, high-pressure fuel hose and
fuel pressure regulator to the right and left, install the
delivery pipe, while being careful not to damage the O-ring.
After installing, check that the hose turns smoothly.

3.

If it does not turn smoothly, the O-ring may be trapped,
remove the injector, high-pressure fuel hose or fuel
pressure regulator and then re-insert it into the delivery
pipe and check once again.

4.

Tighten the high-pressure fuel hose and fuel pressure
regulator to the specified torque.

Tightening torque:

9.0

±

 2.0 N·m (Fuel pressure regulator)

5.0

±

 1.0 N·m (High-pressure fuel hose)

MPI <4G9> –

Throttle Body

13C-111

THROTTLE BODY

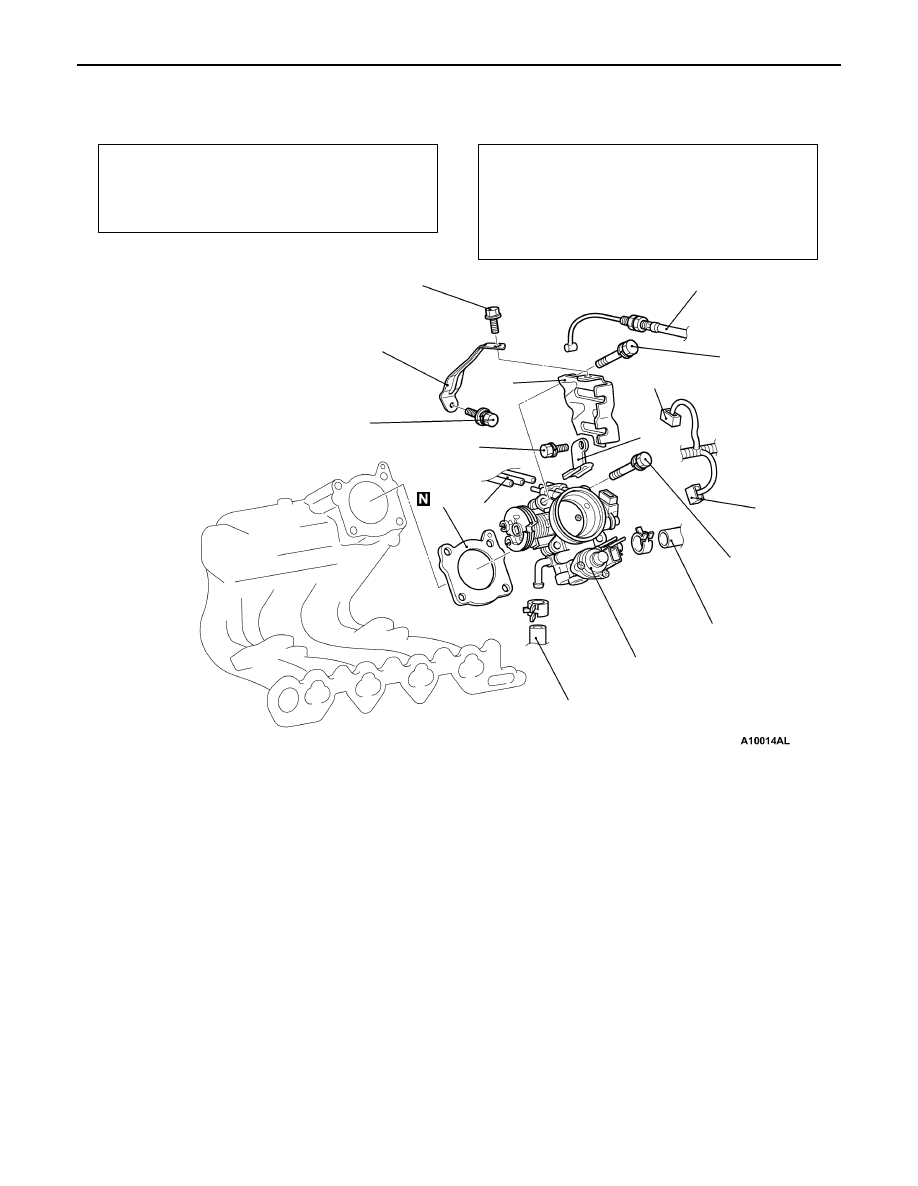

REMOVAL AND INSTALLATION

Pre-removal Operation

D

Engine Coolant Draining
(Refer to GROUP 14 – On-vehicle Service.)

D

Air Cleaner and Air Intake Pipe Removal
(Refer to GROUP 15.)

Post-installation Operation

D

Air Cleaner and Air Intake Pipe Installation
(Refer to GROUP 15.)

D

Engine Coolant Supplying
(Refer to GROUP 14 – On-vehicle Service.)

D

Accelerator Cable Adjustment
(Refer to GROUP 17 – On-vehicle Service.)

3

4

2

7

1

10

5

5

9

8

6

9.0

±

 1.0 N·m

24

±

 3 N·m

19

±

 3 N·m

19

±

 3 N·m

11

±

 1 N·m

Removal steps

1. Accelerator cable connection
2. Throttle position sensor connector
3. Idle speed control servo connector
4. Vacuum hose connection
5. Water hose connection

6. Stay
7. Throttle cable bracket
8. Harness Clamp
9. Throttle body

10. Throttle body gasket

MPI <4G9> –

Throttle Body

13C-112

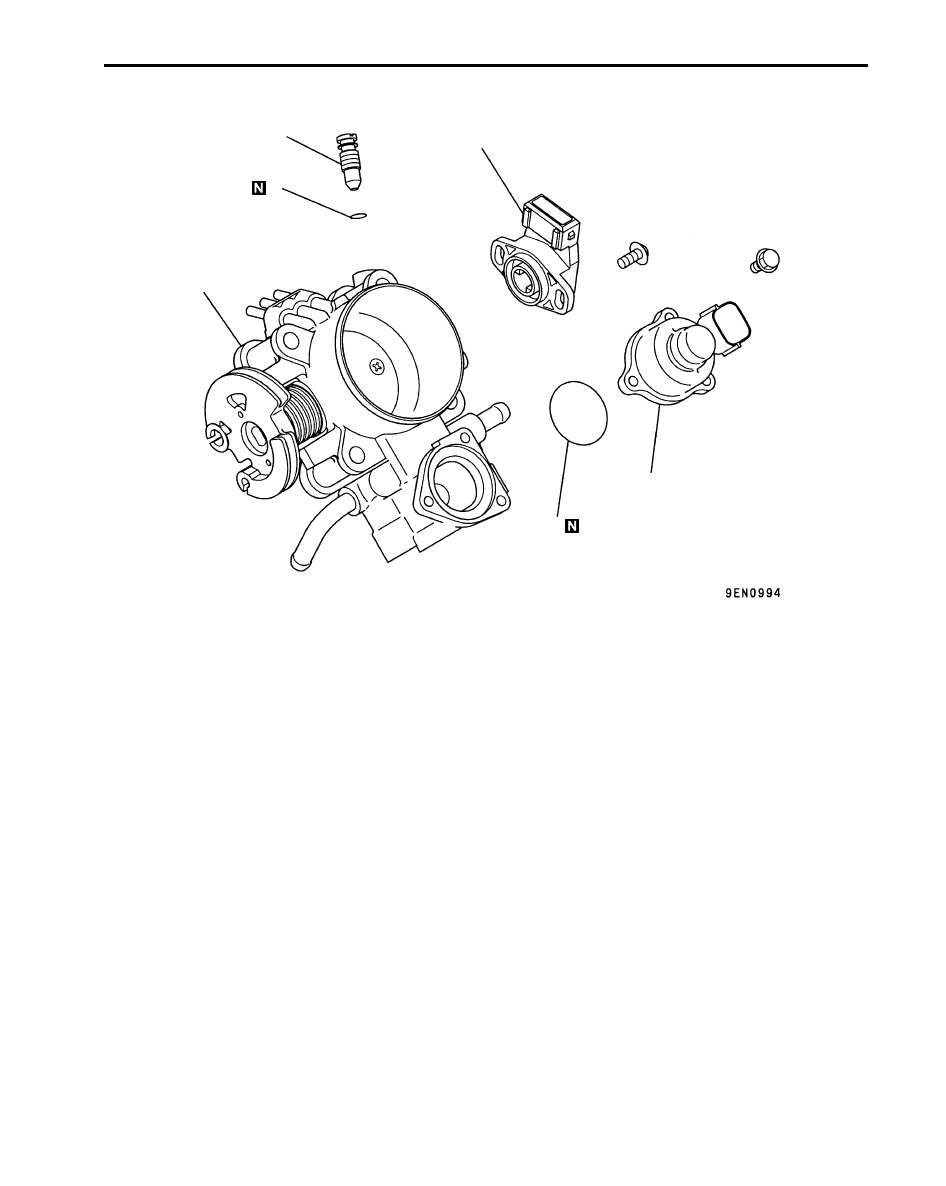

DISASSEMBLY AND REASSEMBLY

1

4

3

2

5

6

Disassembly steps

"

A

A

1. Throttle position sensor
2. Idle speed control body assembly
3. O-ring
4. Throttle body
5. Speed adjusting screw
6. O-ring

NOTE
1.

The speed adjusting screw is correctly adjusted at the
factory and should not be removed.

2.

If the speed adjusting screw has been removed, carry
out fixed SAS adjustment.

3.

If the speed adjusting screw should happen to have
been removed, carry out speed adjusting screw
adjustment.

MPI <4G9> –

Throttle Body

MPI <4G9> –

Throttle Body

13C-113

CLEANING THROTTLE BODY PARTS

1.

Clean all throttle body parts.
Do not use solvent to clean the following parts:

D

Throttle position sensor

D

Accelerator pedal position sensor

D

Idle speed control body assembly

If these parts are immersed in solvent, their insulation
will deteriorate.
Wipe them with cloth only.

2.

Check if the vacuum port or passage is clogged. Use
compressed air to clean the vacuum passage.

REASSEMBLY SERVICE POINT

"

A

A

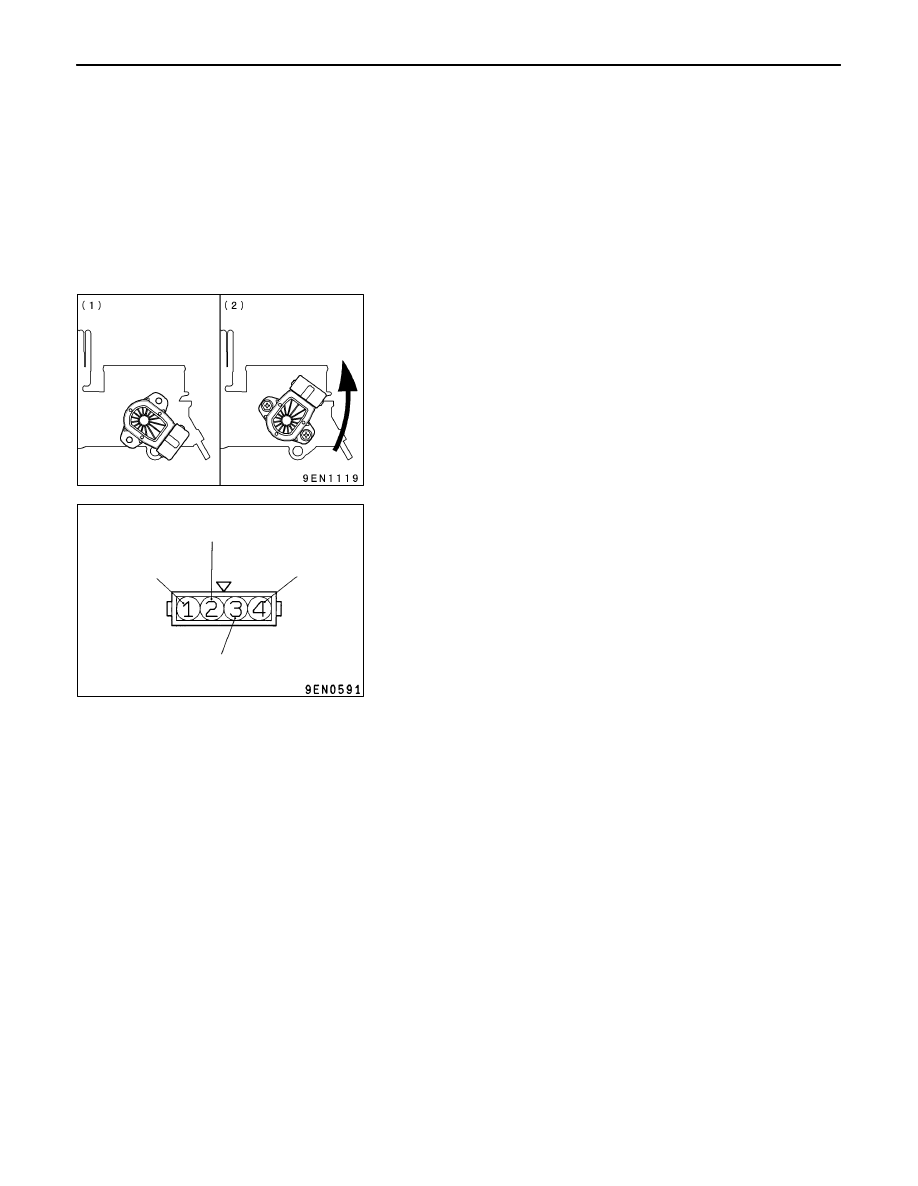

THROTTLE POSITION SENSOR (TPS)
INSTALLATION

1.

Install the TPS to the throttle body as shown by (1) in
the illustration.

2.

Turn the TPS so that it is at the position shown by (2)
in the illustration, and then tighten the screw.

3.

Connect a multimeter between terminal (4) (TPS power
supply) and terminal (3) (TPS output) of the TPS connector,
and check that the resistance increases gradually as the
throttle valve is opened slowly to the fully-open position.

4.

If there is an abnormality, replace the TPS.

TPS output

TPS power supply

Earth

No connection
