FUEL SUPPLY

Click on the applicable bookmark to selected the required model year

13B-1

FUEL SUPPLY

CONTENTS

FUEL TANK

2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel Pump Module

4

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

FUEL SUPPLY –

Fuel Tank

13B-2

FUEL TANK

REMOVAL AND INSTALLATION

Pre-removal Operation

D

Fuel Draining

D

Reduce the Inner Pressure of Fuel Line and Hose
(Refer to GROUP 13 – On-vehicle Service.)

D

Center Exhaust Pipe Removal
(Refer to GROUP 15.)

D

Rear Propeller Shaft Removal
(Refer to GROUP 25.)

Post-installation Operation

D

Fuel Supplying.

D

Checking for Fuel Leaks

D

Rear Propeller Shaft Installation
(Refer to GROUP 25.)

D

Center Exhaust Pipe Installation
(Refer to GROUP 15.)

1

2

4

5

6

7

8

10

12

13

14

15

16

17

18

19

20

11

9

23

22

3

21

5

10

12

19

2 – 3 Nm

2 – 3 Nm

2 – 3 Nm

2 – 3 Nm

13 – 16 Nm

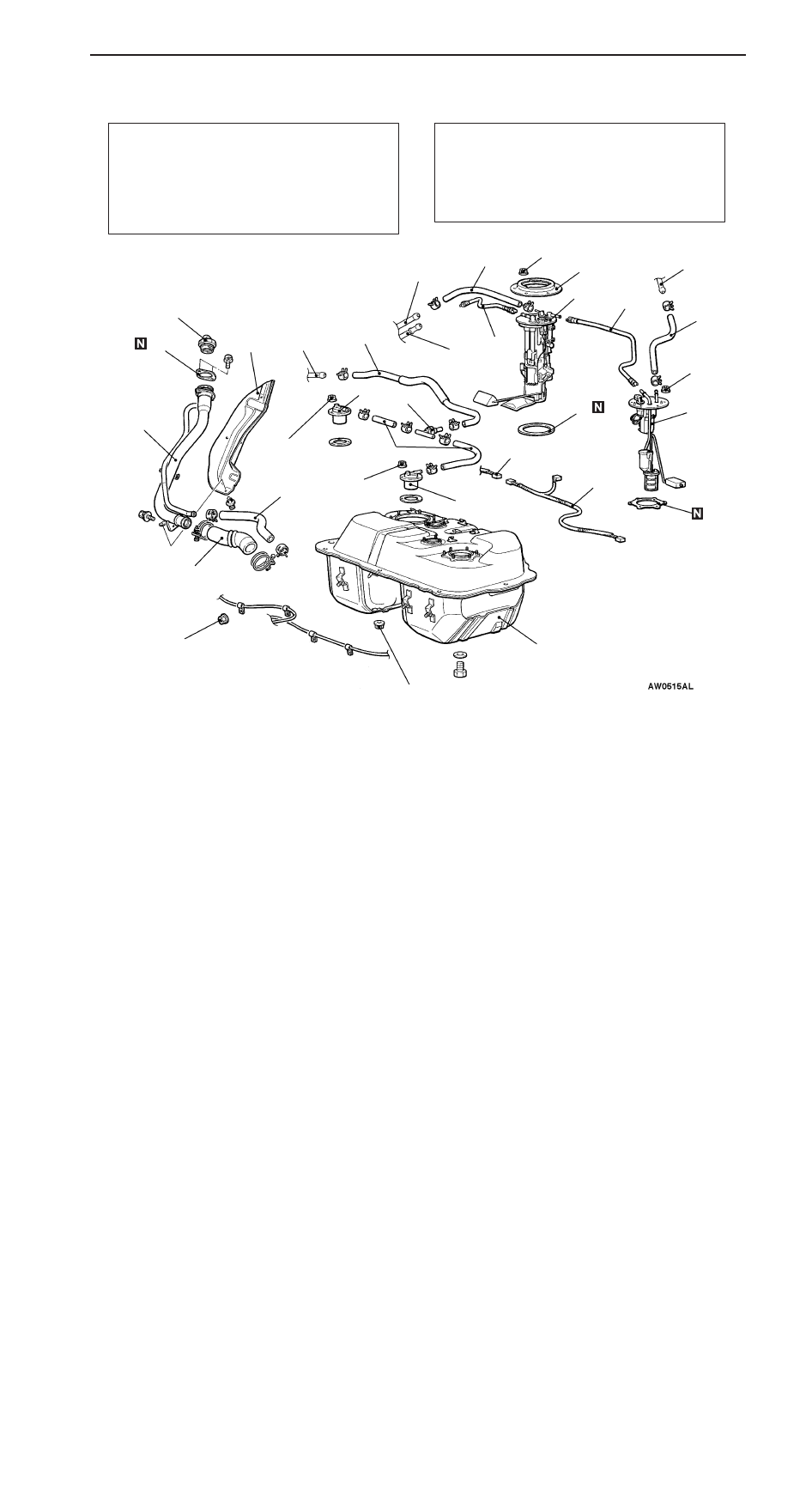

Removal steps

1. Parking brake cable clamp

mounting nut

2. Filler hose
3. Leveling hose

"

A

A

4. High pressure tube connection
5. Vapour hose connection
6. Return hose connection
7. Harness connector connection
8. Fuel tank assembly

"

A

A

9. High pressure tube

10. Return hose

"

A

A

11. Suction tube

12. Vapour hose
13. Fuel check valve
14. Fuel tank harness
15. Fuel pump module
16. Retainer plate
17. Packing
18. Pipe and gauge assembly
19. Valve assembly
20. Fuel filler cap
21. Filler neck protector
22. Filler neck assembly
23. Packing

FUEL SUPPLY –

Fuel Tank

13B-3

INSTALLATION SERVICE POINT

A

SUCTION TUBE/HIGH PRESSURE TUBE
CONNECTION

Caution
After the connection, pull the high pressure tube and
suction tube gently in the direction of removal to check
that they are firmly connected.

INSPECTION

FUEL PUMP MODULE/PIPE AND GAUGE ASSEMBLY
REPLACEMENT

1.

Remove the rear seat cushion.

2.

Remove the service hole cover.

3.

Disconnect the harness connector, fuel hose and tube.

4.

Unscrew the mounting nuts, and then remove the pipe
and gauge assembly and fuel pump module.

5.

Install the pipe and gauge assembly and fuel pump module.
Tighten the mounting nuts to the specified torque.

Specified torque: 2 – 3 Nm

6.

Connect the fuel hose, fuel tube and harness connector.

Caution
After the connection, pull the high pressure tube and
suction tube gently in the direction of removal to check
that they are firmly connected.

7.

Install the service hole cover.

8.

Install the rear seat cushion.

FUEL GAUGE UNIT CHECK

Refer to GROUP 54 – Combination Meter.

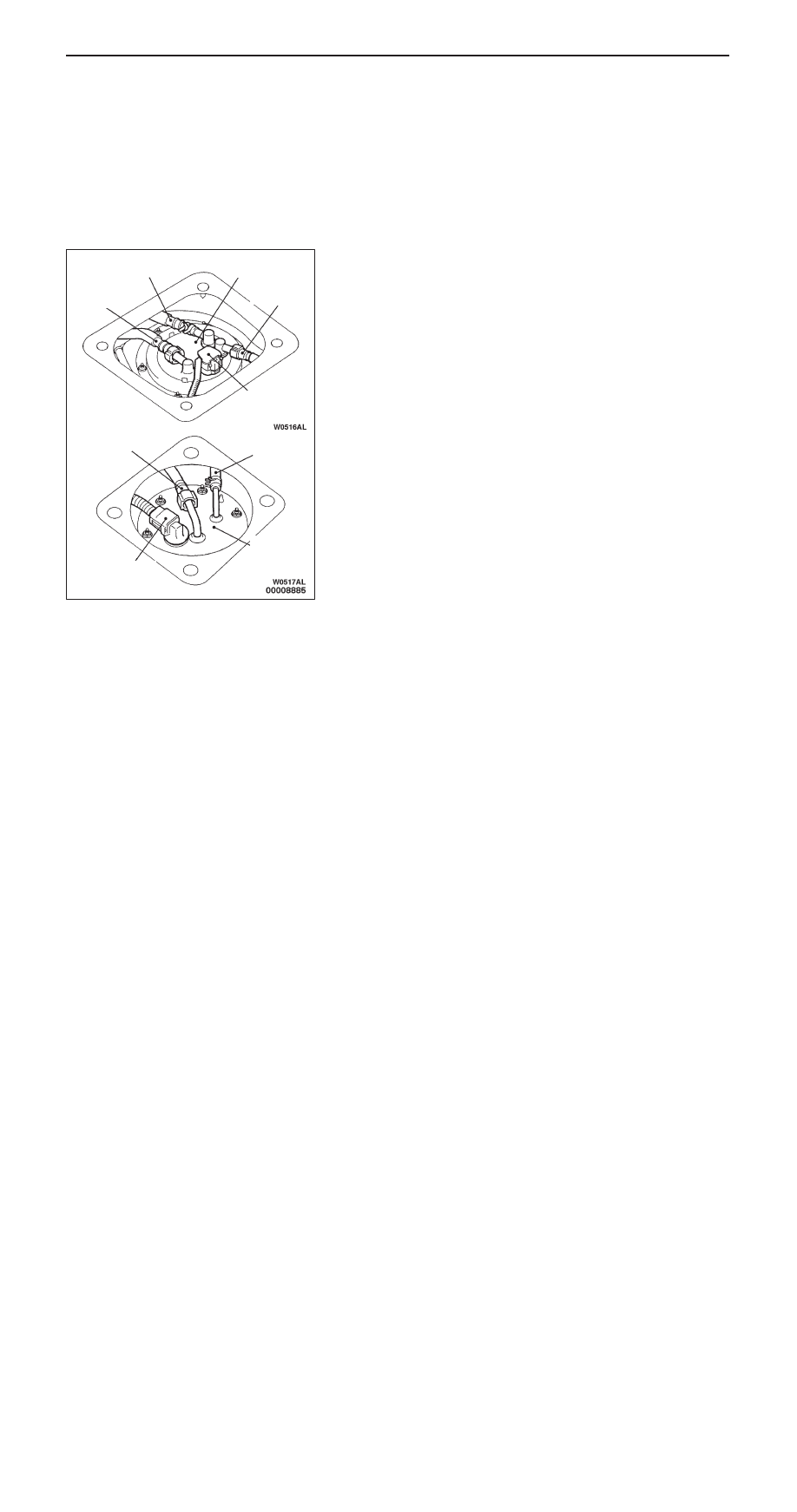

Fuel tube

Harness
connector

Pipe and
gauge
assembly

Fuel tube

Fuel hose

Fuel tube

Harness
connector

Fuel hose

Fuel pump
module
