DRIVE CYCLE

Performing the running test of the car using the following five drive cycle patterns makes it possible to
monitor all the diagnosis codes that are required for operation of the car in order to determine if the
applicable system is operating properly or not.
In other words, doing such a drive allows to regenerate any kind of trouble which involves illuminating the
Engine Warning Lamp (Check Engine Lamp) and to verify the repair procedure has eliminated the trouble
[the Engine Warning Lamp (Check Engine Lamp) is no longer illuminated].

Caution
Two technicians should always be in the vehicle when carrying out a test drive.

NOTE
Check that the diagnosis code is not output before traveling in the Drive cycle pattern. Erase the diagnosis
code if it has been output.

DRIVE CYCLE PATTERN LIST

PROCEDURE

MONITOR ITEM

DIAGNOSIS CODE (DTC)

Catalytic converter monitor

P0420*

, P0421*

, P0431*

Heated oxygen sensor <front> monitor

P0130

Other monitor

P0136, P0201, P0202, P0203, P0204,
P0205*

, P0300, P0301, P0302, P0303,

P0304, P0305*

, P0306*

, P0325*

NOTE
*1: 4G63
*2: 4G13, 4G92, 4G93, 6A13, 6G72
*3: 6A13, 6G72
*4: 4G13, 4G63, 4G92, 4G93, 6A13

2001 GALANT Workshop Manual Supplement 4G63, 6A13
2001 SPACE RUNNER/SPACE WAGON Workshop Manual Supplement 4G63
2001 CARISMA Workshop Manual Supplement 4G92
2001 SPACE STAR Workshop Manual Supplement 4G13
2001 COLT Workshop Manual Supplement 4G13, 4G93
2001 PAJERO SPORT Workshop Manual Supplement 6G72

GDI - Troubleshooting

PROCEDURE 1

CATALYTIC CONVERTER MONITOR

Diagnosis
code No.

P0420, P0421, P0431

One trip monitor [from start to ignition switch to “LOCK” (OFF) position] will be completed while
traveling with the following drive cycle pattern. It will take 16 minutes or more.

Drive cycle
pattern

Inspection
conditions

•

Atmospheric temperature : -10

°C or more

•

Condition of A/T :Selector lever D range, overdrive switch “ON” position

Test
procedure

1. Engine

start

2.  Accelerate until the vehicle speed is 90 km/h or more.
3.  Travel for 6 minutes or more while keeping the vehicle speed is 90 km/h or more.
4.  Decelerate until the vehicle speed is 80 km/h or less.
5.  While traveling at 55 – 80 km/h for 10 minutes or more, fully close the throttle at least once in 2

minutes and decelerate for 10 seconds or more.

•

Do not repeat deceleration too often.

•

Vehicle speed may go below 55 km/h after the deceleration.

•

Stopping and braking during this operation are permitted.
(If stopped or drive at 55 km/h or less for more than 5 minutes the monitoring may be
stopped. In this case please restart monitoring from the beginning.)

6. After completing the above deceleration, bring the vehicle speed back to 55 – 80 km/h and keep

it in the range until starting the deceleration again.

•

Repeat the above deceleration at least 5 times.

7. Return the vehicle to the shop, the turn the ignition switch ”LOCK” (OFF) position.

GDI - Troubleshooting

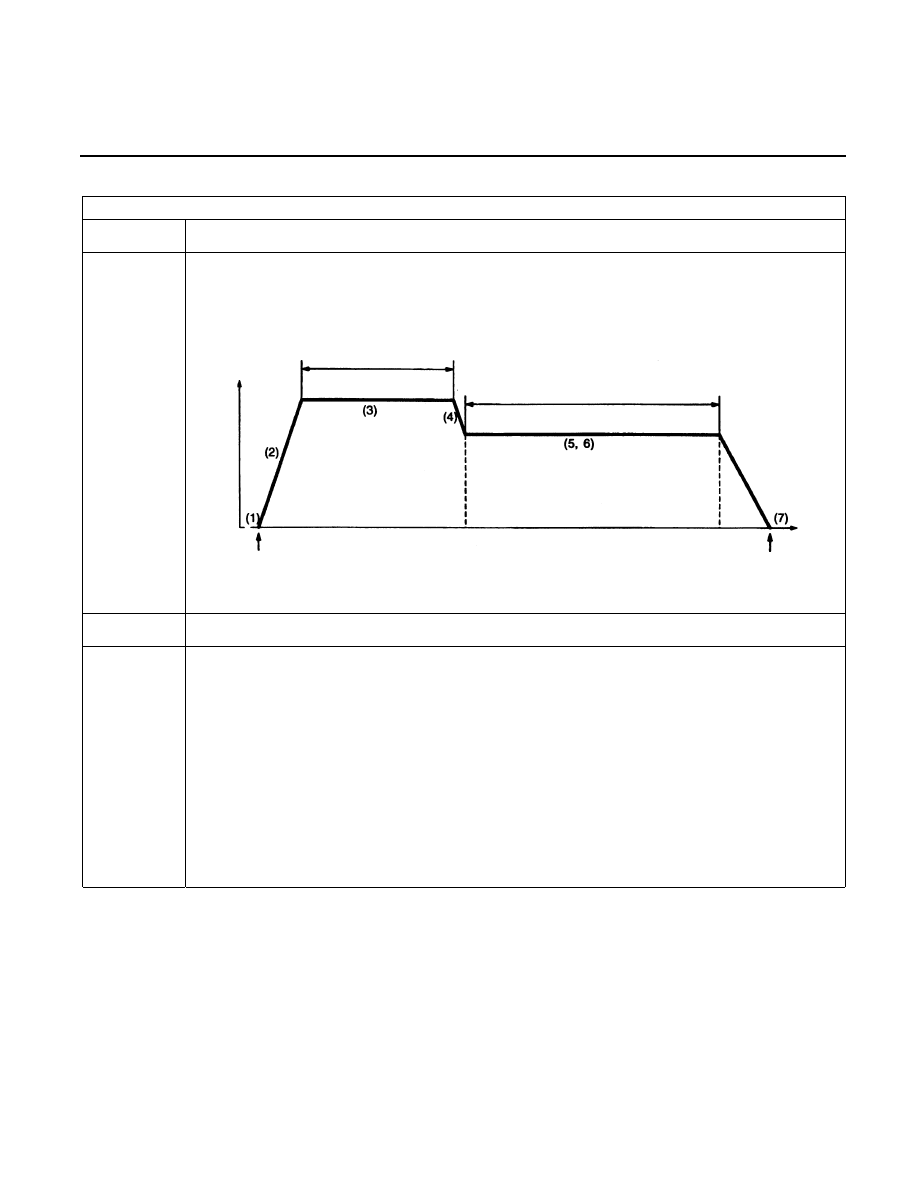

Y6001BY

Vehicle
speed

6 minutes or more

90 km/h or more

Engine start

Stopping and braking
permitted

Ignition switch
”LOCK” (OFF)
position

Time

10 minutes or more

55 – 80 km/h

PROCEDURE 2

OXYGEN SENSOR <FRONT> MONITOR

Diagnosis
code No.

P0130

One trip monitor [from start to ignition switch to “LOCK” (OFF) position] will be completed while
traveling with the following drive cycle pattern. It will take 16 minutes or more.

Drive cycle
pattern

Inspection
conditions

•

Engine coolant temperature : After engine warm up.

•

Atmospheric temperature : -10

°C or more

•

Condition of A/T :Selector lever D range, overdrive switch “ON” position

Test
procedure

1. Engine

start

2. Accelerate until the vehicle speed is 55 – 80 km/h.
3. While keeping the accelerator pedal opening degree constant, keep the vehicle speed at 55 –80

km/h and travel for 16 minutes or more.

•

Stopping and braking during this operation are permitted.

4. Return the vehicle to the shop, then turn the ignition switch “LOCK” (OFF) position.

GDI - Troubleshooting

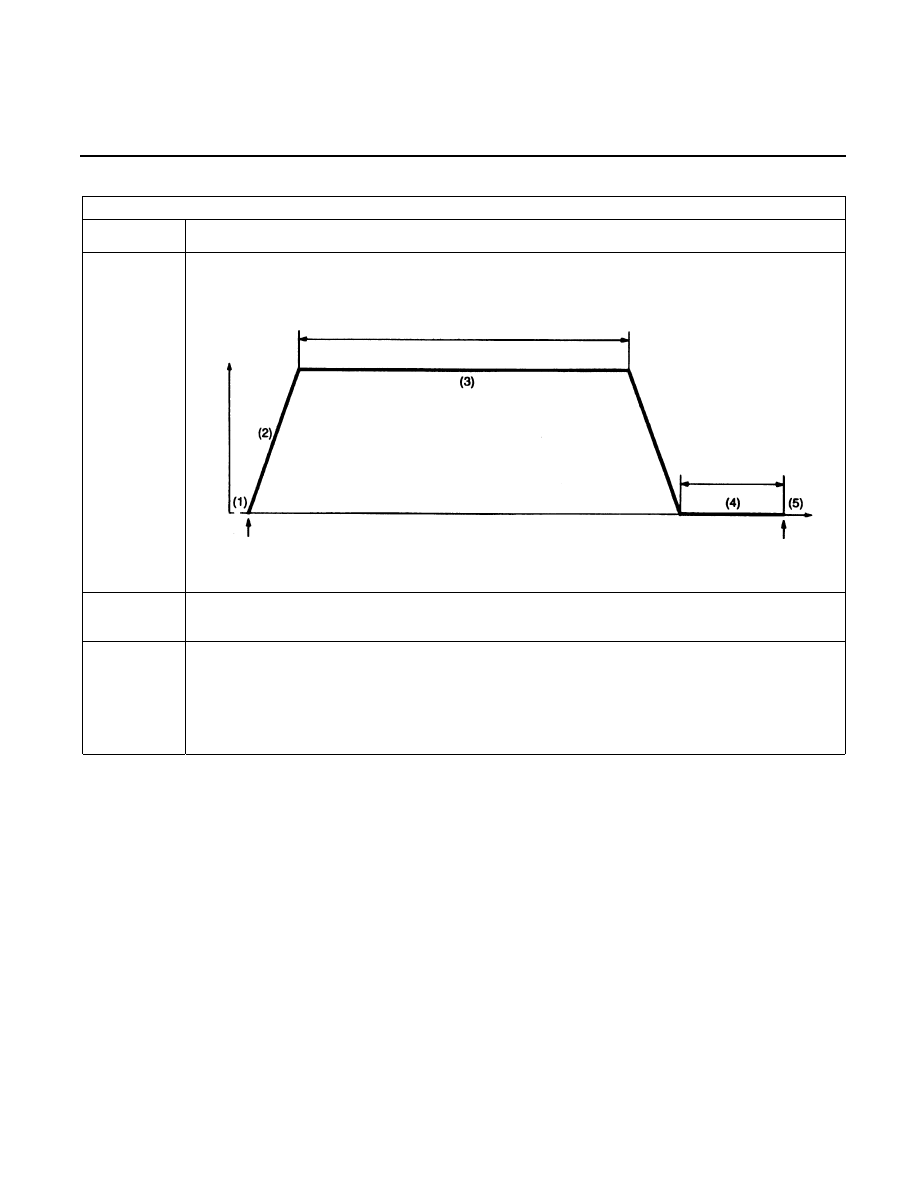

Y6002BY

Vehicle
speed

16 minutes or more

55 – 80 km/h

Engine start

Stopping and
braking permitted

Ignition switch ”LOCK”
(OFF) position

Time

PROCEDURE 3

OTHER MONITOR

Diagnosis
code No.

P0136, P0201, P0202, P0203, P0204, P0205, P0206, P0300, P0301, P0302, P0303, P0304,
P0305, P0306, P0325, P0500, P0551
One trip monitor [from start to ignition switch to “LOCK” (OFF) position] will be completed while
traveling with the following drive cycle pattern. It will take 21 minutes or more.

Drive cycle
pattern

Inspection
conditions

•

Engine coolant temperature : After engine warm up.

•

Atmospheric temperature : -10

°C or more

•

Condition of A/T :Selector lever D range, overdrive switch “ON” position

Test
procedure

1. Engine

start

2. Accelerate until the vehicle speed is 55 km/h.
3. While keeping the accelerator pedal opening degree constant, keep the vehicle speed at 55

km/h or more and travel for 16 minutes or more.

4. Return the vehicle to the shop
5. After stopping the vehicle, continue idling for 5 minutes, and then turn the ignition switch to

”LOCK” (OFF) position.

GDI - Troubleshooting

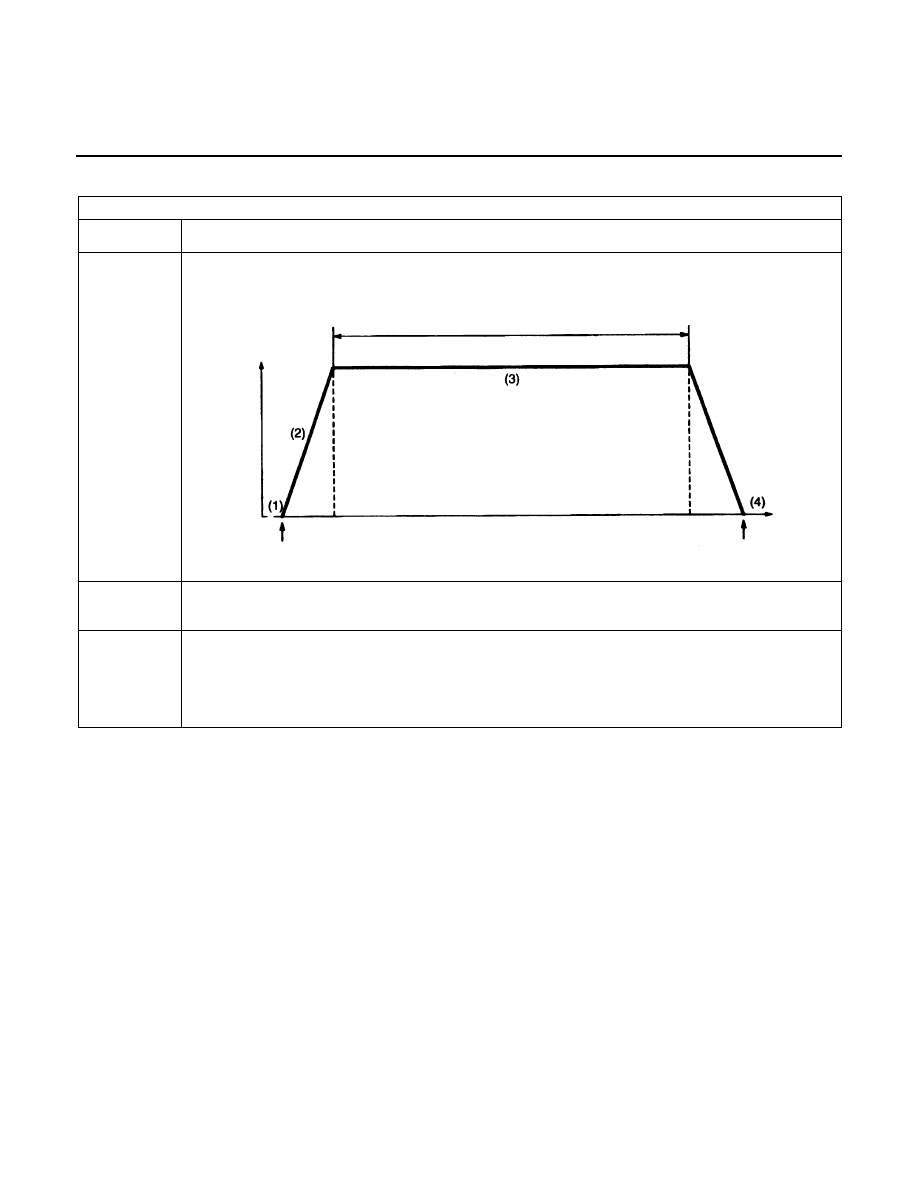

Y6003BY

Vehicle
speed

16 minutes or more

55 km/h or more

Engine start

5 minutes or more
Engine: Idling
Transmission: Neutral

Ignition switch ”LOCK”
(OFF) position

Time
