Mitsubishi Pajero Pinin. Manual - part 30





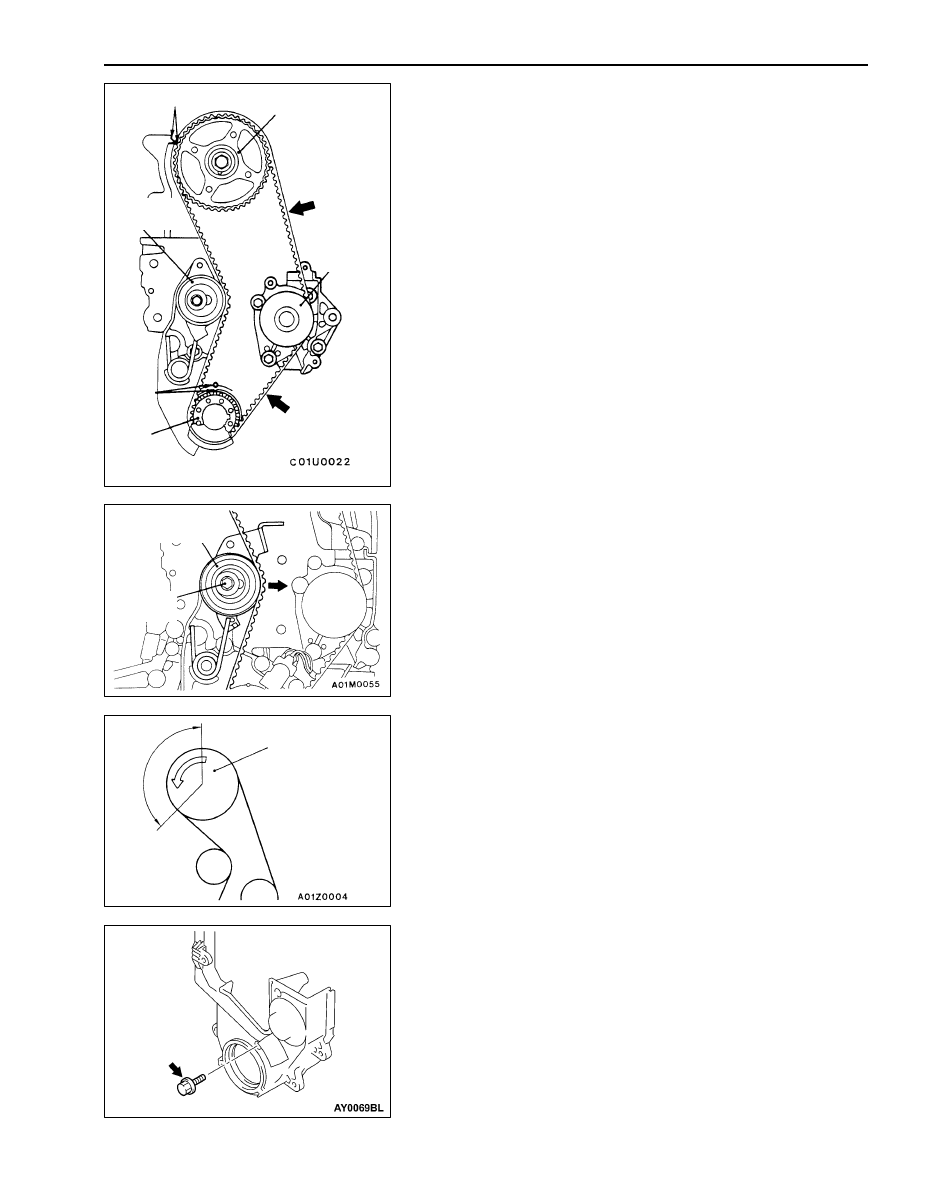

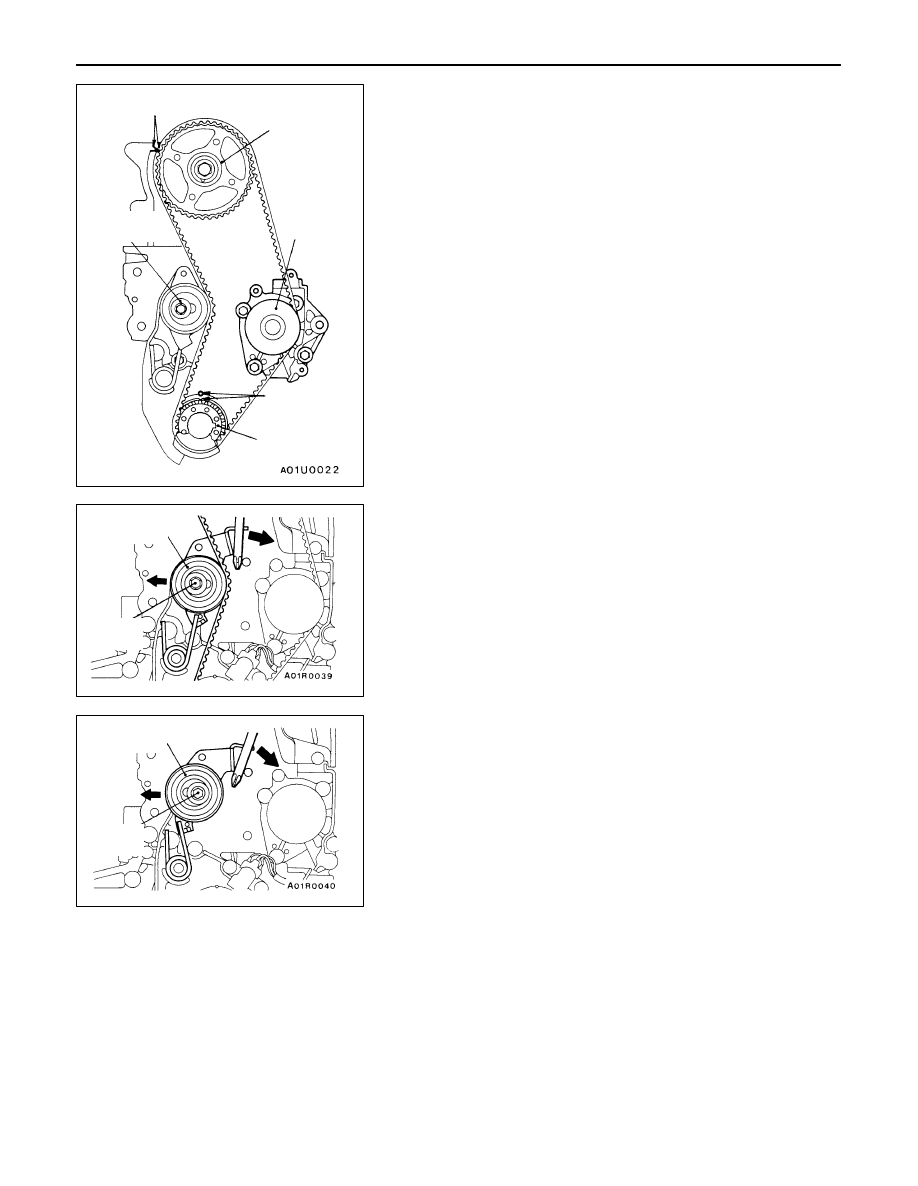

ENGINE <4G9-MPI> –

Timing Belt

11B-31

REMOVAL SERVICE POINT

A

A

"

TIMING BELT REMOVAL

1.

Turn the crankshaft clockwise (right turn) to align each
timing mark and to set the No. 1 cylinder at compression
top dead centre.

Caution
The crankshaft should always be turned only
clockwise.

2.

Loosen the adjusting bolt.

3.

Set a screwdriver to the timing belt tensioner and press
it fully back in the direction of the arrow.

4.

Provisionally tighten the adjusting bolt.

5.

Remove the timing belt.

Caution
If the timing belt is to be re-used, use chalk to mark
the flat side of the belt with an arrow indicating the
direction of rotation (right turn).

INSTALLATION SERVICE POINTS

"

A

A

TIMING BELT INSTALLATION

1.

Set a screwdriver to the timing belt tensioner and press
it fully back in the direction of the arrow.

2.

Provisionally tighten the adjusting bolt.

Timing mark

Camshaft
sprocket

Water pump
sprocket

Crankshaft
sprocket

Timing belt
tensioner

Timing mark

Timing belt
tensioner

Adjusting
bolt

Timing belt
tensioner

Adjusting
bolt

ENGINE <4G9-MPI> –

Timing Belt

11B-32

3.

Align each of the camshaft sprocket and the crankshaft
sprocket timing marks.

4.

Install the timing belt in the following order, while making
sure that the tension side of the belt is not slackened.
(1) Crankshaft sprocket
(2) Water pump sprocket
(3) Camshaft sprocket
(4) Tensioner pulley

Caution
After installing the timing belt, apply force to turn
the camshaft sprocket in the reverse direction, and
recheck to be sure that the belt is fully tensioned and
that each timing mark is in the proper position.

"

B

A

TIMING BELT TENSION ADJUSTMENT

1.

Loosen the adjusting bolt of the temporarily secured timing
belt tensioner by 1/4 – 1/2 turn, and use the force of
the tensioner spring to apply tension to the belt.

2.

Turn the crankshaft in the proper rotation direction (right
turn) for two rotations, and recheck to be sure that the
timing marks on each sprocket are aligned.

Caution
As the purpose of this procedure is to apply the proper
amount of tension to the tension side of the timing
belt by using the cam driving torque, turn the
crankshaft only by the amount given above. Be sure
not to turn the crankshaft in the opposite direction
(left turn).

3.

After checking to be sure that no belt teeth in the section
marked with A are lifted up and that the teeth in each
sprocket are engaged, secure the tensioner pulley.

"

C

A

TIMING BELT FRONT LOWER COVER
INSTALLATION

1.

Mount the bolt shown in the illustration first.

2.

Mount the other bolts, and tighten them to the
specified torque.

Tightening torque: 10

±

 2 N·m

Timing
mark

Timing mark

Crankshaft
sprocket

Belt
tension
side

Camshaft
sprocket

Belt
tension
side

Timing belt
tensioner

Water
pump
sprocket

Adjusting
bolt

Timing belt
tensioner

Camshaft
sprocket

A

M6



 20 mm

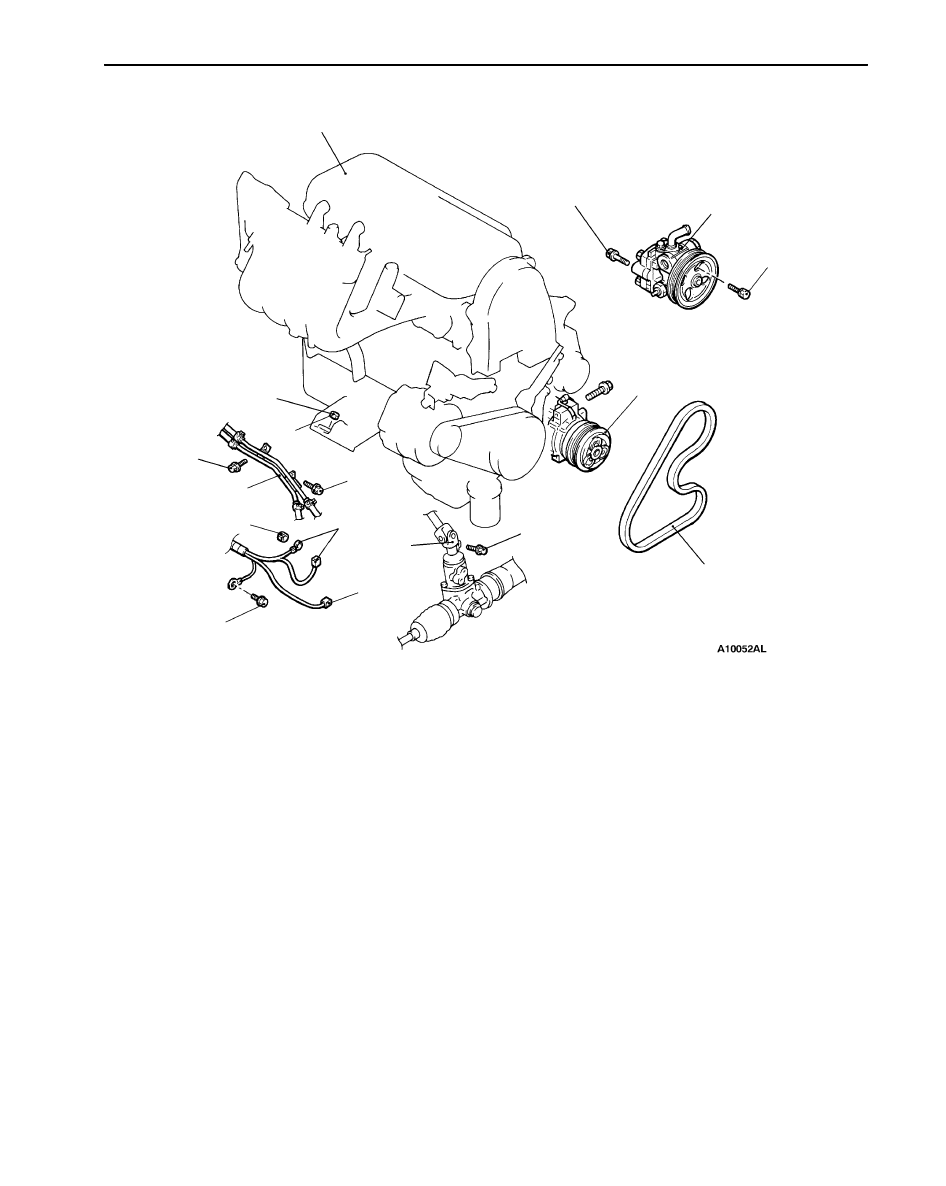

ENGINE <4G9-MPI> –

Engine Assembly

ENGINE <4G9-MPI> –

Engine Assembly

11B-33

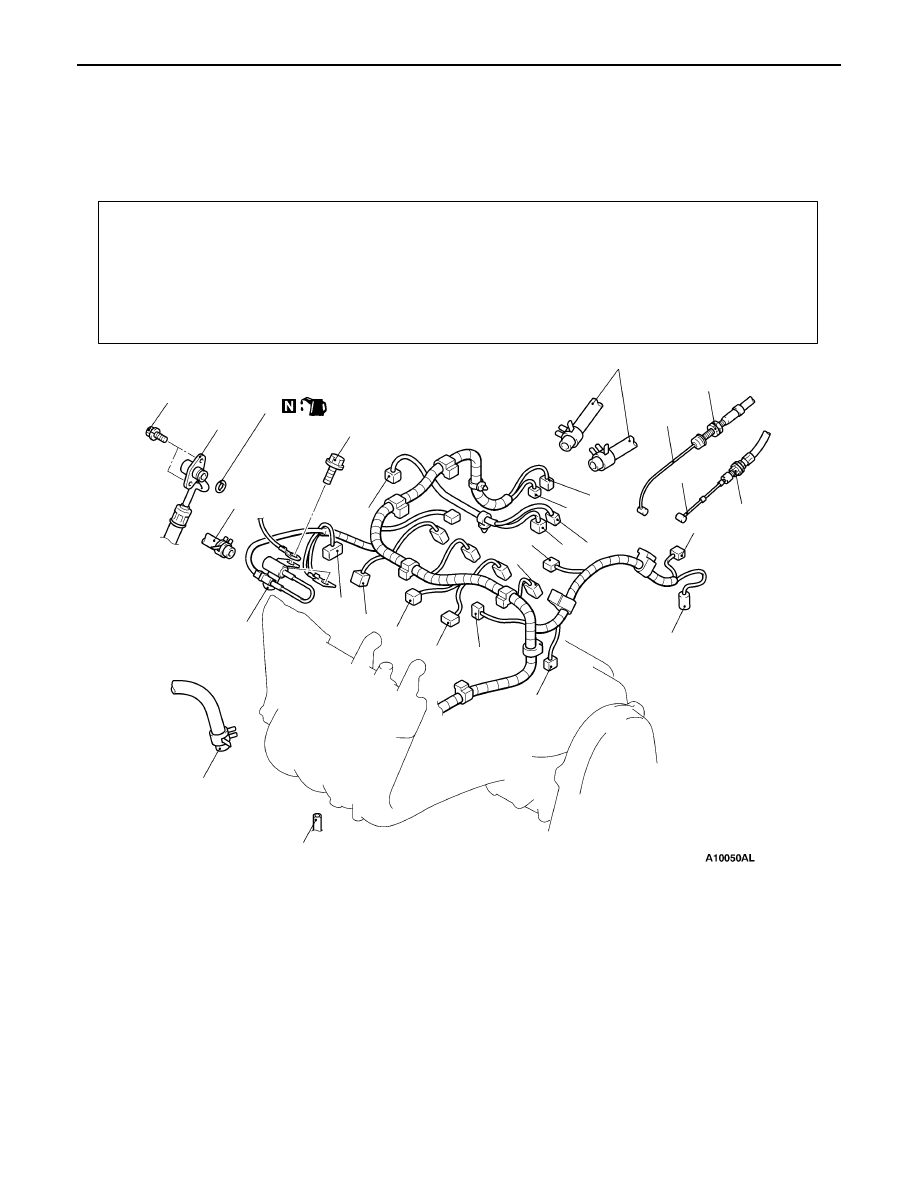

ENGINE ASSEMBLY

REMOVAL AND INSTALLATION

Caution
*: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on
the ground in the unladen condition.

Pre-removal and Post-installation Operation

D

Fuel Discharge Prevention (Refer to GROUP 13C –
On-vehicle Service.) <Pre-removal only>

D

Kickdown Cable Adjustment <A/T> (Refer to GROUP
23 – On-vehicle Service.) <Post-installation only>

D

Accelerator Cable Adjustment (Refer to GROUP 17 –
On-vehicle Service.) <Post-installation only>

D

Drive Belt Tension Check and Adjustment
<Post-installation only> (Refer to P.11B-5.)

D

Hood Removal and Installation

D

Radiator Assembly Removal and Installation
(Refer to GROUP 14.)

D

Under Cover Removal and Installation

D

Air Cleaner and Air Intake Pipe Removal and
Installation (Refer to GROUP 15.)

D

Front Exhaust Pipe Removal and Installation
(Refer to GROUP 15.)

7

3

2

1

10

6

5

8

9

4

11

12

13

14

15

16

17

18

19

20

21

22

23

24

(Engine oil)

5.0

±

 1.0 N·m

5.0

±

 1.0 N·m

12

±

 2 N·m

16

±

 2 N·m

Removal steps

1. Accelerator cable connection
2. Kickdown cable connection <A/T>
3. Power steering oil pressure switch

connector

4. A/C compressor magnetic clutch

connector

5. Ignition coil connector
6. Crank angle sensor connector
7. Oxygen sensor connector
8. Ignition failure sensor connector
9. Engine coolant temperature sensor

connector

10. Engine coolant temperature gauge

unit connector

11. Camshaft position sensor connector

12. Capacitor
13. Throttle position sensor connector
14. Idle speed control servo connector
15. Purge control solenoid valve

connector

16. EGR solenoid valve connector
17. Detonation sensor connector
18. Injector connector
19. Vacuum hoses connection
20. Brake booster vacuum hose

connection

21. Heater hose connection
22. Fuel return hose connection

"

B

A

23. Fuel high-pressure hose connection

"

B

A

24. O-ring

ENGINE <4G9-MPI> –

Engine Assembly

11B-34

25

26

27

28

29

30

31

32

33

26

±

5

  N

·

m

*

29

±

 3 N·m

29

±

 3 N·m

18

±

 2 N·m

5.0

±

 1.0 N·m

5.0

±

 1.0 N·m

22

±

 4 N·m

12

±

 2 N·m

25. Oil pressure switch connector
26. Alternator connector and terminal
27. Power steering oil pump drive

belt <Vehicles without A/C>,
Power steering oil pump and A/C
compressor drive belt
<Vehicles with A/C>

A

A

"

28. Power steering oil pump

A

B

"

29. A/C compressor
30. Oil cooler pipe connection <A/T>

D

Transmission assembly

31. Steering gear box and shaft

connection

32. Engine mount installation nut

A

C

" "

A

A

33. Engine assembly

REMOVAL SERVICE POINTS

A

A

"

POWER STEERING OIL PUMP REMOVAL

Remove the power steering oil pump with the hose attached
from the engine.

NOTE
Place the removed power steering oil pump where it will not
be a hindrance when removing and installing the engine
assembly, and tie it with a cord.
