HEATER AND MANUAL AIR CONDITIONER



–

Refrigerant Line

55A-5

REFRIGERANT LINE

REMOVAL AND INSTALLATION

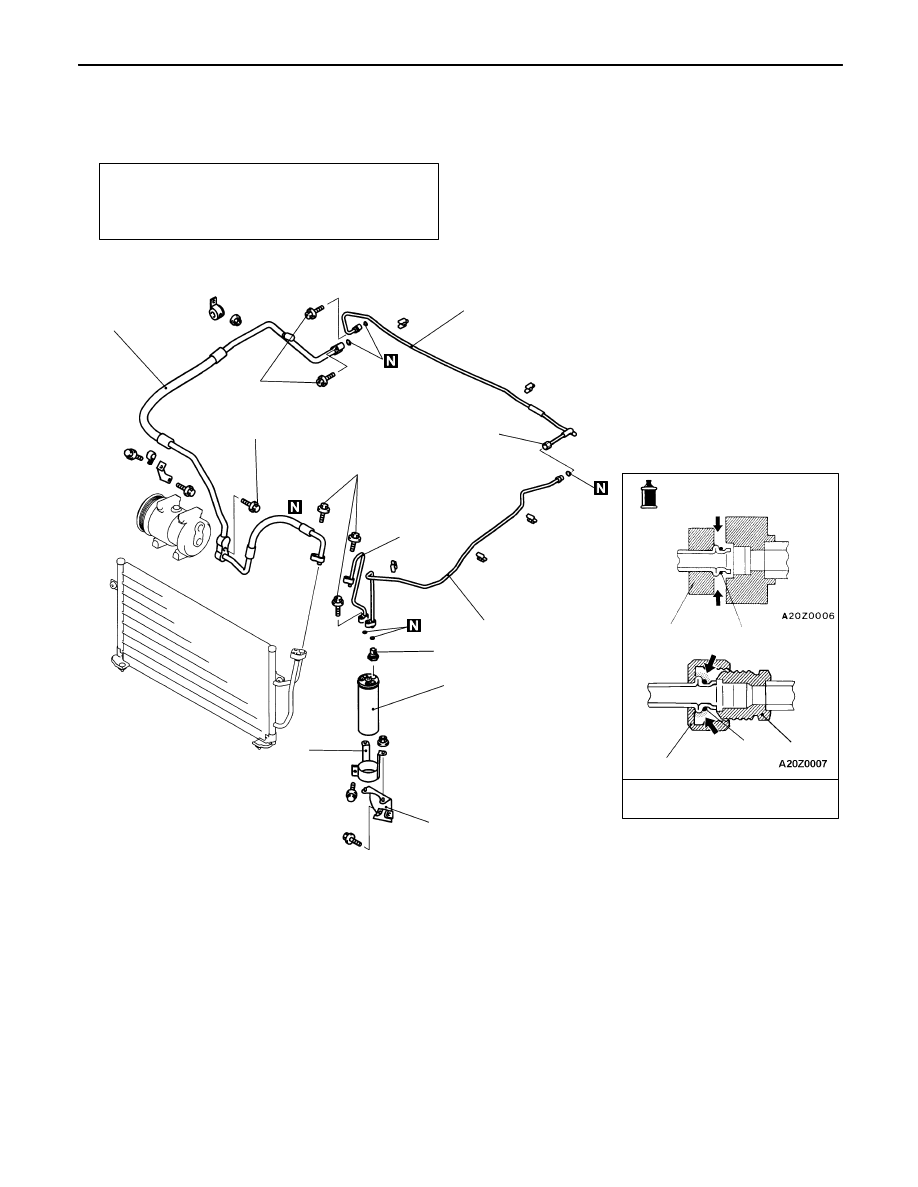

<L.H. drive vehicles>

Pre-removal and Post-installation Operations



Refrigerant draining and filling



Radiator grille removal and installation



Air cleaner removal and installation

12 Nm

1

2

5

Pipe connector

O-ring

A/C compressor oil: SUN
PAG 56

5, 6, 7, 8

7

6

O-ring

7

10 Nm

8

3

4

10 Nm

6

45 Nm

Y0063AJ

Removal steps

1. A/C pressure sensor
2. Receiver
3. Receiver bracket A
4. Receiver bracket B



Radiator condense tank
(Refer to GROUP 14.)



A



5. Liquid pipe A



Battery, air cleaner engine cover, relay
box (engine compartment)



A



6. Liquid pipe B



Intake manifold (Refer to GROUP 15.)



Engine mount (Refer to GROUP 32.)



A



7. Liquid pipe C



A



8. Flexible hose

HEATER AND MANUAL AIR CONDITIONER



–

Refrigerant Line

55A-6

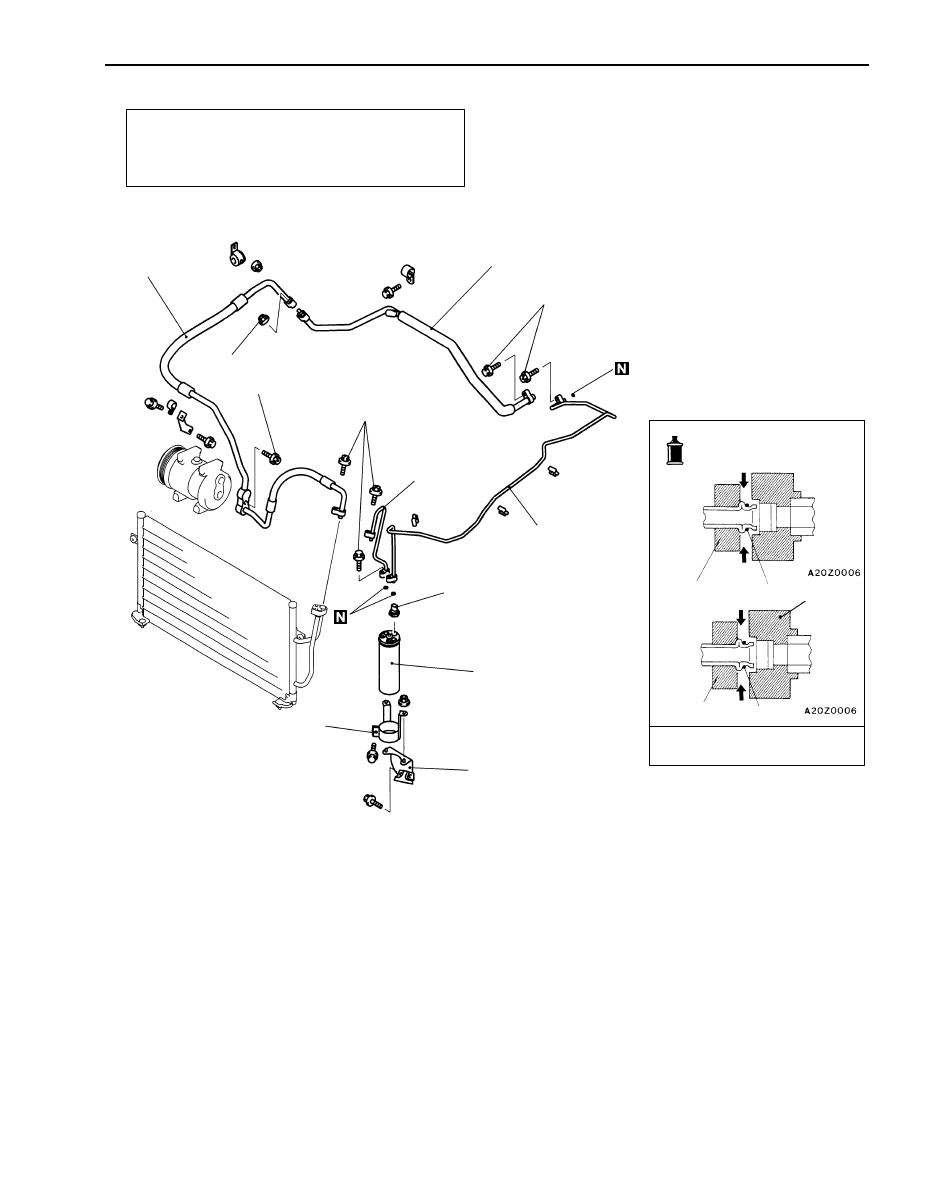

<R.H. drive vehicles>

Pre-removal and Post-installation Operations



Refrigerant draining and filling



Radiator grille removal and installation



Air cleaner removal and installation

1

2

3

Pipe connector

O-ring

A/C compressor oil: SUN
PAG 56

5, 6, 7, 8

5

4

10 Nm

7

8

6

45 Nm

10 Nm

10 Nm

O-ring

7

8

Y0064AJ

Removal steps

1. A/C pressure sensor
2. Receiver
3. Receiver bracket A
4. Receiver bracket B



Radiator condense tank
(Refer to GROUP 14.)



A



5. Liquid pipe A



Battery, air cleaner engine cover, relay
box (engine compartment)



A



6. Liquid pipe B



Intake manifold (Refer to GROUP 15.)



Engine mount (Refer to GROUP 32.)



A



7. Flexible hose A



A



8. Flexible hose B

HEATER AND MANUAL AIR CONDITIONER



–

Refrigerant Line

55A-7

REMOVAL SERVICE POINTS



A



HOSE AND PIPE REMOVAL

Plug the end of the disconnected hoses and the condenser
assembly cooling unit nipple to prevent entry of dust or other
foreign particles.

Caution
Because the compressor oil and receiver have strong
hygroscopic properties, use a non-permeable plug.
