WHEEL AND TYRE –

General

31-1

GROUP 31

WHEEL AND TYRE

GENERAL

OUTLINE OF CHANGES

The wheel and tyre have been changed as follows.

GENERAL SPECIFICATION

Items

1300

1800,1900

FAMILY,
COMFORT

SPORT

FAMILY,
COMFORT

SPORT

Wheel

Type

Steel type
Aluminium type*

1

Aluminium type

Steel type
Aluminium type*

1

Aluminium type

Size

14

×

 5.5J

14

×

 5.5JJ

14

×

 5.5J

15

×

 6.0J

Amount of wheel
offset mm

46

46

46

46

Pitch circle diameter
(P.C.D.) mm

114.3

114.3

114.3

114.3

Tyre

Size

175/65 R14 82T

185/65 R14 86H

185/65 R14 86H

195/55 R15 84V

Spare
wheel

Type

Steel type
Aluminium type*

2

Steel type
Aluminium type*

2

Steel type
Aluminium type*

2

Steel type
Aluminium type*

2

Size

15

×

 4.0T

14

×

 5.5J*

1

15

×

 4.0T

14

×

 5.5J*

1

15

×

 4.0T

14

×

 5.5J*

1

15

×

 4.0T

15

×

 6.0J*

1

Amount of wheel
offset mm

46

46

46

46

Pitch circle diameter
(P.C.D.) mm

114.3

114.3

114.3

114.3

Spare
tyre

Size

T125/70 D15
(High pressure)
175/65 R14 82T*

1

T125/70 D15
(High pressure)
185/65 R14 86H*

1

T125/70 D15
(High pressure)
185/65 R14 86H*

1

T125/70 D15
(High pressure)
195/55 R15 84V*

1

NOTE
*

1

: Optional items

*

2

: Optional items <R.H. drive vehicles>

NOTES

POWER PLANT MOUNT –

General/Engine Mounting

32-1

GROUP 32

POWER PLANT MOUNT

GENERAL

OUTLINE OF CHANGES

The following service procedures have been established to correspond to the addition of the F9Q1 diesel
engine.

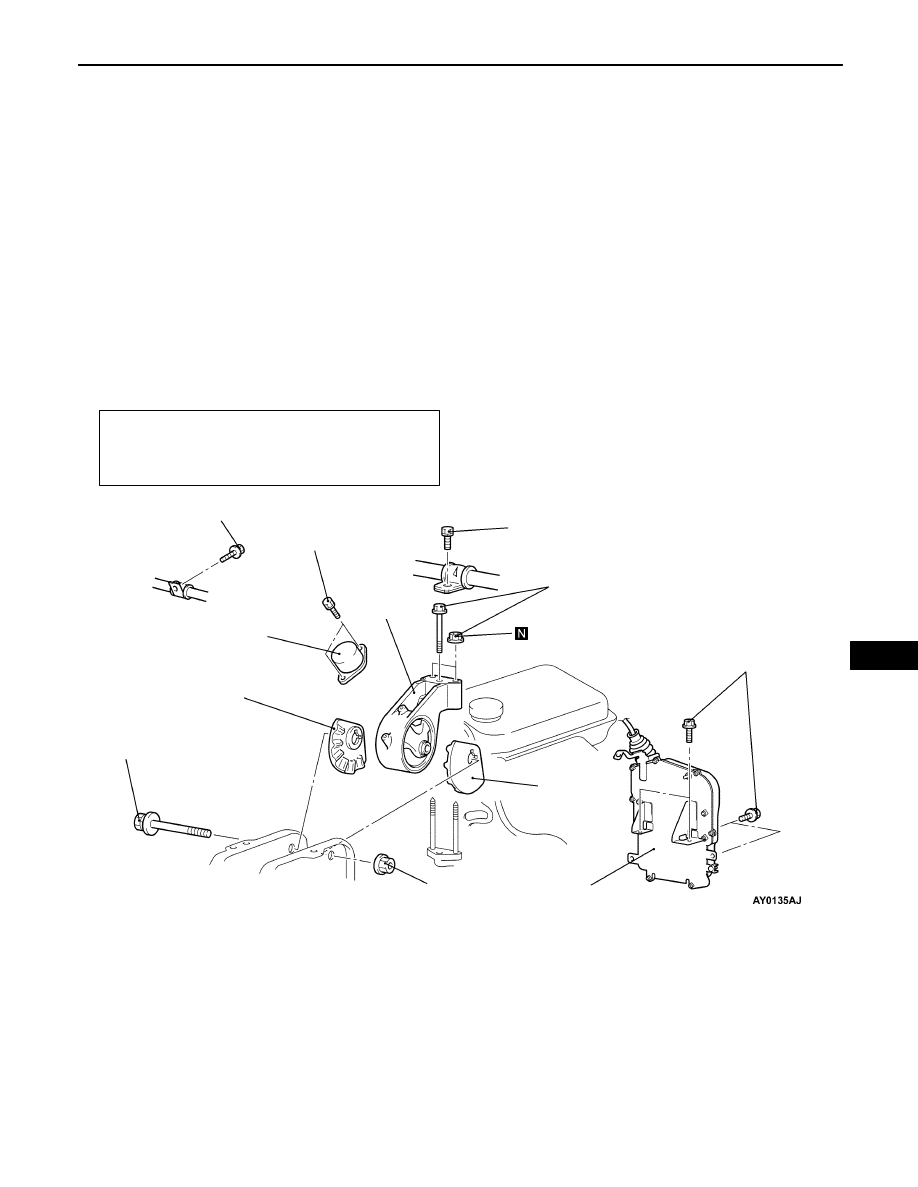

ENGINE MOUNTING

REMOVAL AND INSTALLATION

Caution
Mounting locations marked by * should be provisionally tightened, and then fully tightened when
the body is supporting the full weight of the engine.

Pre-removal Operation
Jack up the Engine and Transmission Assembly until
There is no Weight on the Engine Mount Bracket
Insulator.

1

2

3

5

4

7

7

6

10 Nm

54 Nm

25 Nm

90 Nm*

Removal steps

1. A/C suction hose clump
2. Power steering pressure hose

clump



A



3. Engine-ECU assembly
4. Engine mount insulator mounting

bolt

5. Engine mount bracket



A



6. Engine mount stopper
7. Dynamic damper

POWER PLANT MOUNT –

Engine Mounting

32-2

REMOVAL SERVICE POINT



A



ENGINE-ECU ASSEMBLY REMOVAL

Disconnect the engine-ECU assembly, with its wiring harness
attached, and move the ECU assembly aside so that it will
not be in the way while removing the engine mount.

INSTALLATION SERVICE POINT



A



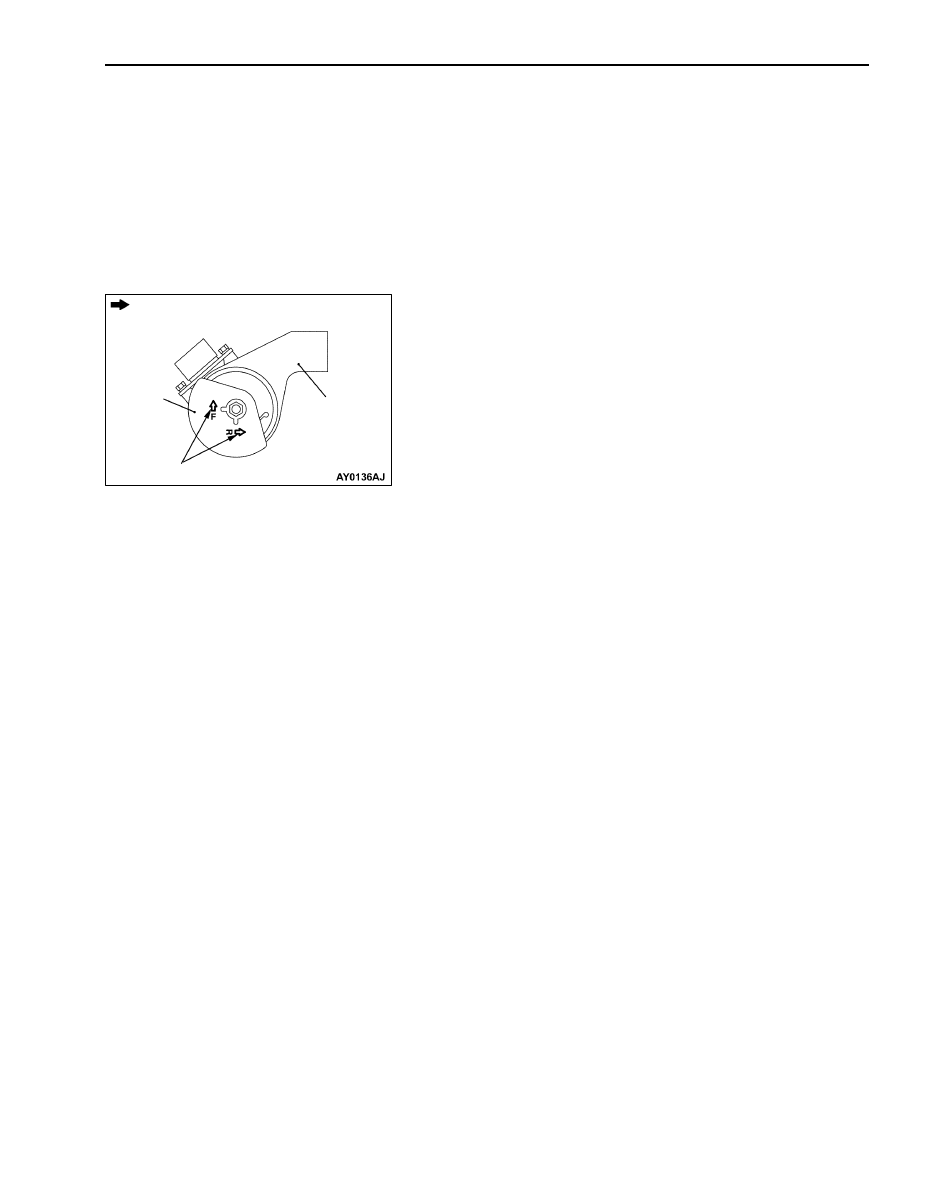

ENGINE MOUNT STOPPER INSTALLATION

Install the engine mount stopper so that the arrow marks point
toward the shown direction.

Engine side

Engine
mount
stopper

Engine
mount
bracket

Arrow
