FRONT AXLE –

Drive Shaft <F9Q1>

26-3

DISASSEMBLY SERVICE POINTS



A



T.J. CASE/T.J. ASSEMBLY/JOINT ASSEMBLY
REMOVAL

1.

Remove grease from T.J. case, T.J. assembly, and the
joint assembly.

2.

If removed grease contains foreign objects, such as water
and dust, make sure to clean the joint assembly.



B



T.J. BOOT REMOVAL

1.

Remove grease from the shaft spline.

2.

If T.J. boot is reused, wind tape around the spline of the
shaft to prevent the boot from being damaged during
removal.

NOTES

REAR AXLE –

General/Rear Axle Hub

27-1

GROUP 27

REAR AXLE

GENERAL

OUTLINE OF CHANGE

The service procedure of the rear axle has been established to correspond to the adoption of the disc
brakes.

REAR AXLE HUB

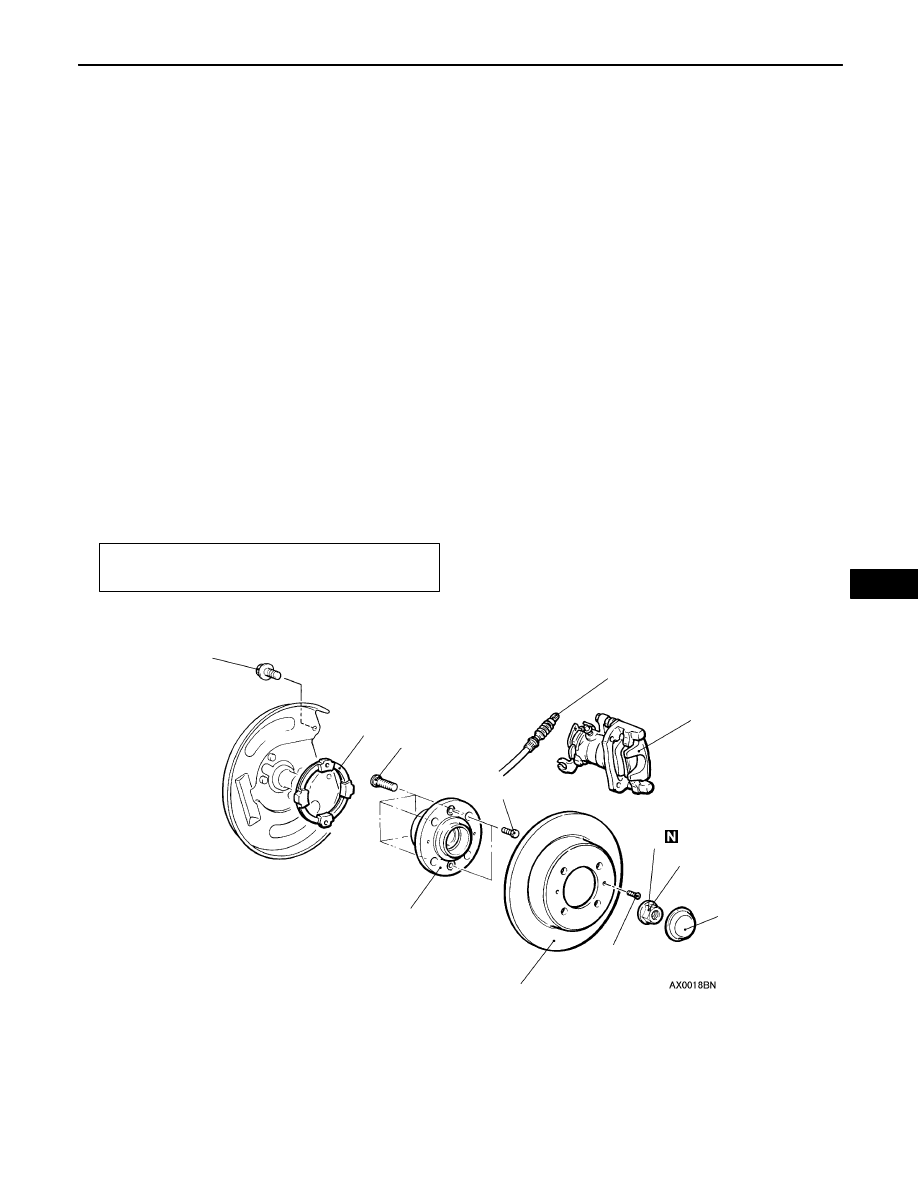

REMOVAL AND INSTALLATION

Caution
1.

The rear hub unit bearing should not be dismantled. When removing the rear hub assembly,
the wheel bearing inner race may be left at the spindle side. In this case, always replace the
rear hub assembly, otherwise the hub will damage the oil seal, causing oil leaks or excessive
play.

2.

Care must be taken not to scratch or otherwise damage the teeth of the ABS rotor. The ABS
rotor must never be dropped. If the teeth of the ABS rotor are chipped, resulting in a deformation
of the ABS rotor, it will not be able to accurately detect the wheel rotation speed, and the
system will not function normally.

Post-installation Operation
Adjustment of Parking Brake (Refer to GROUP 36.)

175 Nm

54 Nm

1

2

3

4

6

7

8

5

5.0 Nm

8 Nm

Removal steps

1. Parking brake cable connection



A



2. Caliper assembly
3. Brake disc
4. Hub cap

5. Flange nut



A



6. Rear hub assembly
7. ABS rotor
8. Hub bolt

REAR AXLE –

Rear Axle Hub

27-2

REMOVAL SERVICE POINT



A



CALIPER ASSEMBLY REMOVAL

Remove the caliper assembly and suspend it.

INSTALLATION SERVICE POINT



A



REAR HUB ASSEMBLY INSTALLATION

Caution
Be sure not to damage the pole piece at the tip the speed
sensor by striking against other parts.

Insert a thickness gauge into the space between the speed
sensor’s pole piece and the ABS rotor’s toothed surface, and
check the clearance is the standard value all around.

Standard value: 0.1 – 1.9 mm

INSPECTION



Check the oil seal for crack or damage.



Check the rear hub unit bearing for wear or damage.



Check the rear rotor for chipped teeth.

Thickness
gauge

Speed sensor

ABS rotor
