Mitsubishi Space Star. Manual - part 118





Troubleshooting <A/T Key Interlock and
Shift Lock Mechanisms>

AUTOMATIC TRANSMISSION –

23-39

TROUBLESHOOTING <A/T KEY INTERLOCK AND SHIFT LOCK
MECHANISMS>

TROUBLE SYMPTOM TABLE

Symptom

Inspection
procedure No.

Reference
page

Can move selector lever from “P” to “R” without depressing brake pedal when
ignition key is at positions other than “LOCK”

1

23-39

Cannot move selector lever from “P” to “R” with brake pedal depressed when
ignition key is at positions other than “LOCK”

2

23-39

Can move selector lever from “P” to “R” with brake pedal depressed when ignition
key is at “LOCK”

3

23-40

Cannot move selector lever from “P” to “R” smoothly

4

23-40

Cannot move selector lever from “R” to “P”

5

23-40

Cannot turn ignition key to “LOCK” when selector lever is at “P”

6

23-40

Can turn ignition key to “LOCK” when selector lever is at positions other than “P”

7

23-40

INSPECTION PROCEDURE FOR TROUBLE SYMPTOMS

INSPECTION PROCEDURE 1

Can shift selector lever from “P” to “R” without depressing
brake pedal when ignition key is at positions other than
“LOCK”

Probable cause

Lock cam or lock cable is suspected to be faulty.



Malfunction of lock cam



Defective shift lock cable

Check by referring to the probable cases.

INSPECTION PROCEDURE 2

Cannot shift selector lever from “P” to “R” with brake
pedal depressed when ignition key is at positions other
than “LOCK”

Probable cause

Selector lever assembly, shift lock cable, key interlock cable transmission control
cable or lock cam is suspected to be faulty.



Malfunction of selector lever assembly



Malfunction of shift lock cable



Defective key interlock cable



Defective transmission control cable



Malfunction of lock cam

Check by referring to the probable cases.

Troubleshooting <A/T Key Interlock and
Shift Lock Mechanisms>

AUTOMATIC TRANSMISSION –

23-40

INSPECTION PROCEDURE 3

Can move selector lever from “P” to “R” with brake pedal
depressed when ignition key is at “LOCK”

Probable cause

Lock cam or key interlock cable is suspected to be faulty.



Malfunction of lock cam



Defective key interlock cable

Check by referring to the probable cases.

INSPECTION PROCEDURE 4

Cannot move selector lever from “P” to “R” smoothly

Probable cause

Key interlock cable, shift lock cable, lock cam or selector lever assembly is suspected
to be faulty.



Defective key interlock cable



Defective shift lock cable



Malfunction of lock cam



Malfunction of selector lever assembly

Check by referring to the probable cases.

INSPECTION PROCEDURE 5

Cannot move selector lever from “R” to “P”

Probable cause

Selector lever assembly or transmission control cable is suspected to be faulty.



Malfunction of selector lever assembly



Defective transmission control cable

Check by referring to the probable cases.

INSPECTION PROCEDURE 6

Cannot turn ignition key to “LOCK” when selector lever is
at “P”

Probable cause

Lock cam key interlock cable or key cylinder slider is suspected to be faulty.



Malfunction of lock cam



Defective key interlock cable



Malfunction of slider

Check by referring to the probable cases.

INSPECTION PROCEDURE 7

Can turn ignition key to “LOCK” when selector lever is at
positions other than “P”

Probable cause

Lock cam, key cylinder cover or key interlock cable is suspected  to be faulty.



Malfunction of lock cam



Defective key cylinder cover



Malfunction of key inter lock cable

Check by referring to the probable cases.

AUTOMATIC TRANSMISSION –

On-vehicle Service

23-41

ON-VEHICLE SERVICE

ESSENTIAL SERVICE

AUTOMATIC TRANSMISSION FLUID CHECK

Caution
When the transmission has been replaced or overhauled,
or driving has been carried out under the severe condition,
the A/T fluid cooler line flushing should always be carried
out and also, the A/T fluid and oil filters (special filters for
transmission only) should always be replaced.

1.

Drive the vehicle until the fluid temperature rises to the
normal temperature (70 – 80



C).

NOTE
1) Measure ATF temperature using MUT-II.

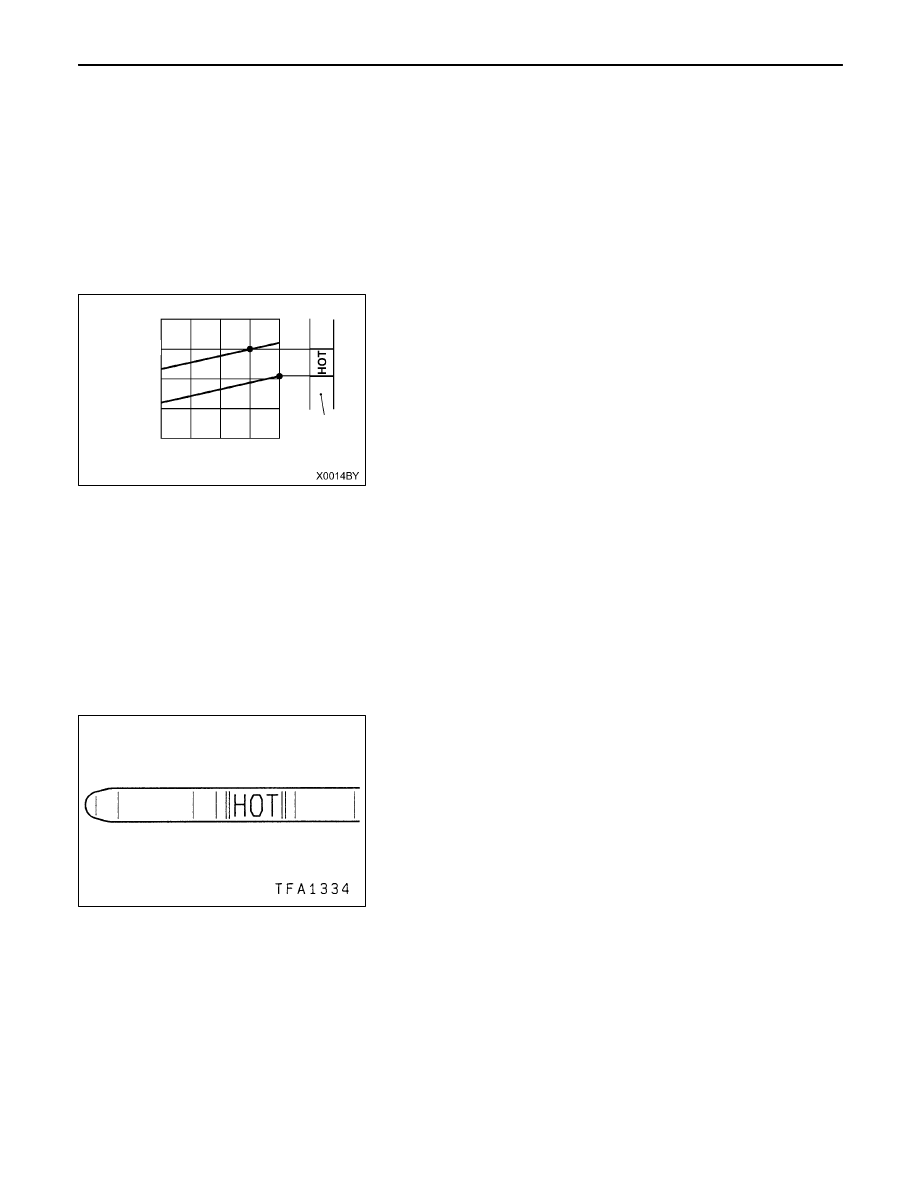

2) Check the oil level referring to the characteristics chart

shown at left if it takes some time to reach the normal
operation temperature of ATF (70 – 80



C).

2.

Park the vehicle on a level surface.

3.

Move the selector lever through all positions to fill the
torque converter and the hydraulic circuits with fluid, and
then move the selector lever to the N position.

4.

After wiping off any dirt around the oil level gauge, remove
the oil level gauge and check the condition of the fluid.

NOTE
If the fluid smells as if it is burning, it means that the
fluid has been contaminated by the particles from the
bushes and friction materials, a transmission overhaul and
flushing the cooler line may be necessary.

5.

Check that the fluid level is at the HOT mark on the oil
level gauge. If the fluid level is lower than this, pour in
more fluid until the level reaches the HOT mark.

Automatic transmission fluid:

Dia Queen ATF SP

II

  M

,

ATF SP

III

 or equivalent

NOTE
If the fluid level is low, the oil pump will draw in air along
with the fluid, which will cause bubbles to form inside
the hydraulic circuit. This will in turn cause the hydraulic
pressure to drop, which will result in late shifting and
slipping of the clutches and brakes.
If there is too much fluid, the gears can churn it up into
foam and cause the same conditions that can occur with
low fluid levels.
In either case, air bubbles can cause overheating and
oxidation of the fluid which can interfere with normal valve,
clutch, and brake operation. Foaming can also result in
fluid escaping from the transmission vent, in which case
it may be mistaken for a leak.

6.

Securely insert the oil level gauge.

FLUID  LEVEL  [mm]

FLUID  TEMPERATURE  [C]

10

0

-10

-20

-30

60

80

Oil  level
gauge

40

AUTOMATIC TRANSMISSION –

On-vehicle Service

23-42

AUTOMATIC TRANSMISSION FLUID REPLACEMENT

Caution
When the transmission has been replaced or overhauled,
the transmission fluid cooler line flushing should always
be carried out before installing the transmission fluid
cooler hose.

If you have a fluid changer, use this changer to replace the
fluid. If you do not have a fluid changer, replace the fluid
by the following procedure.

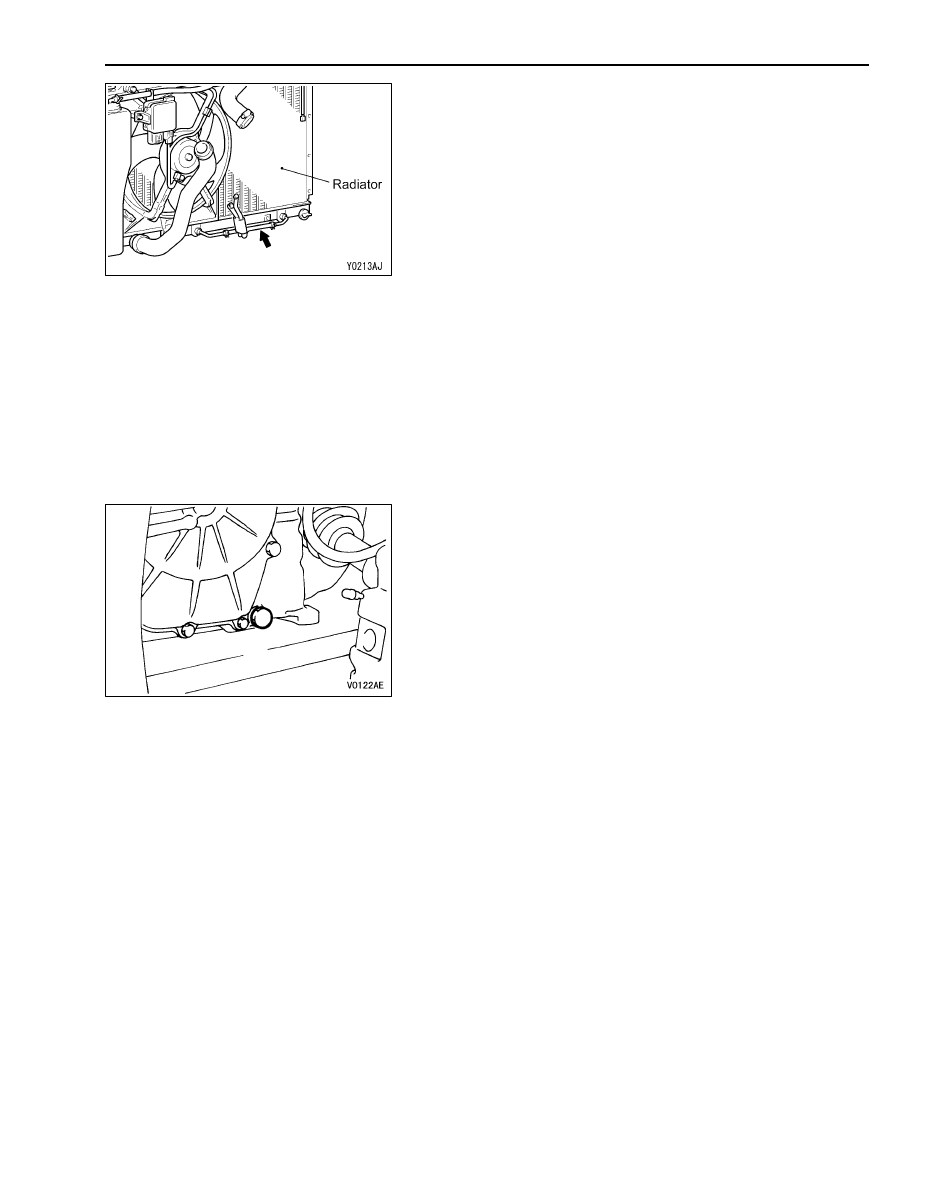

1.

Disconnect the hose shown in the illustration which
connects the transmission and the oil cooler (inside the
radiator).

2.

Start the engine and let the fluid drain out.

Running conditions: N range with engine idling

Caution
The engine should be stopped within one minute after
it is started. If the fluid has all drained out before
then, the engine should be stopped at that point.

Discharge volume: Approx. 3.5 L

3.

Remove the drain plug from the bottom of the transmission
case to drain the fluid.

Discharge volume: Approx. 2.0 L

4.

Replace the oil filters. (Refer to P.23-44.)

5.

Install the drain plug via a new gasket, and tighten it to
the specified torque.

Tightening torque: 32 Nm

6.

Pour the new fluid in through the oil filler tube.

Adding volume: Approx. 5.5 L

Caution
Stop pouring if the full volume of fluid cannot be
poured in.

7.

Repeat the procedure in step 2.

NOTE
Drain the fluid from the cooler hose 7 L at least. Then
drain the fluid a little and check the fluid for dirt.
If it has been contaminated, repeat the steps 6 and 7.

8.

Pour the new fluid in through the oil filler tube.

Adding volume: Approx. 3.5 L
