Mitsubishi Space Star. Manual - part 108





MANUAL TRANSMISSION –

Transmission Assembly <F5MV1>

22-9

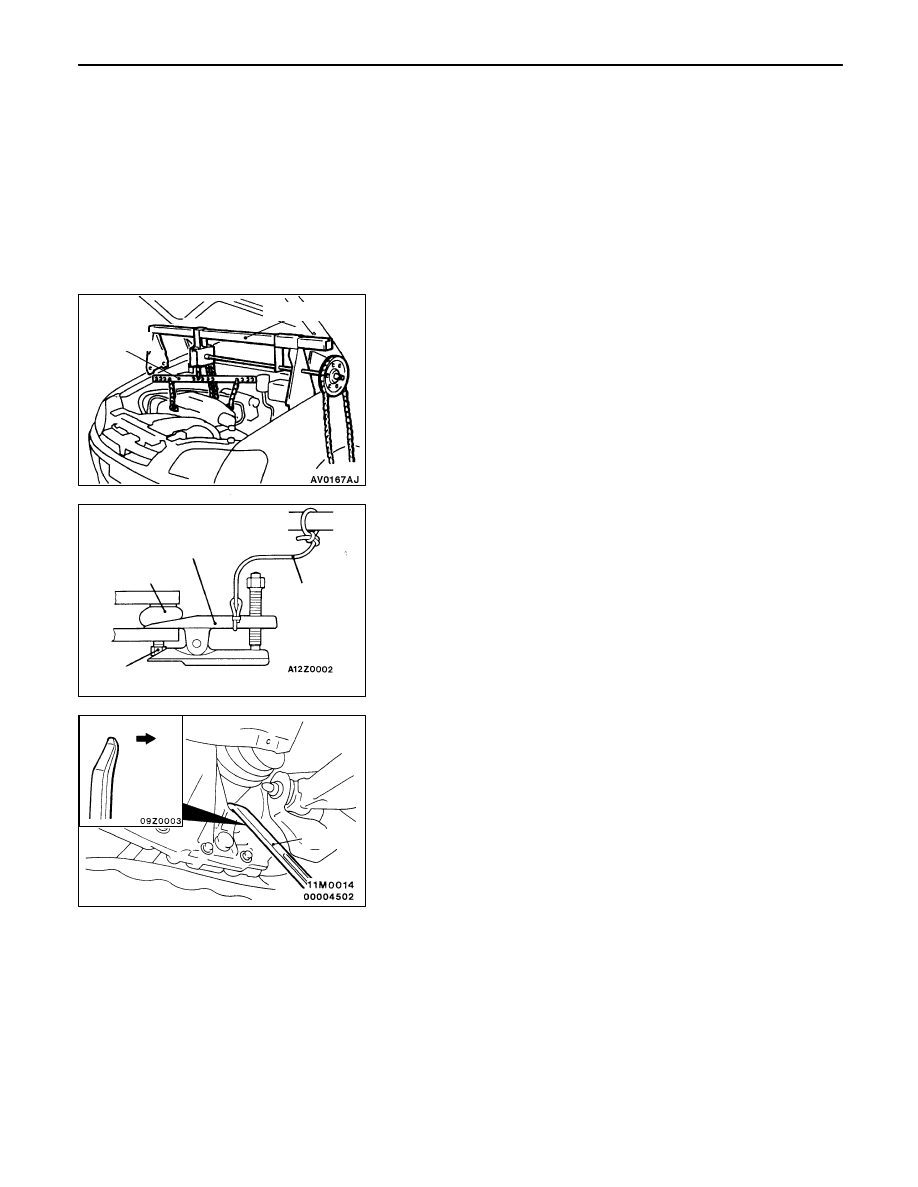

REMOVAL SERVICE POINTS



A



TRANSMISSION MOUNT BRACKET REMOVAL

Jack up the transmission assembly gently with a garage jack,
and then remove the transmission mount bracket.



B



ENGINE ASSEMBLY SUPPORTING

Set the special tool to the vehicle to support the engine
assembly.



C



TIE ROD END DISCONNECTION

Caution
1.

Loosen the nut only; do not remove it from the ball
joint. Otherwise ball joint thread will be damaged.

2.

The special tool should be suspended by a cord to
prevent it from coming off.



D



DRIVE SHAFT <L.H.>/DRIVE SHAFT <R.H.>
DISCONNECTION

1.

Insert a pry bar between the transmission case and the
drive shaft as shown to remove the drive shaft.

NOTE

Do not remove the hub and knuckle from the drive shaft.

Caution

Always use a pry bar, or the T.J. will be damaged.

2.

Suspend the removed drive shaft with a wire so that there
are no sharp bends in any of the joints.

3.

Use a shop towel to cover the transmission case not to
let foreign material get into it.

MB991453

MZ203827

MB991113 or
MB990635

Cord

Ball joint

Nut

Pry bar

Trans-
mission
side

MANUAL TRANSMISSION –

Transmission Assembly <F5MV1>

22-10

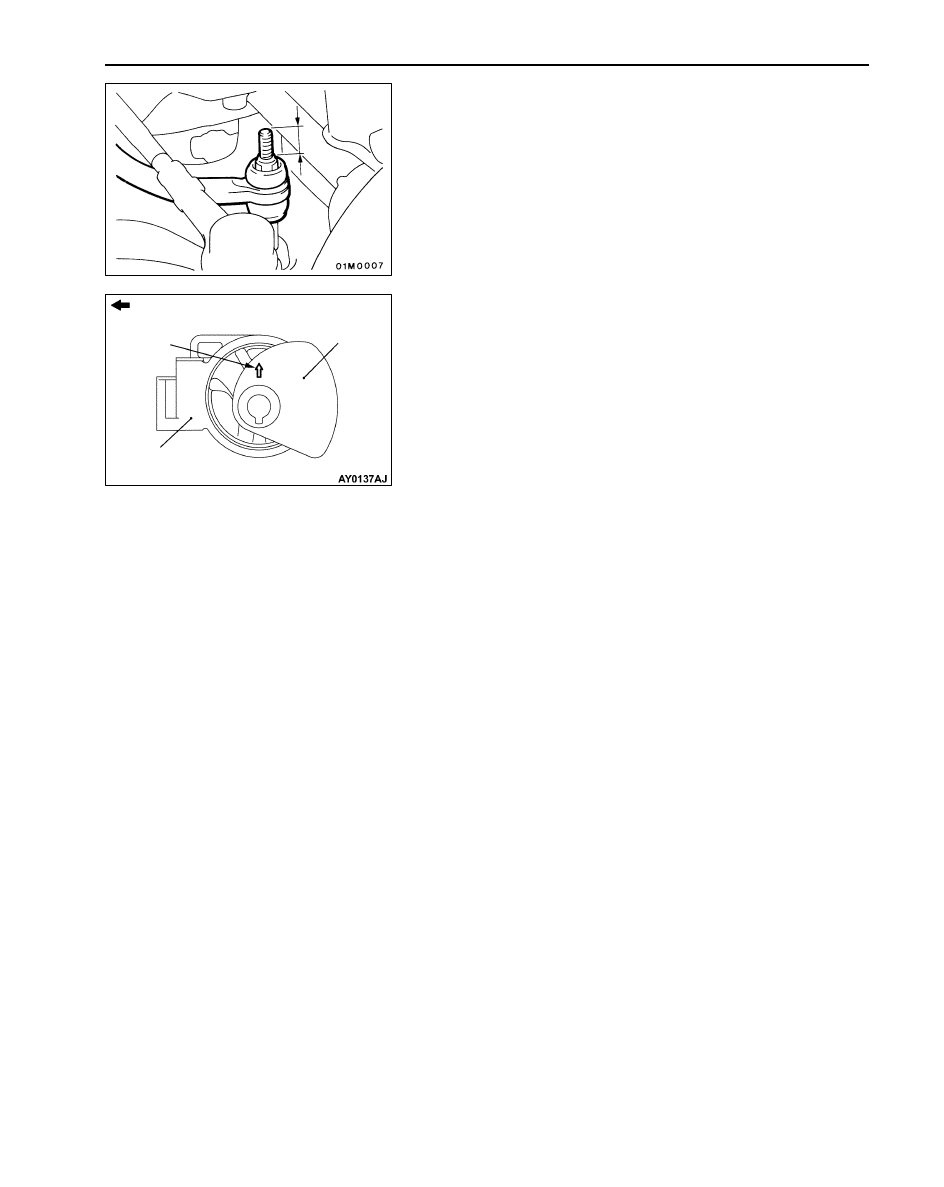

INSTALLATION SERVICE POINTS



A



STABILIZER BAR INSTALLATION

Tighten the self-locking nut so that the stabilizer bar mounting
bolt protrudes as shown.

Standard value (A): 22 mm



B



TRANSMISSION MOUNT STOPPER INSTALLATION

Install the transmission mount stopper so that the arrow points
as shown in the illustration.

A

Engine side

Arrow

Transmission
mount stopper

Transmission
mount bracket

23-1

A U TO M AT I C

T R A N S M I S S I O N

CONTENTS

GENERAL

2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SERVICE SPECIFICATIONS

2

. . . . . . . . . . . . . . . . .

LUBRICANT

2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SPECIAL TOOLS

2

. . . . . . . . . . . . . . . . . . . . . . . . . . .

TROUBLESHOOTING
  <A/T>

4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

  <A/T Key Interlock and Shift Lock
  Mechanisms>

39

. . . . . . . . . . . . . . . . . . . . . . . . . . .

ON-VEHICLE SERVICE

4

1

. . . . . . . . . . . . . . . . . . . .

Essential Service

41

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

A/T Control Component Location

47

. . . . . . . . . . . . .

A/T Control Component Check

48

. . . . . . . . . . . . . . .

Torque Converter Stall Test

50

. . . . . . . . . . . . . . . . . .

Hydraulic Pressure Test

51

. . . . . . . . . . . . . . . . . . . . .

Hydraulic Circuit

56

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Line Pressure Adjustment

57

. . . . . . . . . . . . . . . . . . . .

Selector Lever Operation Check

57

. . . . . . . . . . . . . .

Transmission Control Cable Adjustment

60

. . . . . . .

TRANSMISSION CONTROL*

61

. . . . . . . . . . . . . . .

SHIFT LOCK AND KEY INTERLOCK
MECHANISMS*

66

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

TRANSMISSION ASSEMBLY

68

. . . . . . . . . . . . . . .

WARNINGS REGARDING SERVICING OF SUPPLEMENTAL RESTRAINT SYSTEM (SRS) EQUIPPED VEHICLES

WARNING!

(1) Improper service or maintenance of any component of the SRS, or any SRS-related component, can lead to personal

injury or death to service personnel (from inadvertent firing of the air bag) or to the driver and passenger (from
rendering the SRS inoperative).

(2) Service or maintenance of any SRS component or SRS-related component must be performed only at an authorized

MITSUBISHI dealer.

(3) MITSUBISHI dealer personnel must thoroughly review this manual, and especially its GROUP 52B – Supplemental

Restraint System (SRS) before beginning any service or maintenance of any component of the SRS or any SRS-related
component.

NOTE

The SRS includes the following components: SRS-ECU, SRS warning lamp, air bag module, clock spring and interconnecting
wiring. Other SRS-related components (that may have to be removed/installed in connection with SRS service or maintenance)
are indicated in the table of contents by an asterisk (*).

AUTOMATIC TRANSMISSION –

General/Service Specifications/
Lubricant/Special Tools

23-2

GENERAL

The following service procedures have been established to correspond to the introduction of the F4A42
type transmission.

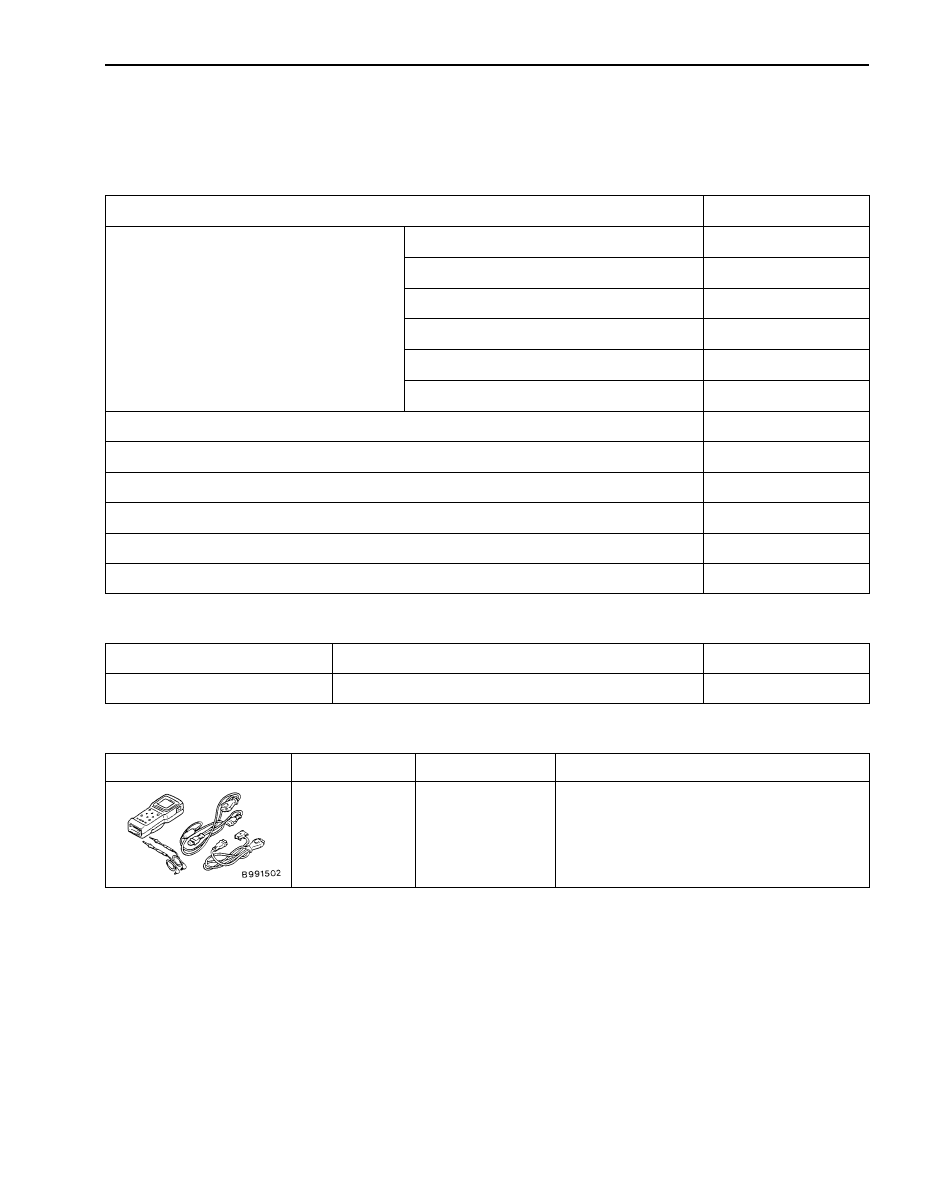

SERVICE SPECIFICATIONS

Items

Standard value

Oil temperature sensor k

at 0



C

16.7 – 20.5

at 20



C

7.3 – 8.9

at 40



C

3.4 – 4.2

at 60



C

1.9 – 2.2

at 80



C

1.0 – 1.2

at 100



C

0.57 – 0.69

Resistance of damper clutch control solenoid valve coil (at 20



C)

2.7 – 3.4

Resistance of Low-Reverse solenoid valve coil (at 20



C)

2.7 – 3.4

Resistance of second solenoid valve coil (at 20



C)

2.7 – 3.4

Resistance of underdrive solenoid valve coil (at 20



C)

2.7 – 3.4

Resistance of overdrive solenoid valve coil (at 20



C)

2.7 – 3.4

Stall speed r/min

2,200 – 2,700

LUBRICANT

Items

Specified lubricant

Quantity  L

Transmission fluid

DIA QUEEN ATF SP

II

M or ATF SP

III

7.8

SPECIAL TOOLS

Tool

Number

Name

Use

MB991502

MUT-

II

 sub

assembly

Checking of the diagnosis code
