Mitsubishi Space Star. Manual - part 107





MANUAL TRANSMISSION –

Transmission Control

22-5

<F5MV1>

Caution: SRS
Be careful not to subject the SRS-ECU to any shocks during removal and installation of the shift lever
assembly, shift cable and select cable assembly.

Pre-removal and Post-installation Operation



Air Cleaner Assembly Removal and Installation



Floor Console Box Removal and Installation
(Refer to GROUP 52A.)



Transmission Mount Lower Bracket Removal and
Installation (Refer to GROUP 32.)

1

2

3

4

5

6

7

8

9

10

1 2  N m

2 5  N m

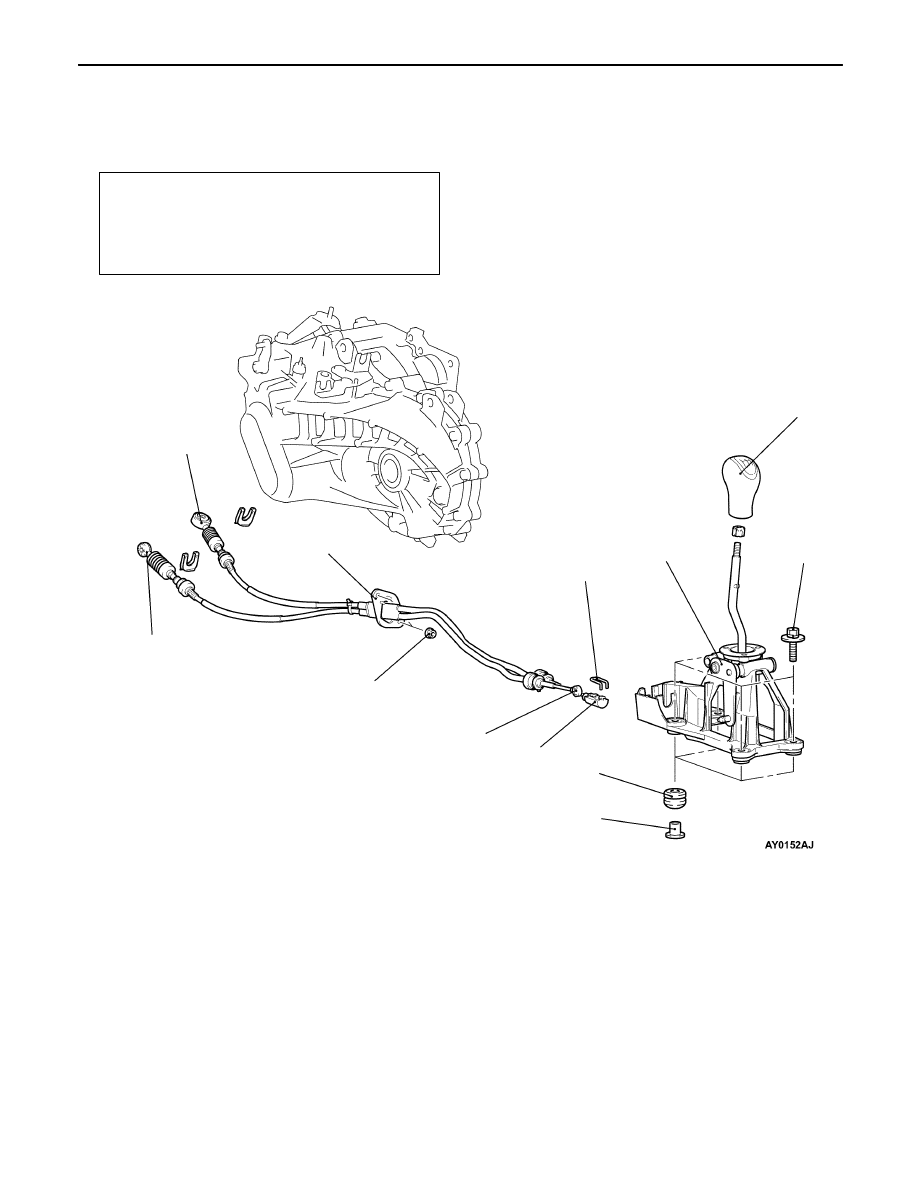

Shift cable and select cable
assembly removal steps

2. Select cable connection

(passenger compartment side)

3. Clip
4. Shift cable connection

(passenger compartment side)

5. Select cable connection

(Transmission side)

6. Shift cable connection

(Transmission side)

7. Shift cable and select cable

assembly

Shift lever assembly removal steps

1. Shift knob
2. Select cable connection

(passenger compartment side)

3. Clip
4. Shift cable connection

(passenger compartment side)

8. Shift lever assembly
9. Distance piece

10. Bushing

MANUAL TRANSMISSION –

Transmission Control

22-6

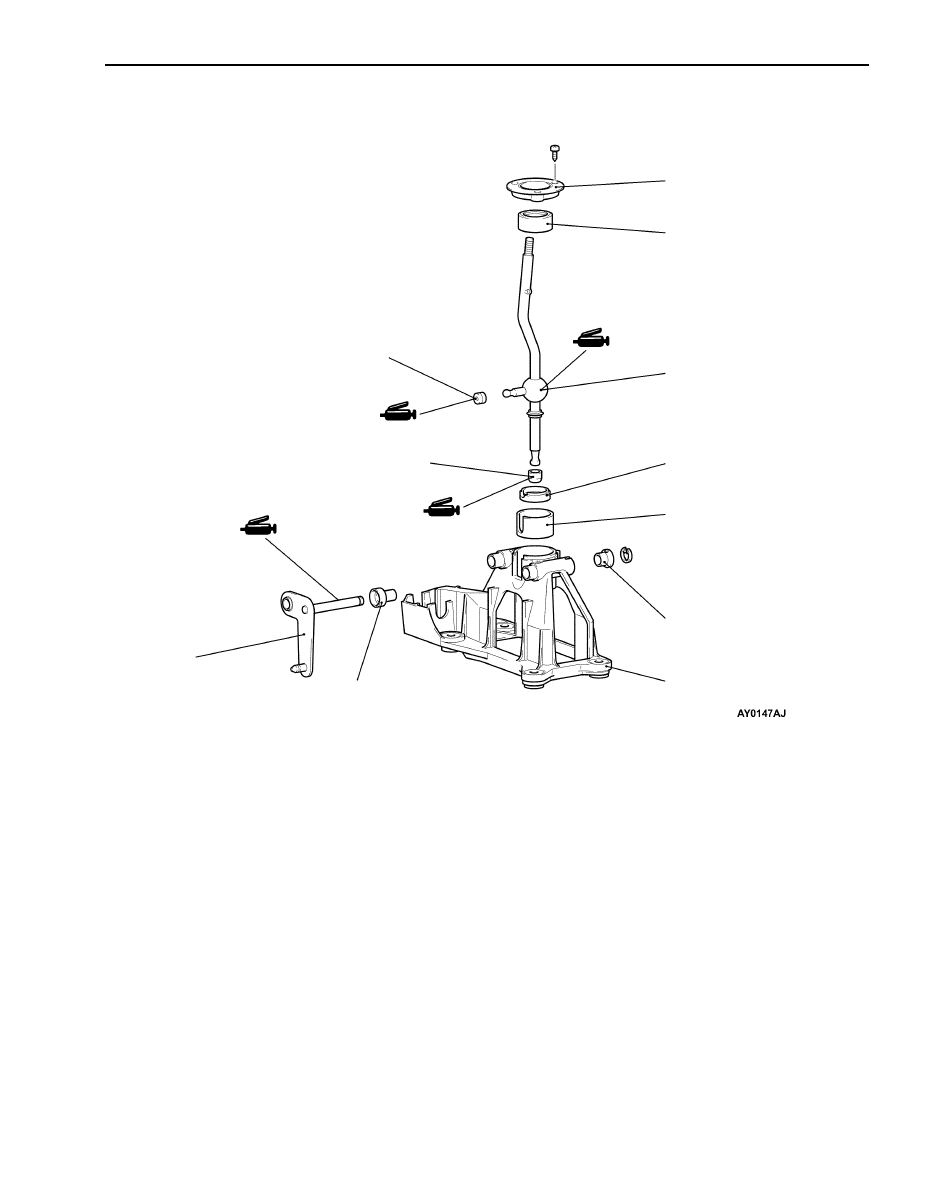

SHIFT LEVER ASSEMBLY <F5M42, F5MV1>
DISASSEMBLY AND REASSEMBLY

1

2

3

2

4

5

6

6

7

8

9

Disassembly steps

1. Lever
2. Bushing
3. Cap
4. Ball socket
5. Gear lever

6. Ball seat
7. Balll socket
8. Shroud insulation
9. Housing

MANUAL TRANSMISSION –

Transmission Assembly <F5MV1>

22-7

TRANSMISSION ASSEMBLY <F5MV1>

REMOVAL AND INSTALLATION

Caution
In order to prevent the insulator from being damaged, mounting locations marked by * should
be provisionally tightened, and then fully tightened when the body is supporting the full weight
of the engine.

Pre-removal Operation



Transmission Oil Draining (Refer to P.22-3.)



Under Cover Removal



Air Cleaner Assembly Removal



Battery Removal



Intercooler Hose Removal (Refer to GROUP 15.)

Post-installation Operation



Intercooler Hose Installation (Refer to GROUP 15.)



Battery Installation



Air Cleaner Assembly Installation



Under Cover Installation



Transmission Oil Supplying (Refer to P.22-3.)



Shift Lever Operation Check



Speedometer Operation Check

1

2

3

4

5

6

7

8

9

10

11

12

13

5 4  N m

9 0  N m *

5 0  N m

4 9  N m

4 9  N m

5 0  N m

1 0  N m

2 5  N m

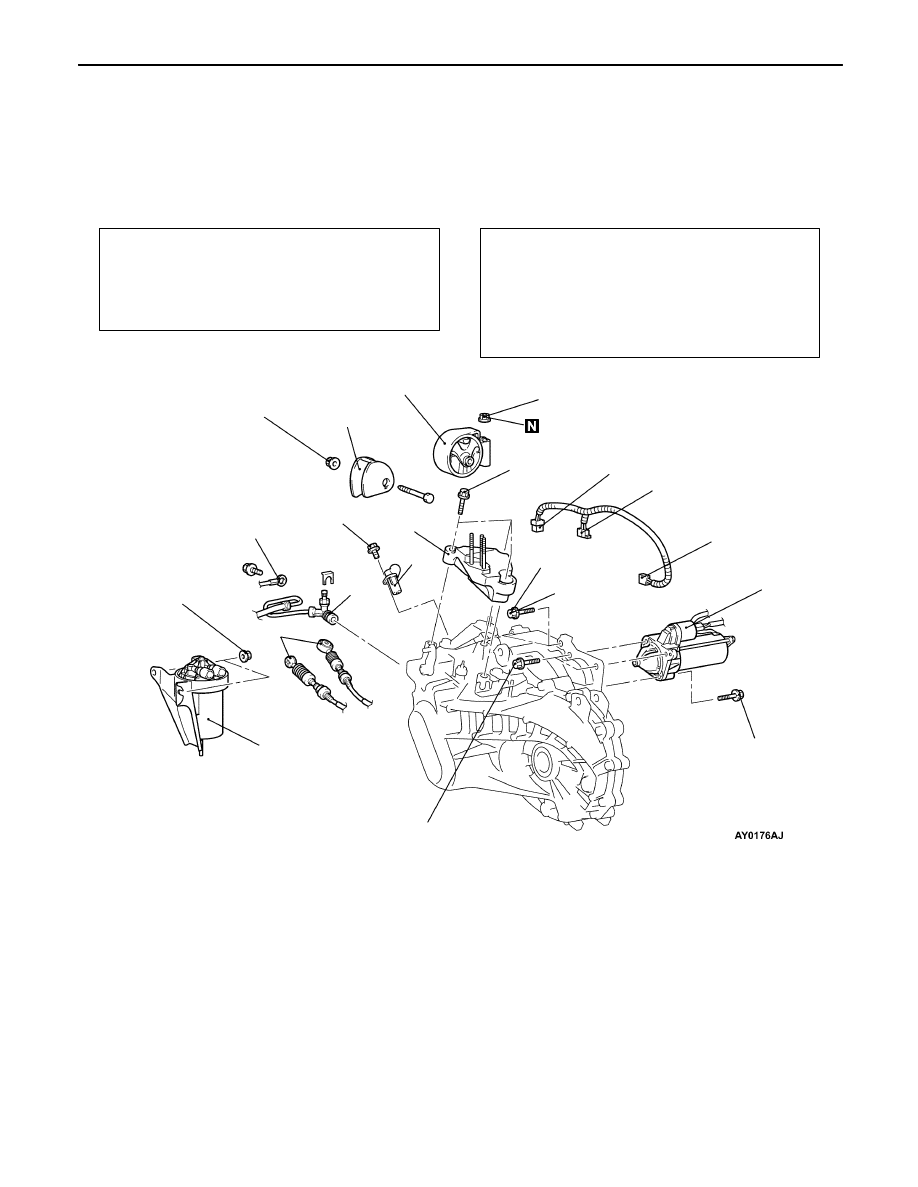

Removal steps

1. Fuel filter (Refer to GROUP13D)



A



2. Transmission mount



B



3. Transmission mount stopper
4. Transmission mount lower bracket
5. Transmission control cable

(transmission side)

6. Clutch tube connection
7. Earth cable

8. Crank angle sensor
9. Speed sensor connector

10. Backup lamp switch connector

11. Control harness and sub-harness

connection

12. Transmission upper mounting bolt
13. Starter

MANUAL TRANSMISSION –

Transmission Assembly <F5MV1>

22-8

25

21

22

23

14

15

16

17

18

19

20

24

26

5 0



N m

5 0  N m

2 5  N m

1 0  N m

6 0  N m

6 9  N m

6 9  N m

5 5  N m

*

5 5  N m

*

2 9  N m

9 0  N m

2 1 6  –  2 5 5 N m

2 5  N m

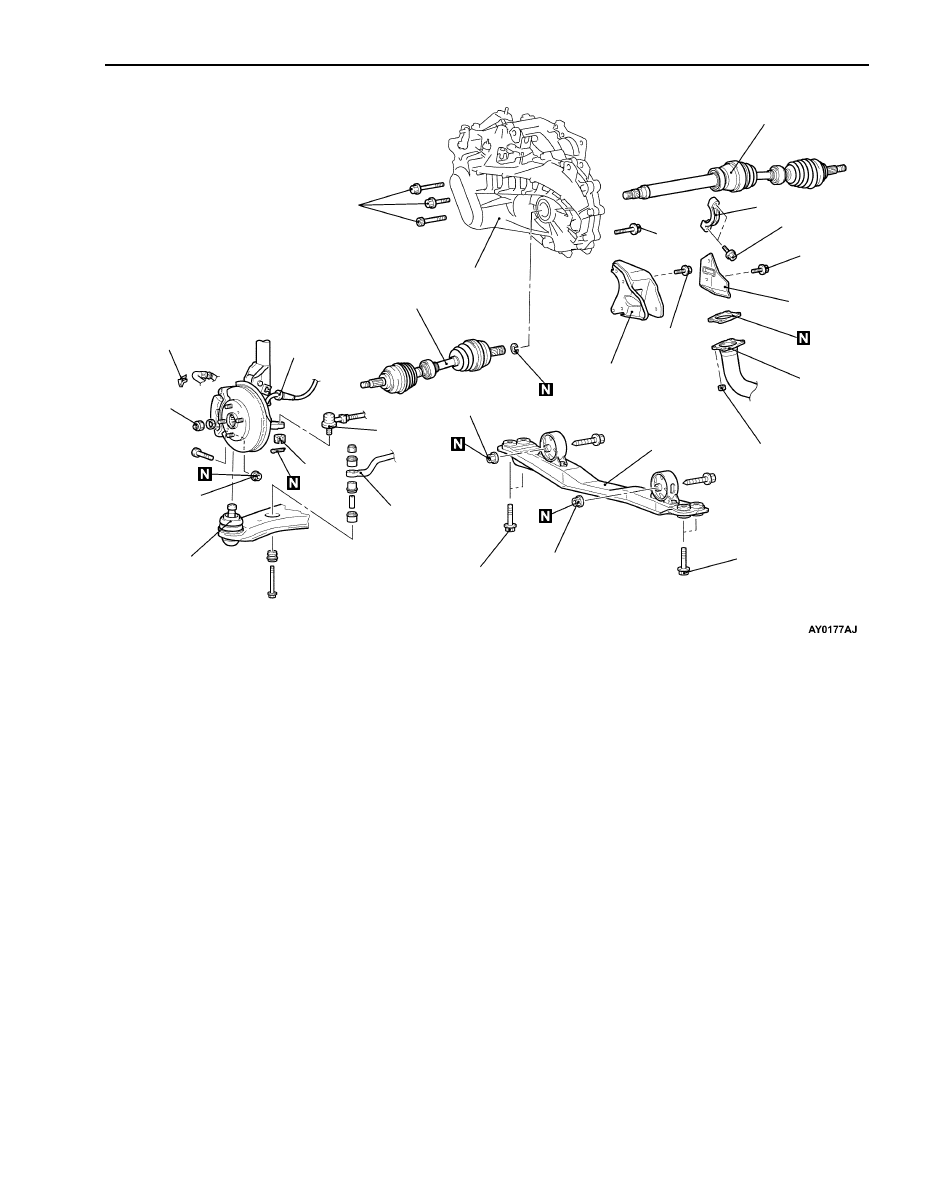

Lifting up of the vehicle

14. Brake hose clamp
15. Wheel speed sensor cable

connection <Vehicles with ABS>



B



16. Tie rod end connection
17. Lower arm ball joint connection



A



18. Stabilizer bar connection
19. Heat protector

20. Centermember assembly



C



21. Drive shaft <L.H.> connection
22. Bearing bracket



C



23. Drive shaft <R.H.> connection
24. Front exhaust pipe connection
25. Rear roll stopper bracket
26. Transmission assembly
