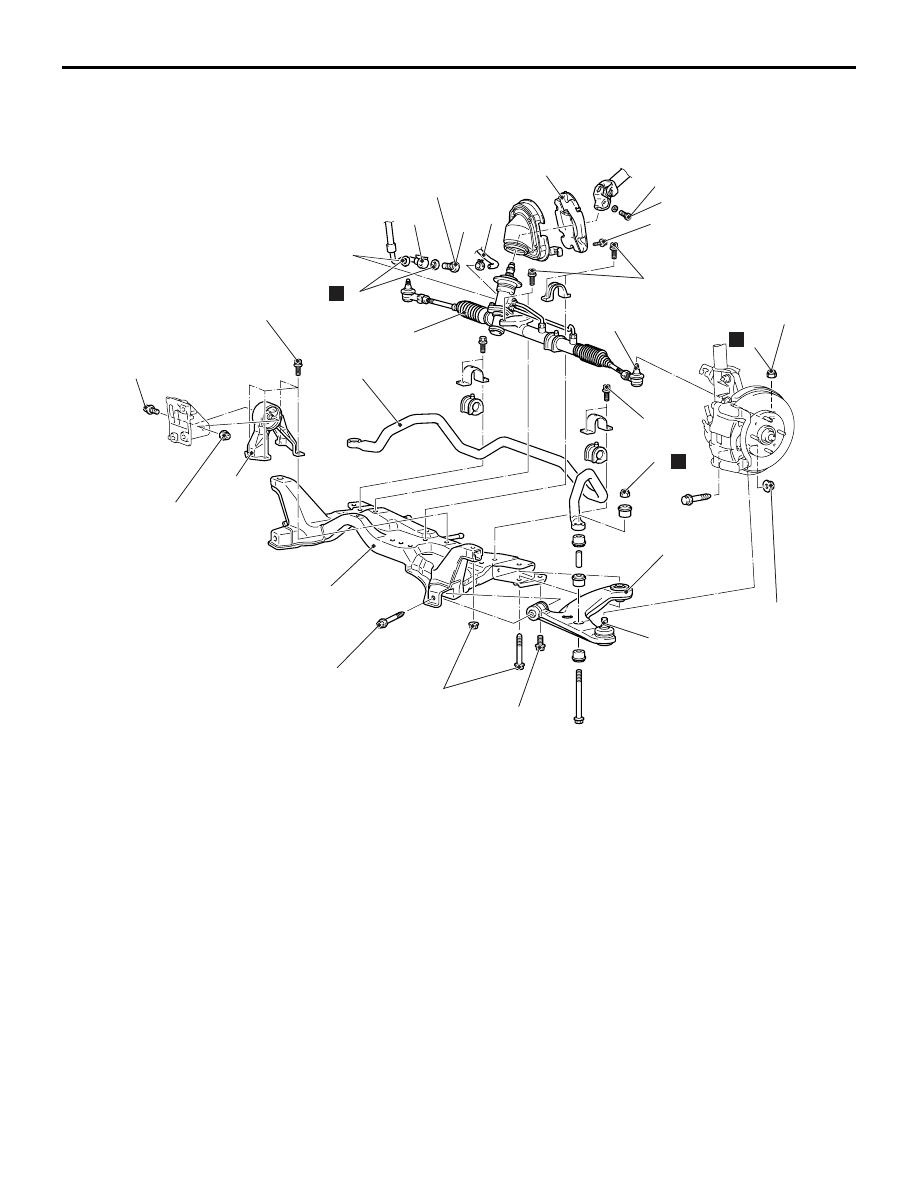

CROSSMEMBER

POWER PLANT MOUNT

32-10

<R.H. drive vehicles>

AC101614

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

45 ± 5 N·m*¹

52 ± 7 N·m*¹

186 ± 10 N·m*²

167 ± 9 N·m

49 ± 10 N·m

108 ± 10 N·m

25 ± 4 N·m

21 ± 4 N·m

70 ± 10 N·m

5.0 ± 1.0 N·m

18 ± 2 N·m

57 ± 7 N·m

N

N

N

AE

Removal steps

1.

Lower arm and knuckle connection

>>

B

<<

2.

Self-locking nut

3.

Lower arm assembly

4.

Eye bolt

5.

Pressure hose connection

6.

Gasket

7.

Return hose connection

8.

Shaft cover

9.

Steering shaft assembly and gear
box connecting bolt

10. Self-locking nut

<<

A

>>

11. Tie rod end and knuckle connection
12. Engine rear roll stopper bracket

connection bolt

<<

B

>>

•

Crossmember assembly

13. Engine rear roll stopper bracket

>>

A

<<

14. Stabilizer bar
15. Steering gear and linkage
16. Crossmember

Removal steps (Continued)

CROSSMEMBER

POWER PLANT MOUNT

32-11

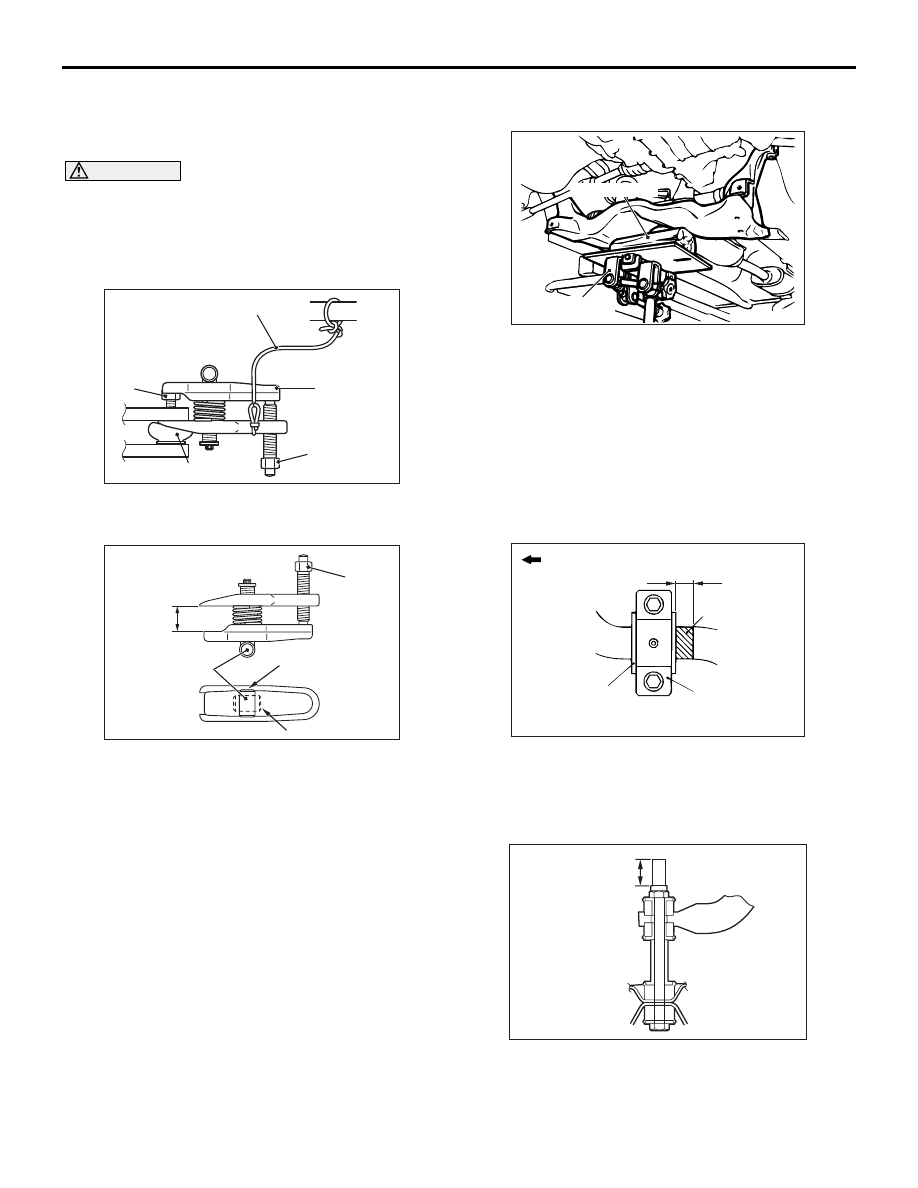

REMOVAL SERVICE POINTS
<<A>> TIE ROD END AND KNUCKLE DIS-
CONNECTION

CAUTION

• Do not remove the nut from ball joint. Loosen

it and use special tool to avoid possible dam-
age to ball joint threads.

•

AC208247AD

Cord

Bolt

MB991897

Self-locking
nut

Ball joint

Hang special tool with a cord to prevent it
from falling.

1. Install the special tool ball joint remover

(MB991897) as shown in the figure.

AC106821

Knob

Parallel

Bolt

Good

Bad

AB

2. Turn the bolt and knob as necessary to make the

jaws of the special tool parallel, tighten the bolt by
hand and confirm that the jaws are still parallel.
NOTE: When adjusting the jaws in parallel, make
sure the knob is in the position shown in the fig-
ure.

3. Tighten the bolt with a wrench to disconnect the

tie rod end.

<<B>> CROSSMEMBER ASSEMBLY

REMOVAL

AC102600 AD

Piece of wood

Transmission
jack

1. Use a transmission jack to hold the crossmember,

and then remove the crossmember mounting nuts
and bolts.

2. Lower the crossmember with the engine rear roll

stopper bracket, the stabilizer bar, the return tube,
and the steering gear.

INSTALLATION SERVICE POINTS
>>A<< STABILIZER BAR FIXTURE

INSTALLATION

AC006141AD

Fixture (LH)

Outside of
vehicle

Bushing (LH)

Approximately
10 mm

Identification
mark

Align the stabilizer bar identification mark with the
right end of the bushing (LH).

>>B<< SELF-LOCKING NUT

INSTALLATION

AC101741AC

A

Tighten the self-locking nut until the stabilizer bar
mounting bolt thread part protruding length meets the
standard value.

Standard value (A): 22

± 1.5 mm

NOTES
