TAILGATE

BODY

42-50

TAILGATE HANDLE AND LATCH

REMOVAL AND INSTALLATION

M1424001700170

Pre-removal Operation
• Tailgate Handle Play Check (Refer to

P.42-47

).

Y1518AU

Y1520AU

AC305141

4

5

6

3

3

5

5.0 ± 1.0 N·m

9.0 ± 2.0 N·m

AB

2

1

22 ± 4 N·m

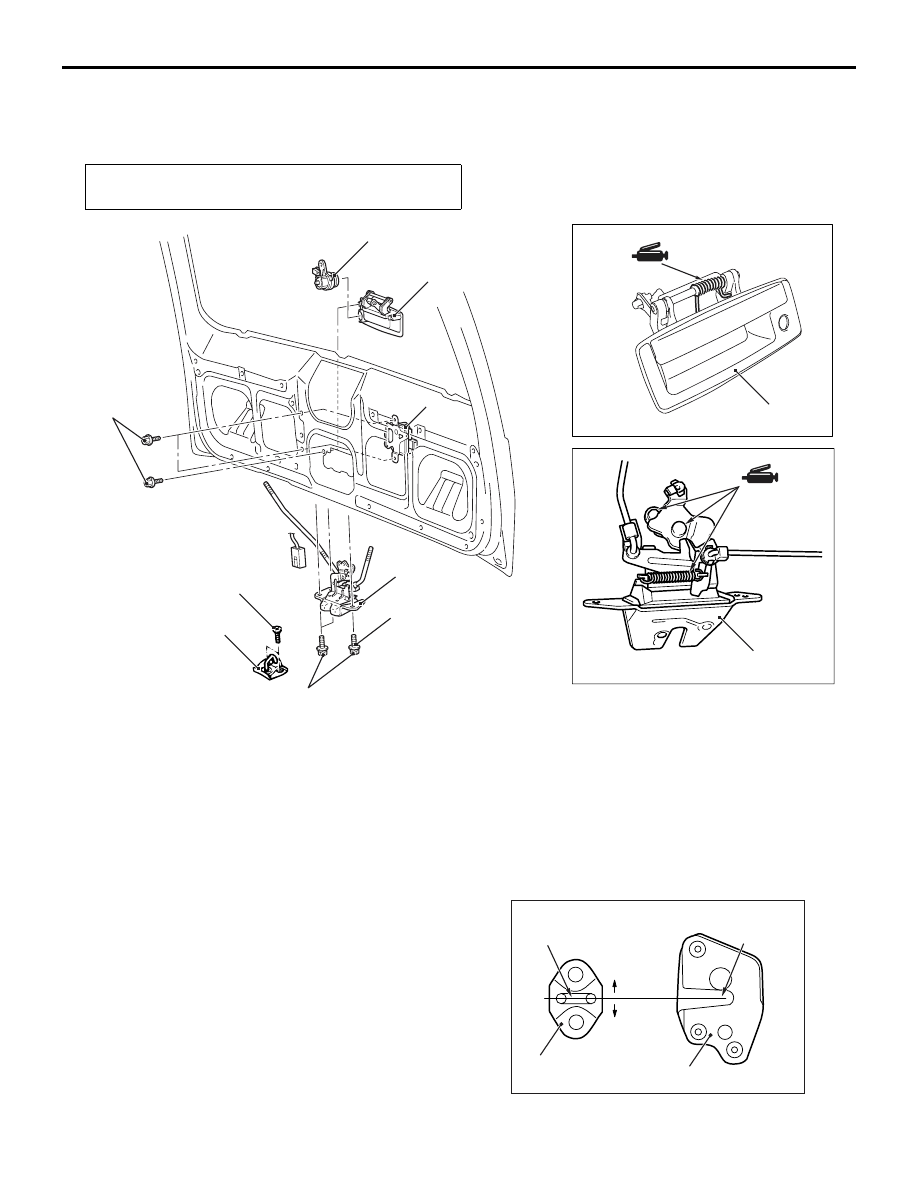

Striker removal steps
• Rear end trim (Refer to GROUP 52A,

Trims

P.52A-13

.)

>>

A

<< 1. Striker

Tailgate handle and lock key cylinder
removal steps
• Lower tailgate trim (Refer to GROUP

52A, Tailgate Trim

P.52A-21

.)

• Waterproof film (Refer to

P.42-48

.)

2. Bolt (earth)
3. Tailgate latch assembly
4. Tailgate lock key cylinder
5. Tailgate handle
Tailgate latch removal steps
• Lower tailgate trim (Refer to GROUP

52A, Tailgate Trim

P.52A-21

.)

• Waterproof film (Refer to

P.42-48

.)

2. Bolt (earth)
3. Tailgate latch assembly

Tailgate lock actuator removal steps
• Lower tailgate trim (Refer to GROUP

52A, Tailgate Trim

P.52A-21

.)

• Waterproof film (Refer to

P.42-48

.)

6. Tailgate lock actuator

INSTALLATION SERVICE POINT
>>A<< STRIKER INSTALLATION

AC305098AB

Striker centre

Striker

Latch centre

Latch

+1.5 mm

-1.5 mm

Assemble so the distance between the centre of the
striker and centre of the latch is

±1.5 mm or less.

KEYLESS ENTRY SYSTEM

BODY

42-51

INSPECTION

M1424001200142

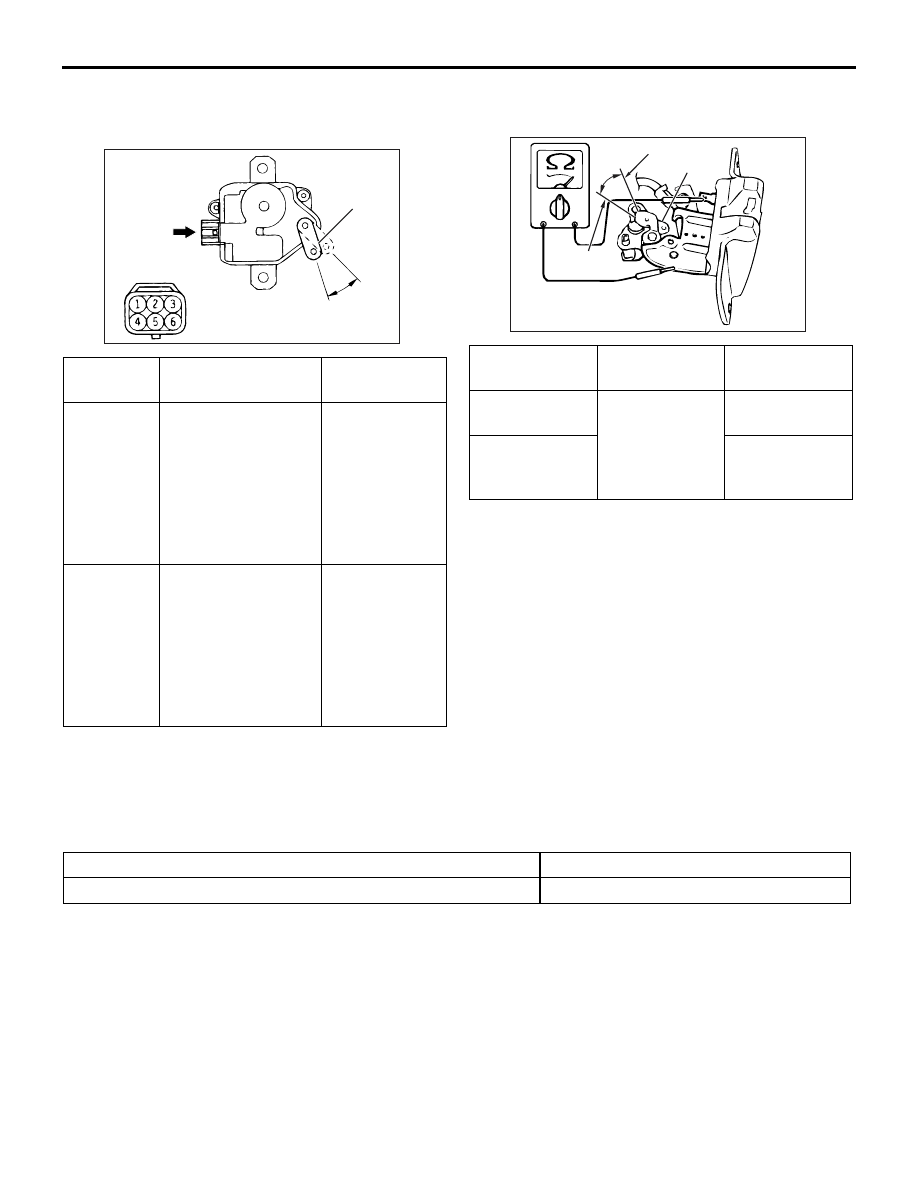

TAILGATE LOCK ACTUATOR CHECK

AC103292

A

View A

Unlock

Lock

Lever

AC

Lever
position

Battery connection Lever

operation

At the
"LOCK"
position

• Connect terminal

No.2 and the
negative battery
terminal.

• Connect terminal

No.3 and the
positive battery
terminal.

The lever
moves from the
"LOCK"
position to the
"UNLOCK"
position.

At the
"UNLOCK"
position

• Connect terminal

No.3 and the
negative battery
terminal.

• Connect terminal

No.2 and the
positive battery
terminal.

The lever
moves from the
"UNLOCK"
position to the
"LOCK"
position.

TAILGATE LATCH CHECK <Vehicles for
keyless entry system>

AC103291

Lever

Unlock

Lock

1

2

AD

Lever position Tester

connection

Specified
condition

At the "LOCK"
position

− 2 (Earth)

Open circuit

At the
"UNLOCK"
position

Less than 2
ohms

KEYLESS ENTRY SYSTEM

SERVICE SPECIFICATIONS

M1428000300104

Item

Standard value

Voltage of transmitter battery V

2.5

− 3.2

KEYLESS ENTRY SYSTEM

BODY

42-52

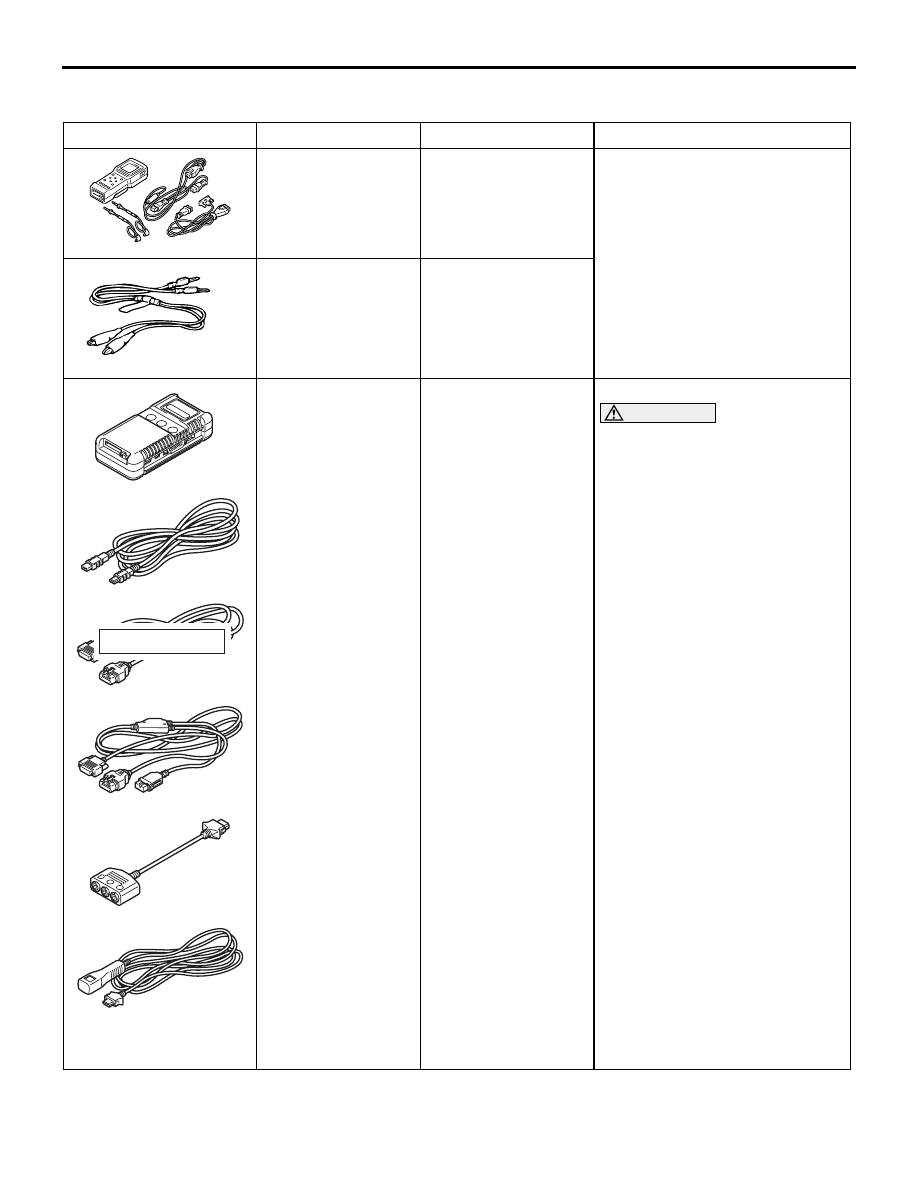

SPECIAL TOOLS

M1428000600280

Tool

Number

Name

Use

B991502

MB991502

M.U.T.-II
sub-assembly

Encrypted code registration

MB991529

MB991529

Diagnosis code check
harness

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

A

B

C

D

E

F

DO NOT USE

MB991955

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991825
F: MB991826

M.U.T.-III
sub-assembly

A: Vehicle

communication
interface (V.C.I.)

B: M.U.T.-III USB

cable

C: M.U.T.-III main

harness A
(Vehicles with CAN
communication
system)

D: M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

E: M.U.T.-III

measurement
adapter

F: M.U.T.-III trigger

harness

Encrypted code registration

M.U.T.-III main harness B
(MB991911) should be used.
M.U.T.-III main harness A
should not be used for this
vehicle.

CAUTION

KEYLESS ENTRY SYSTEM

BODY

42-53

TROUBLESHOOTING

M1428000700287

The keyless entry system is controlled by the Smart
Wiring System (SWS). For troubleshooting, refer to
GROUP 54B, Troubleshooting

P.54B-15

 or GROUP

54C, Troubleshootin

P.54C-4

.

ON-VEHICLE SERVICE

KEYLESS ENTRY SYSTEM CHECK

M1428001400096

Check the system as described below. If the system
does not work, carry out troubleshooting. Refer to
GROUP 54B, Troubleshooting

P.54B-15

, refer to

GROUP 54C, Troubleshooting

P.54C-4

.

• Operate the transmitter to check that the doors

and tailgate can be locked and unlocked.

• Operate the transmitter to check that the answer-

back function works in response to door and tail-
gate <Wagon> locking/unlocking.

NOTE: The adjustment function allows you to

change the answerback setting as follows. Prior
to that check, confirm which setting is activated.

.

The hazard warning lamps flash twice when
locked and once when unlocked. The room
lamp flashes twice when locked and illumi-
nates for 15 seconds when unlocked.

The hazard warning lamps do not flash when
locked and flash once when unlocked. The
room lamp flashes twice when locked and illu-
minates for 15 seconds when unlocked.

The hazard warning lamps flash twice when
locked and do not flash when unlocked. The
room lamp flashes twice when locked and illu-
minates for 15 seconds when unlocked.

The hazard warning lamps do not flash when
both locked and unlocked. The room lamp
flashes twice when locked and illuminates for
15 seconds when unlocked.

KEYLESS ENTRY SYSTEM TIMER LOCK
FUNCTION INSPECTION

M1428004000138

Push the transmitter unlock button and check to see
that the doors and tailgate <Wagon> lock within 30
seconds. If it doesn't, then execute troubleshooting
remedies. Refer to GROUP 54B, Troubleshooting

P.54B-15

, refer to GROUP 54C, Troubleshooting

P.54C-4

.

ENABLING/DISABLING THE
ANSWERBACK FUNCTION

M1428003200214

If the keyless entry system locks or unlocks the
doors, the room lamp flashes or illuminates, the haz-
ard warning lamp flashes (hazard answerback func-
tion). The hazard answerback function can be
enabled or disabled according to the following proce-
dure:

ENABLING/DISABLING THE HAZARD
ANSWERBACK FUNCTION

The hazard answerback function can be enabled or
disabled by one of the two following procedures.

<When using the transmitter after
diagnosis connector (1) is earthed>

1. Enter the hazard answerback customize mode by

performing one of the following steps. If the
ETACS-ECU enters the customize mode, its
buzzer will sound once.
(1) Turn the ignition switch to “LOCK”(OFF)

position.

(2) Turn off the hazard warning lamp switch.

CAUTION

Before connecting or disconnecting the earth,
turn the ignition switch to the "LOCK" (OFF)
position.

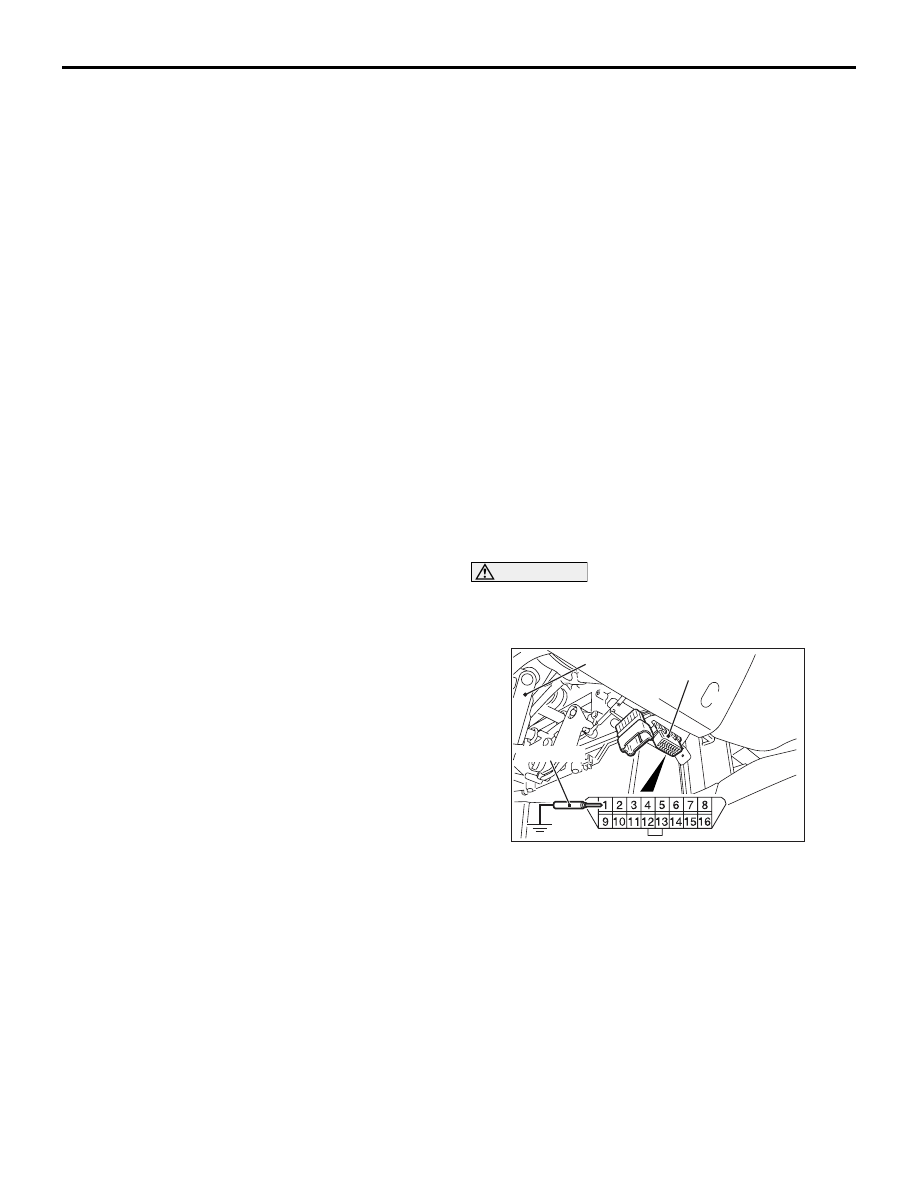

AC305133AB

Diagnosis

connector

MB991529

Steering shaft

(3) Connect the diagnosis connector to the

special tool diagnosis code check harness
(MB991529).

(4) Close the driver's side door.
(5) Keep the windshield washer switch on for at

least ten seconds. Then the ETACS-ECU
buzzer will sound once.

2. If the transmitter “LOCK” button is pushed

consecutively twice (within two seconds), the
ETACS-ECU buzzer will sound, indicating that the
hazard answerback function can be enabled or
disabled when the doors are locked.
