EMISSION CONTROL <MPI>
ENGINE AND EMISSION CONTROL
17-4
INSTALLATION SERVICE POINT
>>A<< ACCEL PEDAL PAD INSTALLA-
TION
CAUTION
To prevent damages to the accelerator pedal pad,
warm the thumb area of the accelerator pedal
pad with a dryer, etc. prior to assembling it.
NOTE: If it is difficult to assemble, apply soapy water
to the thumb area to enhance the assembling proc-
ess.

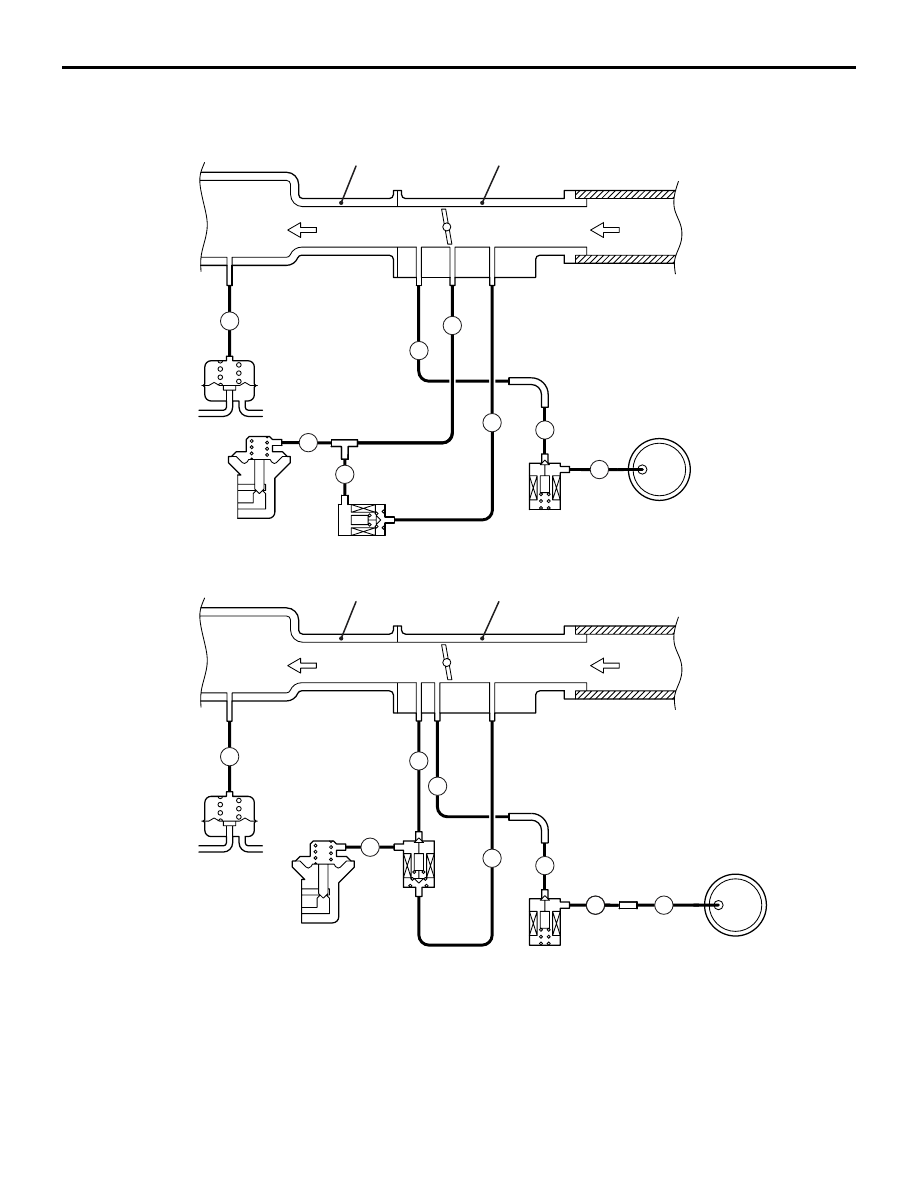

EMISSION CONTROL <MPI>
GENERAL INFORMATION
M1173000100370

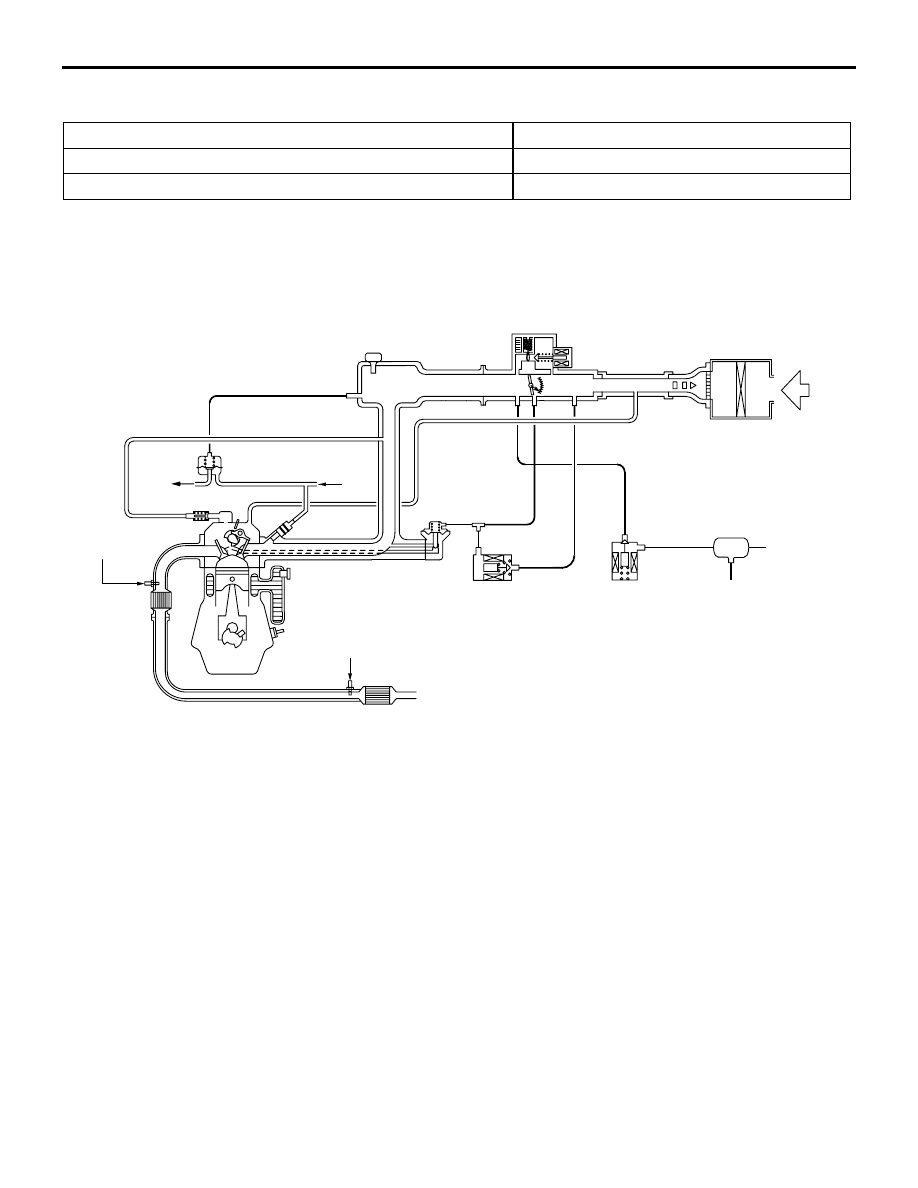

The emission control system consists of the following
subsystems:
• Crankcase emission control system
• Evaporative emission control system
•
Items
Name
Specification
Crankcase emission control
system
Positive crankcase ventilation
(PCV) valve
Variable flow type
(Purpose: HC reduction)
Evaporative emission control
system
Canister
Purge control solenoid valve
Equipped
Duty cycle type solenoid valve
(Purpose: HC reduction)
Exhaust emission control system
Air-fuel ratio control device - MPI
system
Oxygen sensor feedback type
(Purpose: CO, HC, NOx reduction)
Exhaust gas recirculation system
• EGR valve
• EGR control solenoid valve
Equipped
Single type
Duty cycle type solenoid valve
(Purpose: NOx reduction)
Catalytic converter
Monolith type
(Purpose: CO, HC, NOx reduction)

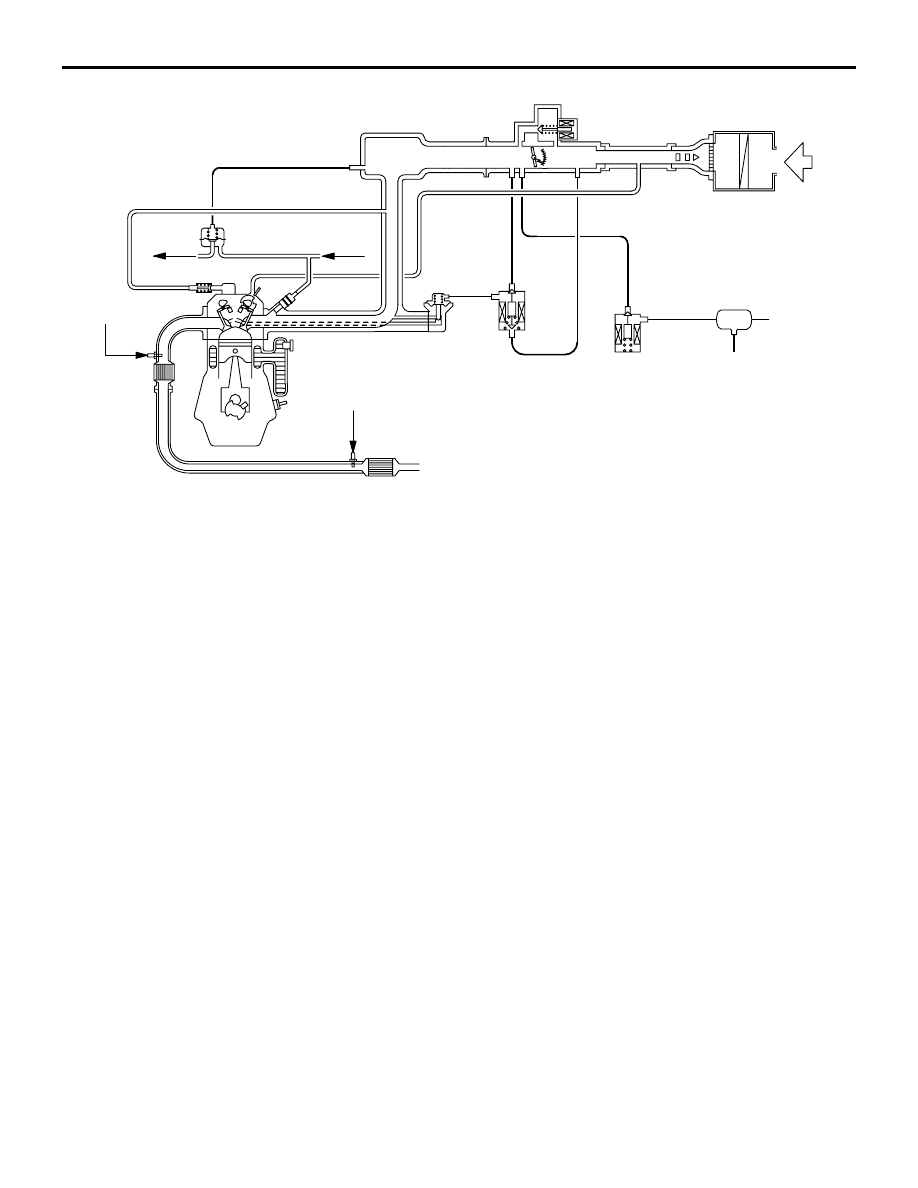

Exhaust emission control system
EMISSION CONTROL DEVICE
REFERENCE TABLE
M1173006600135
Related parts
Crankcase
emission
control
system
Evaporative
emission
control
system
Air/fuel ratio
control
system
Catalytic
converter
Exhaust gas
recirculation
system
PCV valve
×
Purge control solenoid valve
×
MPI system component
×
×
Catalytic converter
×
EGR valve
×
EGR control solenoid valve
×
7. Accelerator control equip bushing
8. Accelerator pedal arm return spring
9. Accelerator pedal arm stopper
10. Accelerator pedal arm bracket
11. Accelerator pedal arm
>>
A
<< 12. Accelerator pedal pad
13. Accelerator pedal arm stopper
Accelerator pedal assembly
removal steps (Continued)
