Mitsubishi Lancer. Manual - part 212





IGNITION SYSTEM

ENGINE ELECTRICAL

16-40

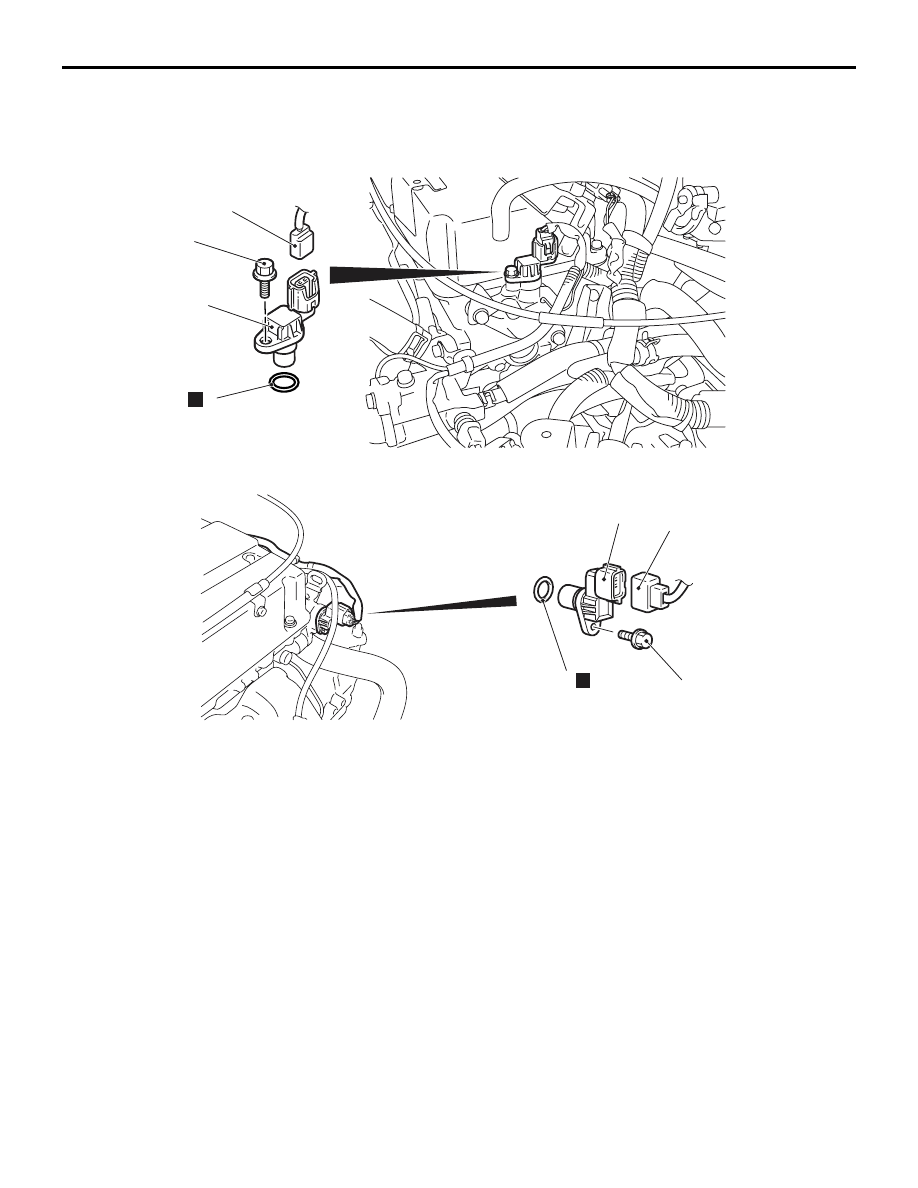

CAMSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION

M1163003400443

AC303970AB

2

3

8.8 ±  1.0 N·m

N

1

<4G1>

AC301556

N

1

2

3

8.8 ± 1.0 N·m

AC

<4G6>

Removal steps

1.

Camshaft position sensor
connector

2.

Camshaft position sensor

3.

O-ring

Removal steps (Continued)

IGNITION SYSTEM

ENGINE ELECTRICAL

16-41

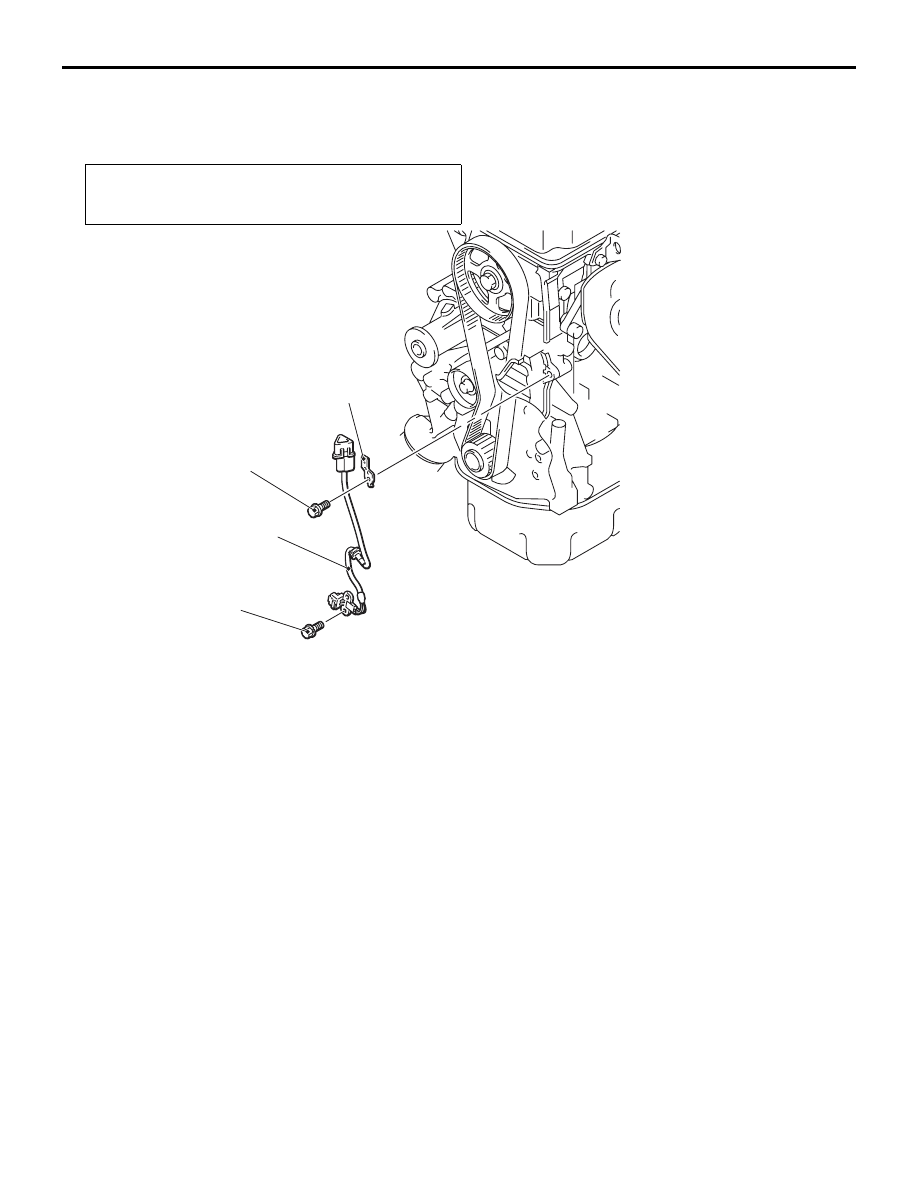

CRANKSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION <4G1>

M1163003500439

Pre-removal and Post-installation Operation
• Valve Timing Belt Removal and Installation (Refer to

GROUP 11

P.11A-33

).

AC208380AB

1

2

11 ± 1 N·m

8.8 ± 1.0 N·m

Removal steps

1.

Engine crank angle sensor

2.

Crank angle sensor connector
bracket

IGNITION SYSTEM

ENGINE ELECTRICAL

16-42

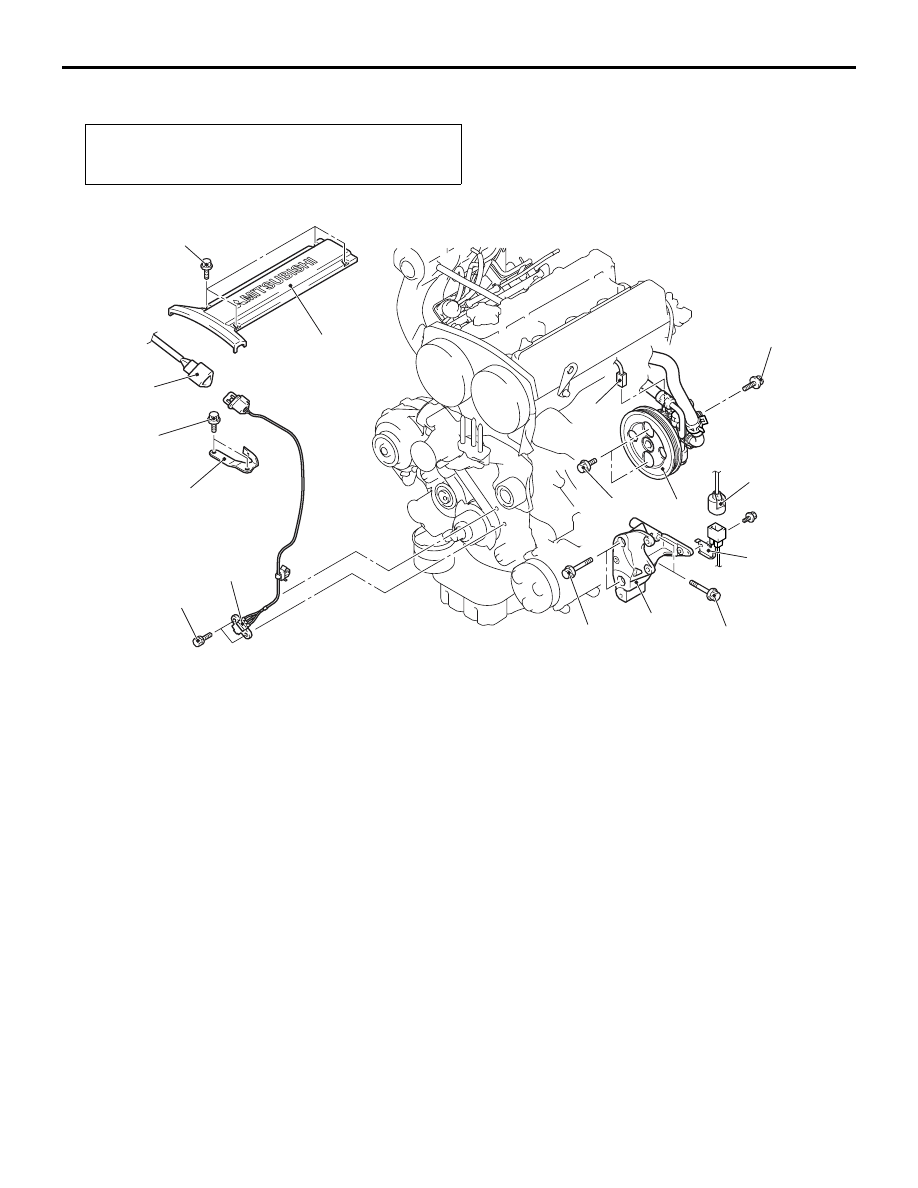

REMOVAL AND INSTALLATION <4G6>

M1163003500440

Pre-removal and Post-installation Operation
• Valve Timing Belt Removal and Installation (Refer to

GROUP 11

P.11C-35

).

AC301612

8.8 ± 1.0 N·m

8

8.8 ± 1.0 N·m

9

1

22 ± 4 N·m

4

2

3

49 ± 9 N·m

49 ± 9 N·m

5

22 ± 4 N·m

3.0 ± 0.5 N·m

6

7

AC

Removal steps

1.

Power steering pressure switch
connector

2.

A/C compressor connector

3.

A/C compressor connector clamp

<<

A

>>

4.

Power steering oil pump assembly

5.

Power steering oil pump bracket

6.

Rocker cover centre cover

7.

Engine crank angle sensor
connector

8.

Engine crank angle sensor

9.

Crank angle sensor connector
bracket

REMOVAL SERVICE POINT
<<A>> POWER STEERING OIL PUMP
ASSEMBLY REMOVAL

Remove the power steering oil pump assembly from
the bracket with the hose attached.
NOTE: Place the removed power steering oil pump
assembly in a place where it will not be a hindrance
when removing and installing and secure it with a
cord or wire.

IGNITION SYSTEM

ENGINE ELECTRICAL

16-43

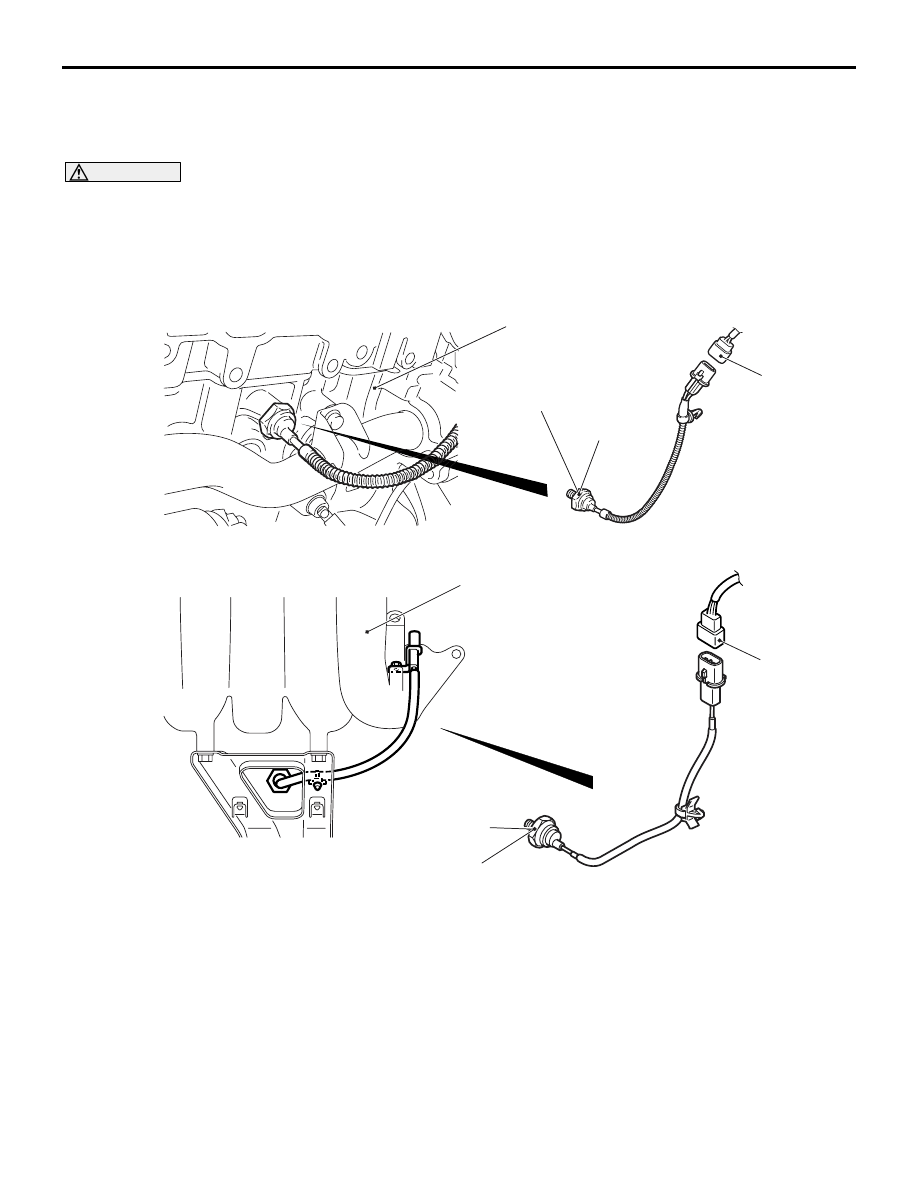

DETONATION SENSOR

REMOVAL AND INSTALLATION

M1163002801269

CAUTION

• When the detonation sensor replacement is performed, use the M.U.T.-II/III to initialise the learning

value (Refer to GROUP 00, Precautions Before Service

 Initialisation Procedure for Learning Value

in MPI Engine

P.00-19

).

AC303971

2

1

23 ± 2 N·m

AB

<4G1>

Cylinder block
(Intake side)

AC303972

2

1

23 ± 2 N·m

AB

<4G6>

Inlet manifold

Removal steps

1.

Engine control detonation sensor
connector

<<

A

>>

>>

A

<<

2.

Engine control detonation sensor

Do not drop or hit the detonation sensor against other components. Internal damage may result,
and the detonation sensor will need to be replaced.
