Mitsubishi Lancer. Manual - part 200

AC212035 AC

Spring balance

Approximately
40 mm

Pull

ON-VEHICLE SERVICE

PARKING BRAKES

36-4

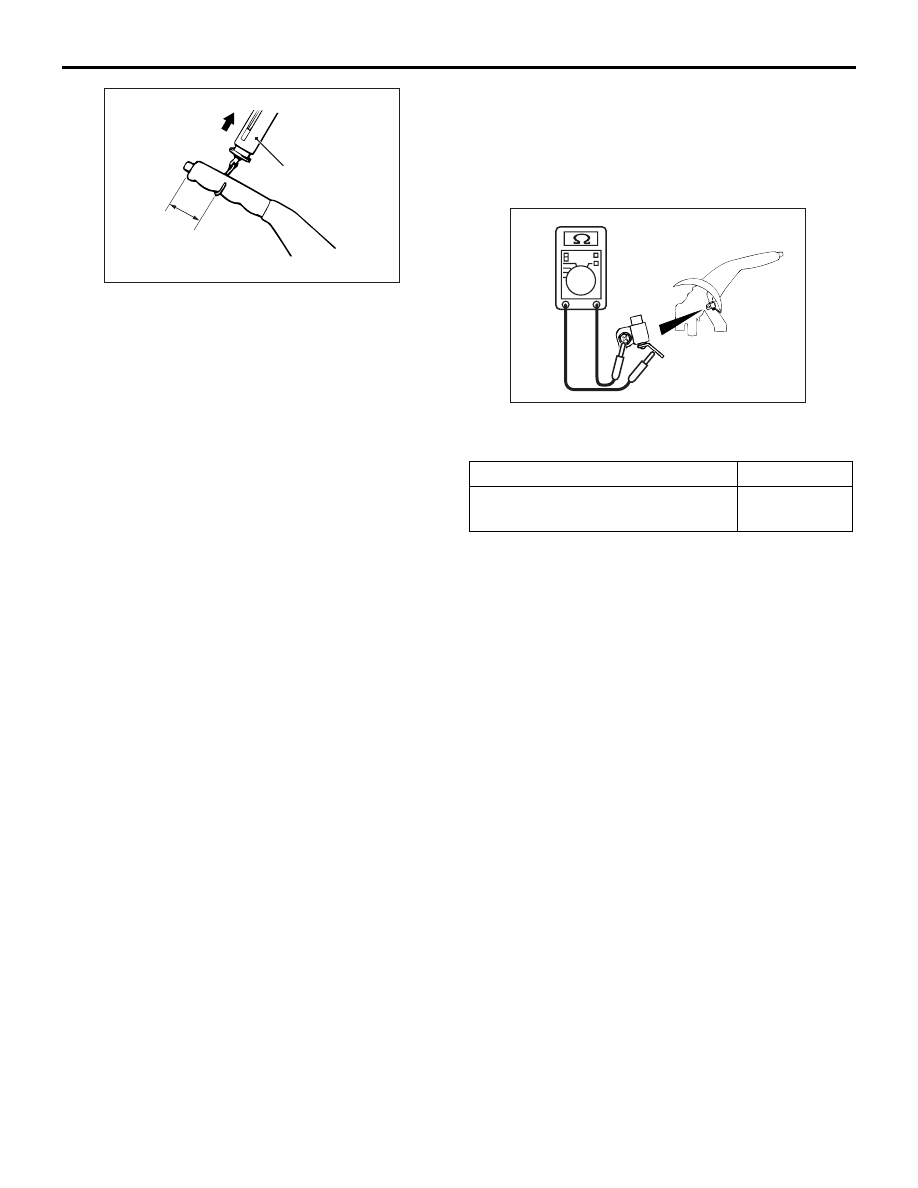

2. Hook a spring balance onto the centre of the

parking brake lever grip and pull it with a force of
100

− 150 N in a direction perpendicular to the

handle.

3. Drive the vehicle at a constant speed of 35

− 50

km/h for 100 metres.

4. Release the parking brake and let the brakes cool

for 5

− 10 minutes.

5. Repeat the procedure in steps 2 to 4, four or five

times.

PARKING BRAKE SWITCH CHECK

M1361003300381

1. Remove the rear console assembly (Refer to

GROUP 52A, Rear Floor Console

P.52A-10

).

2. Remove the front seat assembly (RH). (Refer to

GROUP 52A, Front Seat

P.52A-26

).

AC304746 AB

3. Check for continuity between the parking brake

switch terminal and the switch mounting bolt.

When parking brake lever is pulled Less than 2

Ω

When parking brake lever is
released

Open circuit

PARKING BRAKE LEVER

PARKING BRAKES

36-5

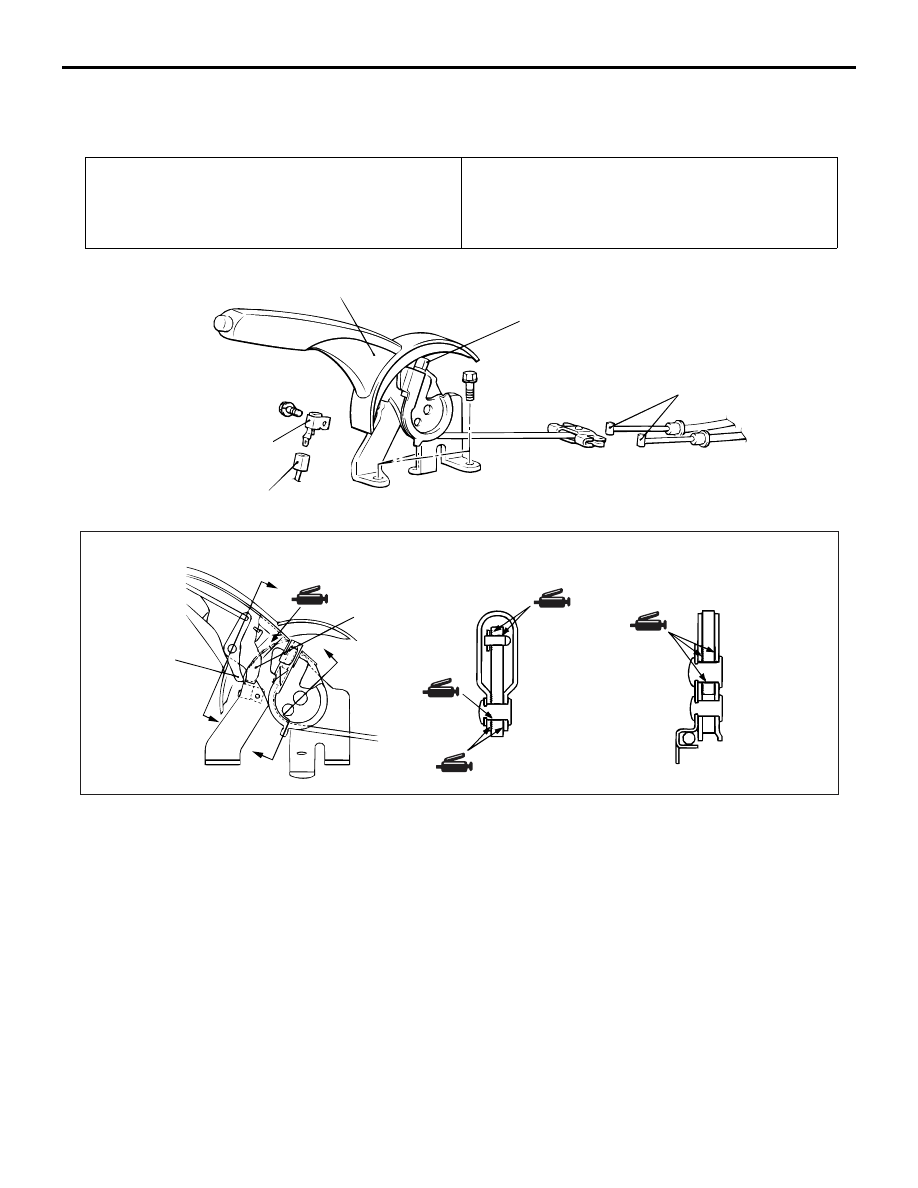

PARKING BRAKE LEVER

REMOVAL AND INSTALLATION

M1361001300330

Pre-removal Operation
Rear Console Assembly and Rear Console Bracket Removal
(Refer to GROUP 52A, Rear Floor Console

P.52A-10

.)

Post-installation Operation
• Parking Brake Lever Stroke Adjustment (Refer to

P.36-3

.)

• Rear Console Bracket and Rear Console Assembly

Installation (Refer to GROUP 52A, Rear Floor Console

P.52A-10

.)

AC006199 AB

4

5

2

1

3

A

A

B

B

Ratchet pawl

Section A - A

Section B - B

Ratchet pawl

Removal steps

1.

Adjusting nut

2.

Parking brake switch connector

3.

Parking brake cable connection

4.

Parking brake lever assembly

5.

Parking brake switch

PARKING BRAKE CABLE

PARKING BRAKES

36-6

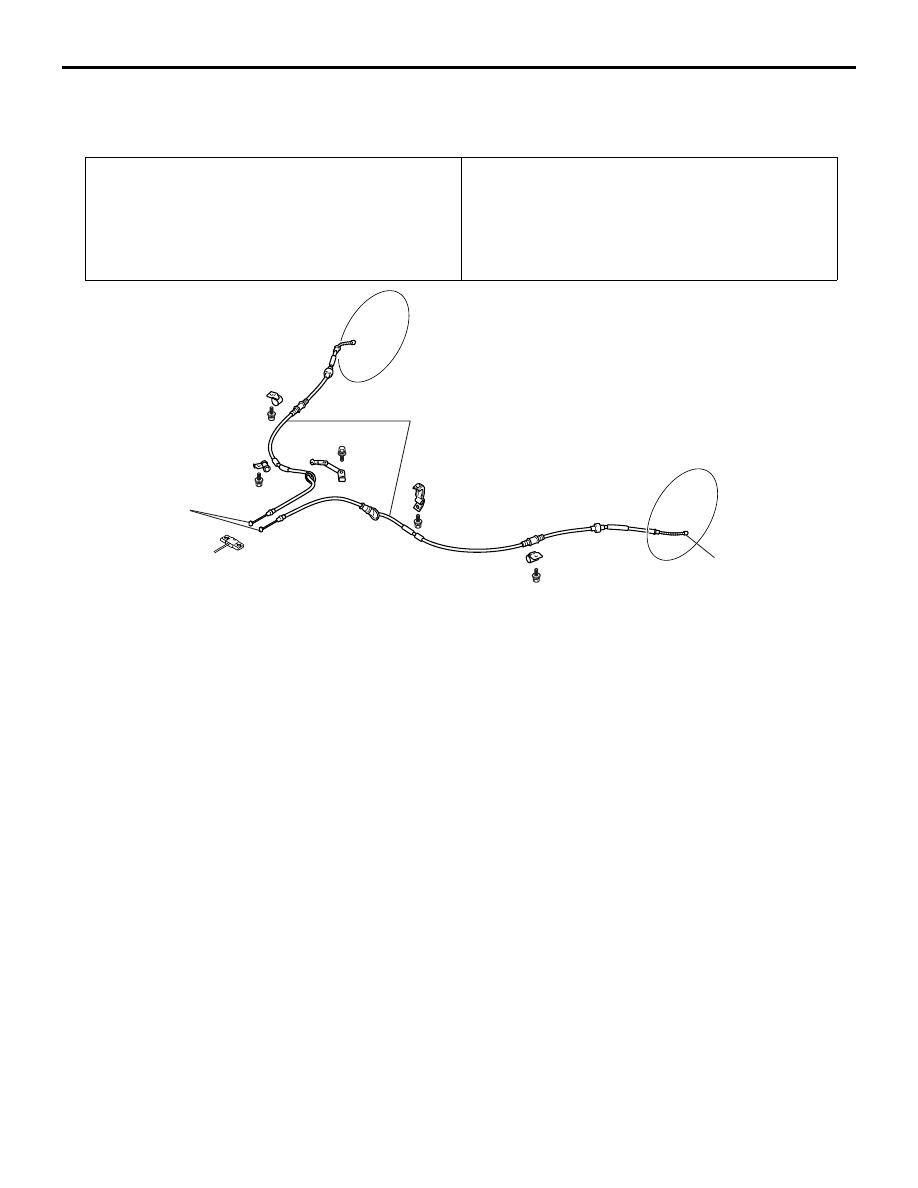

PARKING BRAKE CABLE

REMOVAL AND INSTALLATION

M1361001900785

Pre-removal Operation
• Rear Console Assembly and Rear Console Bracket

Removal (Refer to GROUP 52A, Rear Floor Console

P.52A-10

).

• Rear Seat Cushion Assembly Removal (Refer to GROUP

52A, Rear Seat

P.52A-30

).

Post-installation Operation
• Parking Brake Lever Stroke Adjustment (Refer to

P.36-3

).

• Rear Seat Cushion Assembly Installation (Refer to

GROUP 52A, Rear Seat

P.52A-30

).

• Rear Console Bracket and Rear Console Assembly

Installation (Refer to GROUP 52A, Rear Floor Console

P.52A-10

).

AC301226

1

AB

2

3

Removal steps

•

Rear brake shoe assembly (Refer to

P.36-7

).

•

Loosen the parking brake lever stroke
adjusting nut.

1.

Parking brake cable connection

2.

Parking brake cable connection

3.

Parking brake cable

Removal steps (Continued)

PARKING BRAKE LINING AND DRUM

PARKING BRAKES

36-7

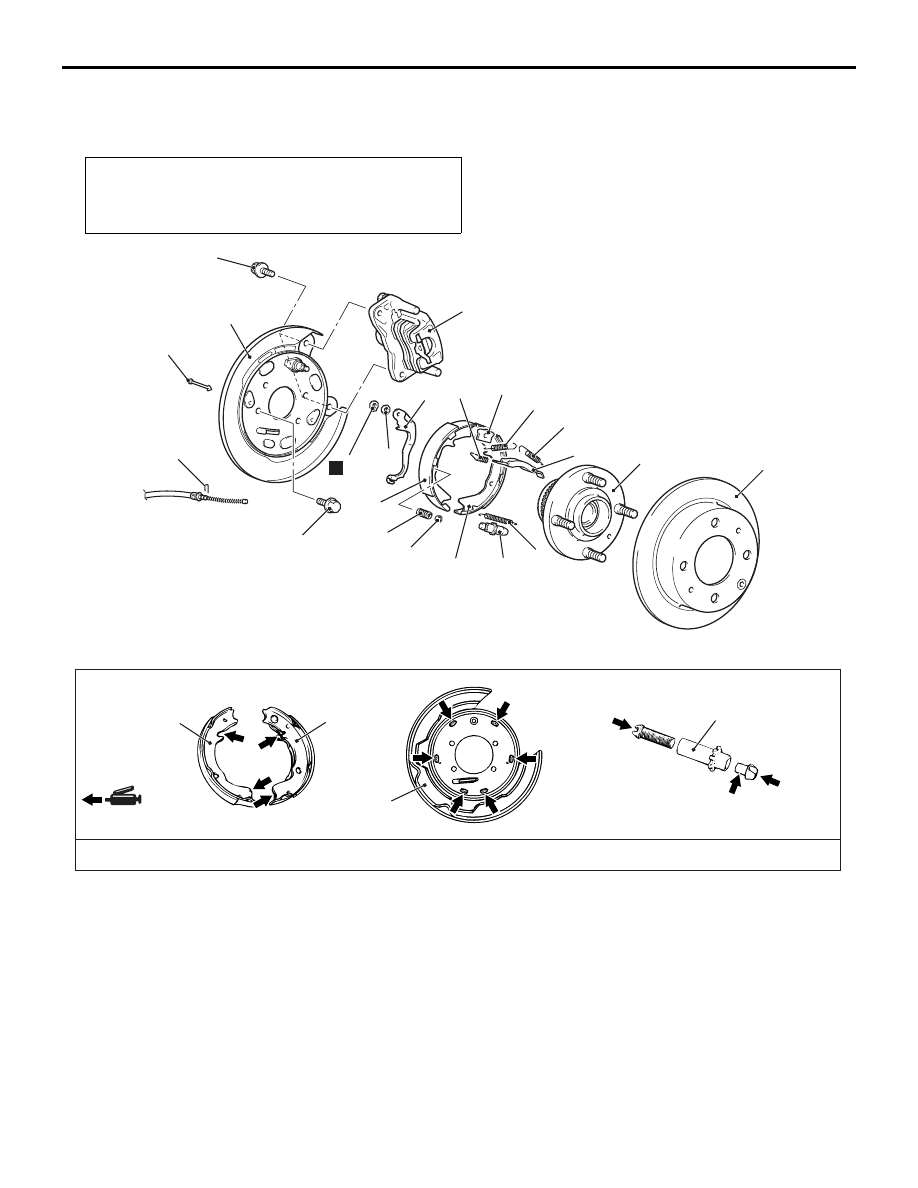

PARKING BRAKE LINING AND DRUM

REMOVAL AND INSTALLATION

M1361002500296

Post-installation Operation
• Parking Brake Lever Stroke Check and Adjustment (Refer

to

P.36-3

).

• Lining Running-in (Refer to

P.36-3

).

AC304238

19

60 ± 5 N·m

63 ± 7 N·m

AB

13

4

15

5

3

8

9

7

2

1

6

10

11

12

17

18

14

16

20

N

15

14

20

8

Specified grease: Brake grease SAE J310, NLGI No.1







Removal steps

<<

A

>>



1.  Rear brake assembly





2.  Rear brake disc
3.

Rear hub assembly (Refer to
GROUP 27, Rear Hub Assembly

P.27-5

).



>>

D

<< 4.

Shoe return spring



>>

D

<< 5.  Shoe return spring





6.  Shoe guide plate





7.  Shoe auto adjuster spring



>>

C

<< 8.  Shoe slack adjuster





9.  Parking brake operating lever strut





10.  Shoe to strut spring





11.  Shoe spring cup





12.  Shoe hold-down spring





13.  Rear brake pin





14.  Rear brake primary shoe assembly





15.  Rear brake secondary shoe

assembly

<<

B

>> >>

B

<< 16.  Rear brake chamber retainer



>>

A

<< 17.  Rear brake washer





18.  Parking brake operating lever





19.  Parking brake cable clip





20.  Rear brake backing plate





Removal

steps

(Continued)
