Mitsubishi Lancer. Manual - part 191





ON-VEHICLE SERVICE

POWER STEERING

37-12

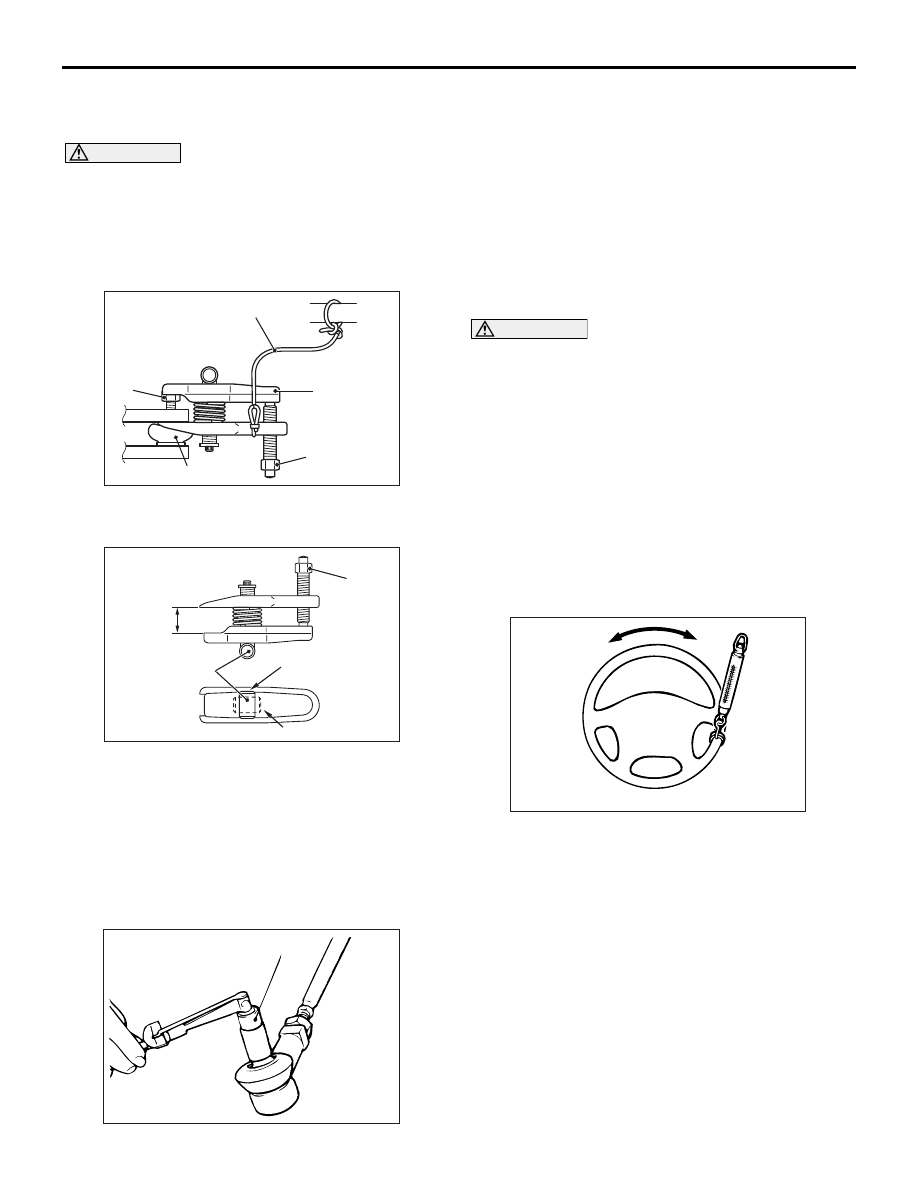

TIE ROD END BALL JOINT TURNING
TORQUE CHECK

M1372001500554

CAUTION

• Do not remove the tie rod end nut from the

ball joint. Loosen it and use special tool to
avoid possible damage to the ball joint
threads.

AC208247AJ

Cord

Bolt

MB991897
or
MB992011

Nut

Ball joint

Hang special tool with cord to prevent it from
falling.

1. Install special tool ball joint remover (MB991897

or MB992011) as shown in the figure.

AC106821

Knob

Parallel

Bolt

Correct

Wrong

AD

2. Turn the bolt and knob as necessary to make the

jaws of special tool parallel, tighten the bolt by
hand and confirm that the jaws are still parallel.
NOTE: When adjusting the jaws in parallel, make
sure the knob is in the position shown in the fig-
ure.

3. Tighten the bolt with a wrench to disconnect the

tie rod end.

ACX01129 AB

MB990326

4. Move the ball joint stud several times and install

the nut on the stud. Using special tool preload
socket (MB990326), measure the ball joint turning
torque.

Standard value: 0.5

 2.5 N⋅ m

5. If the turning torque exceeds the standard value,

replace the tie rod end.

6. If the turning torque is under the standard value,

check the ball joint for axial play or ratcheting. If
no axial play or ratcheting, the ball joint can be
re-used.

CAUTION

Always use a new ball joint nut as it is a self-lock-
ing nut.
7. Install the tie rod end to the knuckle, then tighten a

new self-locking nut to the specified torque.

Tightening torque: 25

± 5 N⋅ m

STATIONARY STEERING EFFORT CHECK

M1372001700332

1. With the vehicle stopped on a flat and paved

surface, turn the steering wheel to the straight
ahead position.

2. Start the engine and set the engine idle speed.

Standard value: 750

± 100 r/min

ACX01122 AB

3. Attach a spring balance to the outer

circumference of the steering wheel and measure
the steering force required to turn the steering
wheel from the straight ahead position to the left
and right (within a range of 1.5 turns). Also check
to be sure that there is no significant change in
the required steering effort.

Standard value:

Steering effort: 29 N or less
Fluctuation allowance: 5.9 N or less

4. If the measured value exceeds the standard

value, check and adjust the related parts.

ON-VEHICLE SERVICE

POWER STEERING

37-13

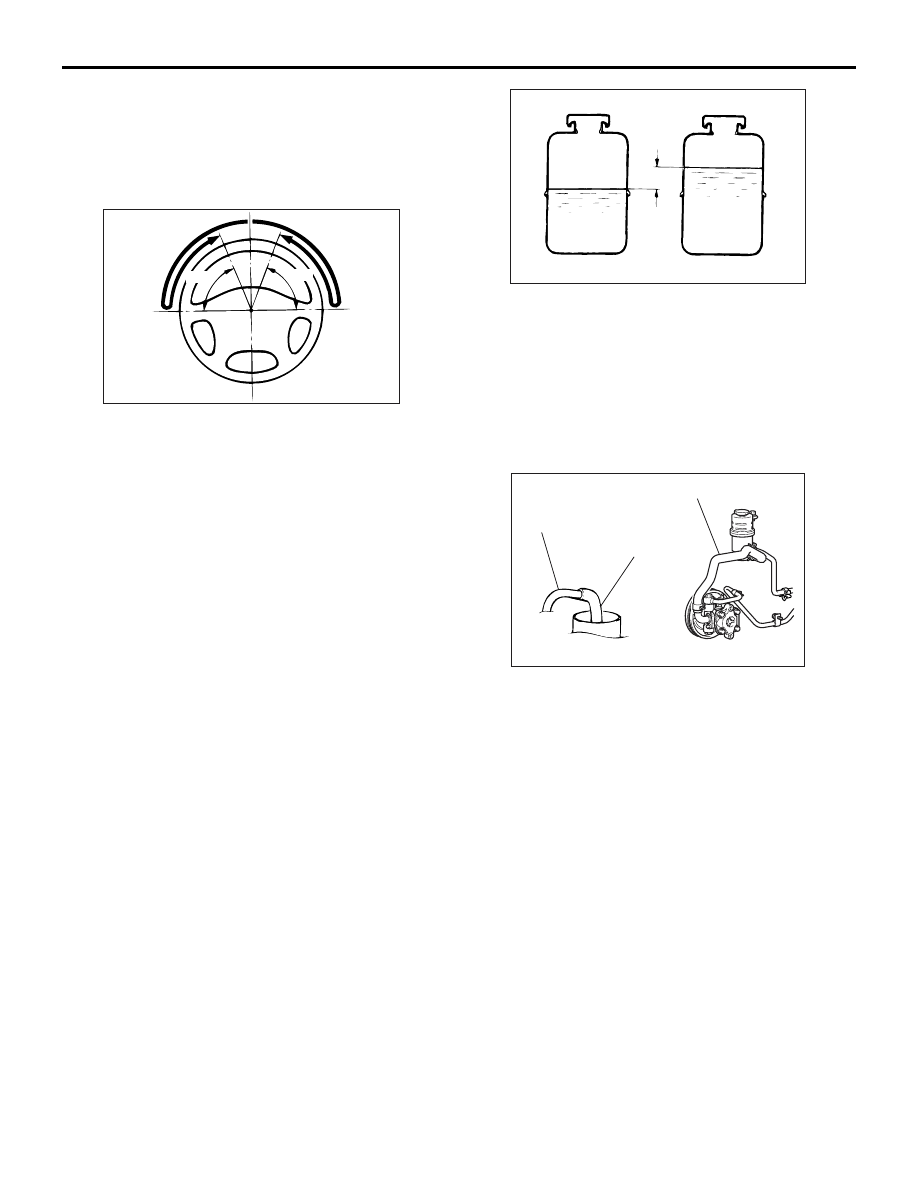

STEERING WHEEL RETURN TO CENTRE
CHECK

M1372001800317

Conduct a road test:
1. Make both gradual and sudden turns and check

the steering wheel return.

ACX01130AB

70˚

70˚

2. At a vehicle speed of approximately 35 km/h, turn

the steering wheel 90

° , hold a few seconds, then

release. If the steering wheel then returns 70

°  or

more, the return can be judged satisfactory.
NOTE: There will be a momentary feeling or
"heaviness" when the wheel is turned quickly, but
this is not abnormal (Oil pump discharge amount
is especially apt to be insufficient during idling).

DRIVE BELT TENSION CHECK

M1372001900392

For vehicles with 1300 and 1600 engine, refer to
GROUP 11A, On-vehicle Service

− Drive Belt Tension

Check

P.11A-7

.

For vehicles with 2000 engine, refer to GROUP 11C,
On-vehicle Service

− Drive Belt Tension Check

P.11C-7

.

FLUID LEVEL CHECK

M1372002000284

1. Park the vehicle on a flat, level surface.
2. Start the engine, and then turn the steering wheel

several times to raise the temperature of the fluid
to approximately 50

− 60° C.

3. With the engine running, turn the wheel all the

way to the left and right several times.

ACX01131

With engine running

With engine stopped

AC

Fluid level change: Within 5 mm

4. Check the fluid in the oil reservoir for foaming or

milkiness. Check the difference of the fluid level
when the engine is stopped, and while it is
running. If the change of the fluid level is 5 mm or
more, air bleeding should be done.

FLUID REPLACEMENT

M1372002100333

1. Raise and support the front wheels.

AC100369AB

Return hose

Return hose

Vinyl hose

2. Disconnect the return hose connection, and then

connect a vinyl hose to the return hose, and drain
the fluid into a container.

3. Disconnect the ignition coil connectors (Refer to

GROUP 16, Ignition Coil

P.16-38

or

P.16-39

).

4. While operating the starter motor intermittently,

turn the steering wheel all the way to the left and
right several times to drain all of the fluid.

5. Connect the return hose securely, and then

secure with the clip.

6. Fill the oil reservoir with specified fluid up to

between "MAX" and "MIN" marks, and then bleed
the air.

Specified fluid: ATF DEXRON III or DEXRON
II

ON-VEHICLE SERVICE

POWER STEERING

37-14

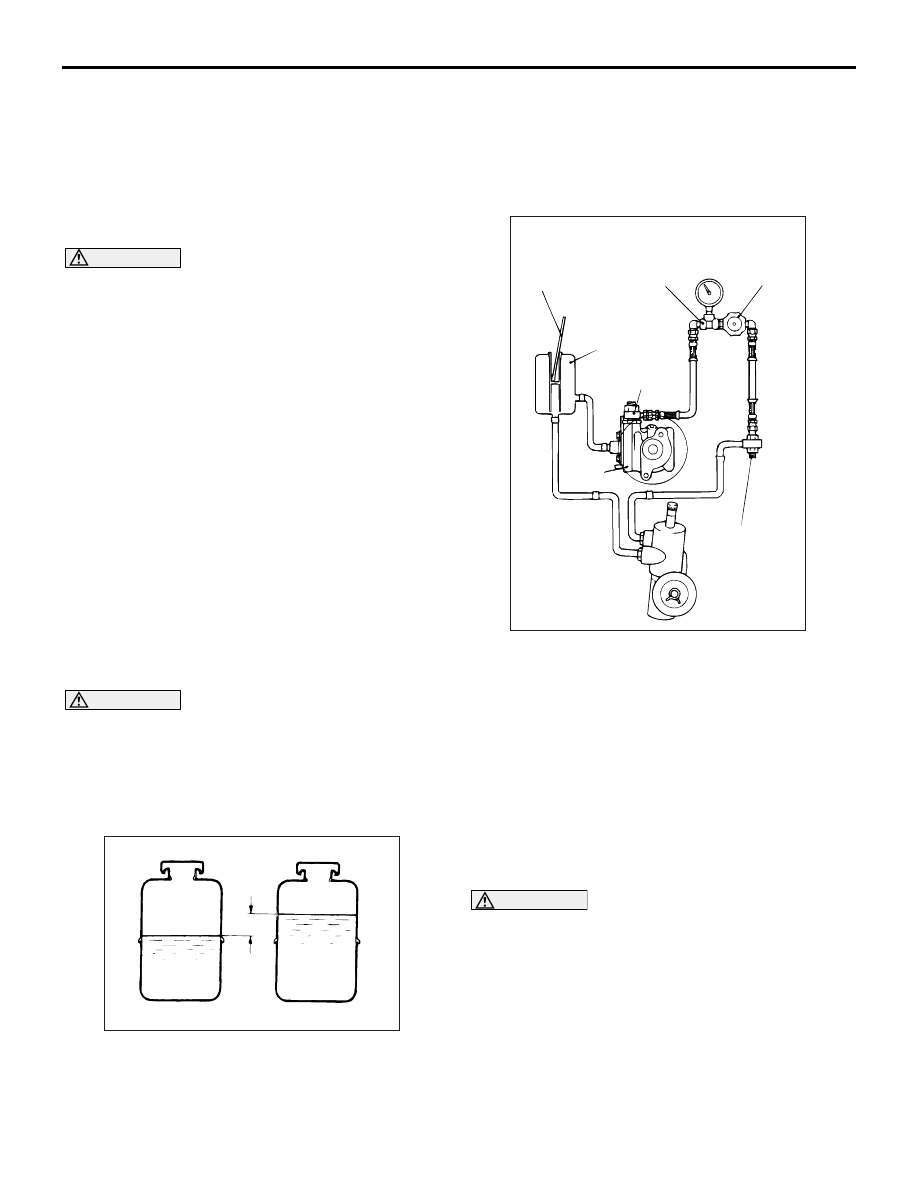

POWER STEERING SYSTEM AIR
BLEEDING

M1372002200330

Perform air bleeding procedure as necessary after
replacing the steering gear or the steering fluid lines.
1. Raise and support the front wheels.
2. Disconnect the ignition coil connectors (Refer to

GROUP 16, Ignition Coil

P.16-38

 or

P.16-39

).

CAUTION

Perform air bleeding only while cranking the
engine. If air bleeding is performed while the
engine is running, air could enter the fluid. Dur-
ing air bleeding, refill the steering fluid supply so
that the level never falls below the "MIN" mark on
the oil reservoir.
3. Turn the steering wheel all the way to the left and

right five or six times while using the starter motor
to crank the engine intermittently several times
(for 15 to 20 seconds).

4. Connect the ignition coil connectors (Refer to

GROUP 16, Ignition Coil

P.16-38

 or

P.16-39

).

5. Start the engine (idling).
6. Turn the steering wheel to the left and right until

there are no air bubbles in the oil reservoir.

7. Confirm that the fluid is not milky, and that the

level is between "MAX" and "MIN" marks.

8. Confirm that there is very little change in the fluid

level when the steering wheel is turned left and
right.

CAUTION

If the fluid level rises suddenly after the engine is
stopped, the air has not been completely bled. If
air bleeding is not complete, there will be abnor-
mal noises from the pump and the flow-control
valve, and this condition could cause reduce the
life of the power steering components.

ACX01131

With engine running

With engine stopped

AC

Fluid level change: Within 5 mm

9. Confirm that the change in the fluid level is no

more than 5 mm when the engine is stopped and
when it is running.

10.If the change of the fluid level is 5 mm or more,

the air has not been completely bled from the
system. The air bleeding procedure must be
repeated.

OIL PUMP PRESSURE TEST

M1372002300315

ACX01133

Temperature
gauge

Oil reservoir

Adapter
(MB991548)

Oil
pump

Adapter
(MB991549)

AB

Shut-off valve
(fully closed)

Pressure
gauge
(MB990662)

1. Disconnect the pressure hose from the oil pump,

and then connect the following special tools.

• Power steering oil pressure gauge (MB990662)

• Power steering oil pressure gauge adapter (pump

side) (MB991548)

• Power steering oil pressure gauge adapter (hose

side) (MB991549)

2. Bleed air, then turn the steering wheel several

times while the vehicle is not moving so that the
temperature of the fluid rises to approximately 50

−

60

° C.

3. Start the engine and idle it at 750

± 100 r/min.

CAUTION

The pressure gauge shut-off valve must not
remain closed for more than 10 seconds.
4. Fully close the shut-off valve of the pressure

gauge and measure the oil pump relief pressure
to confirm that it is within the standard value
range. Open it again immediately after checking
the pressure.

Standard value: 8.8

 9.5 MPa

5. If it is not within the standard value, replace the oil

pump.

ON-VEHICLE SERVICE

POWER STEERING

37-15

6. Check whether or not the hydraulic pressure is

the standard value when no-load conditions are
created by fully opening the shut-off valve of the
pressure gauge.

Standard value: 0.2

 0.7 MPa

7. If it is not within the standard value, the probable

cause is a malfunction of the oil line or steering
gear, so check these parts and repair as
necessary.

8. Turn the steering wheel all the way to the left or

right; then check whether or not the retention
hydraulic pressure is the standard value.

Standard value: 8.8

 9.5 MPa

9. If not the standard value, overhaul the steering

gear. Remeasure fluid pressure.

10. Remove the special tools, and then tighten the

pressure hose to the specified torque.

Tightening torque: 57

± 7 N⋅ m

11. Bleed the system (Refer to

P.37-14

).

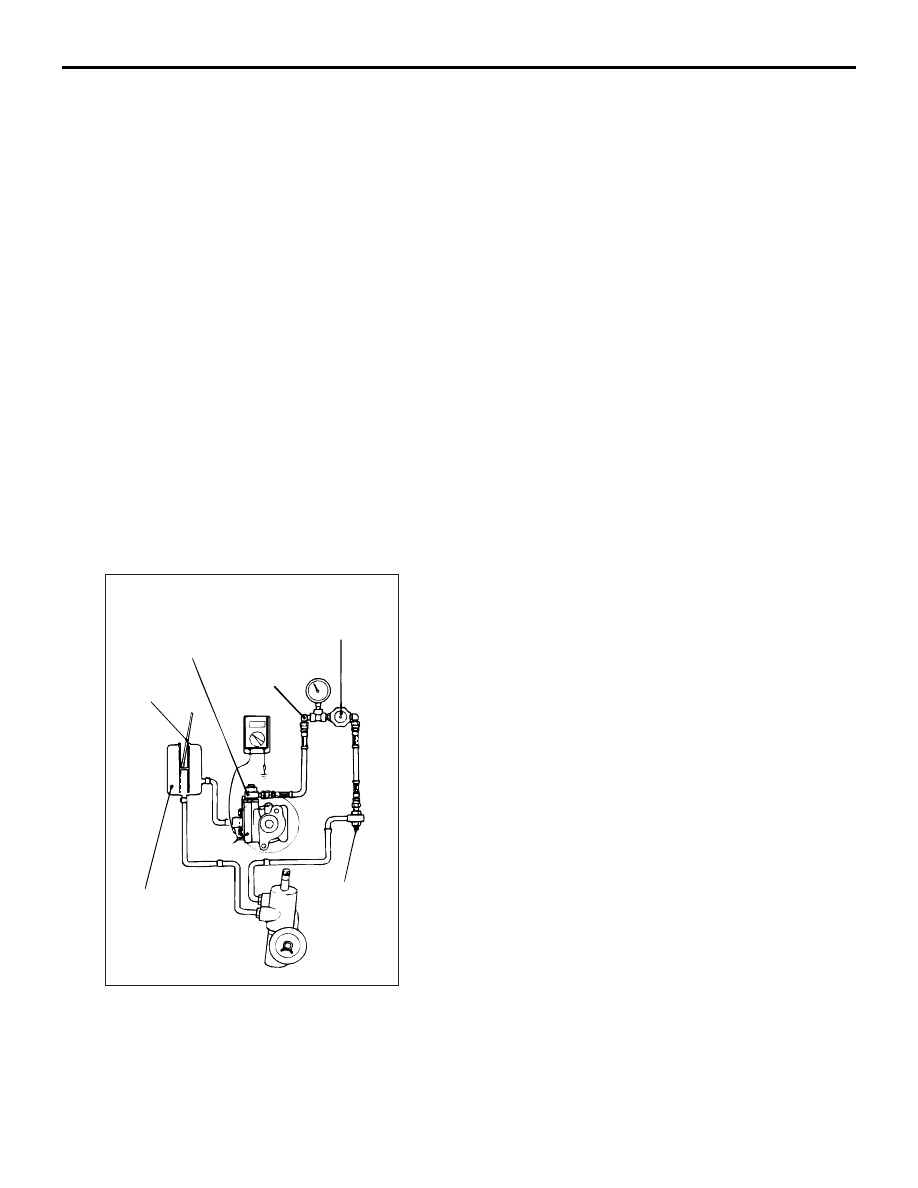

POWER STEERING PRESSURE SWITCH
CHECK

M1372007200324

ACX01134 AB

Temperature
gauge

Adapter
(MB991548)

Oil reservoir

Oil
pump

Adapter
(MB991549)

Shut-off valve

Pressure gauge
(MB990662)

1. Disconnect the pressure hose from the oil pump,

and then connect the following special tools.

• Power steering oil pressure gauge (MB990662)

• Power steering oil pressure gauge adapter (pump

side) (MB991548)

• Power steering oil pressure gauge adapter (hose

side) (MB991549)

2. Bleed air, and then turn the steering wheel several

times while the vehicle is not moving so that the
temperature of the fluid rises to approximately 50

−

60

° C.

3. The engine should be idling.
4. Disconnect the connector for the oil pressure

switch, and place an ohmmeter at the switch.

5. Gradually close the shut-off valve of the pressure

gauge and increase the hydraulic pressure, then
check whether or not the hydraulic pressure that
activates the switch is the standard value.

Standard value: 1.5

 2.0 MPa

6. Gradually open the shut-off valve and reduce the

hydraulic pressure; then check whether or not the
hydraulic pressure that deactivates the switch is
the standard value.

Standard value: 0.7

 2.0 MPa

7. Remove the special tools, and then tighten the

pressure hose to the specified torque.

Tightening torque: 57

± 7 N⋅ m

8. Bleed the system (Refer to

P.37-14

).

TIE ROD END BALL JOINT DUST COVER
CHECK

M1372008600262

1. Press the dust cover with your finger to check

whether the dust cover is cracked or damaged.

2. If the dust cover is cracked or damaged, replace

the tie rod end.
NOTE: If the dust cover is cracked or damaged,
the ball joint could be damaged.

STEERING COLUMN SHAFT ASSEMBLY
SHOCK ABSORBING MECHANISM
CHECK

M1372013500090

If a collision accident occurs or severe impact is
applied on the steering wheel, the collision energy
absorbing mechanism may have operated. Once the
mechanism has operated, it will be inoperative even
it has suffered no apparent damage. Determine if the
steering column shaft can be reused by the following
procedure. If the collision energy absorbing mecha-
nism has already operated, replace the steering col-
umn shaft assembly.
If any excessive radial free play on the steering
wheel is found with the tilt lever in the lock position,
always check the steering shaft assembly.















Content   ..  189  190  191  192   ..
