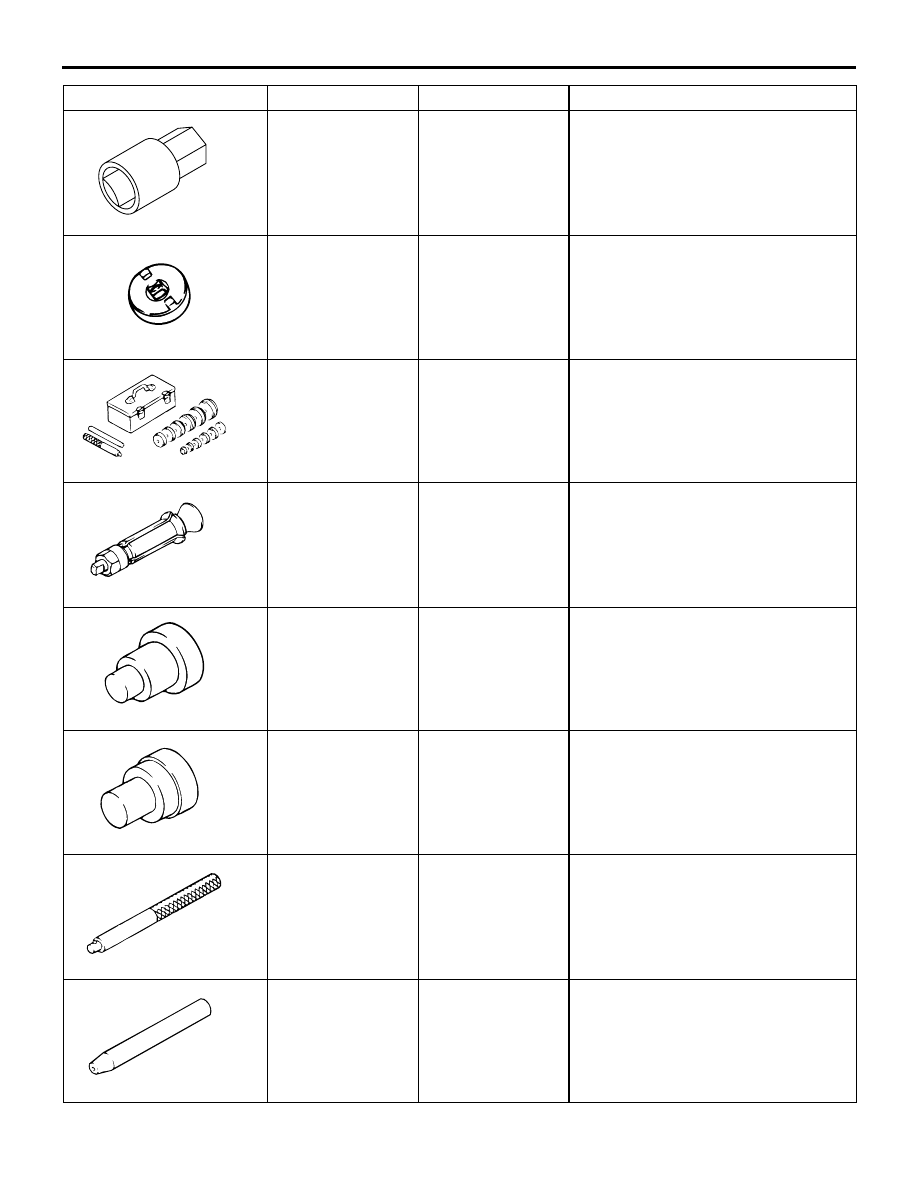

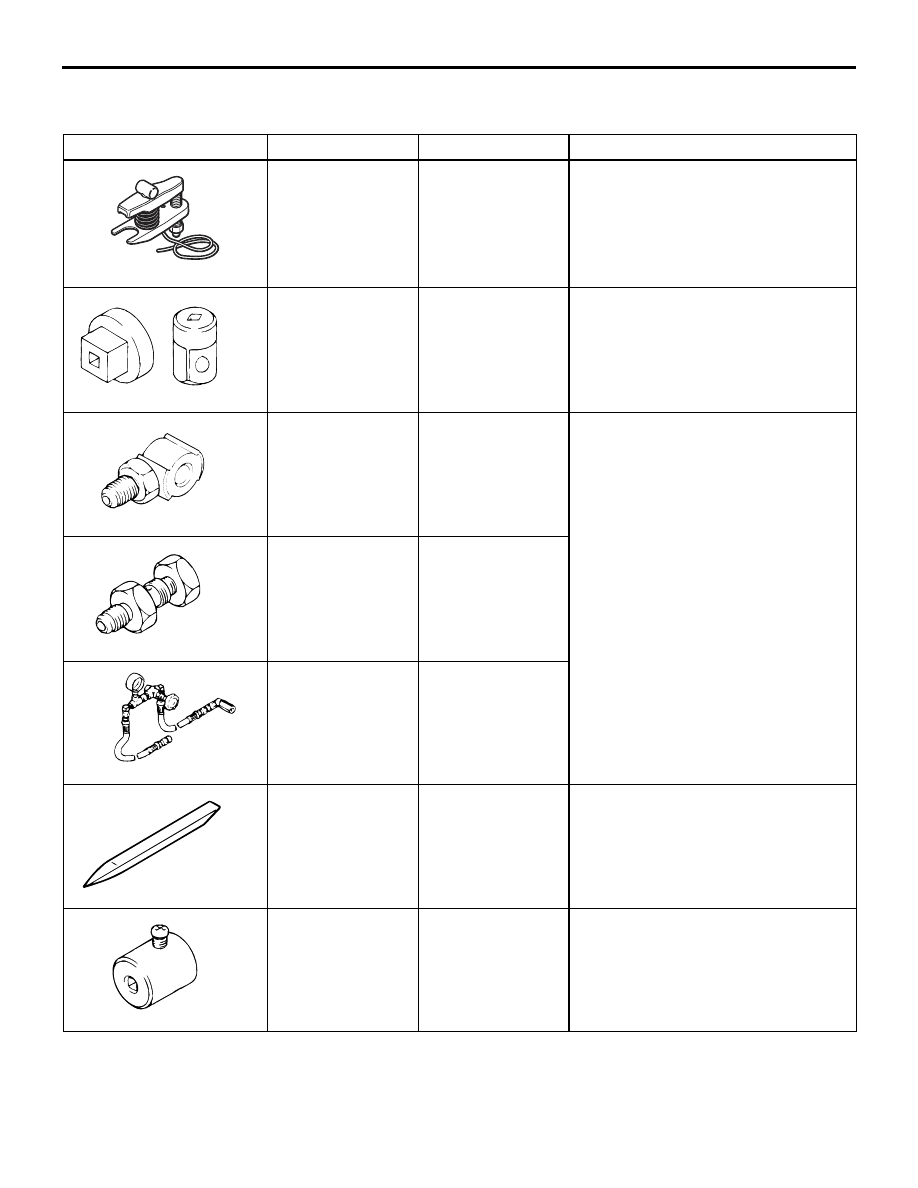

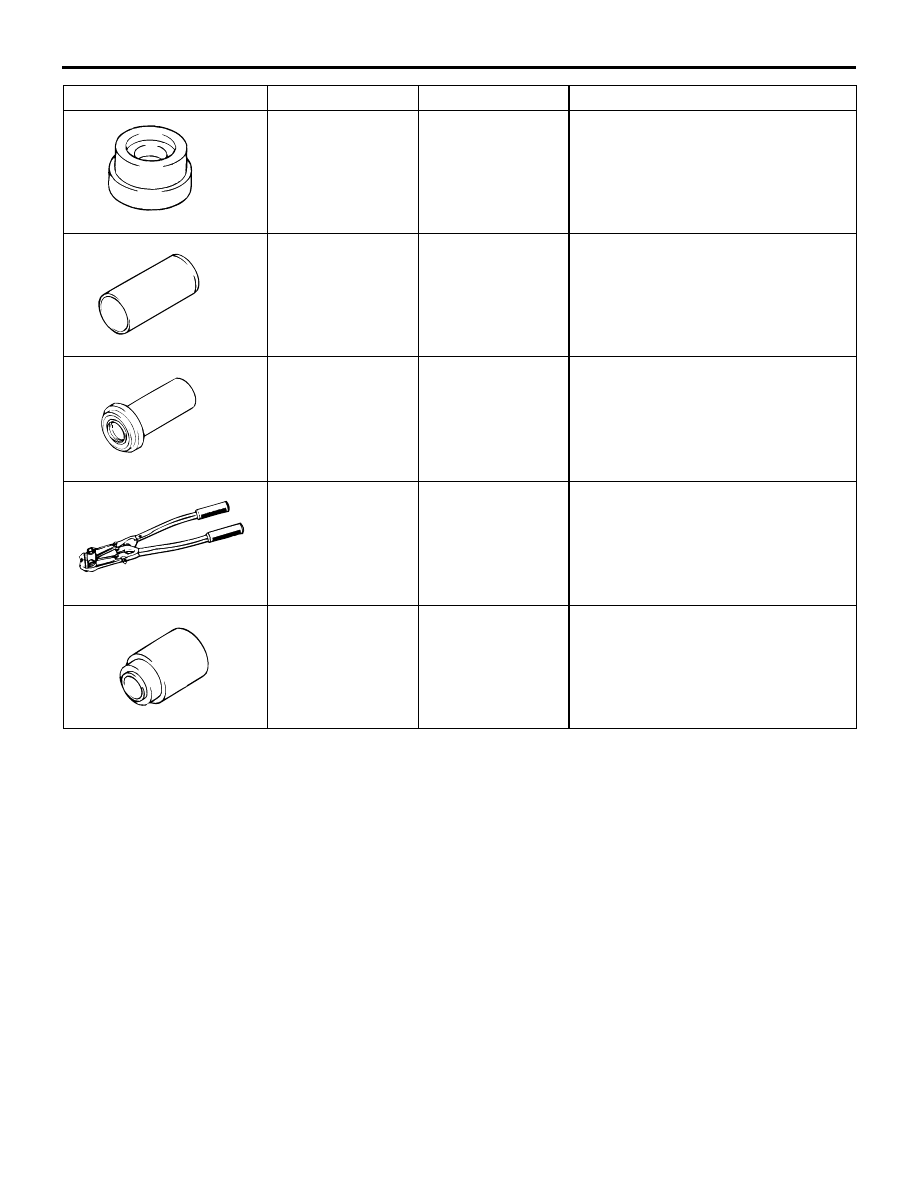

SPECIAL TOOLS

POWER STEERING

37-8

SPECIAL TOOLS

M1372000600666

Tool

Number

Name

Use

AC106827

MB991897 or
MB992011

Ball joint remover

Knuckle and tie rod end ball joint
disconnection
NOTE: Steering linkage puller
(MB990635 or MB991113) is also
available to disconnect knuckle and
tie rod end ball joint.

MB990326

MB990326

Preload socket

Tie rod end ball joint turning torque
check

MB991548

MB991548

Power steering oil
pressure gauge
adapter (Pump
side)

Oil pump pressure test

MB991549

MB991549

Power steering oil
pressure gauge
adapter (Hose
side)

MB990662

MB990662

Power steering oil
pressure gauge

MB990784

MB990784

Ornament remover Cover removal

MB991006

MB990228 or
MB991006

Preload socket

Steering gear total pinion torque
check and adjustment

SPECIAL TOOLS

POWER STEERING

37-9

MB990607

Torque wrench
socket

• Rack support cover removal

<Invite>

• Rack support adjustment <Invite>

MB991621

MB991621

Piston driver

• Rack support cover removal

<Intense>

• Rack support adjustment

<Intense>

MB990925

MB990925

Bearing and oil
seal installer set

• Lower bearing removal

• Oil seal and bearing installation

• MB990927, MB990938, MB990939

(For details, refer to GROUP 26,
Special Tools

P.26-4

).

MB991120

MB991120

Needle bearing
puller

Needle bearing removal

MB991202

MB991202

Oil seal and
bearing installer

• Oil seal installation <Invite>

• Needle bearing installation

• Lower bearing installation

MB991199

AB

MB991199

Oil seal and
bearing installer

Oil seal installation <Intense>

MB991197

MB991197

Bar (long type)

Oil seal installation

MB991212

MB991212
MB991213

Oil seal protector

Rack installation

Tool

Number

Name

Use

MB991203

SPECIAL TOOLS

POWER STEERING

37-10

MB991203

Oil seal and
bearing installer

Oil seal and bearing installation

MB991317

MB991317

Seal ring installer

Seal rings installation

MB990941

MB990941

Torque tube
bearing installer

Lower oil seal installation

MB991561

MB991561

Boot band crimping
tool

Bellows band installation

MB990776

MB990776

Front axle base

Tie rod end ball joint dust cover
installation

Tool

Number

Name

Use

ON-VEHICLE SERVICE

POWER STEERING

37-11

ON-VEHICLE SERVICE

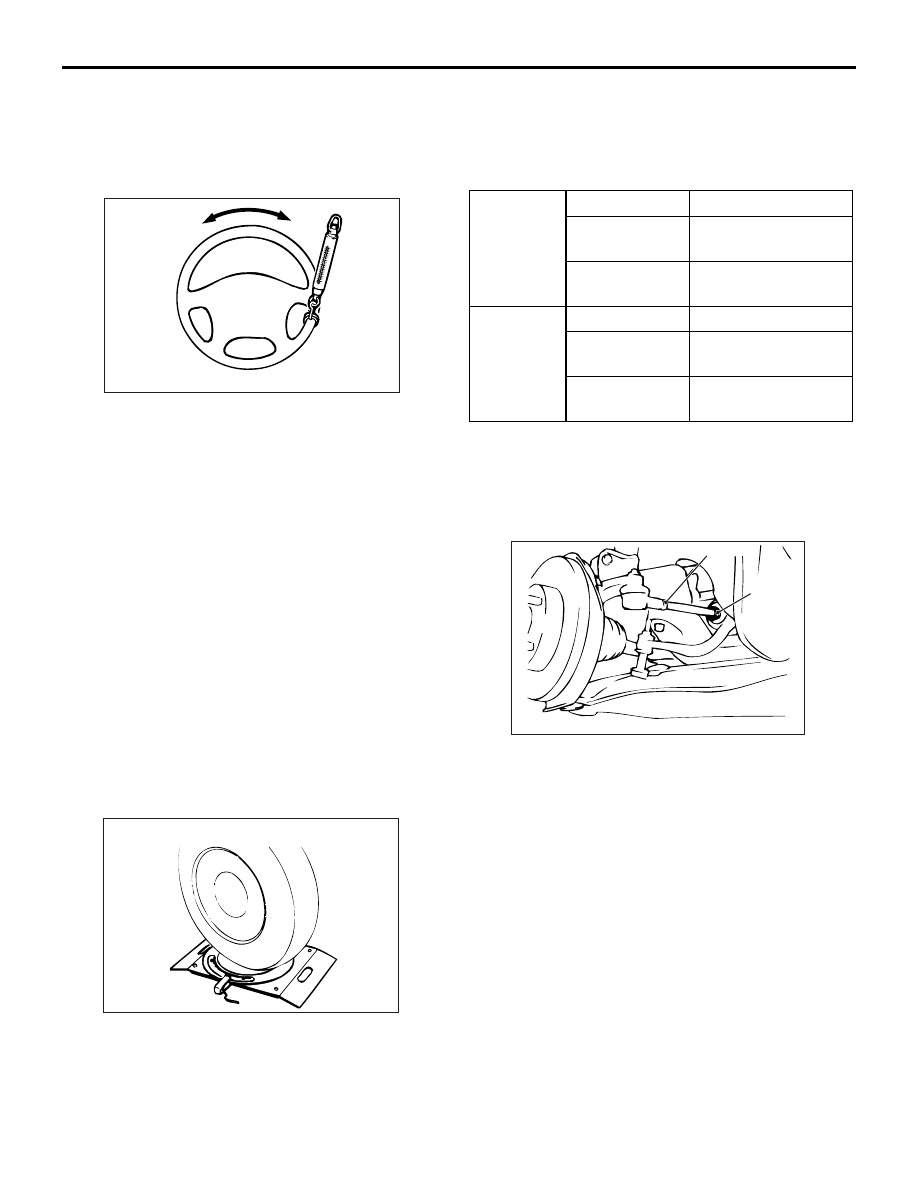

STEERING WHEEL FREE PLAY CHECK

M1372001000311

1. With the engine running (hydraulic operation), set

the front wheels straight ahead.

ACX01122 AB

2. Measure the play on the steering wheel

circumference before the wheels start to move
when slightly moving the steering wheel in both
directions.

Limit: 30 mm

3. When the play exceeds the limit, check for the

play on the steering shaft and steering linkage
connection. Correct or replace.

4. If the free play still exceeds the limit value, set the

steering wheel straight ahead with the engine
stopped. Load 5 N towards the steering wheel
circumference and check the play.

Standard value (steering wheel play with the
engine stopped): 10 mm or less

5. If the play exceeds the standard value, remove

the steering gear (Refer to

P.37-23

) and check

the total pinion torque (Refer to

P.37-26

).

STEERING ANGLE CHECK

M1372001100705

AC000756AB

1. Place the front wheel on a turning radius gauge

and measure the steering angle.

Standard value:

Inner
wheels

Invite

39

° 30' ± 1° 30'

Intense (LH
drive vehicles)

33

° 40' +1° 00'/-2° 00'

Intense (RH
drive vehicles)

37

° 00' +1° 00'/-2° 00'

Outer
wheels
(reference)

Invite

32

° 30'

Intense (LH
drive vehicles)

28

° 46'

Intense (RH
drive vehicles)

30

° 00'

2. If the steering angle is not within the standard

value, adjust the toe-in as follows.

Standard value:
at the centre of tyre tread: 1

± 2 mm

Toe angle (per wheel): 0

° 03' ± 06'

AC006074 AD

Lock nut

Clip

3. Loosen the lock nut, and unclip the bellows clip.
4. Adjust the toe-in by turning the left and right tie

rod turnbuckles by the same amount (in opposite
directions).
NOTE: The toe will move out as the left turnbuckle
is turned toward the front of the vehicle and the
right turnbuckle is turned toward the rear of the
vehicle.

5. Tighten the lock nut to the specified torque, and

tighten the bellows by the clip.

Tightening torque: 40

± 5 N⋅ m

6. Recheck the steering angle.
